Installation Procedure

WARNING: This page is about a different car, the 2007 Pontiac Montana SV6, 2007 Chevrolet Uplander, and 2007 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

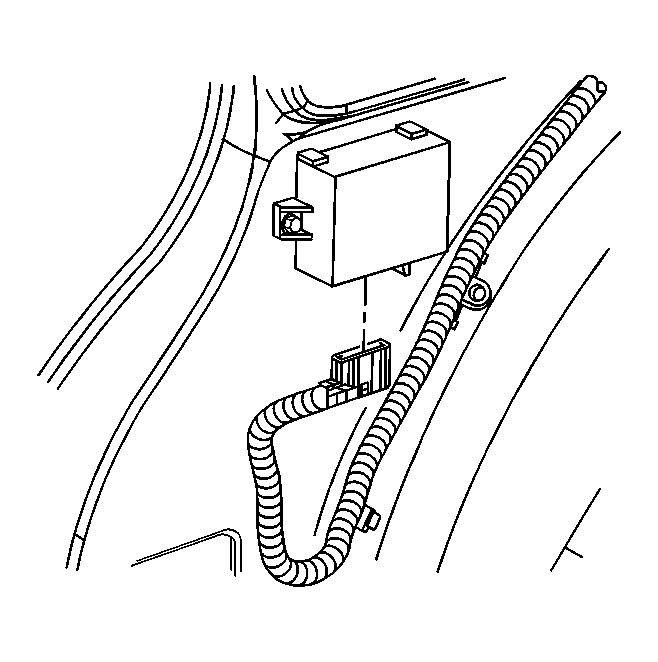

    Fig 1: View Of Electrical Connector & Rear Object Detection Module
    GM733623Courtesy of GENERAL MOTORS CORP.
  1. Align the rear object detection module to the vehicle.
    2. NOTE: Refer to Fastener Notice .
  2. Install the rear object detection module mounting bolts.

    Tighten:  Tighten the bolts to 10 N.m (89 lb in).

  3. Install the electrical connector to the rear object detection module and press in the locking tab.
  4. Install the rear compartment side trim. Refer to Rear Quarter Trim Panel Replacement - Right Side .
  5. Refer to Control Module References for programming and setup information.
