Installation Procedure

  1. Install the air cleaner assembly into position, aligning locking pins into the front panel.

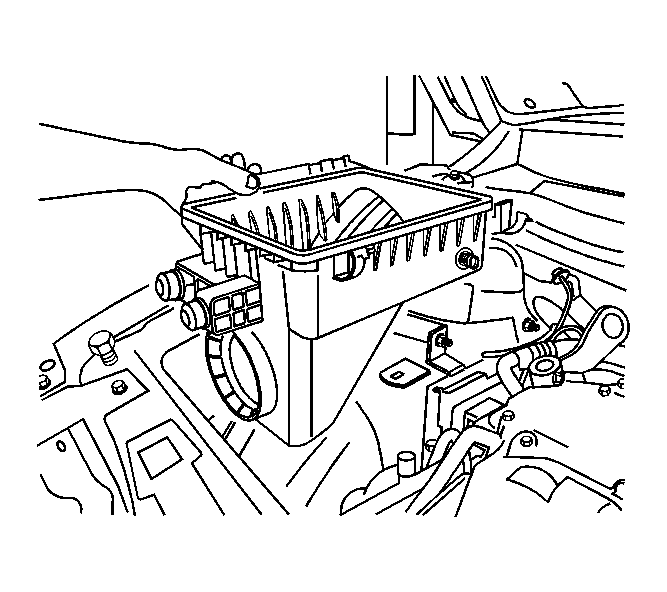

    Fig 1: View Of Air Cleaner Assembly
    GM1226453Courtesy of GENERAL MOTORS CORP.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the air cleaner attachment bolt.

    Tighten:  Tighten the bolt to 10 N.m (89 lb. in.).

  3. Install the filter element and air cleaner assembly top cover.

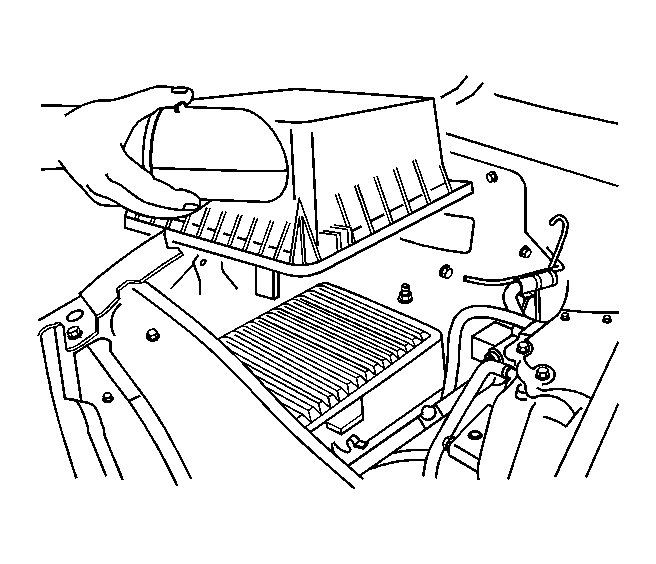

    Fig 2: View Of Filter Element & Air Cleaner Assembly
    GM1226445Courtesy of GENERAL MOTORS CORP.
  4. Tighten the clamp at the air cleaner assembly.

    Tighten:  Tighten the clamp to 4 N.m (35 lb. in.).

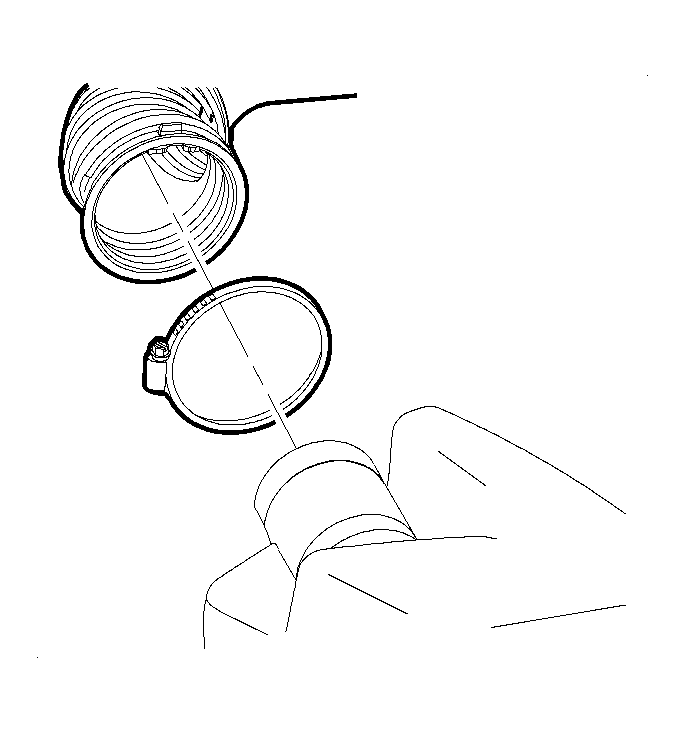

    Fig 3: View Of Air Cleaner Element
    GM959425Courtesy of GENERAL MOTORS CORP.
  5. Connect the IAT 1 sensor connector.
