Installation Procedure

NOTE: Refer to Fastener Notice in Cautions and Notices.

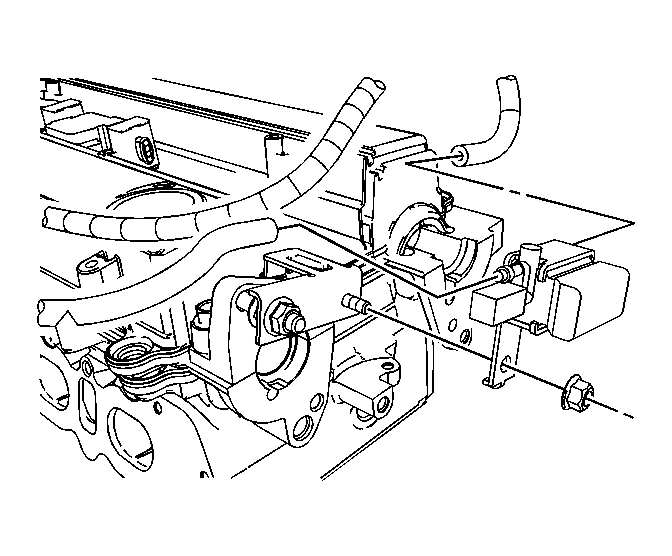

Fig 1: Identifying Boost Control Solenoid
GM1686667Courtesy of GENERAL MOTORS CORP.
  1. Install the boost control solenoid and bolt.

    Tighten:  Tighten the bolt to 10 N.m (89 lb in).

  2. Connect the boost control solenoid connector.
