Engine Controls - Introduction (2 Of 2)
>>
Schematic and Routing Diagrams
>>
Engine Controls Schematics
Engine Controls Schematics
Fig 1: Power, Ground, MIL, and Serial Data
Courtesy of GENERAL MOTORS CORP.
Fig 2: Engine Data Sensors - 5-Volt and Low Reference Busing
Courtesy of GENERAL MOTORS CORP.

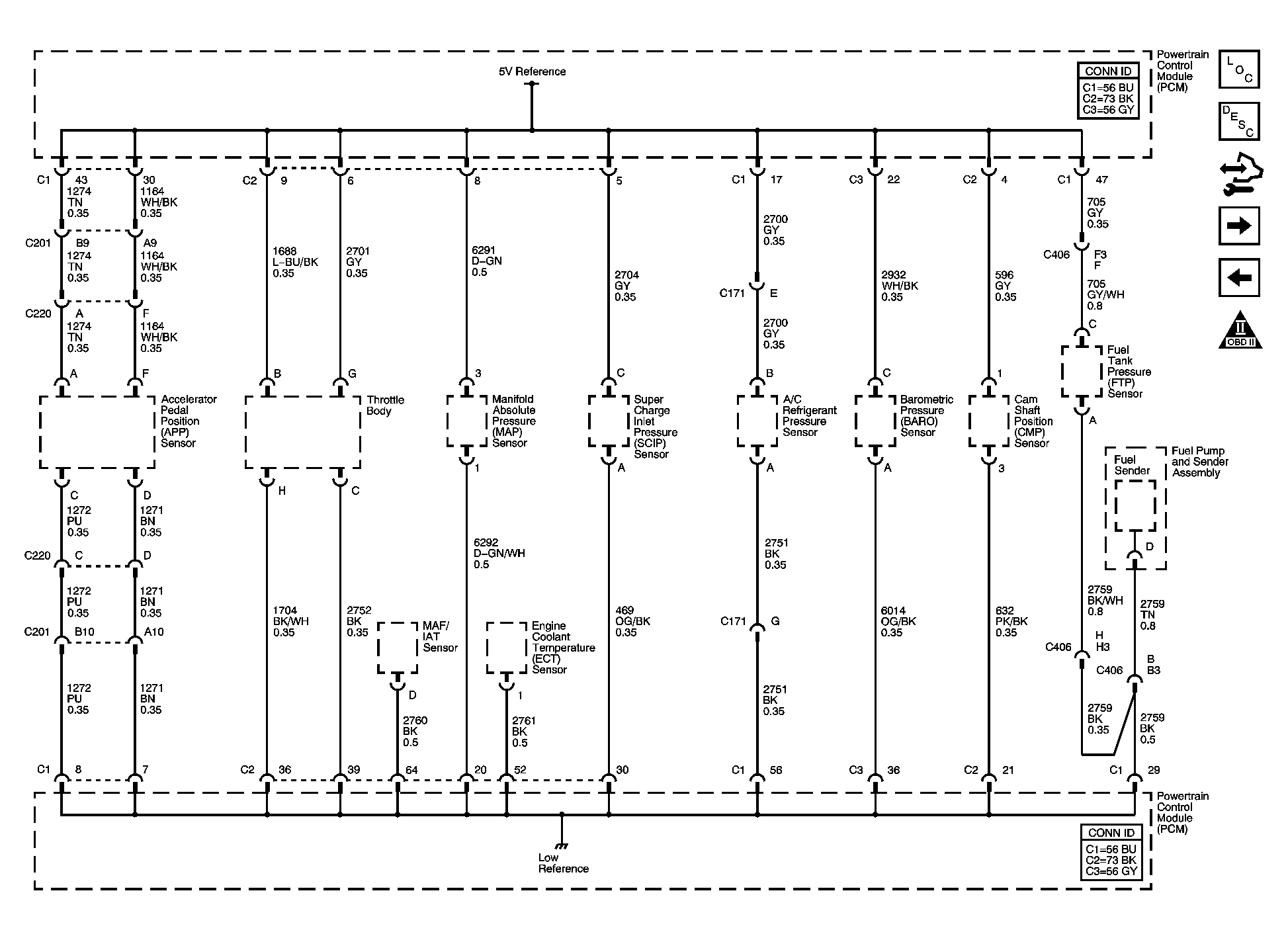

Fig 3: Engine Data Sensors - Pressure and Temperature
Courtesy of GENERAL MOTORS CORP.

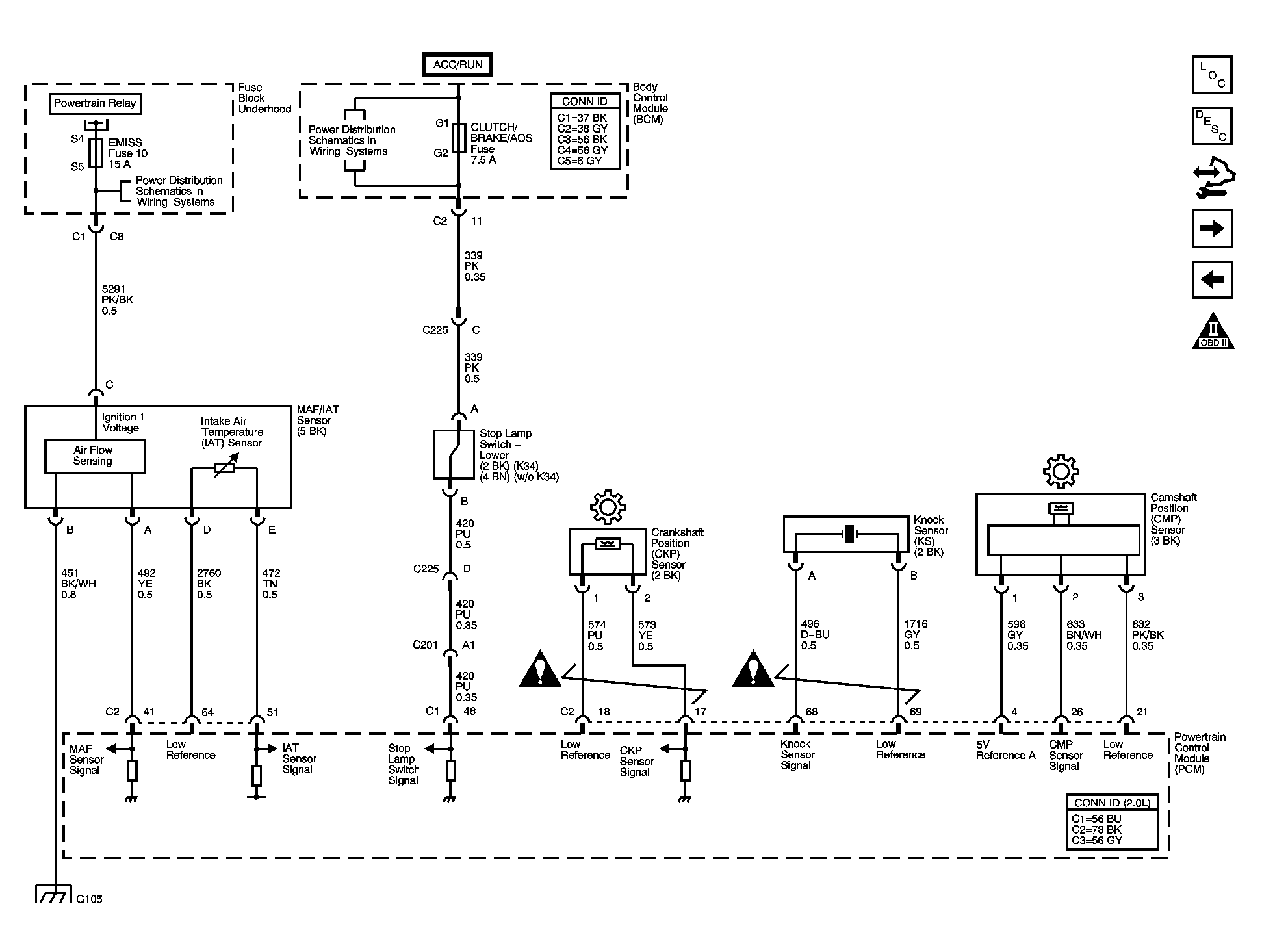

Fig 4: Engine Data Sensors - MAF/IAT, CKP, KS and Stop Lamp Switch - Lower
Courtesy of GENERAL MOTORS CORP.
Fig 5: Engine Data Sensors - HO2S
Courtesy of GENERAL MOTORS CORP.
Fig 6: Engine Data Sensors - APP and TAC
Courtesy of GENERAL MOTORS CORP.
Fig 7: Ignition Controls
Courtesy of GENERAL MOTORS CORP.

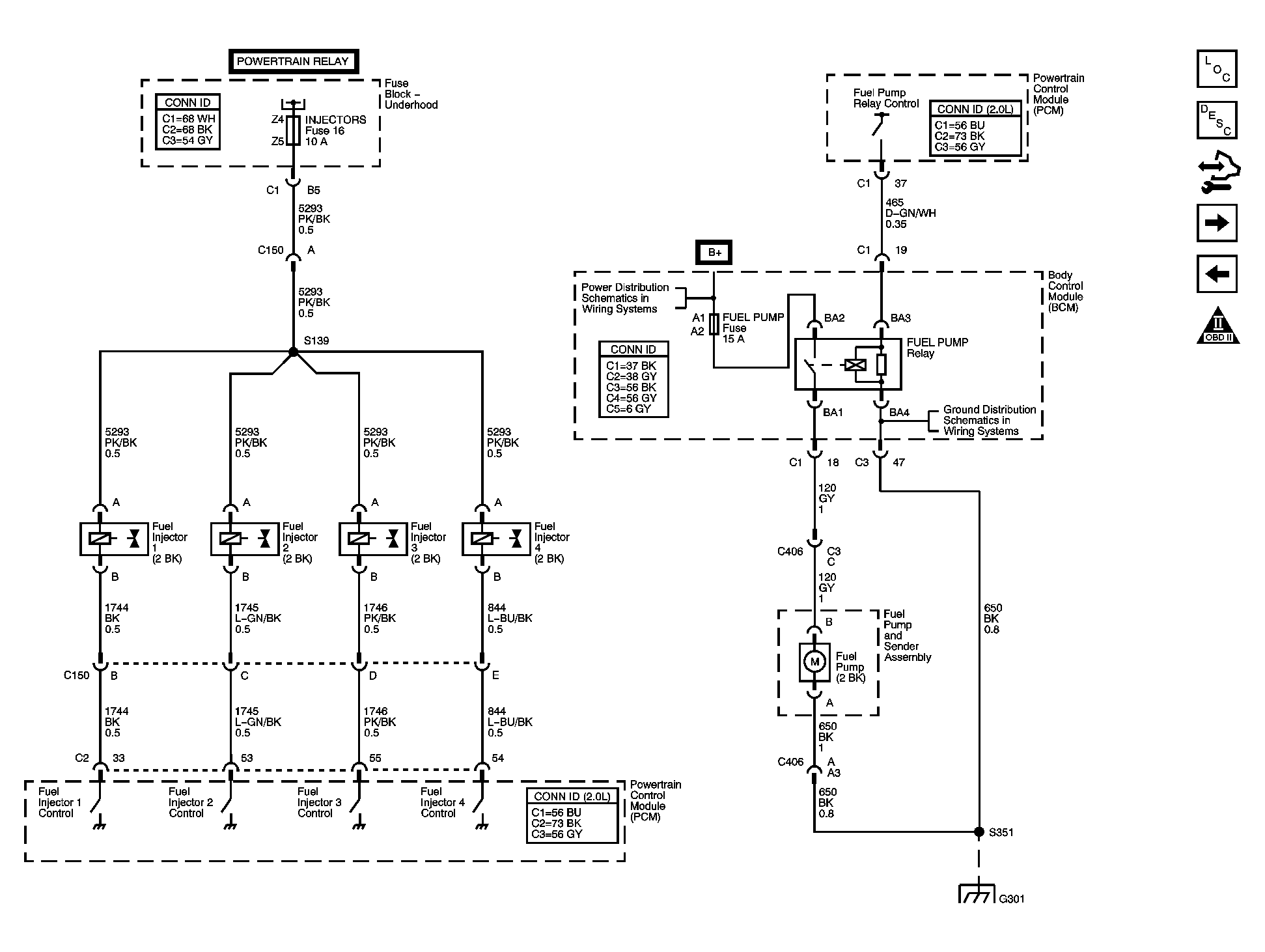

Fig 8: Fuel Controls
Courtesy of GENERAL MOTORS CORP.
Fig 9: EVAP Controls, After Cooler Pump, and Supercharger By-Pass Valve Solenoid
Courtesy of GENERAL MOTORS CORP.

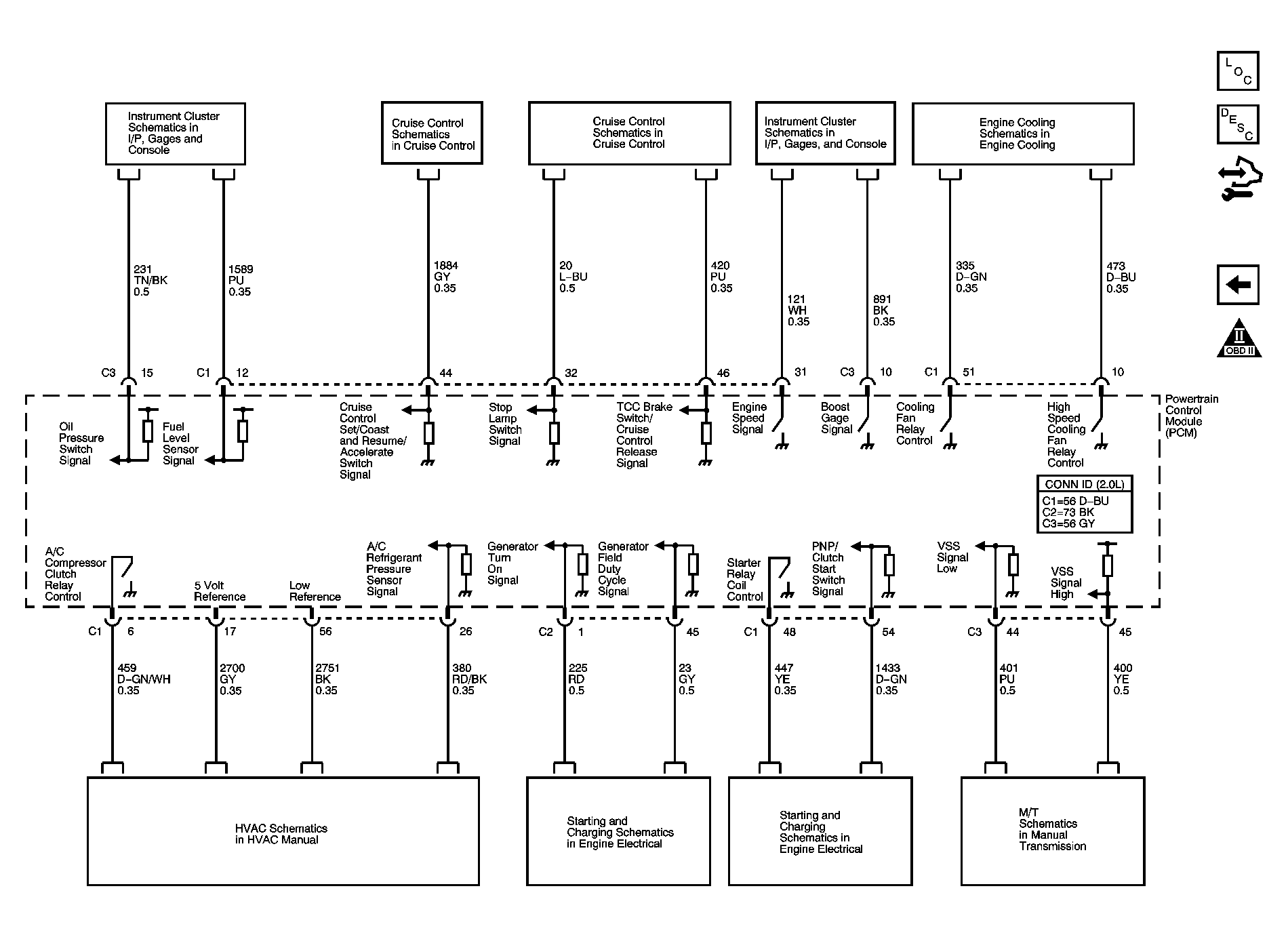

Fig 10: Controlled/Monitored Subsystem Reference
Courtesy of GENERAL MOTORS CORP.
