Remote Function Component Views

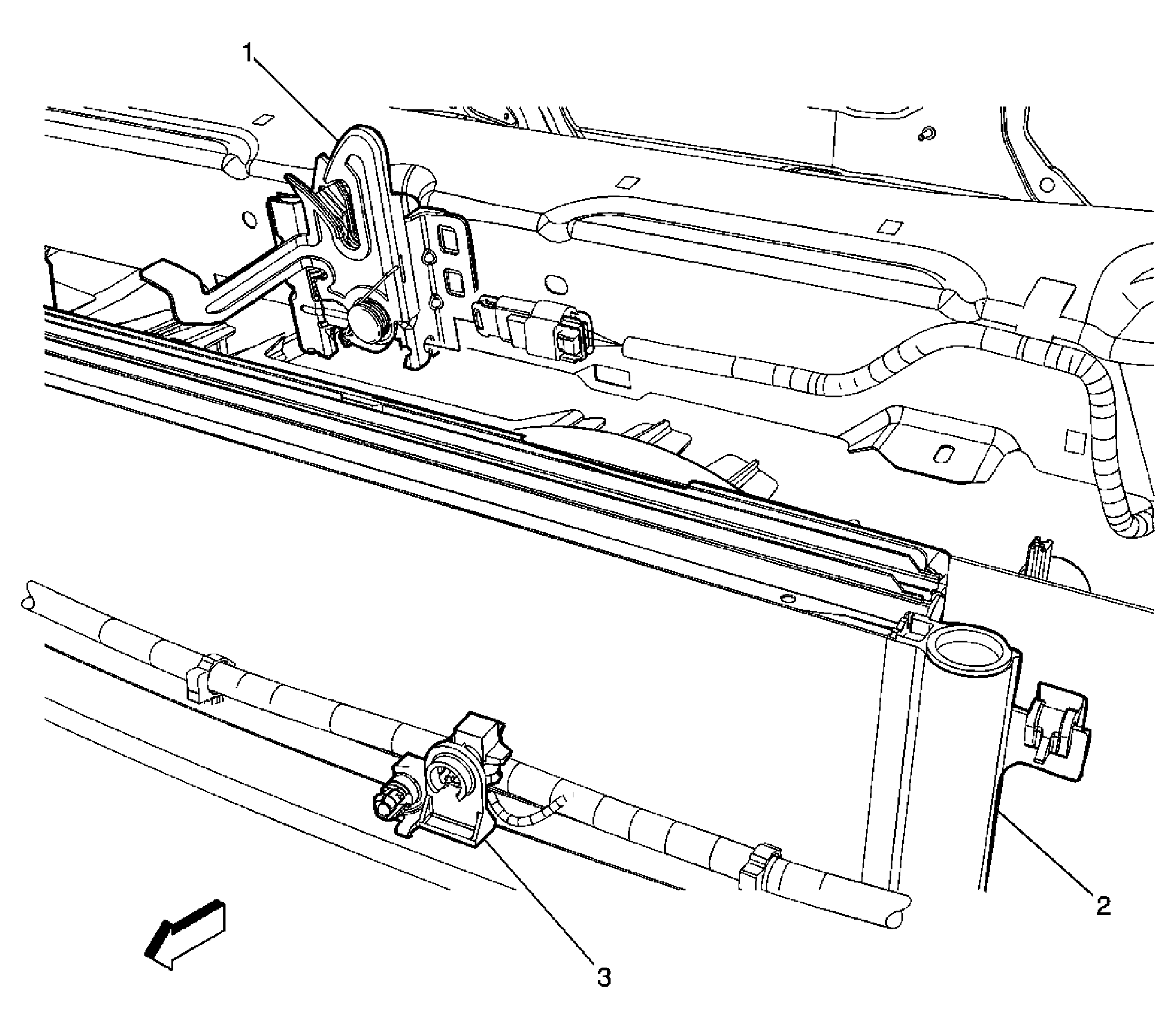

Fig 1: View At Front Of Radiator

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Hood Ajar Switch (AP3/AP8)
2	A/C Condenser
3	Ambient Air Temperature Sensor

Fig 2: View Of Forward Overhead Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Courtesy/Reading Lamp - Left Front (DK6)
2	Cellular Telephone Microphone (UE1)
3	Sunroof Switch (CF5)/Sunroof Shade Switch (C3Y)
4	Garage Door Opener (GDO) (UG1)
5	Courtesy/Reading Lamp - Right (DK6)
6	Dome/Reading Lamp
7	Sunroof (CF5)
8	Vanity Mirror Lamp - Right (DH6)
9	Inside Rearview Mirror
10	OnStar Keypad (UE1)
11	Vanity Mirror Lamp - Left (DH6)

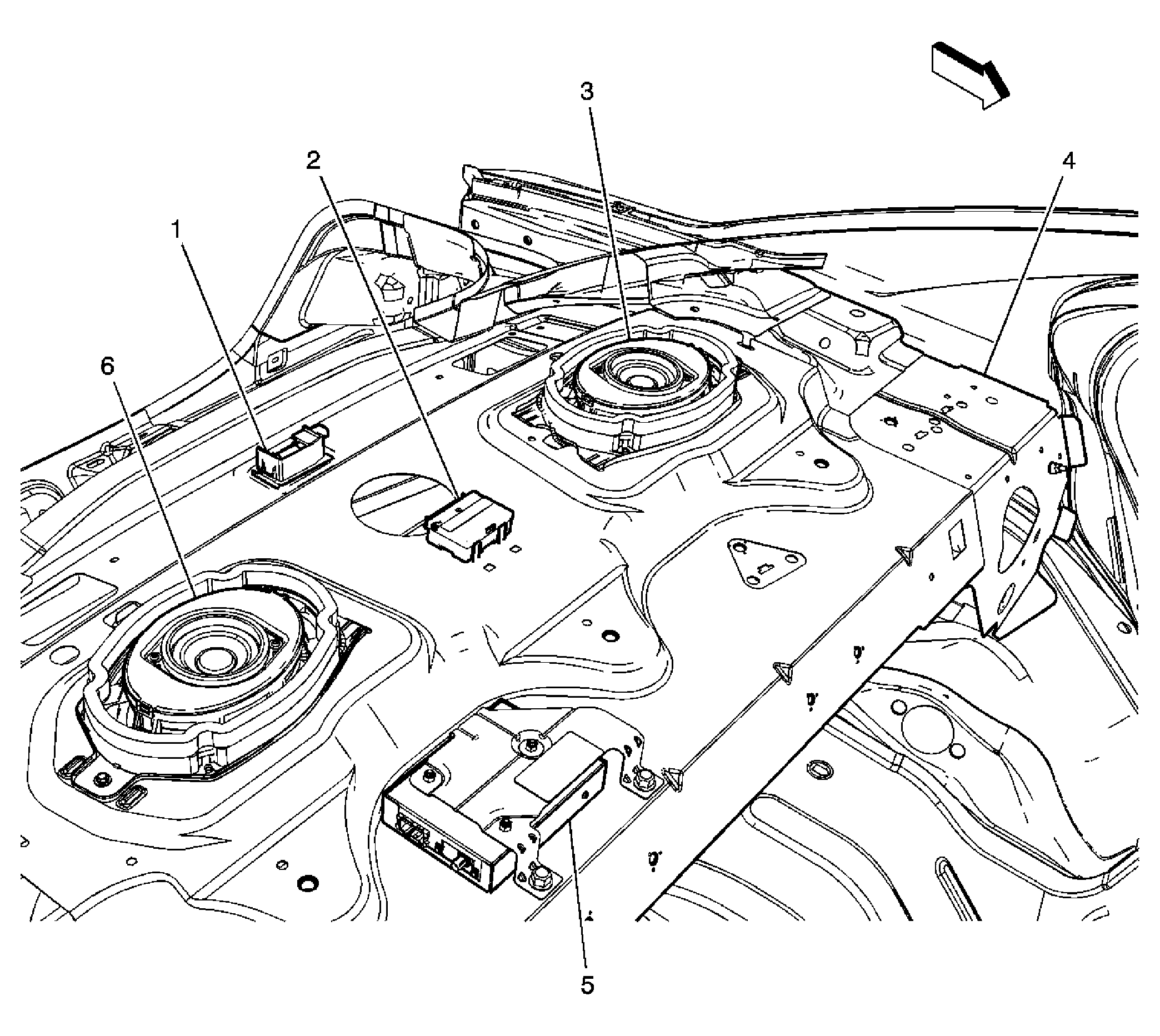

Fig 3: View Of Rear Shelf Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Compartment Courtesy Lamp
2	Remote Control Door Lock Receiver (RCDLR) (AUO)
3	Speaker - LR
4	Rear Shelf
5	Digital Radio Receiver (U2K)
6	Speaker - RR
