Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

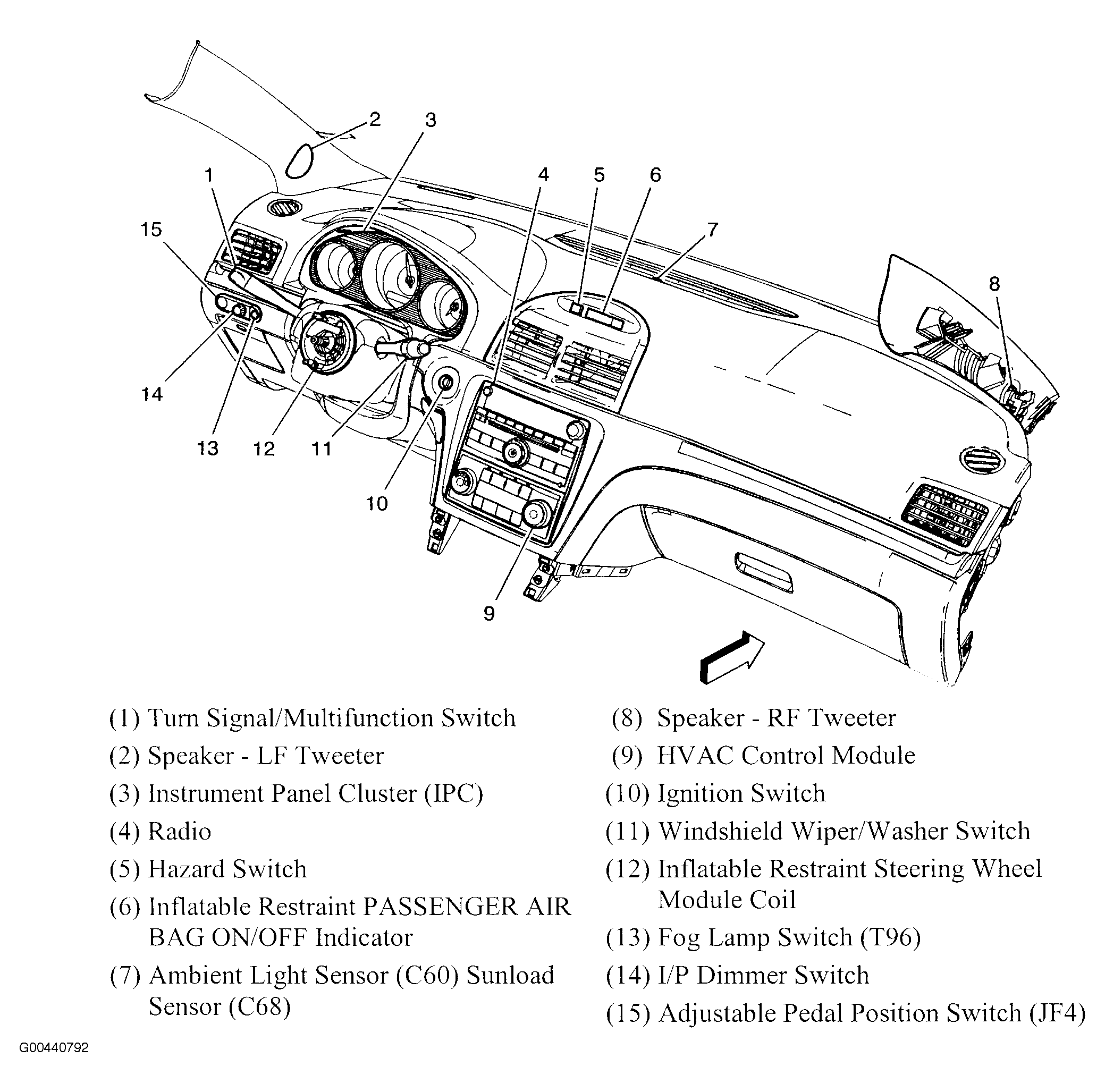

Fig 1: Front Of Dash
Courtesy of GENERAL MOTORS CORP.

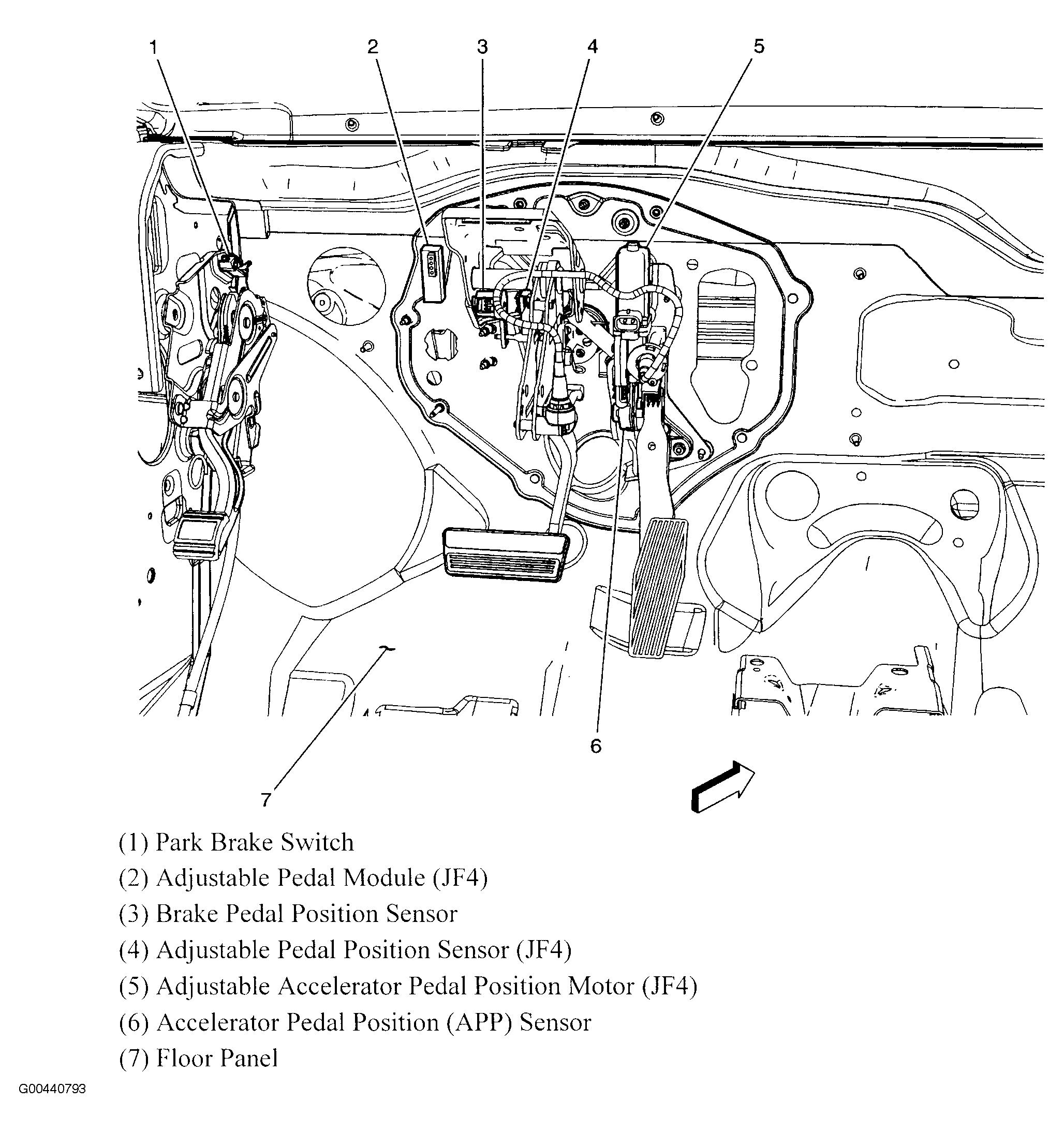

Fig 2: Park Brake & Pedal Assemblies
Courtesy of GENERAL MOTORS CORP.

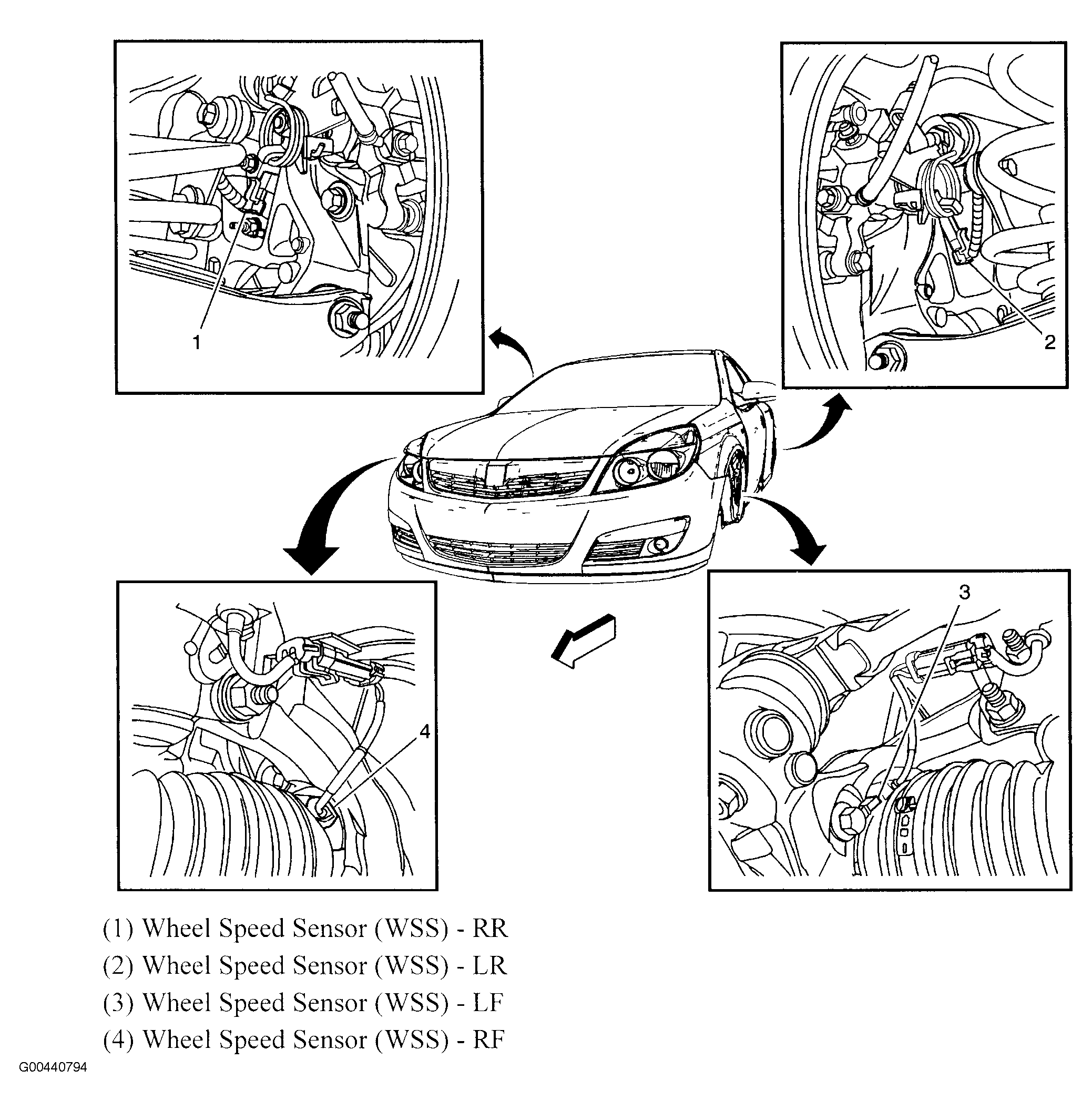

Fig 3: Wheel Speed Sensors
Courtesy of GENERAL MOTORS CORP.

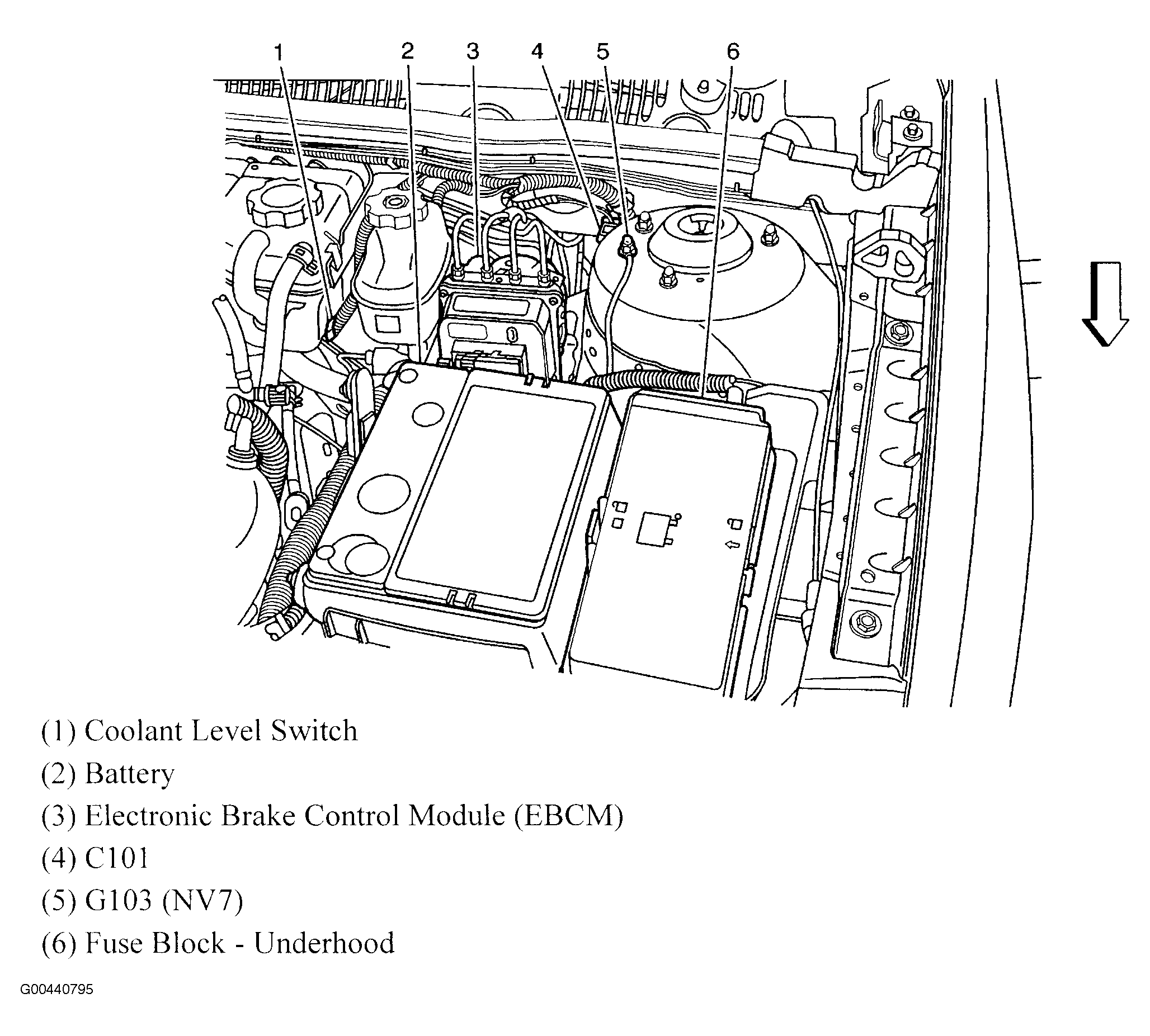

Fig 4: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

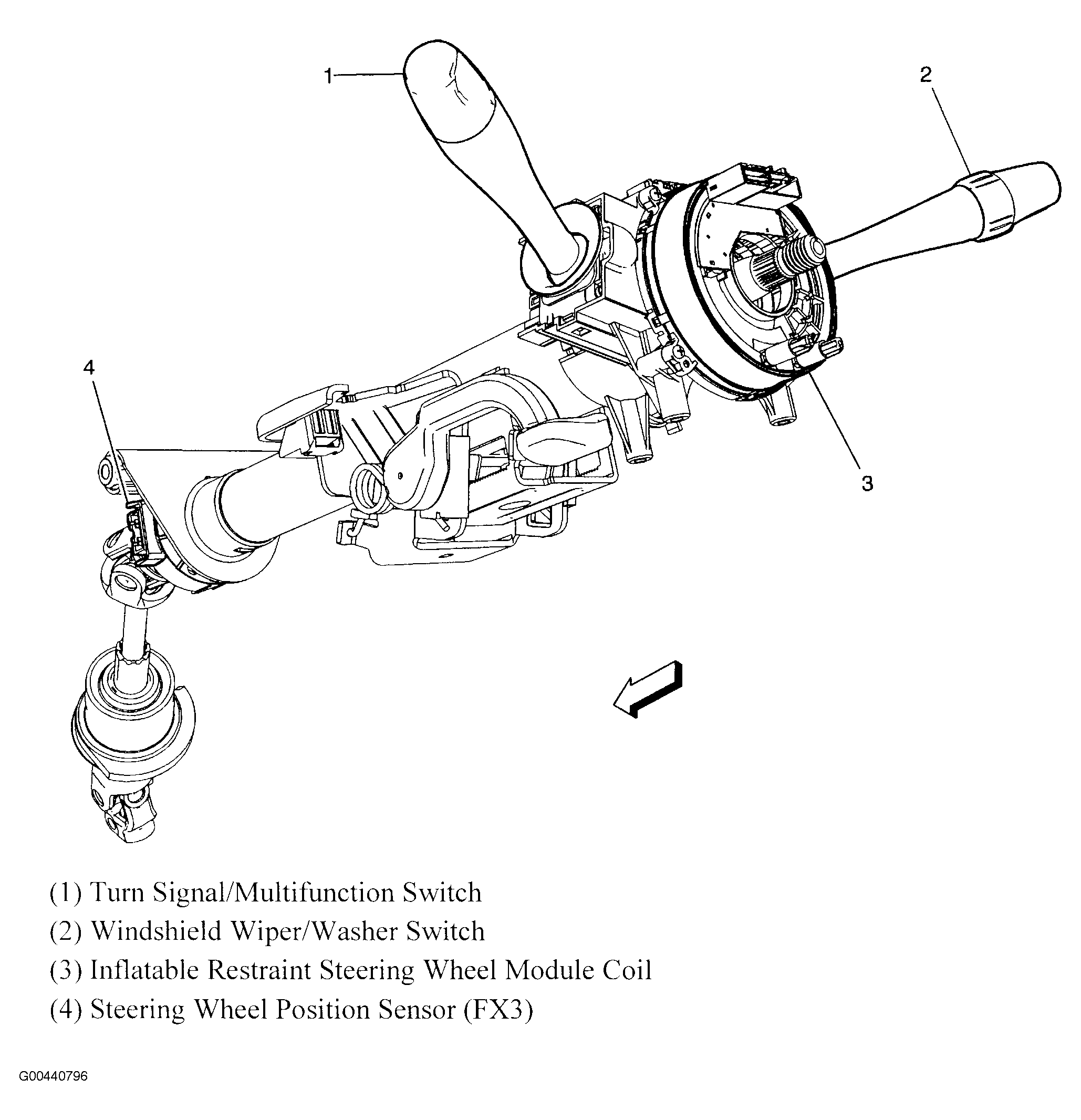

Fig 5: Steering Column
Courtesy of GENERAL MOTORS CORP.

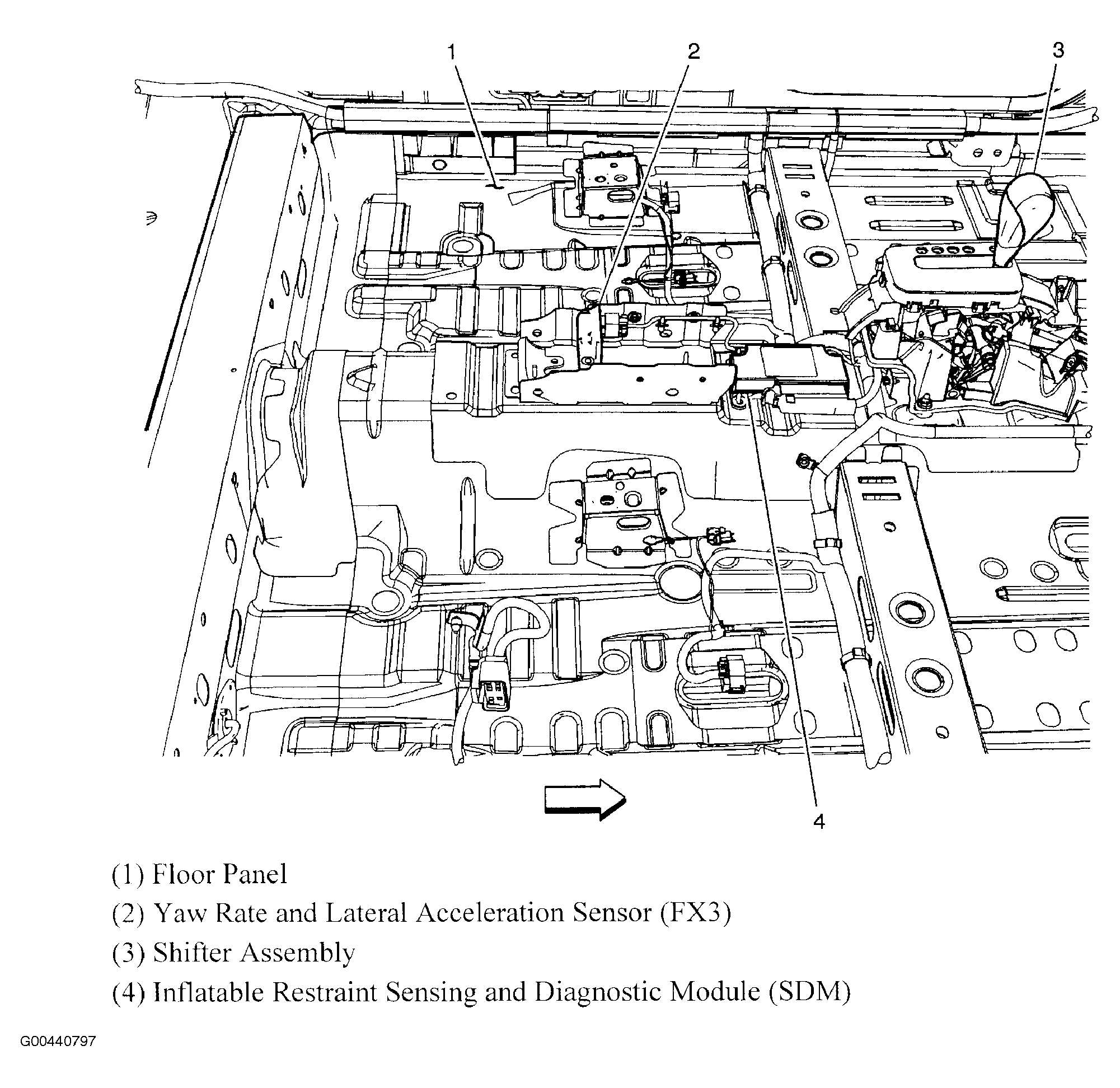

Fig 6: Behind Shifter Assembly
Courtesy of GENERAL MOTORS CORP.

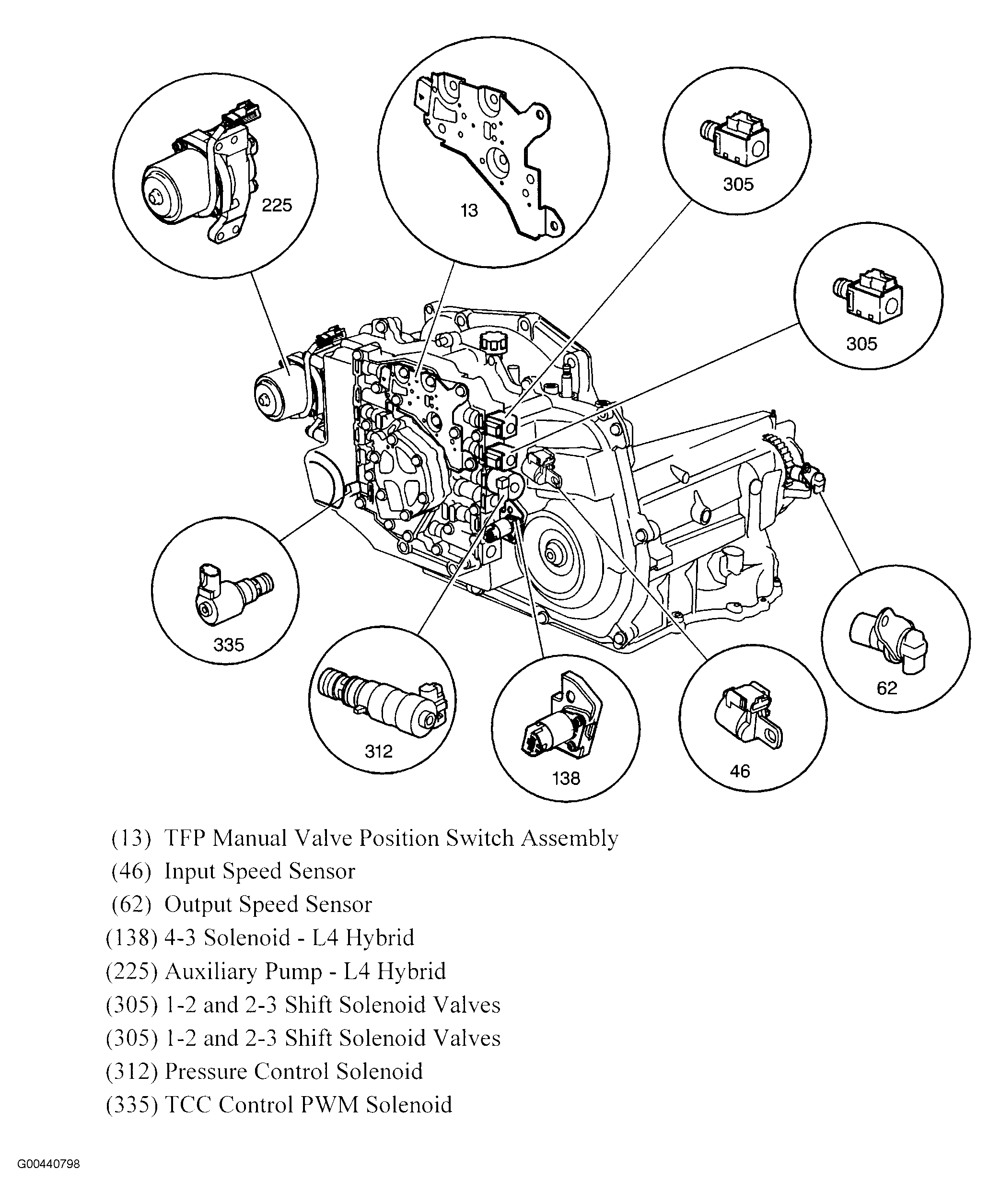

Fig 7: Automatic Transmission Electronic Components - Hybrid
Courtesy of GENERAL MOTORS CORP.

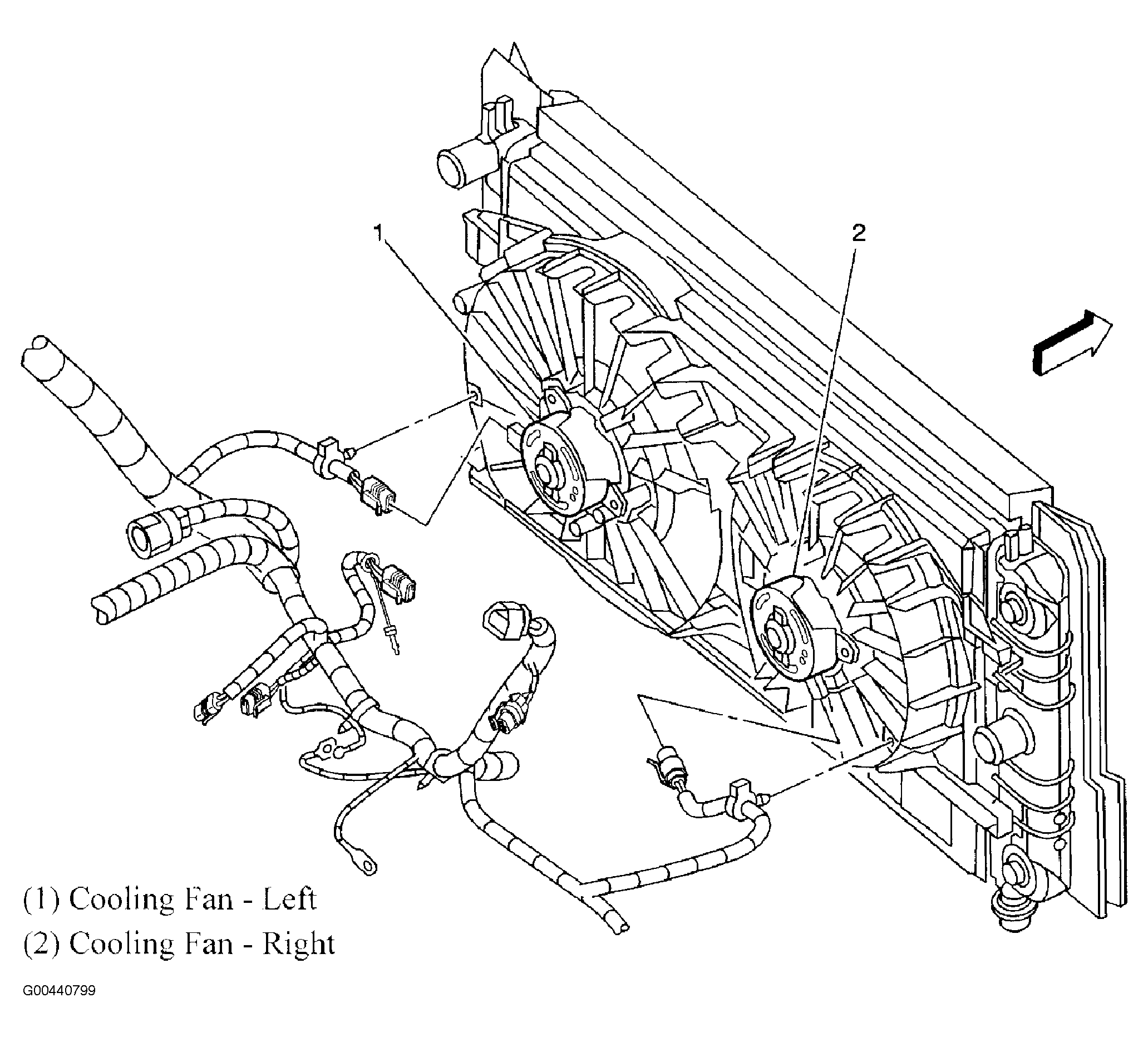

Fig 8: Cooling Fans
Courtesy of GENERAL MOTORS CORP.

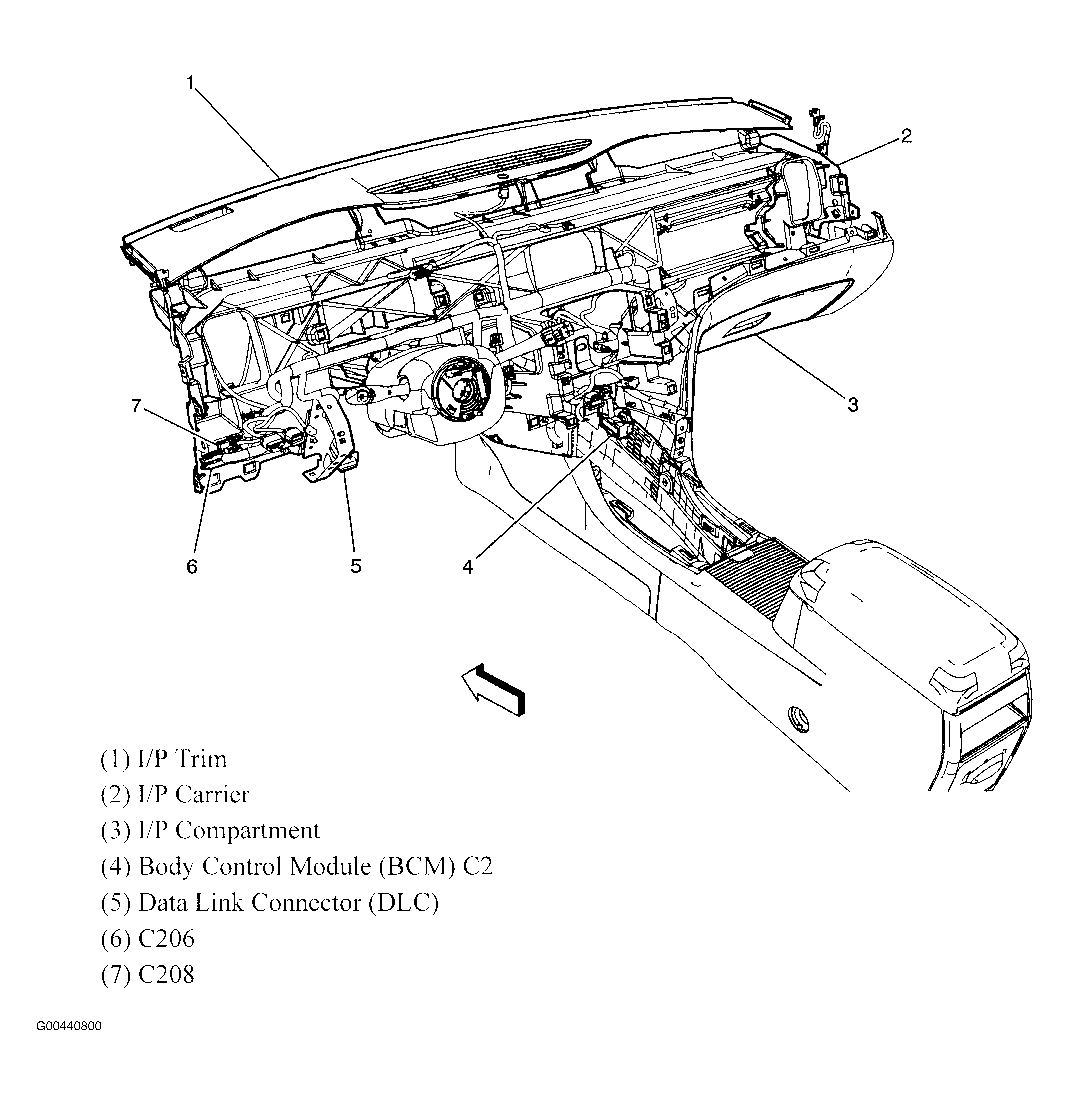

Fig 9: Dash Harness - Front Of Carrier
Courtesy of GENERAL MOTORS CORP.

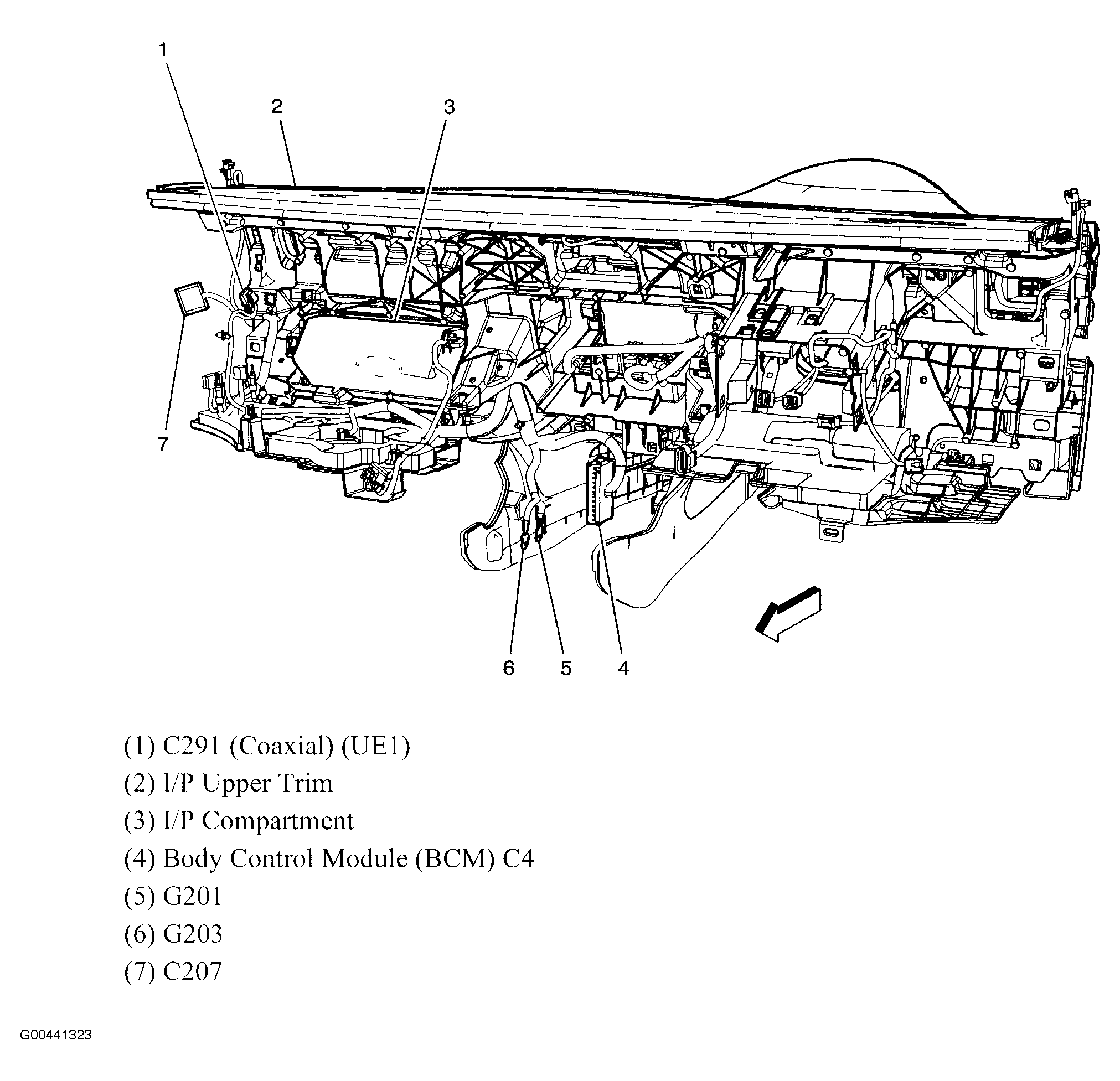

Fig 10: Behind Dash
Courtesy of GENERAL MOTORS CORP.

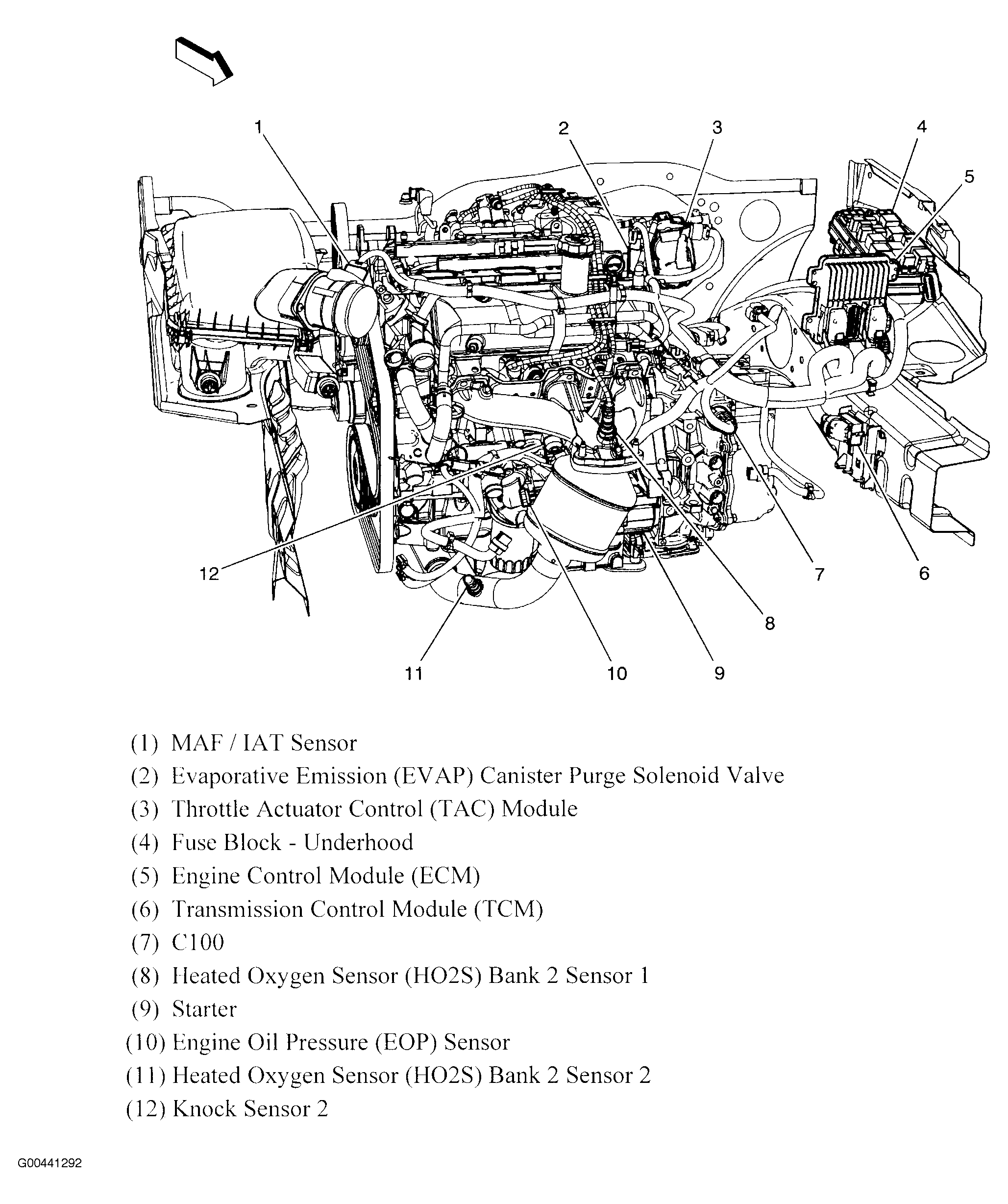

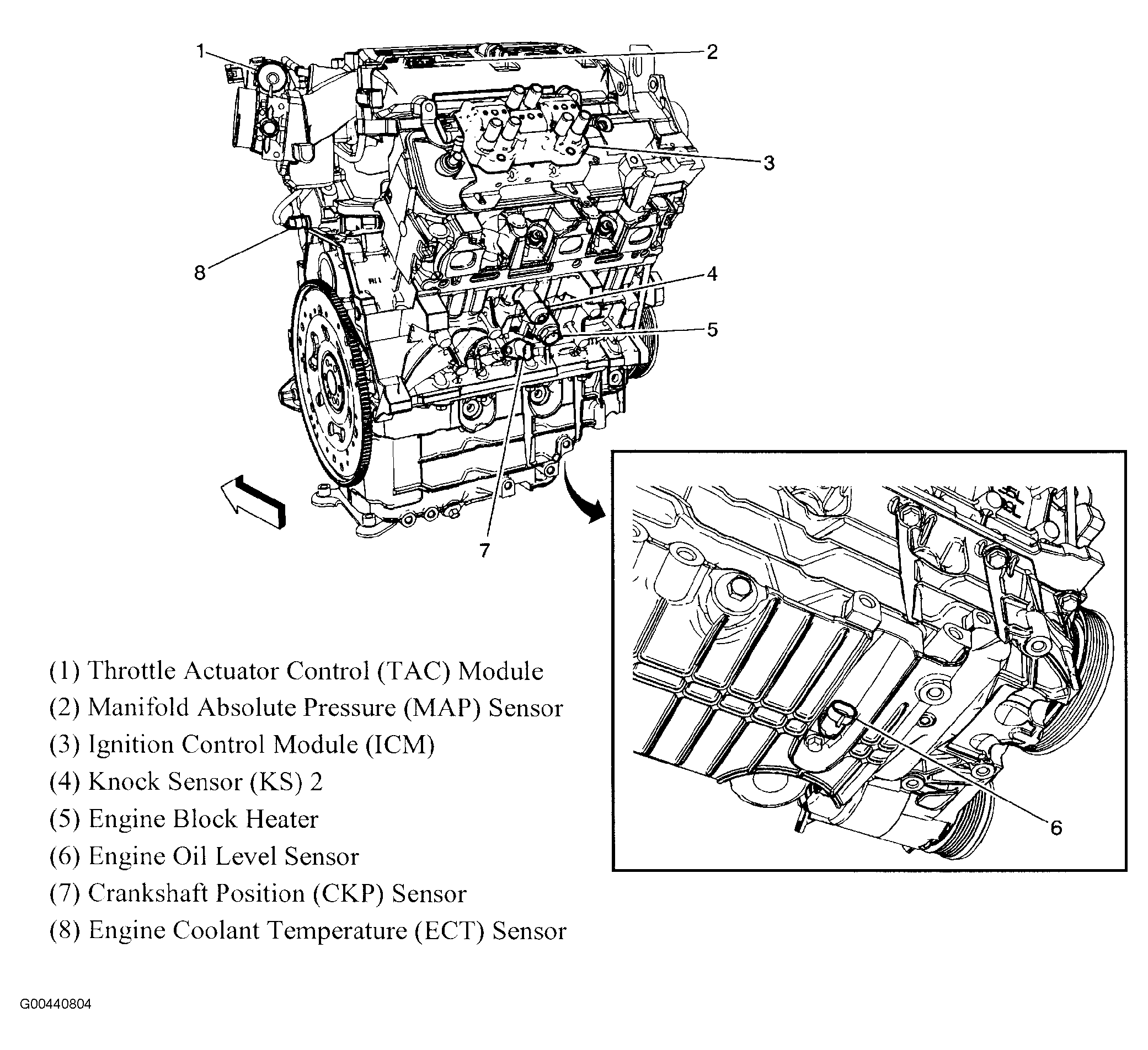

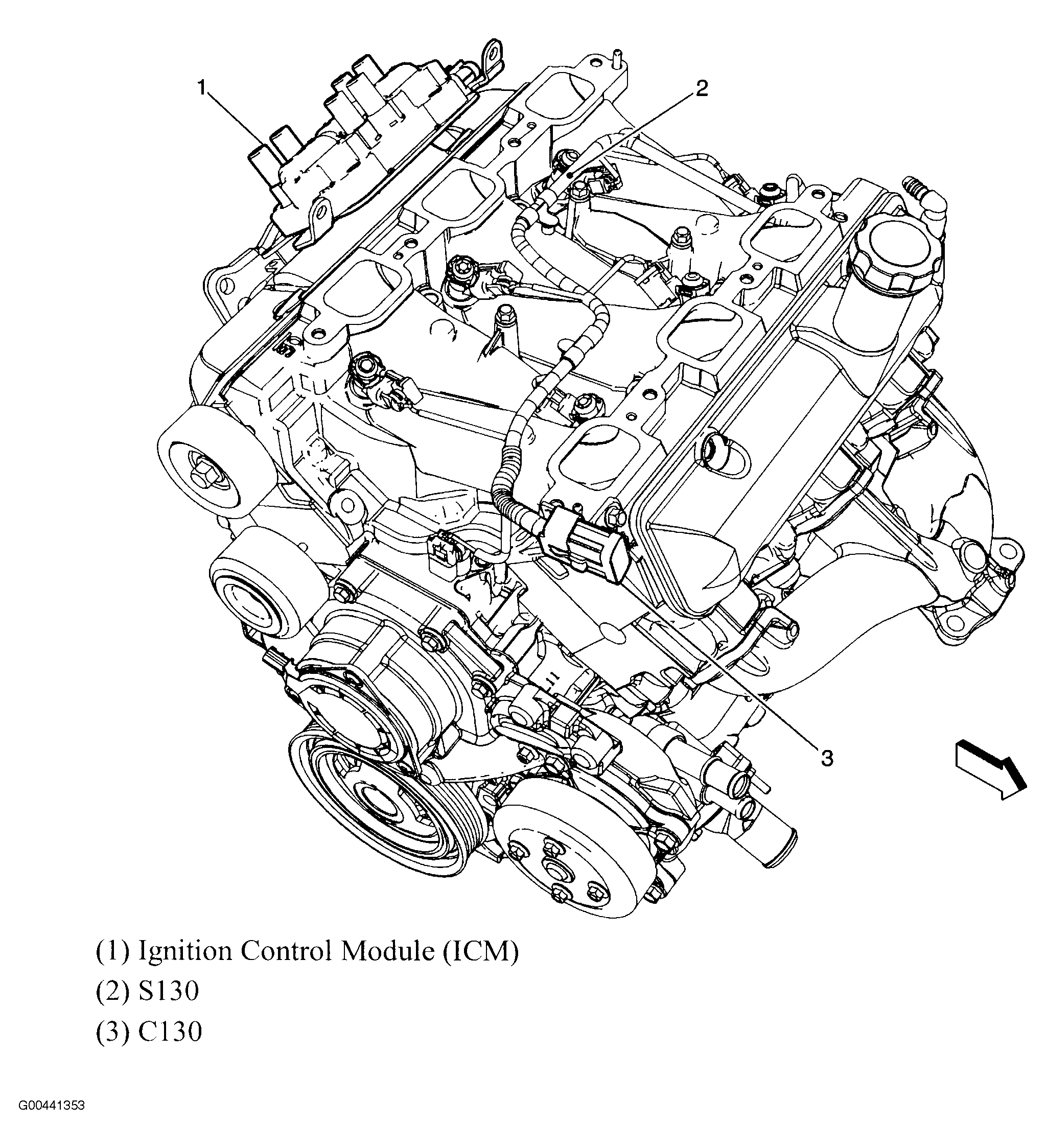

Fig 11: Left Side Of Engine - 3.6L
Courtesy of GENERAL MOTORS CORP.

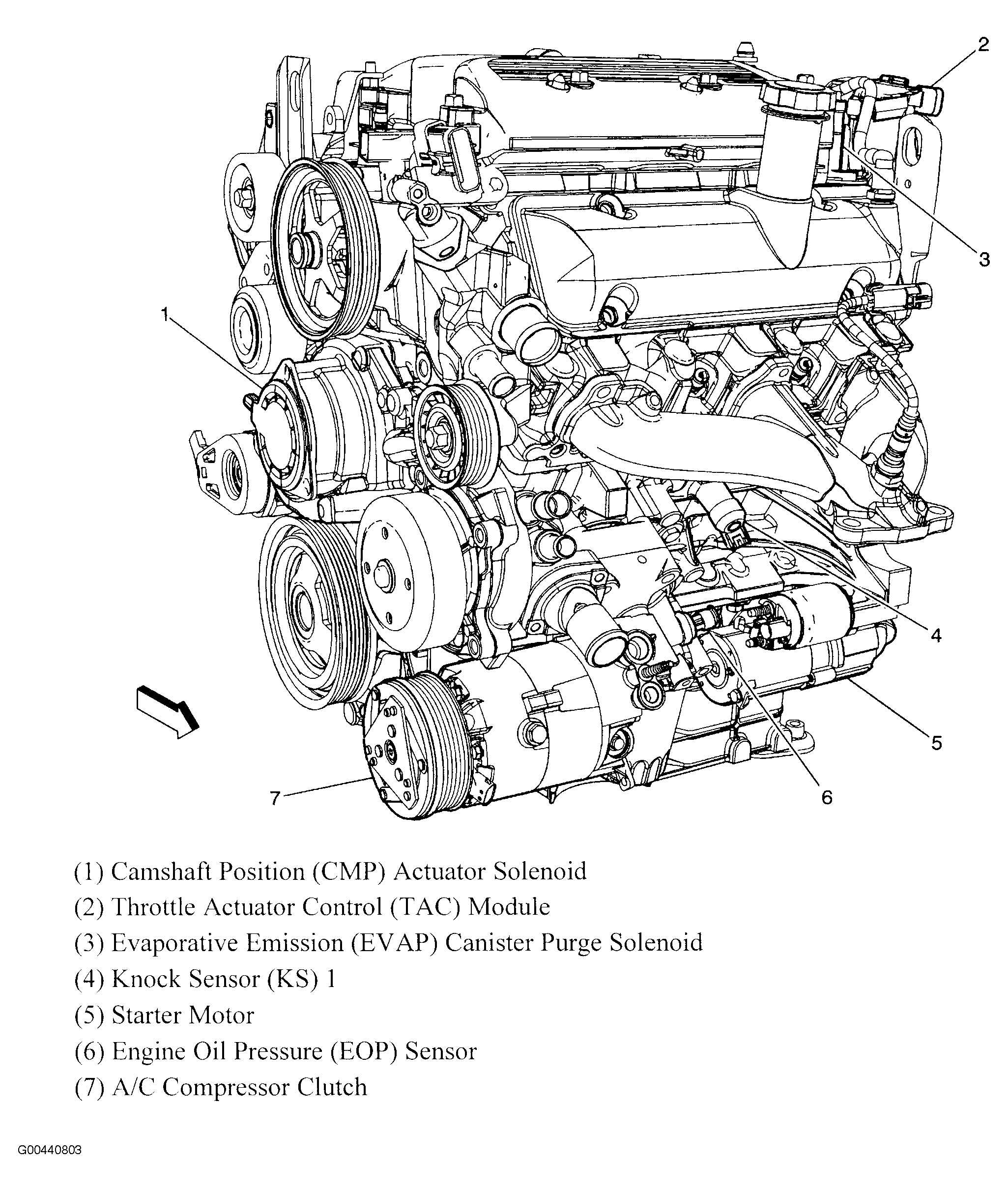

Fig 12: Front/Left Side Engine - 3.5L
Courtesy of GENERAL MOTORS CORP.
Fig 13: Right Side/Rear Of Engine - 3.5L
Courtesy of GENERAL MOTORS CORP.

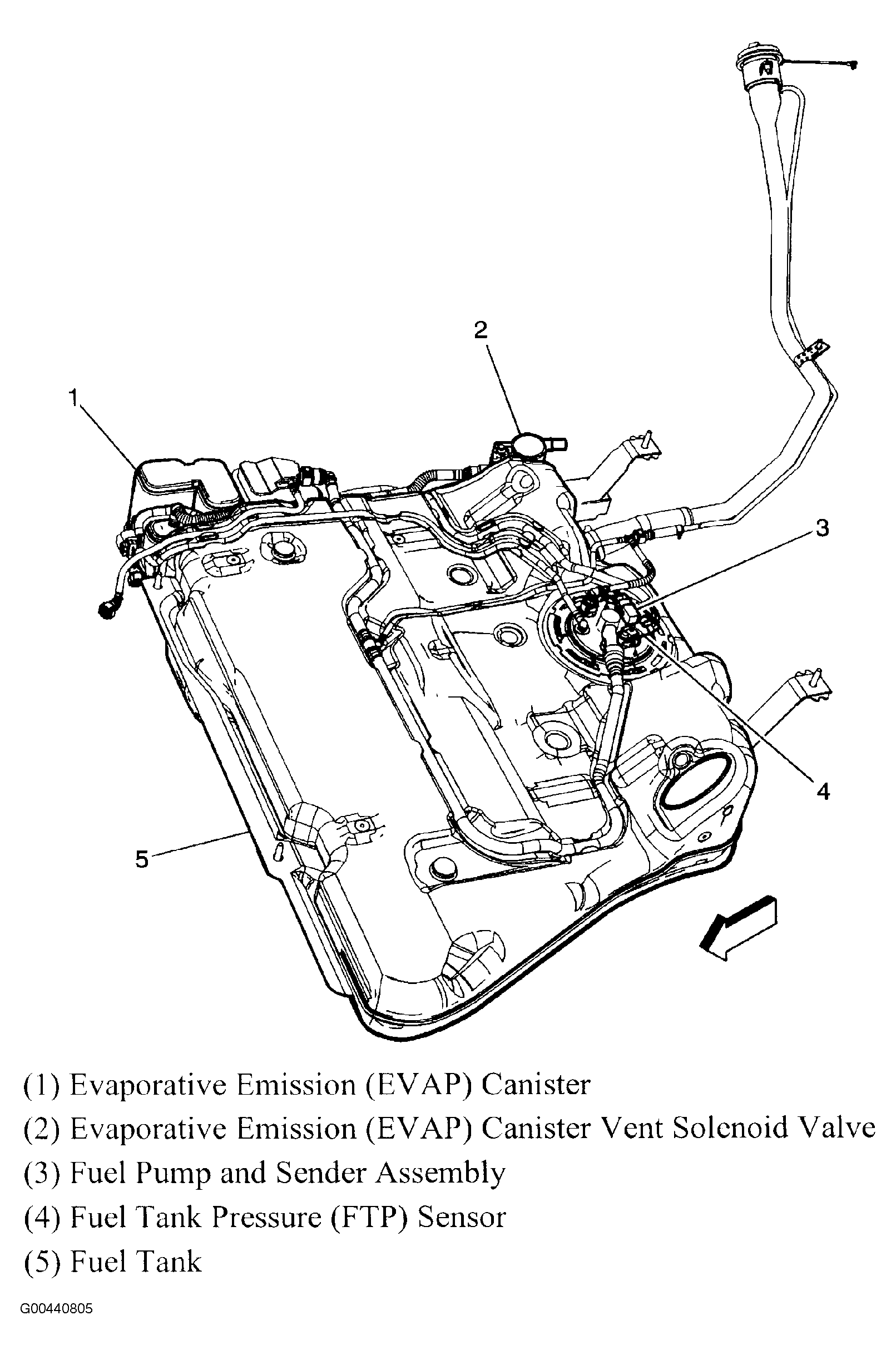

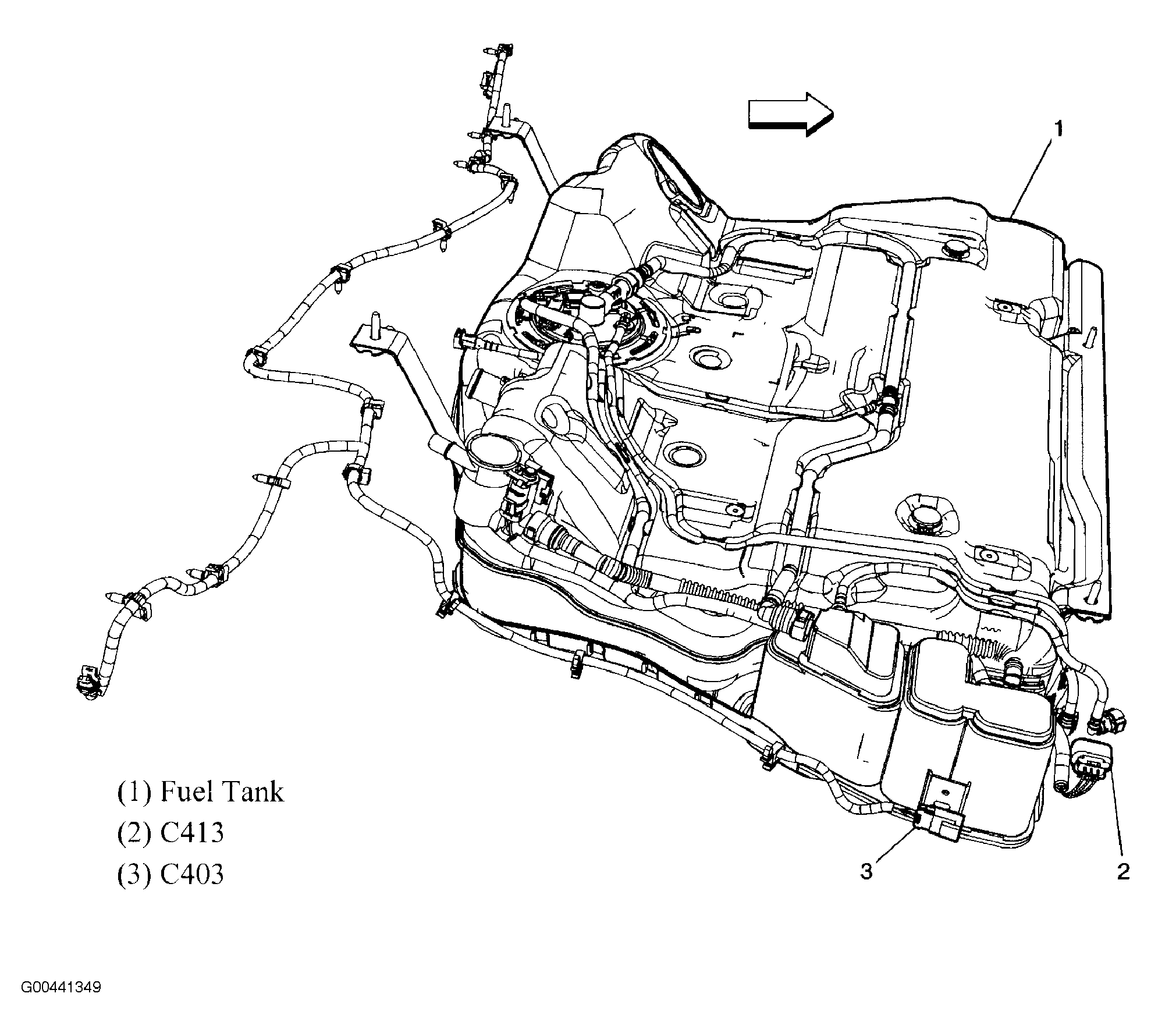

Fig 14: Fuel Tank Components
Courtesy of GENERAL MOTORS CORP.
Fig 15: Front Of Engine Compartment - 2.4L
Courtesy of GENERAL MOTORS CORP.

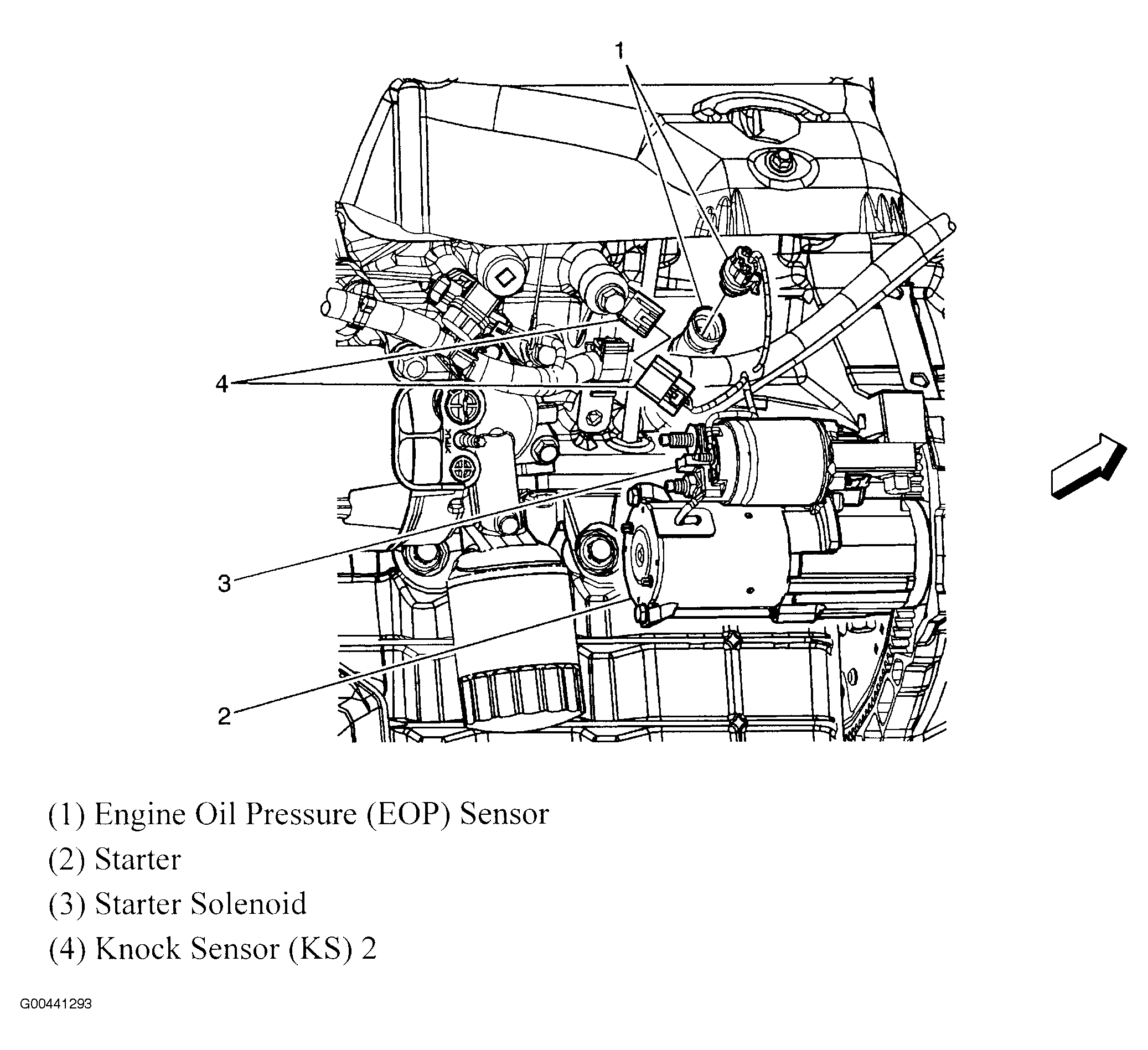

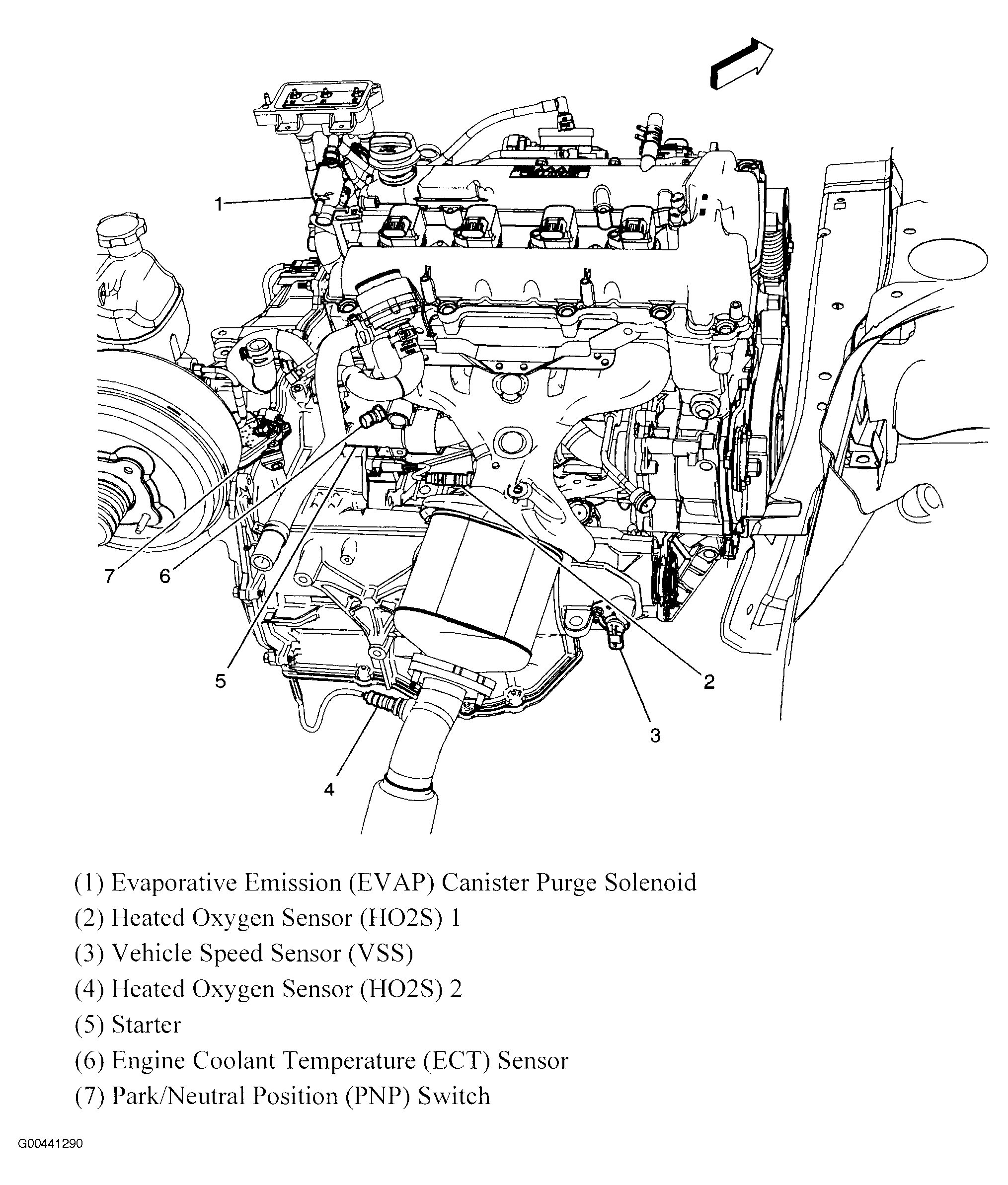

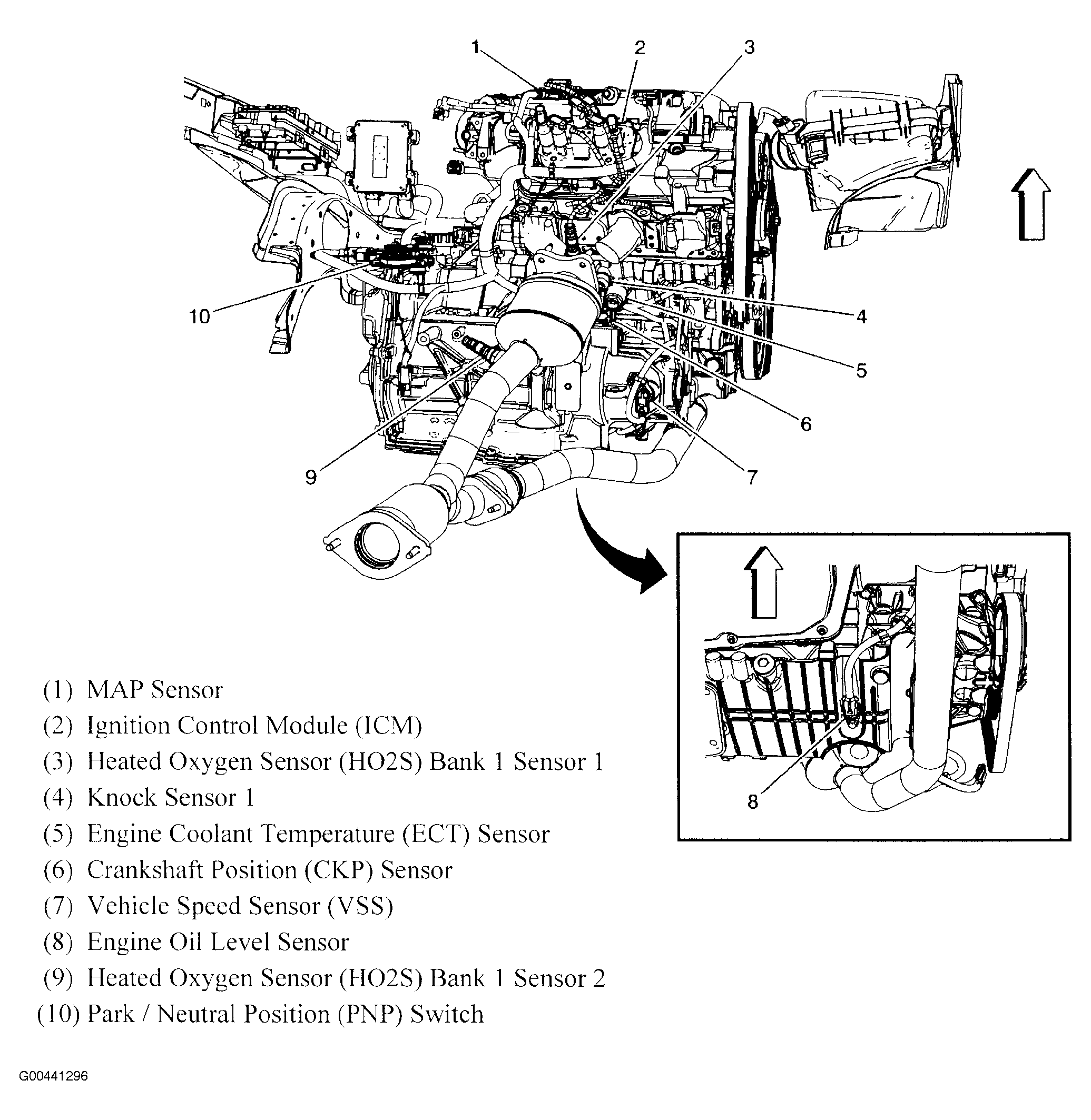

Fig 16: Left Side Of Engine - 2.4L
Courtesy of GENERAL MOTORS CORP.

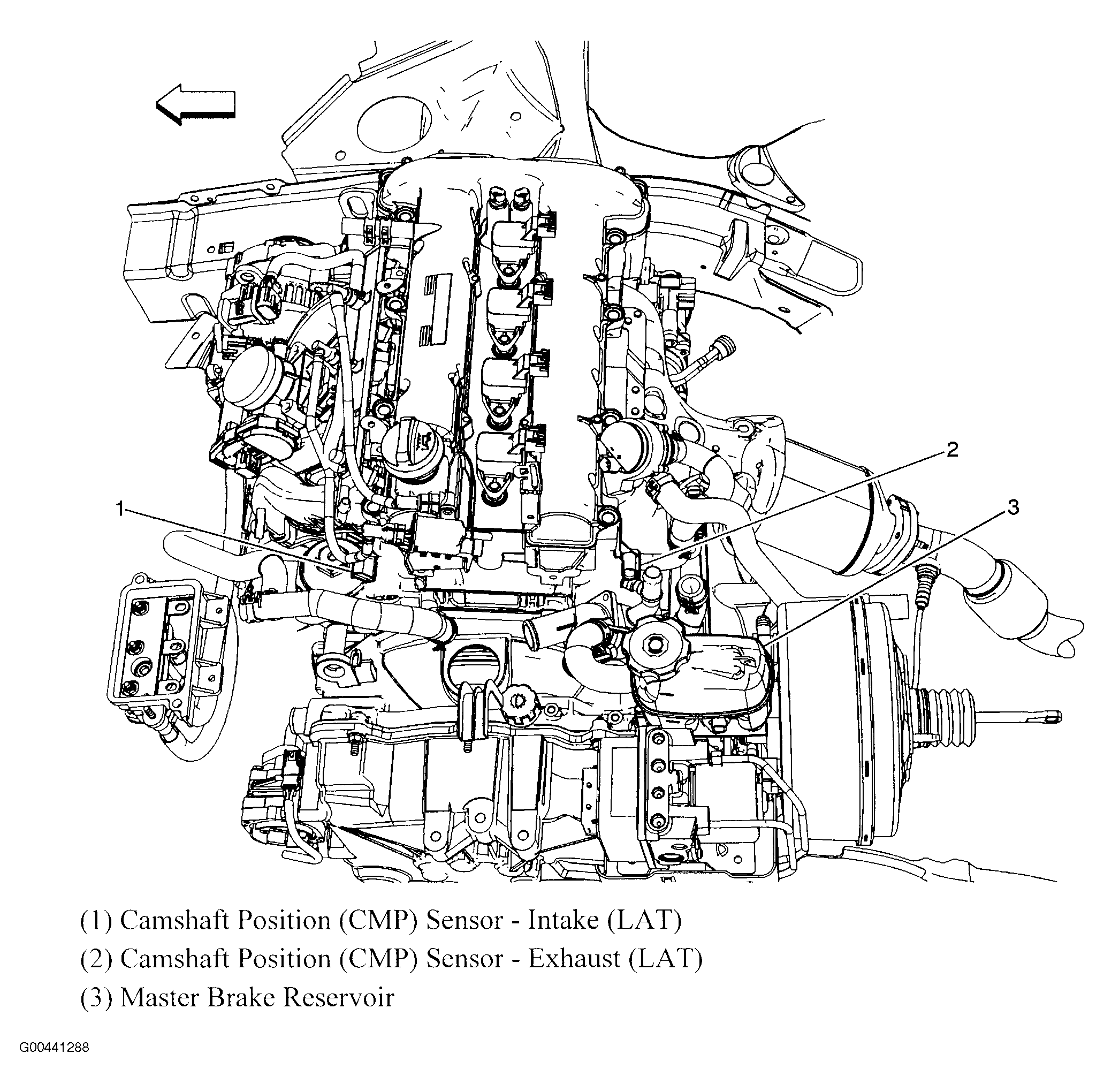

Fig 17: Rear/Top Of Engine - 2.4L
Courtesy of GENERAL MOTORS CORP.

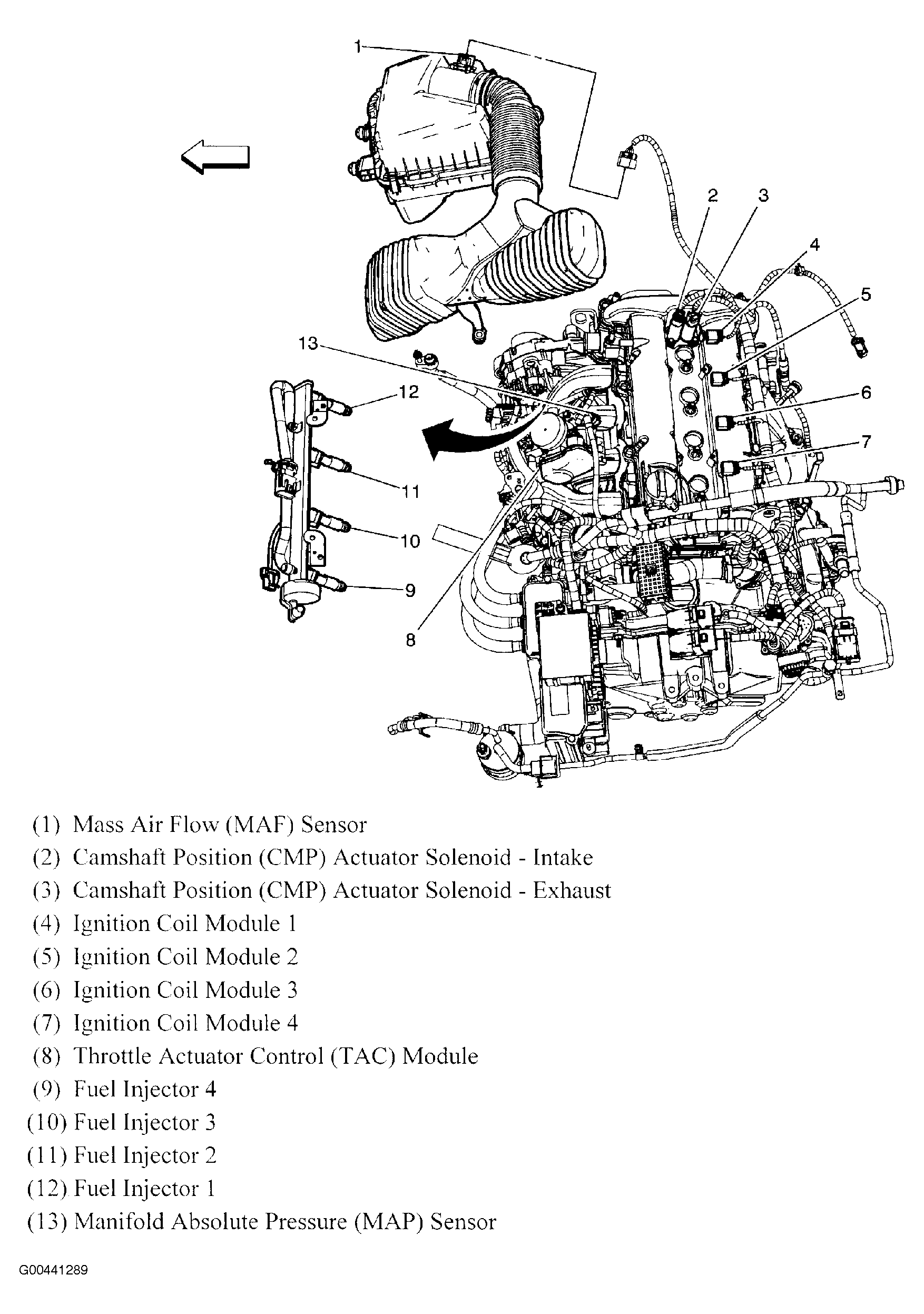

Fig 18: Top Of Engine - 2.4L
Courtesy of GENERAL MOTORS CORP.
Fig 19: Right Side/Top Of Engine
Courtesy of GENERAL MOTORS CORP.

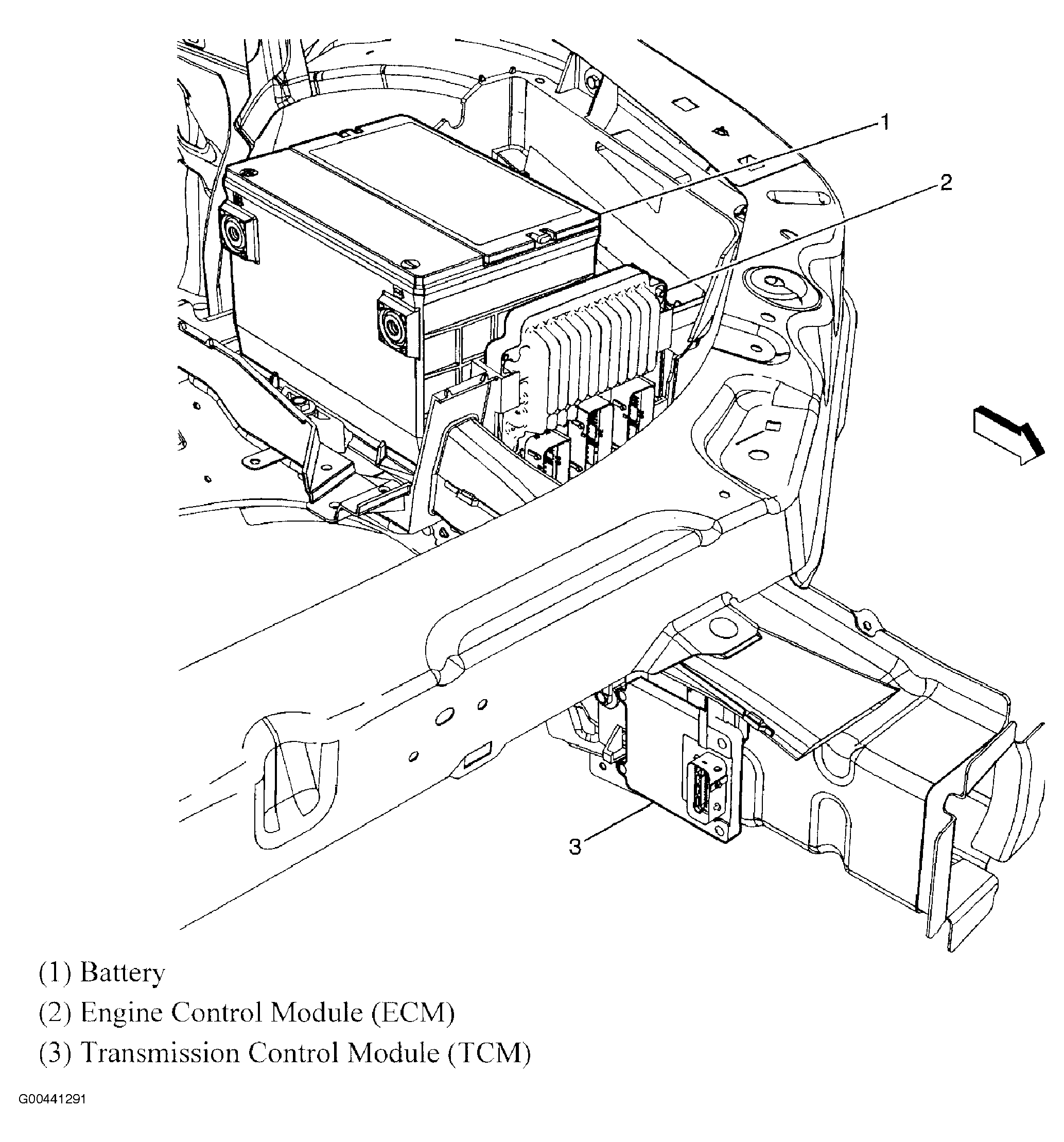

Fig 20: Front Of Battery Tray
Courtesy of GENERAL MOTORS CORP.

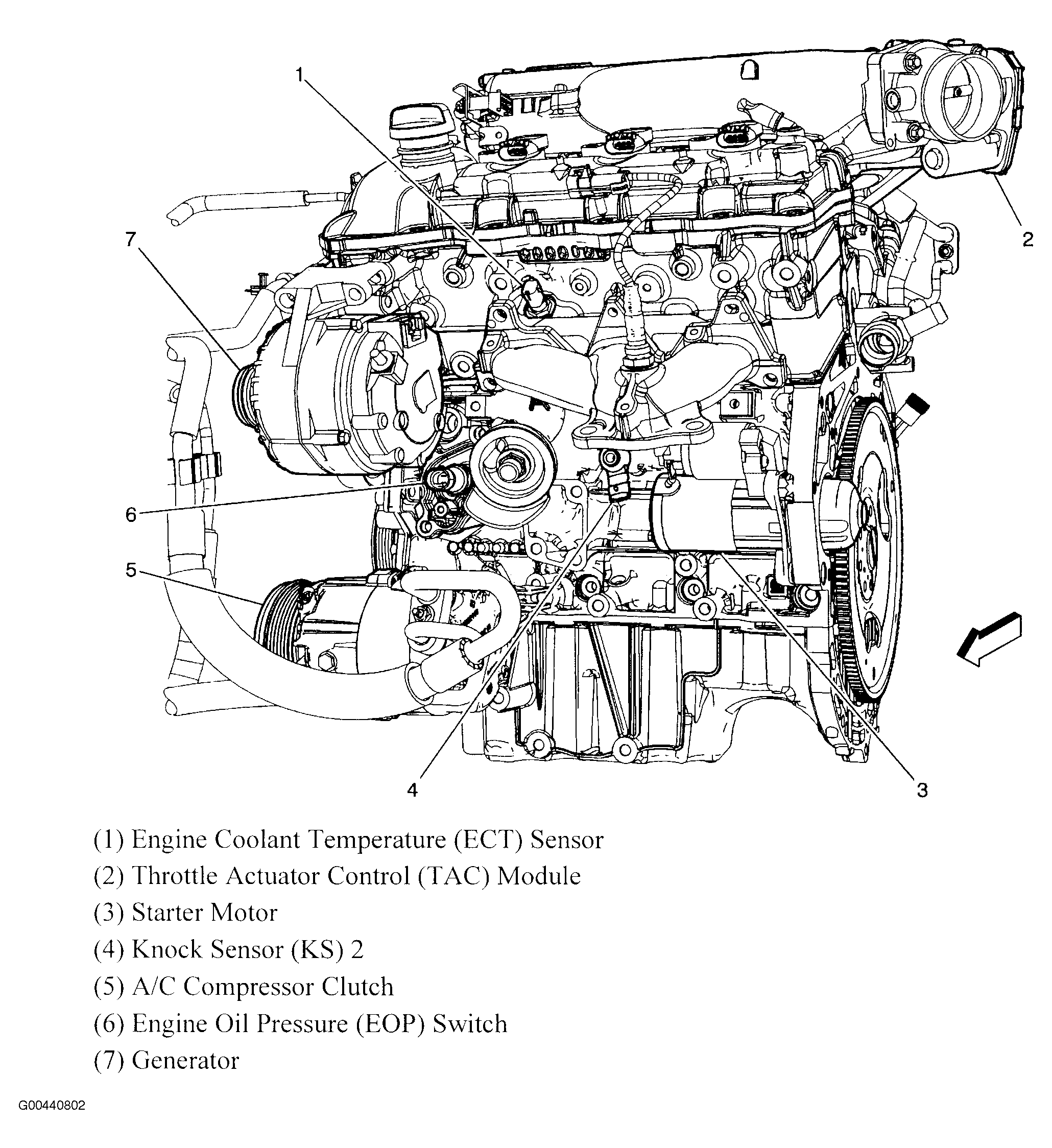

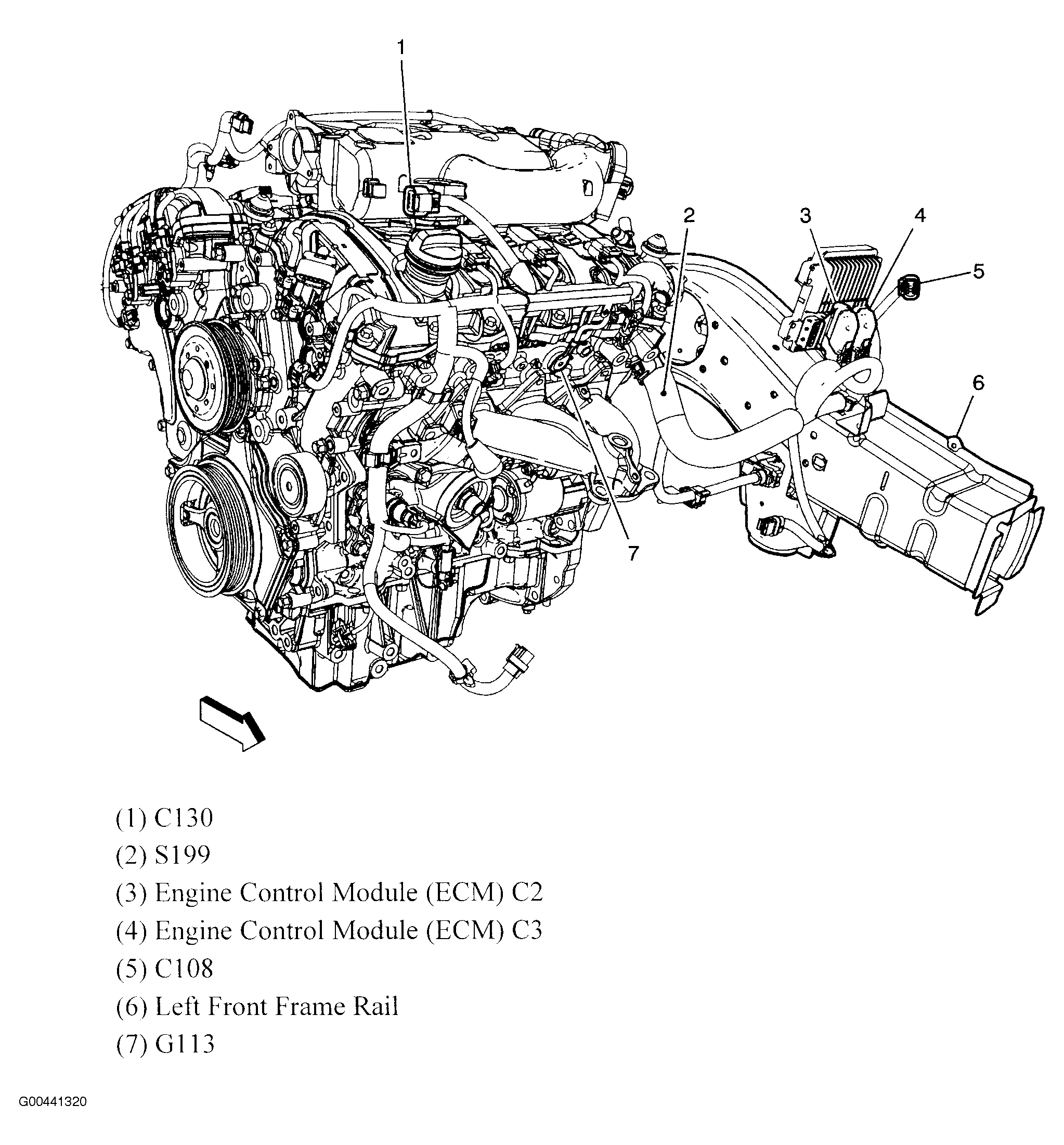

Fig 21: Left Side Of Engine - 3.5L
Courtesy of GENERAL MOTORS CORP.
Fig 22: Lower Rear, Left Side Of Engine
Courtesy of GENERAL MOTORS CORP.

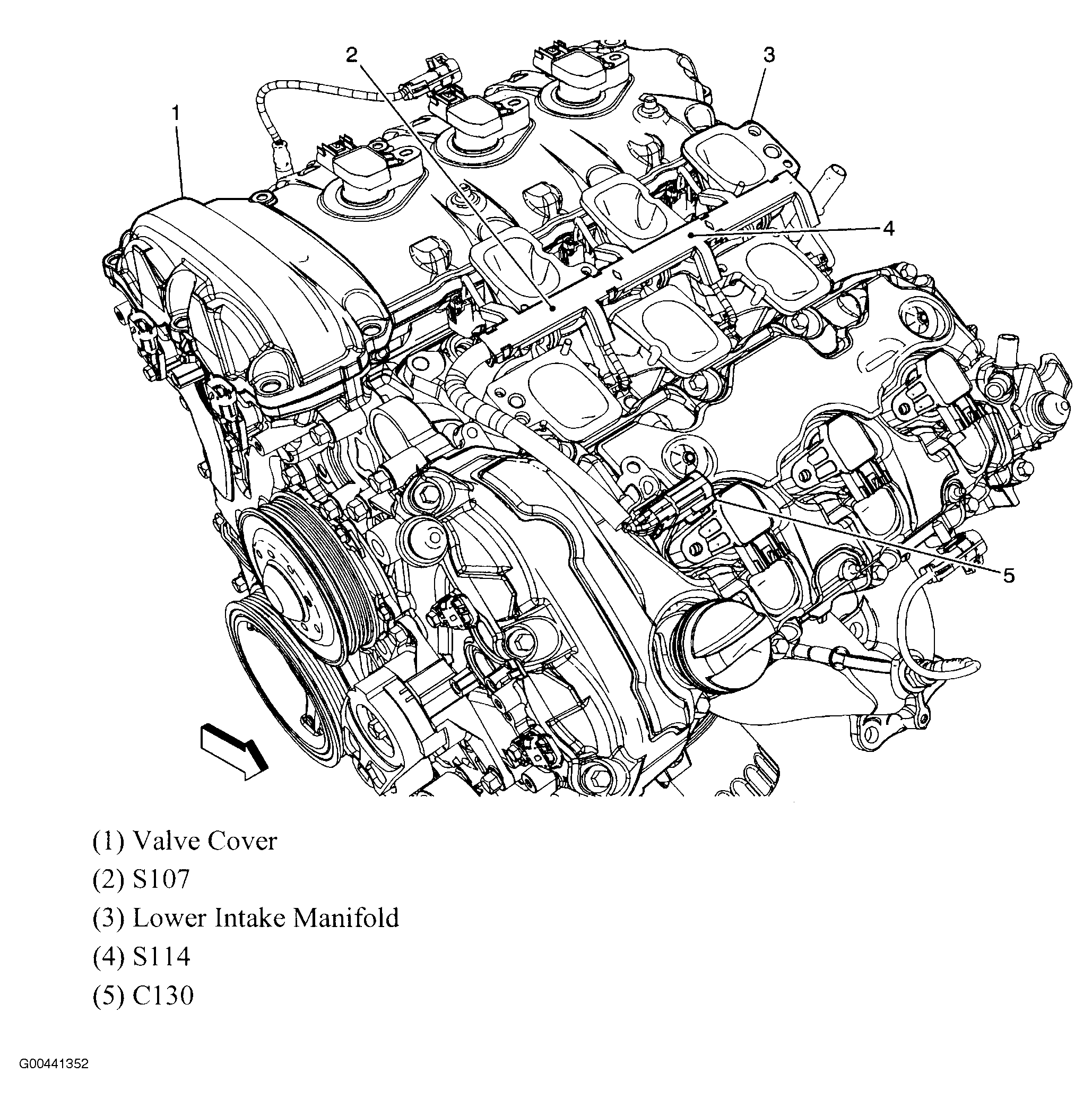

Fig 23: Top Of Engine - 3.5L
Courtesy of GENERAL MOTORS CORP.

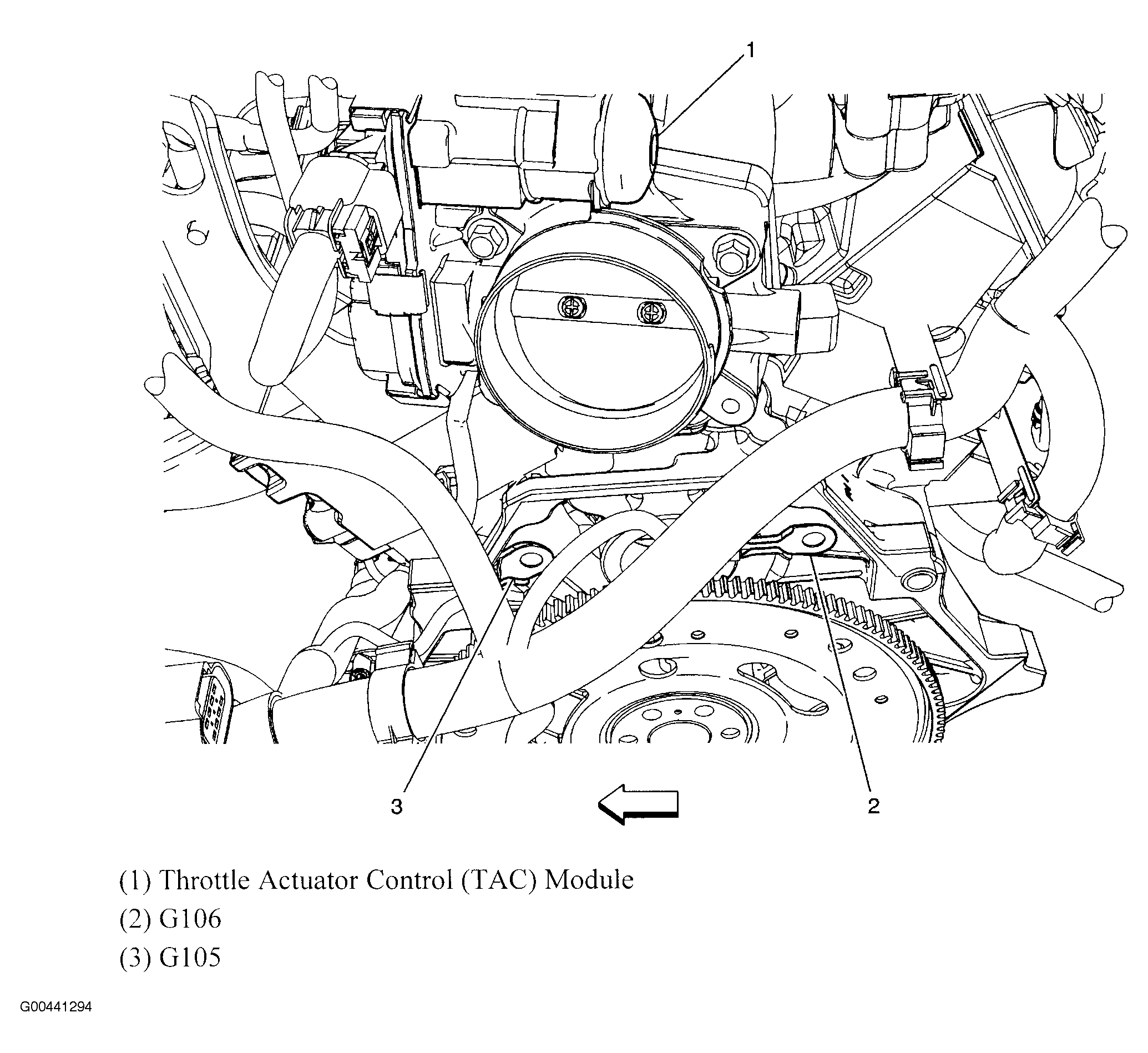

Fig 24: Throttle Body - 3.5L
Courtesy of GENERAL MOTORS CORP.
Fig 25: Right Side Of Engine - 3.5L
Courtesy of GENERAL MOTORS CORP.

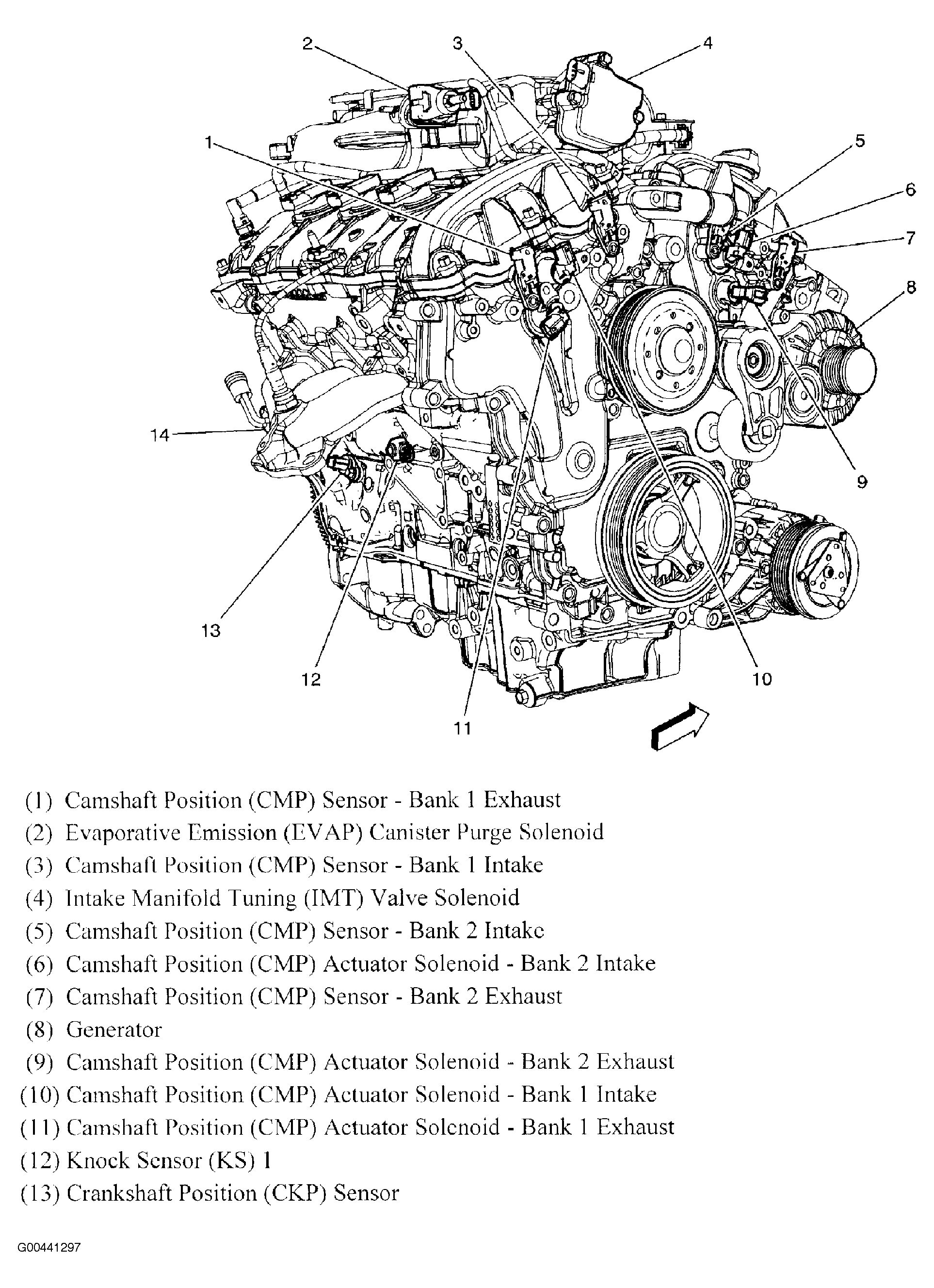

Fig 26: Front/Right Side Of Engine - 3.6L
Courtesy of GENERAL MOTORS CORP.

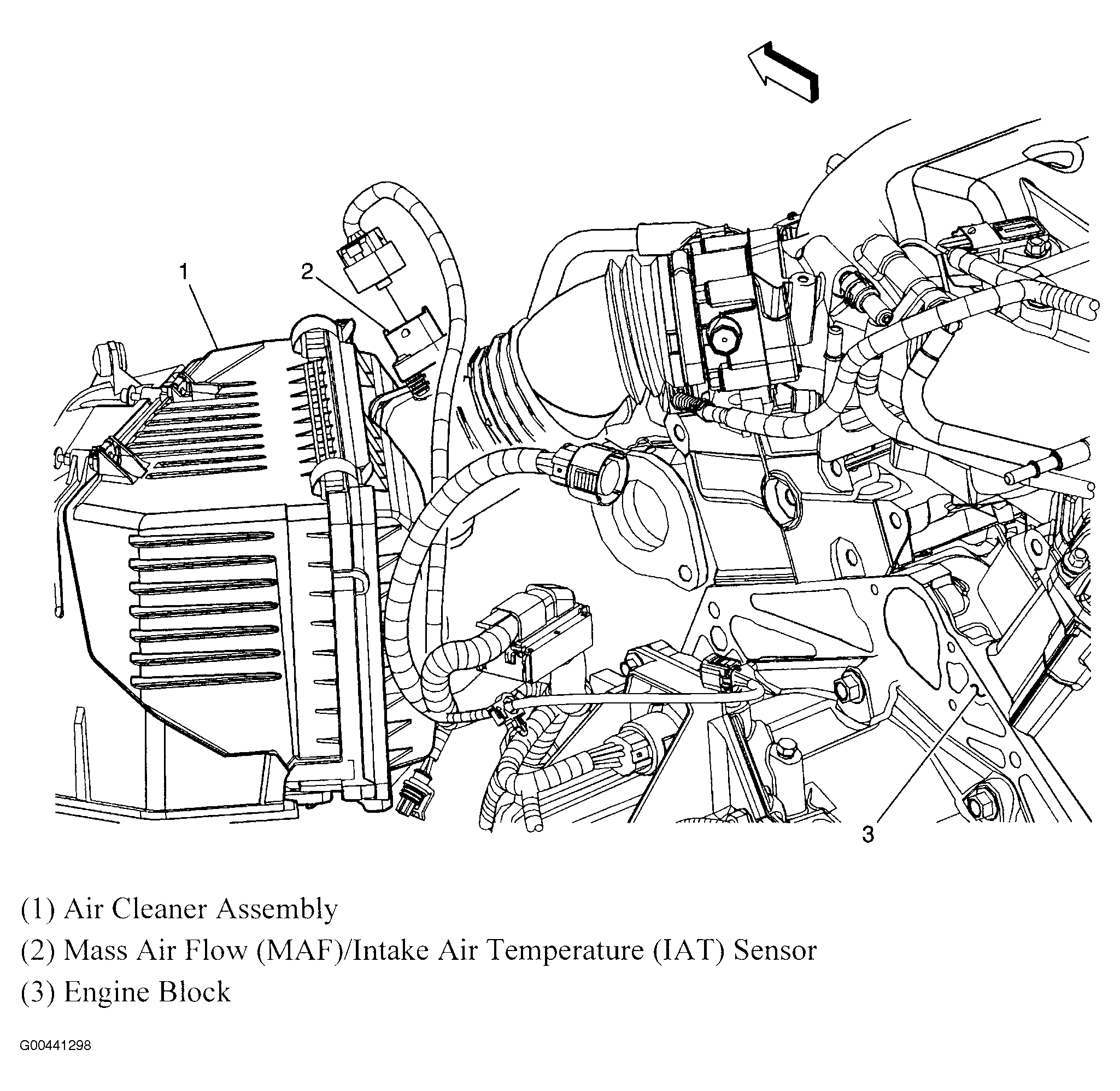

Fig 27: Air Cleaner/MAF/IAT - 3.6L
Courtesy of GENERAL MOTORS CORP.

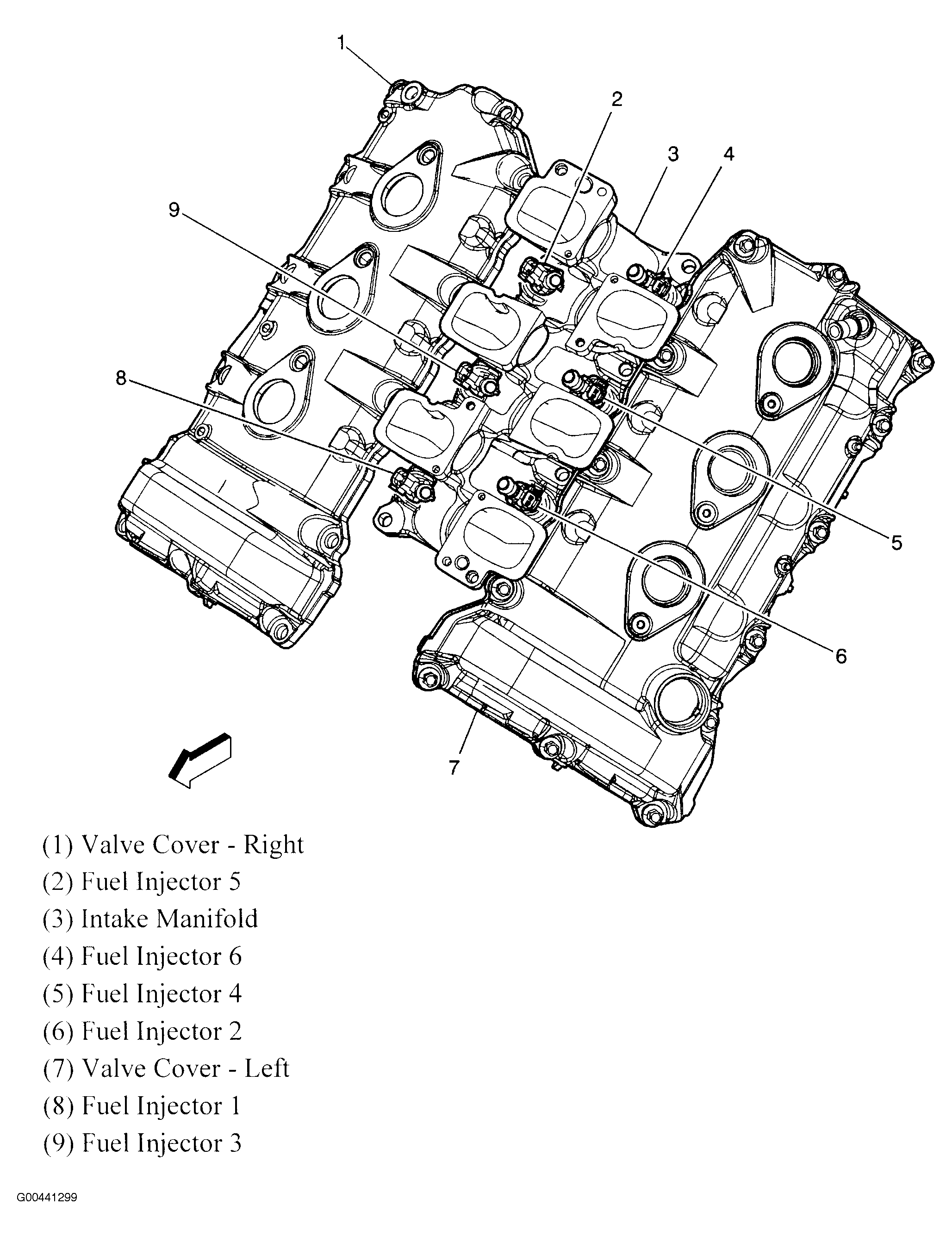

Fig 28: Fuel Injectors - 3.6L
Courtesy of GENERAL MOTORS CORP.

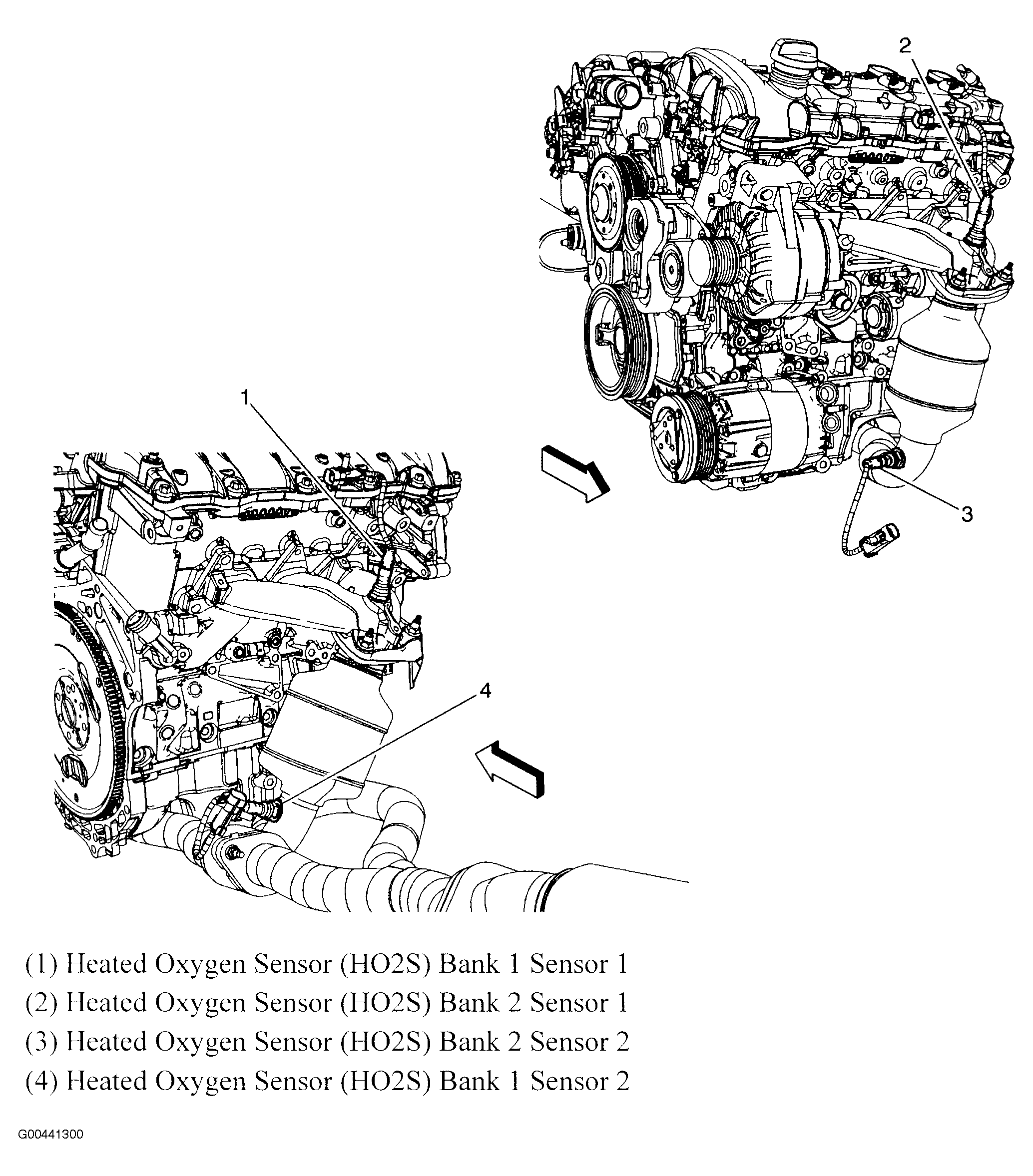

Fig 29: Oxygen Sensors - 3.6L
Courtesy of GENERAL MOTORS CORP.

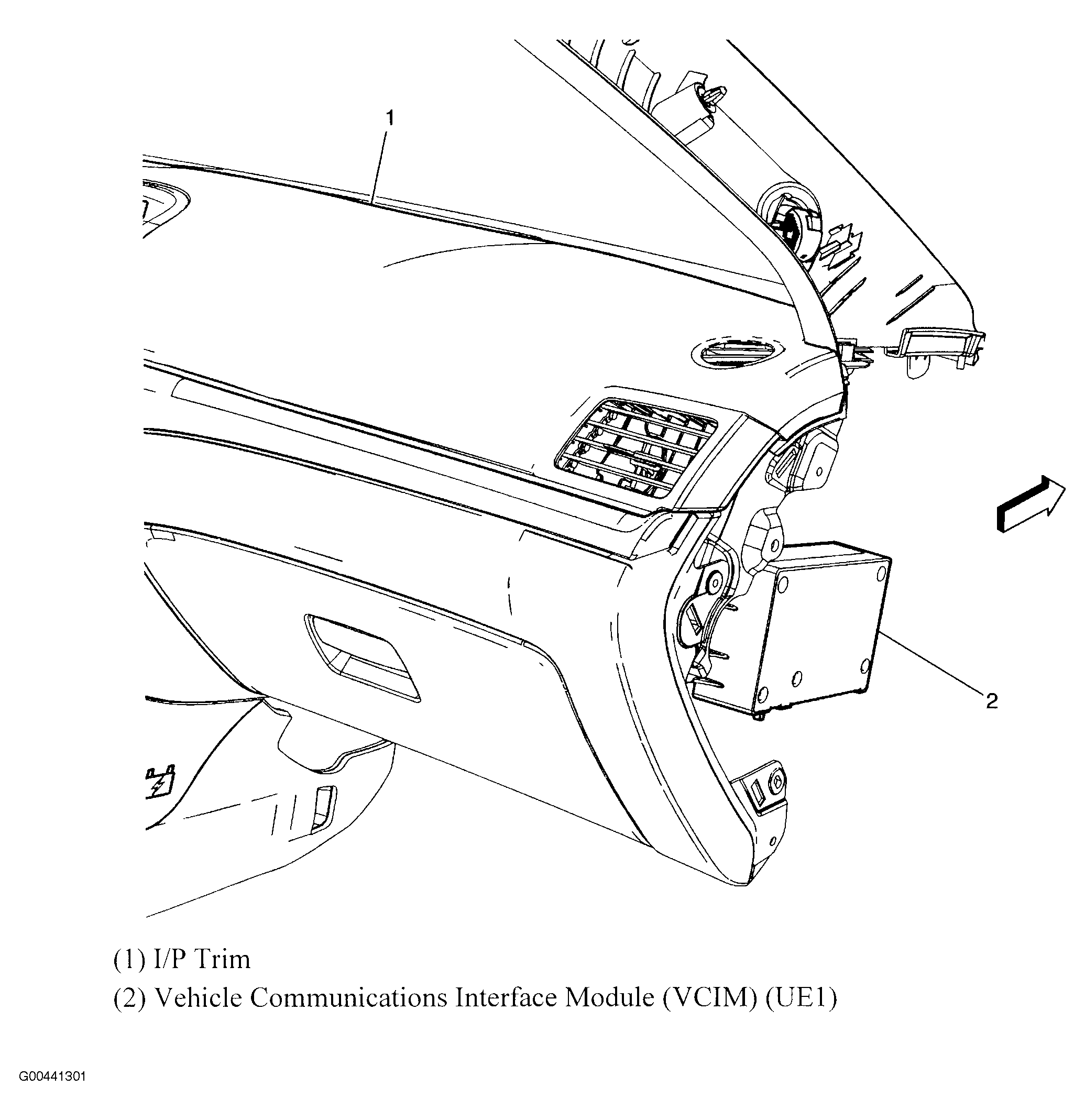

Fig 30: Behind Glove Box
Courtesy of GENERAL MOTORS CORP.

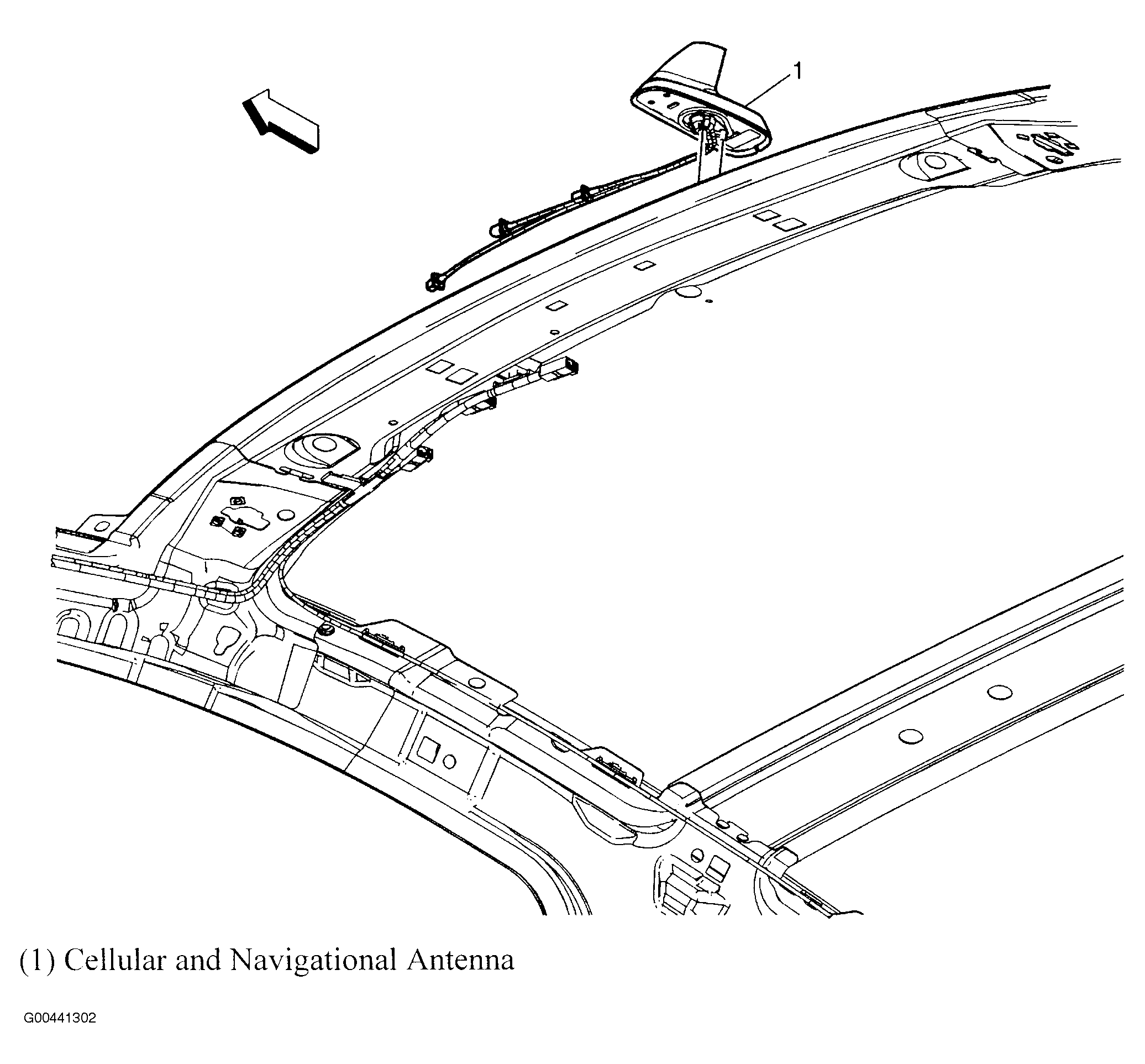

Fig 31: Above The Headliner
Courtesy of GENERAL MOTORS CORP.

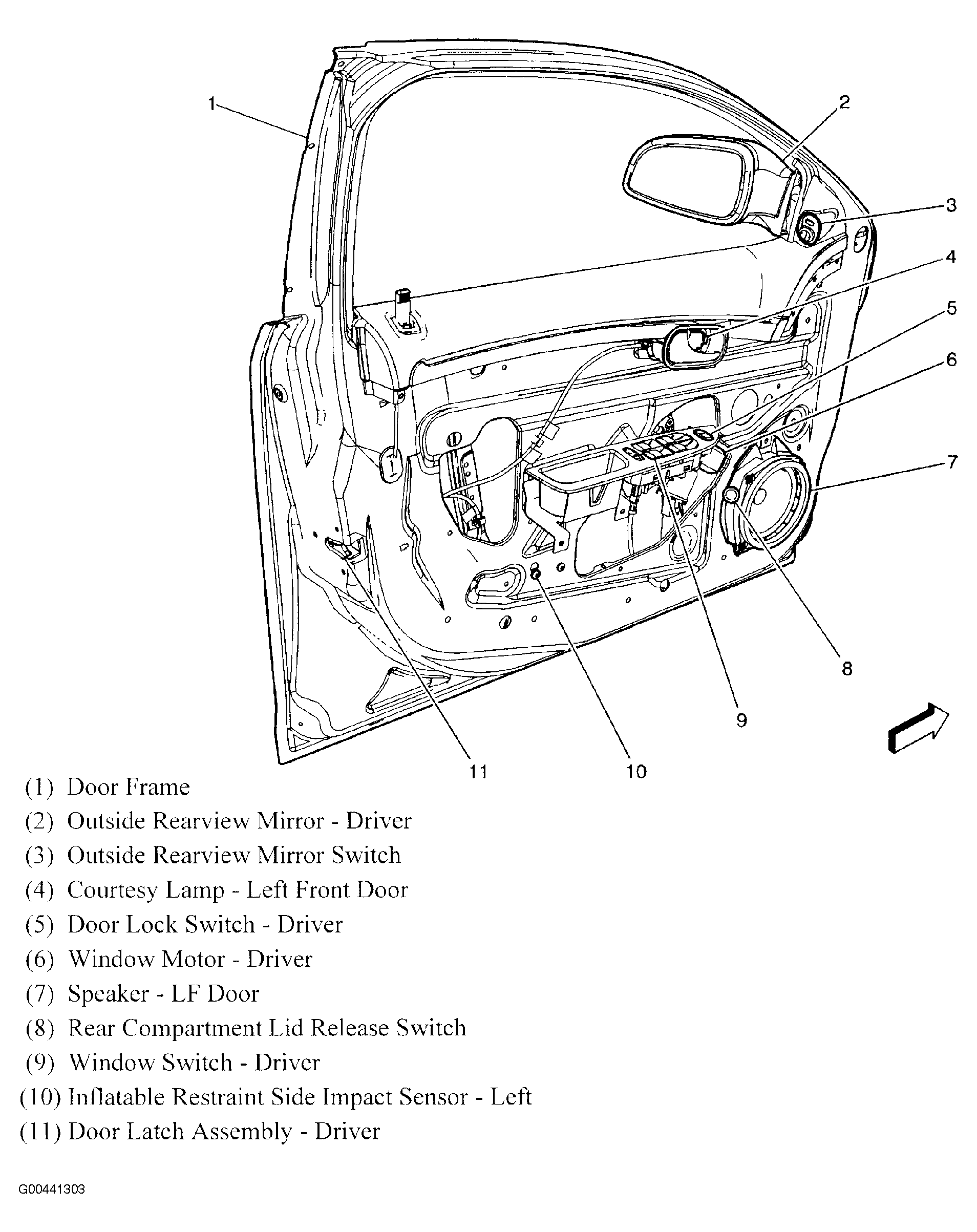

Fig 32: Driver Door
Courtesy of GENERAL MOTORS CORP.

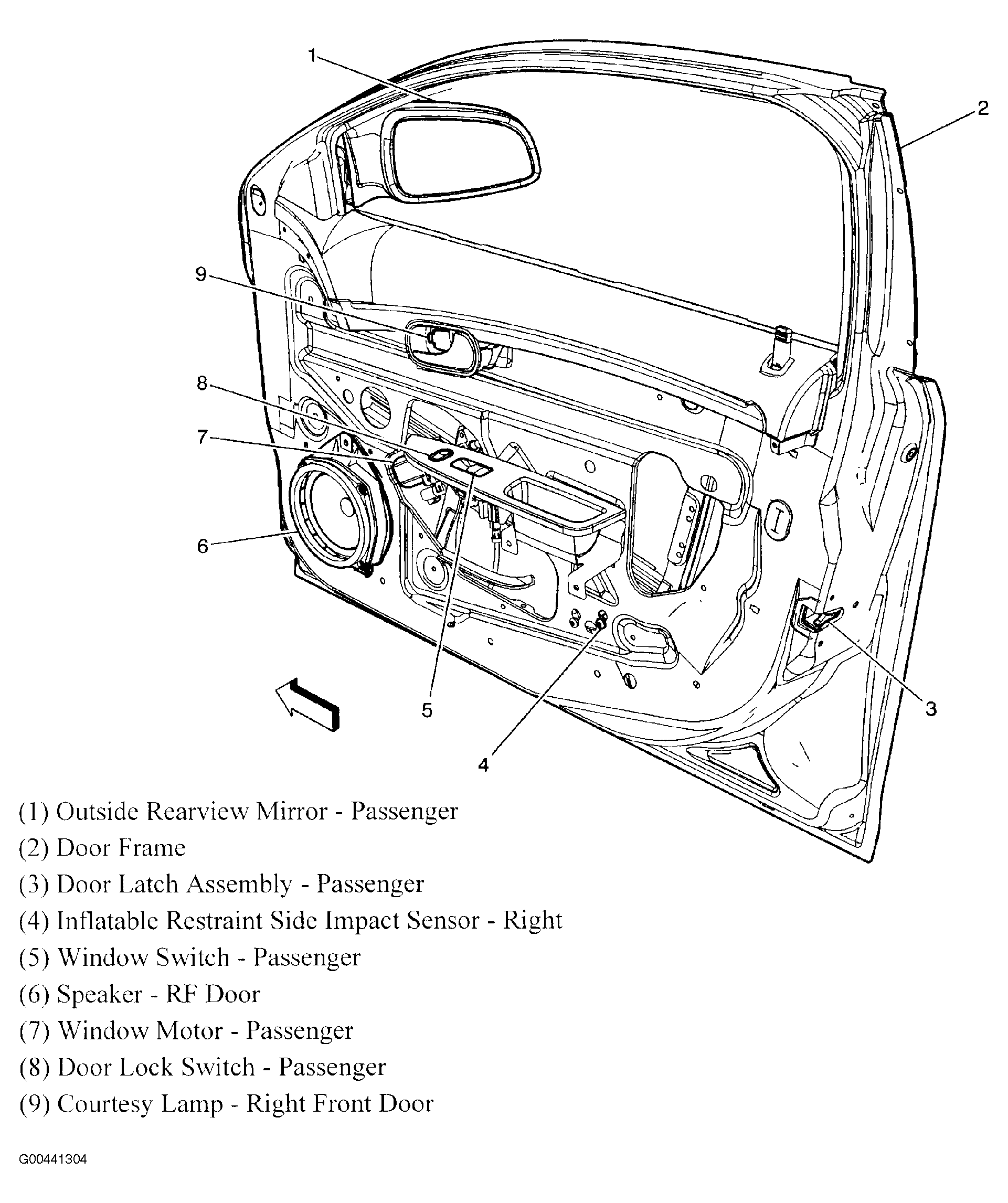

Fig 33: Passenger Door
Courtesy of GENERAL MOTORS CORP.

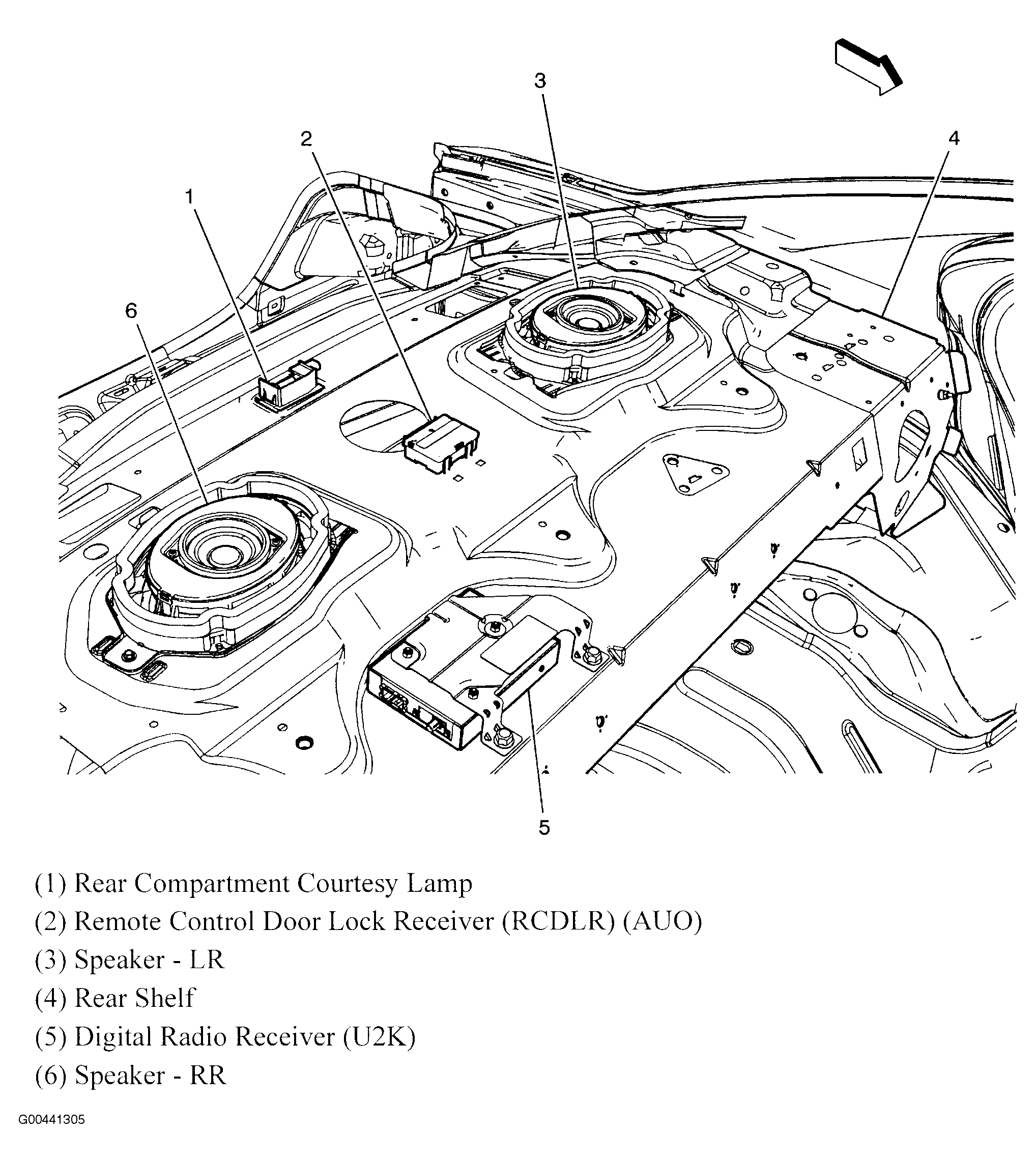

Fig 34: Rear Shelf Components
Courtesy of GENERAL MOTORS CORP.

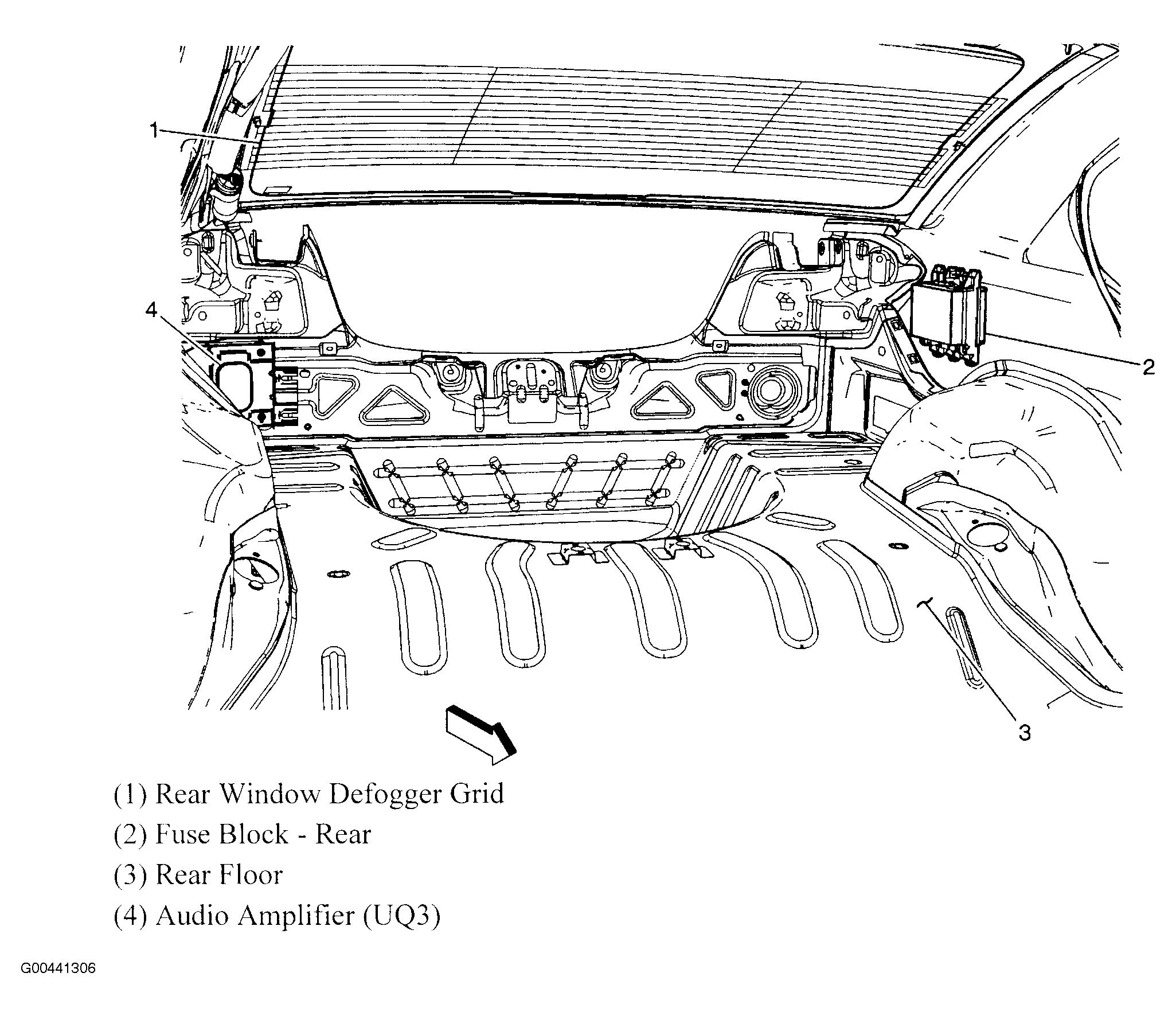

Fig 35: Luggage Compartment Rear
Courtesy of GENERAL MOTORS CORP.

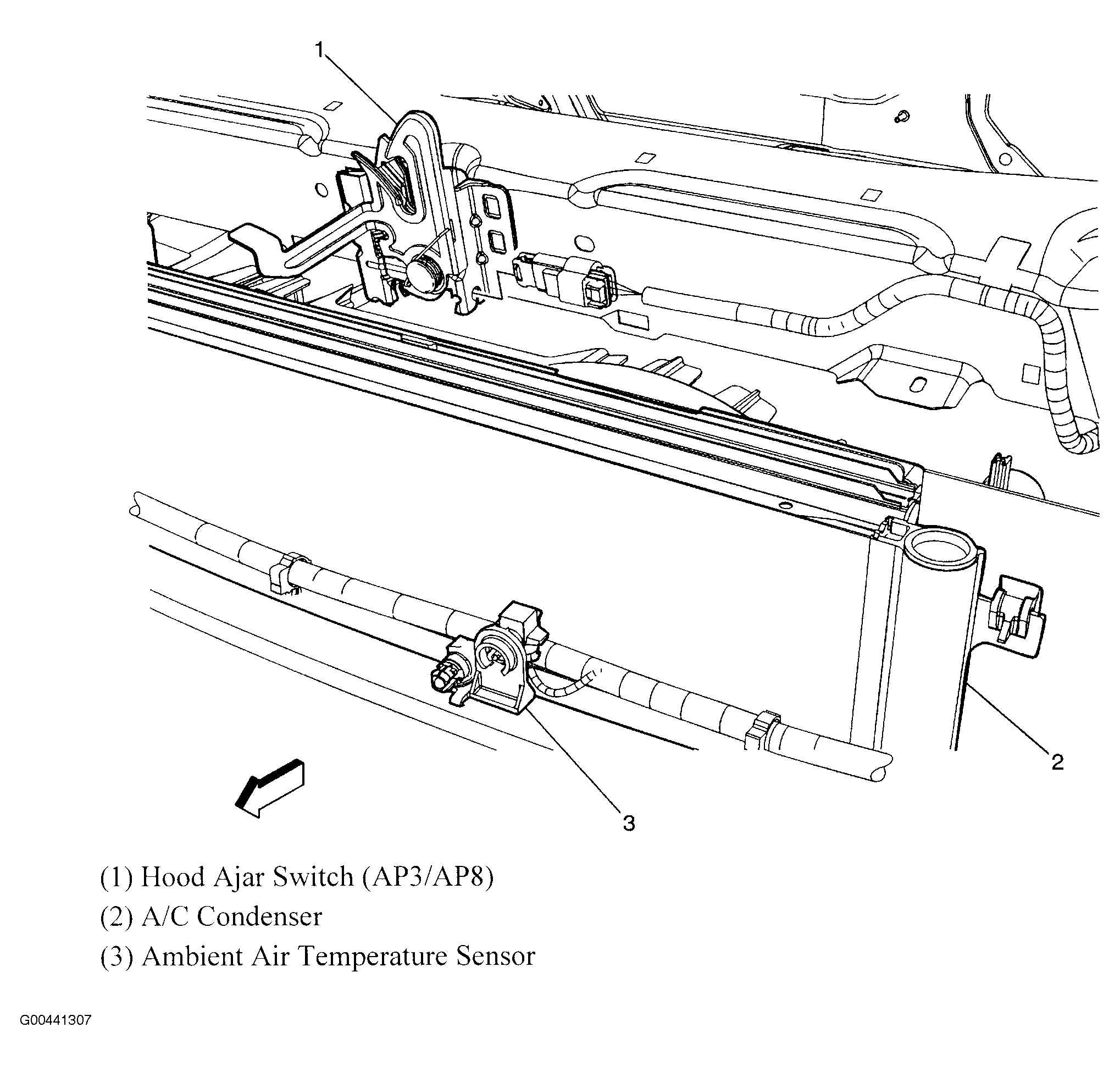

Fig 36: Front Of Radiator
Courtesy of GENERAL MOTORS CORP.

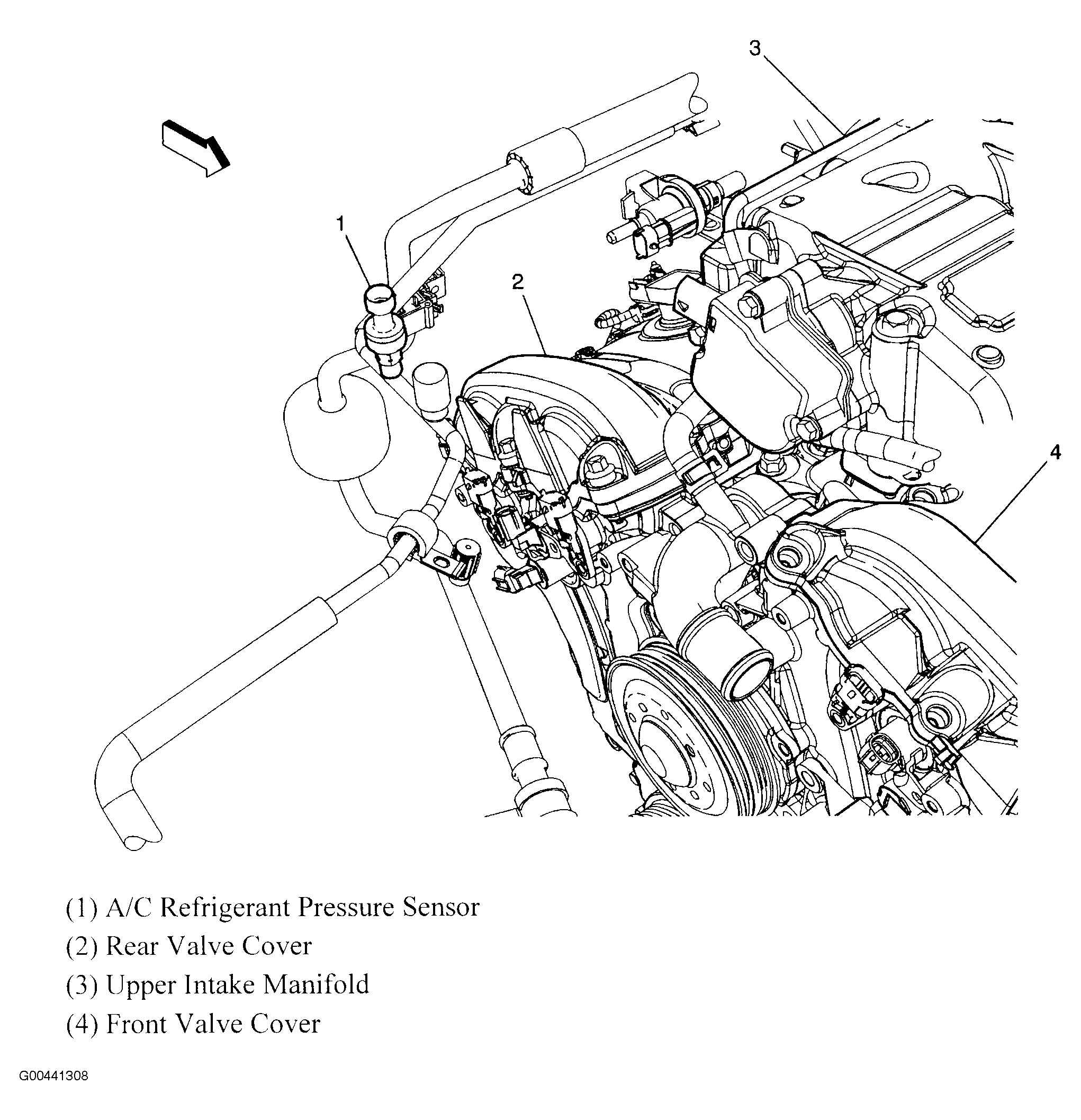

Fig 37: Near A/C Fitting
Courtesy of GENERAL MOTORS CORP.

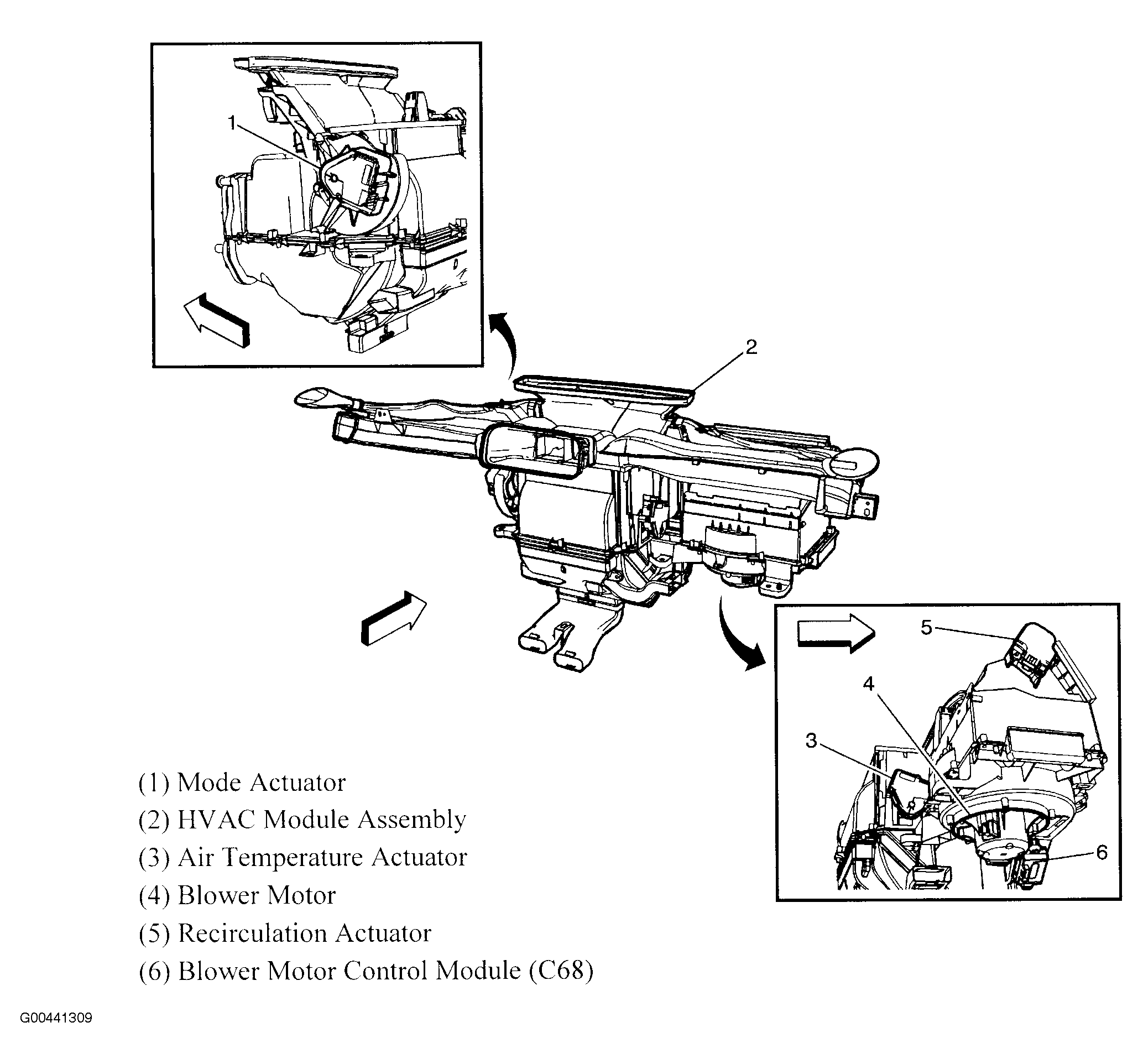

Fig 38: Interior HVAC Module
Courtesy of GENERAL MOTORS CORP.

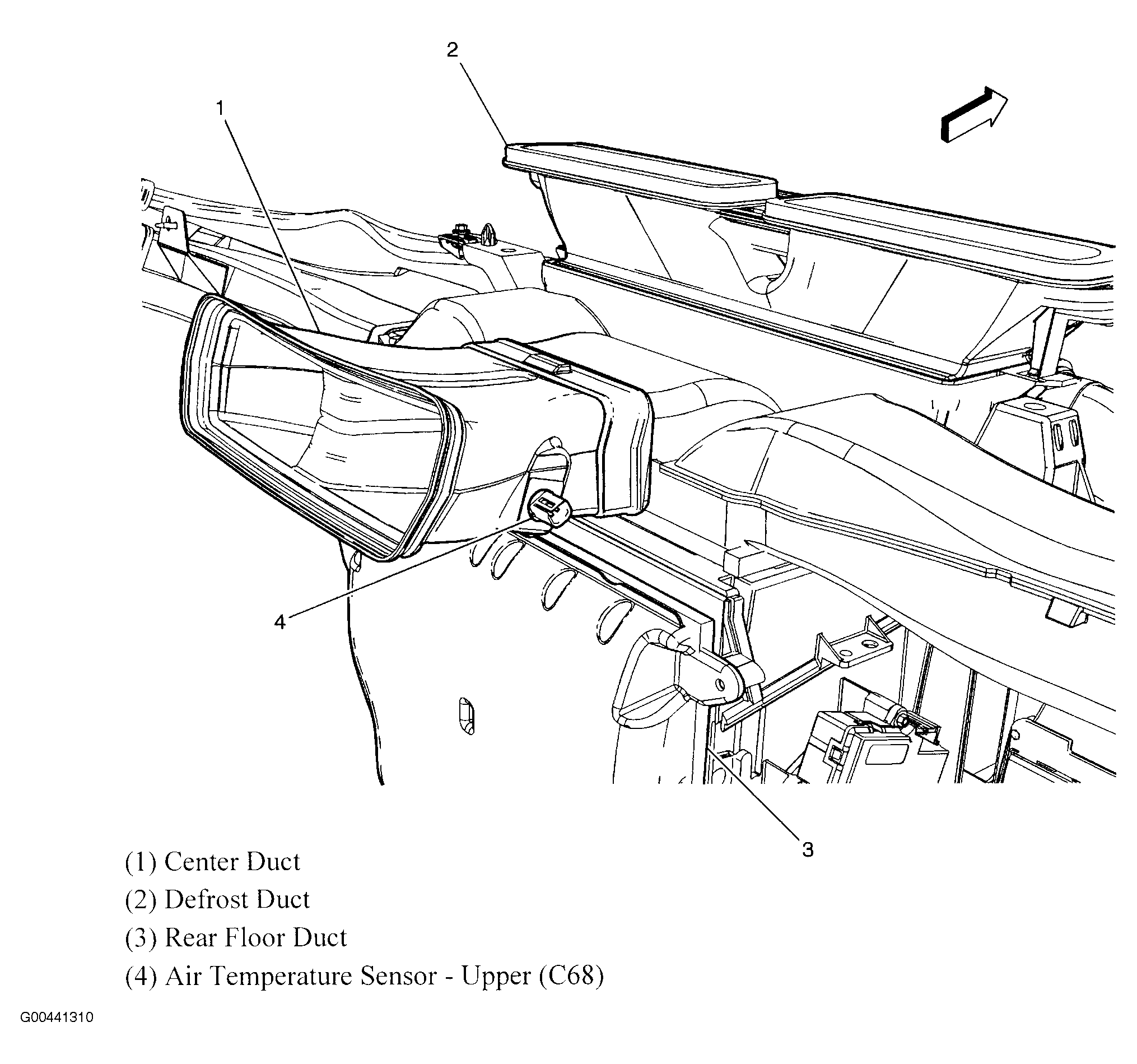

Fig 39: Upper HVAC Duct
Courtesy of GENERAL MOTORS CORP.

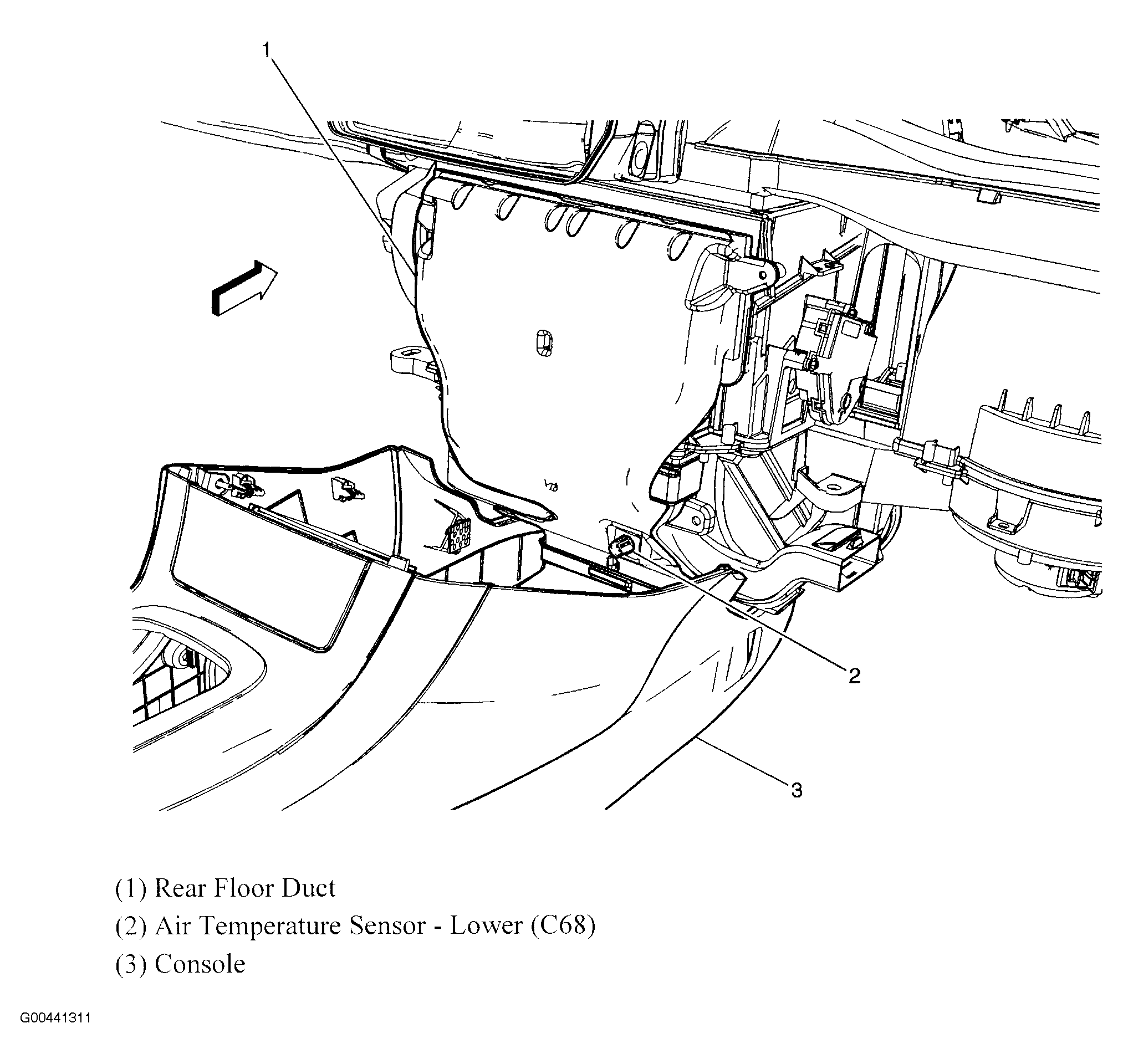

Fig 40: Lower HVAC Duct
Courtesy of GENERAL MOTORS CORP.

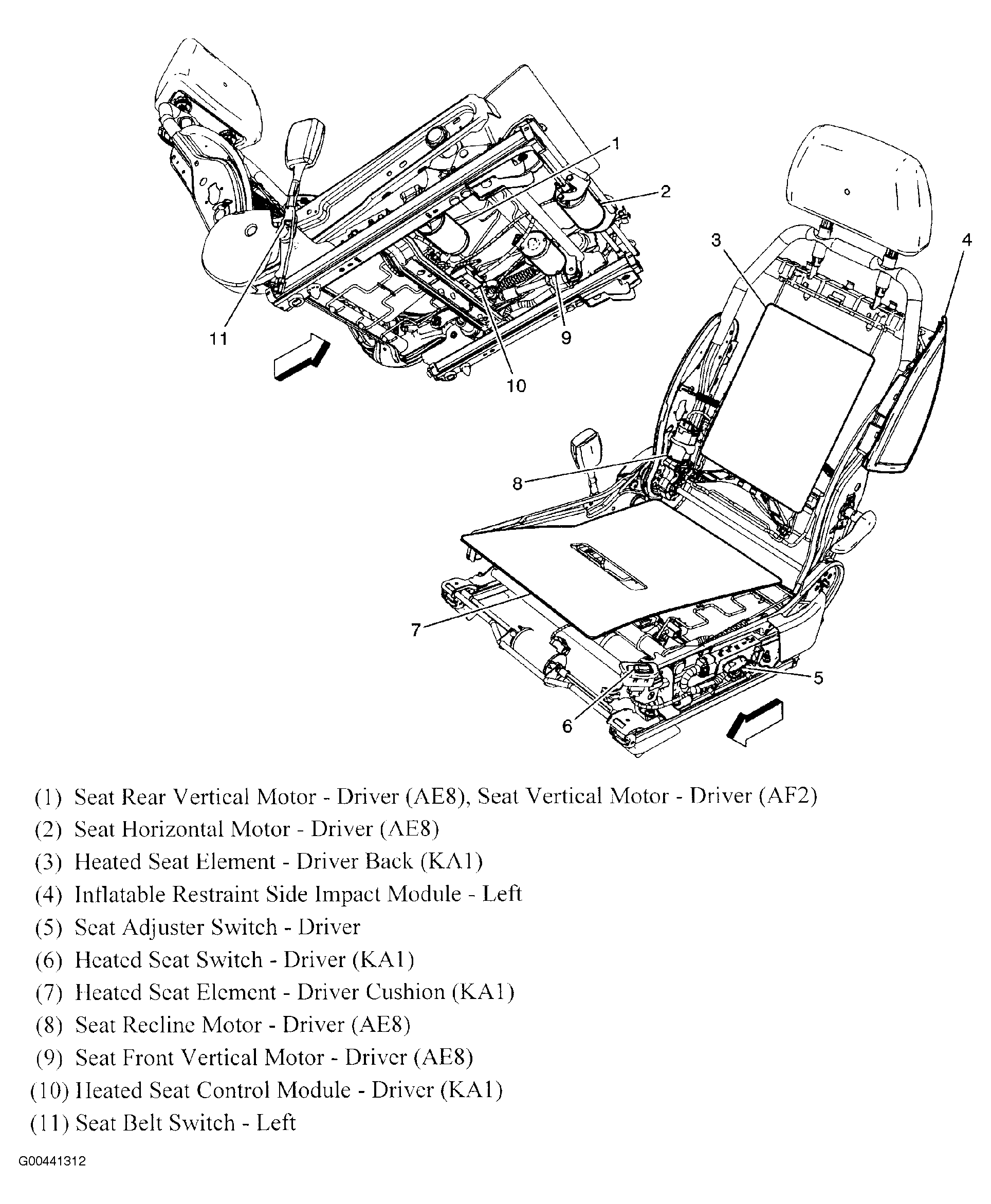

Fig 41: Driver Seat
Courtesy of GENERAL MOTORS CORP.

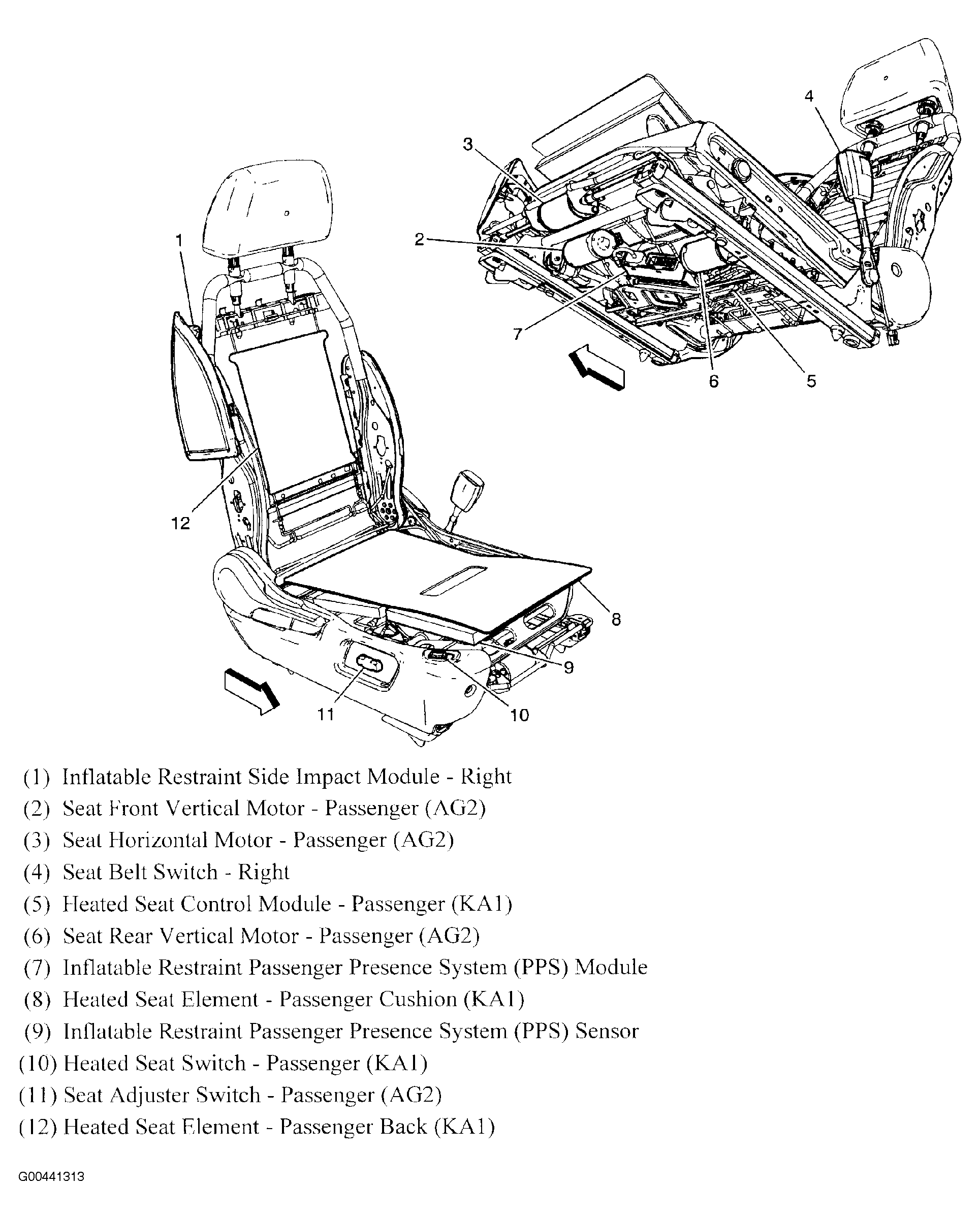

Fig 42: Passenger Seat
Courtesy of GENERAL MOTORS CORP.

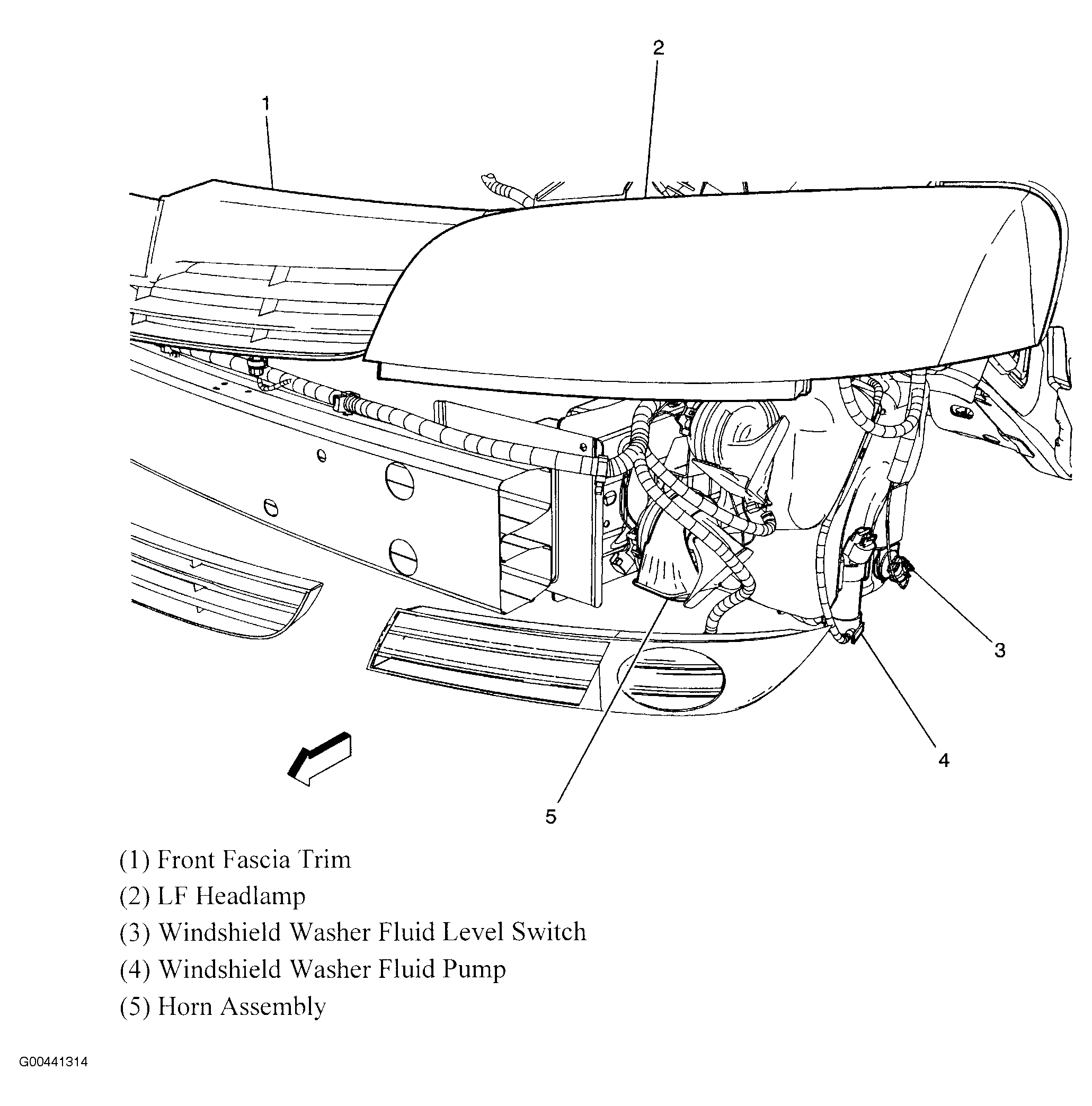

Fig 43: Behind Left Headlamp
Courtesy of GENERAL MOTORS CORP.

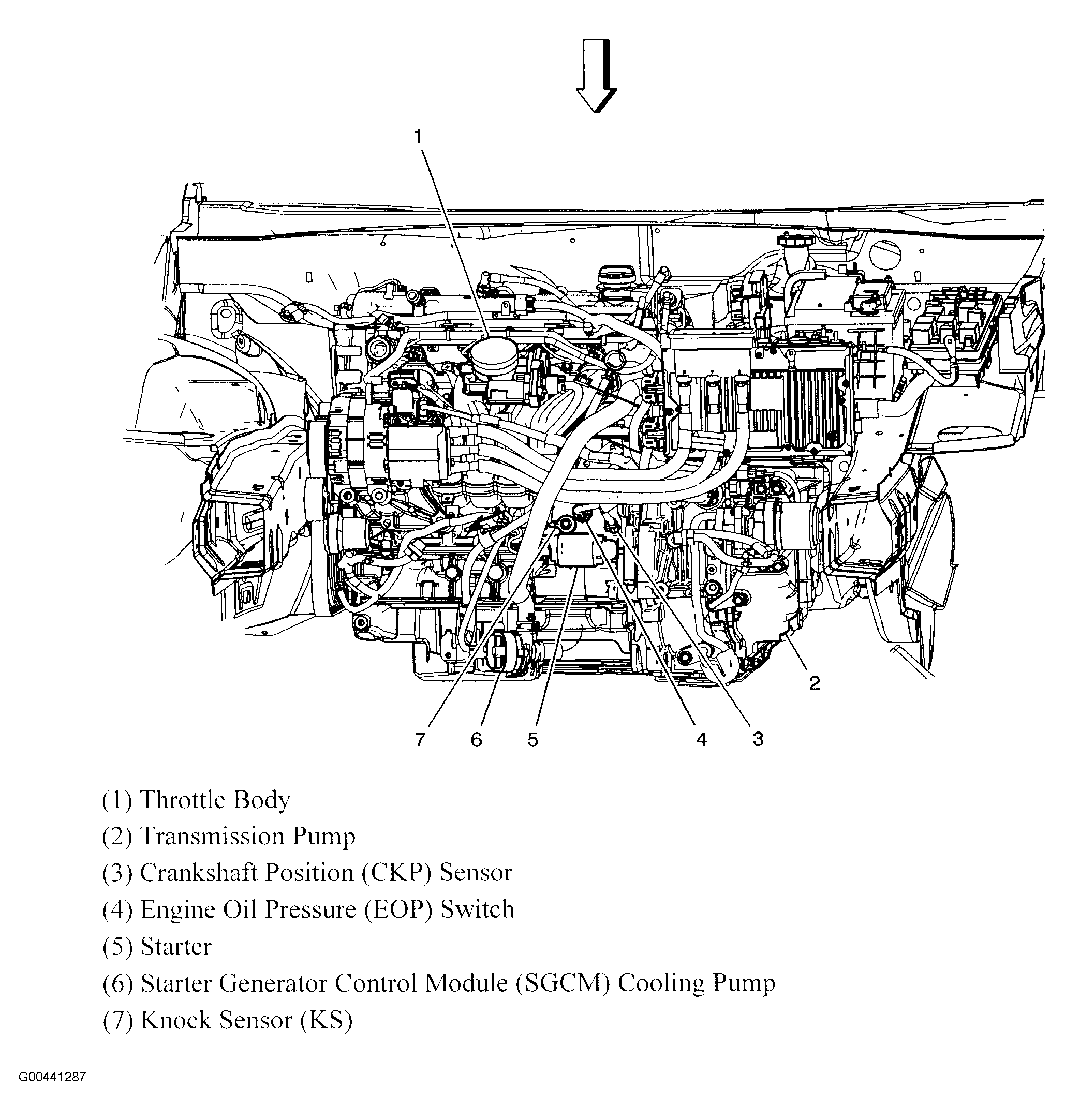

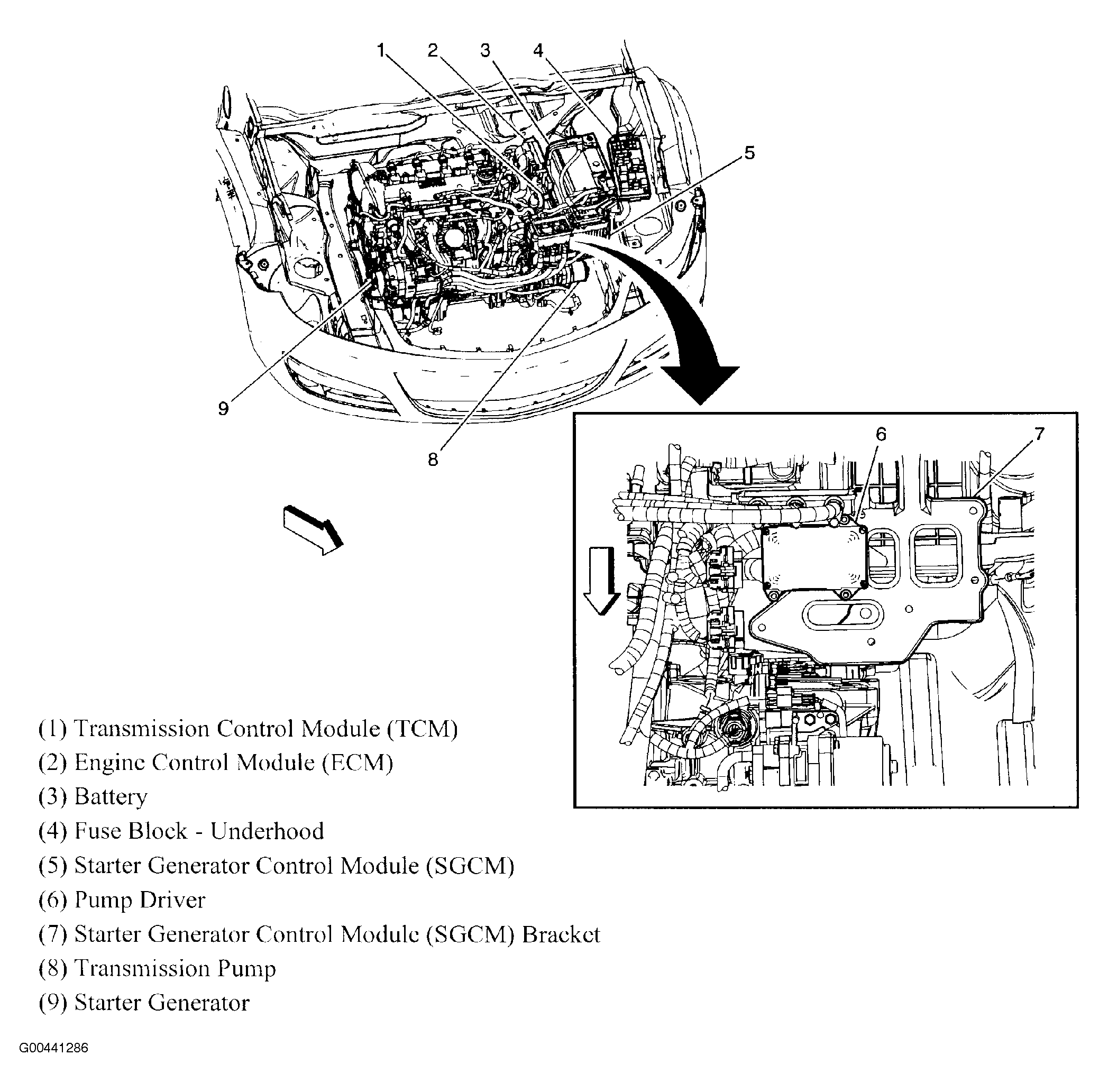

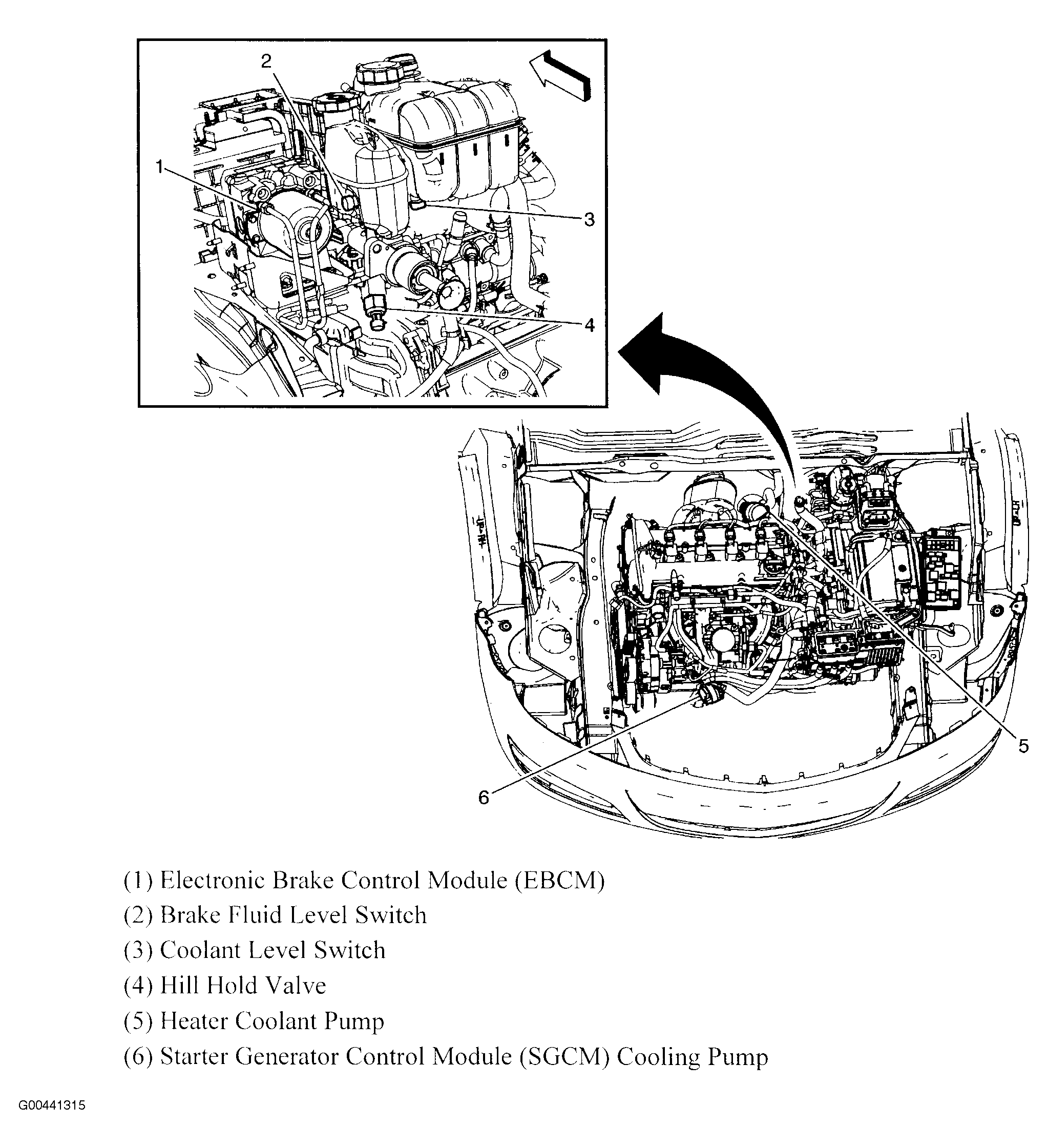

Fig 44: Hybrid Engine Compartment
Courtesy of GENERAL MOTORS CORP.

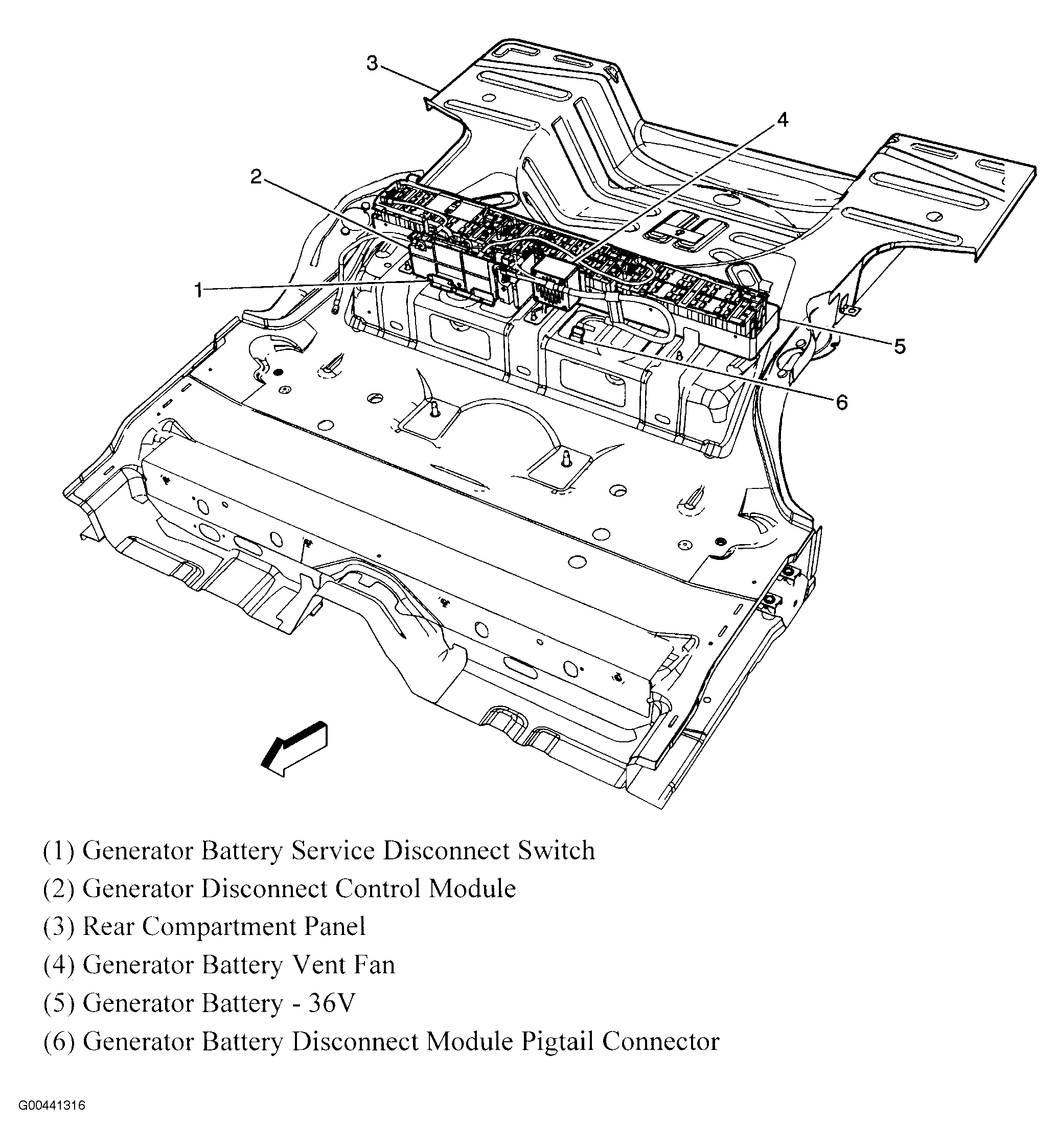

Fig 45: Hybrid Energy Storage
Courtesy of GENERAL MOTORS CORP.

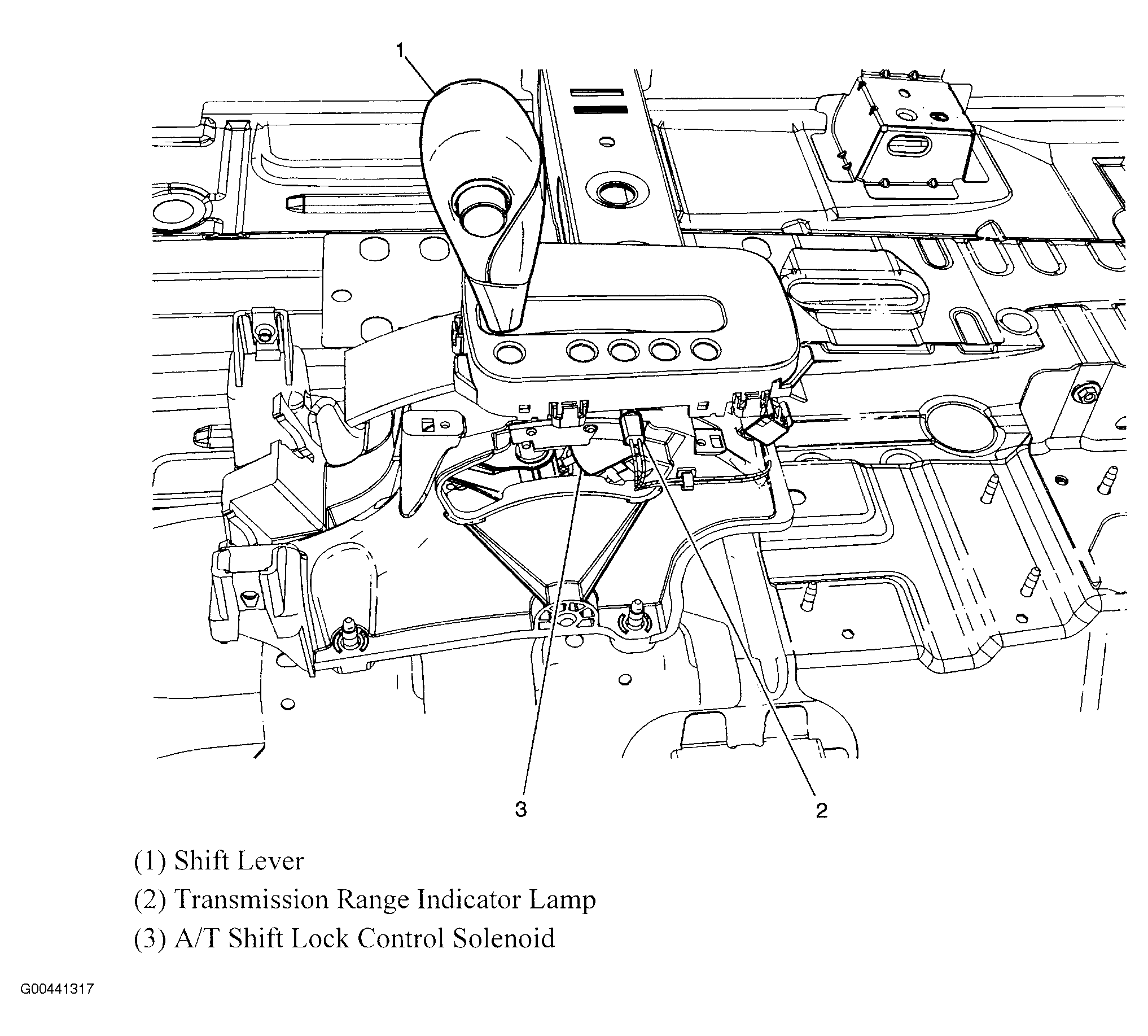

Fig 46: Shifter Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 47: Battery Cable Harness
Courtesy of GENERAL MOTORS CORP.

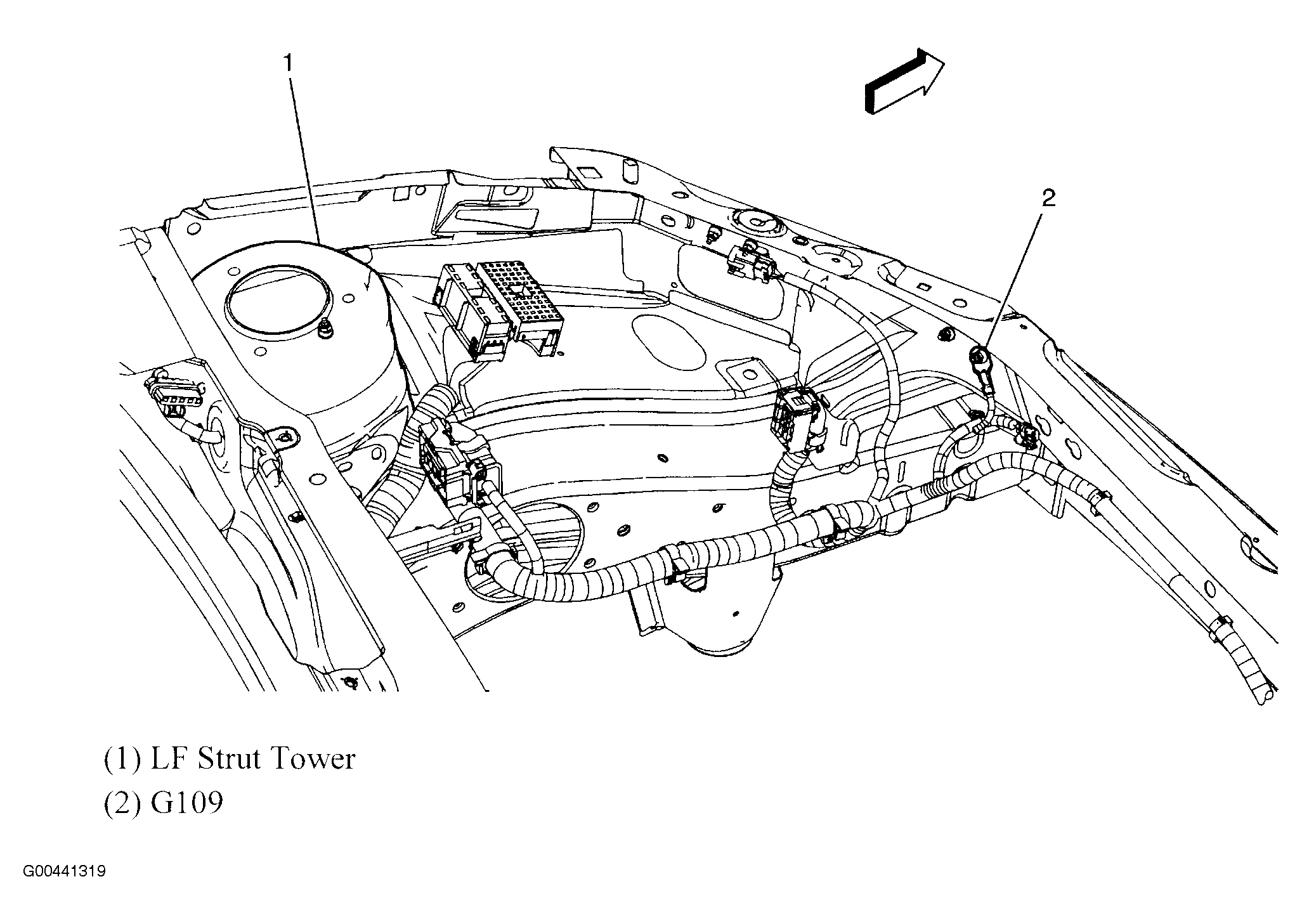

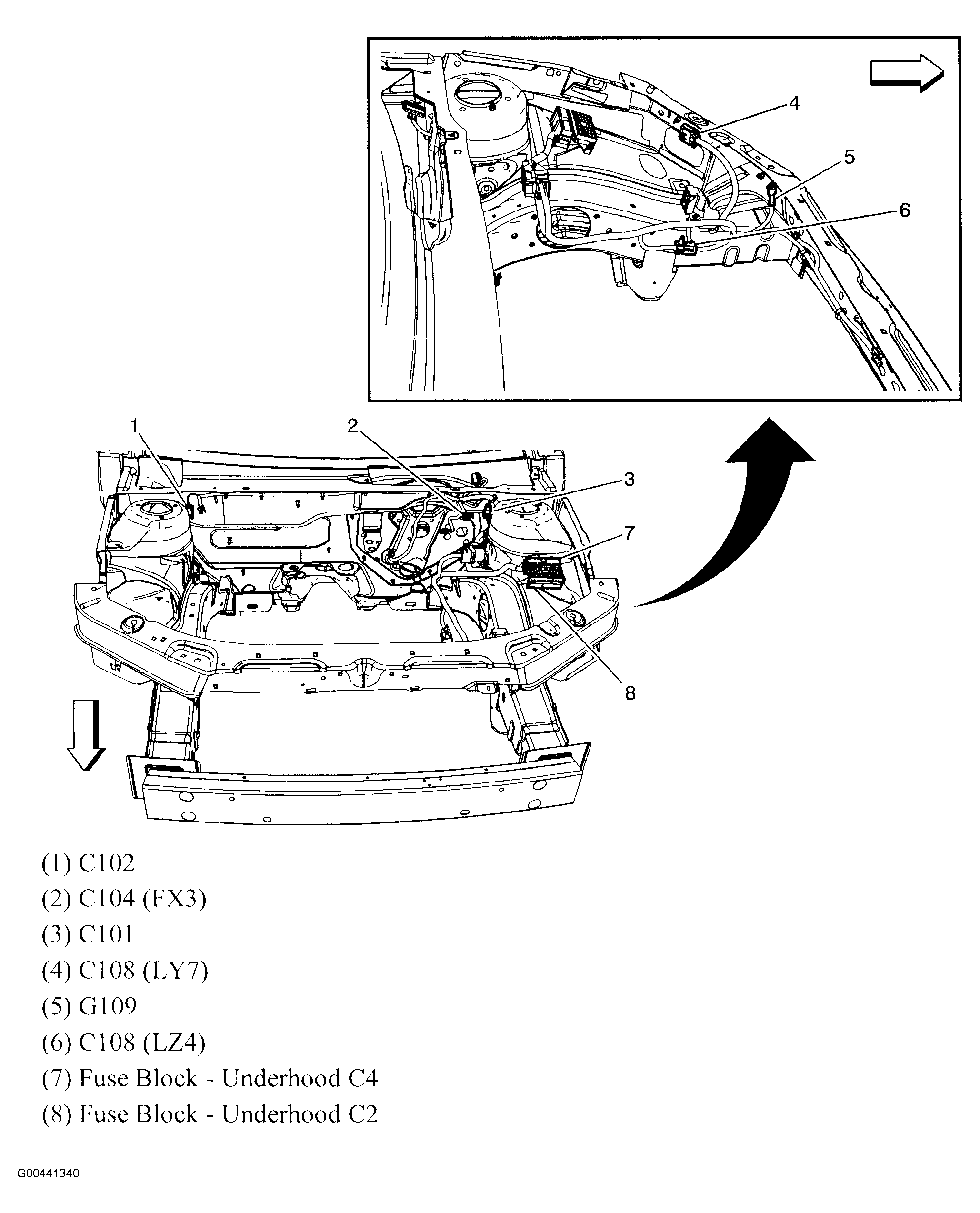

Fig 48: G109
Courtesy of GENERAL MOTORS CORP.
Fig 49: Engine Harness - Front
Courtesy of GENERAL MOTORS CORP.

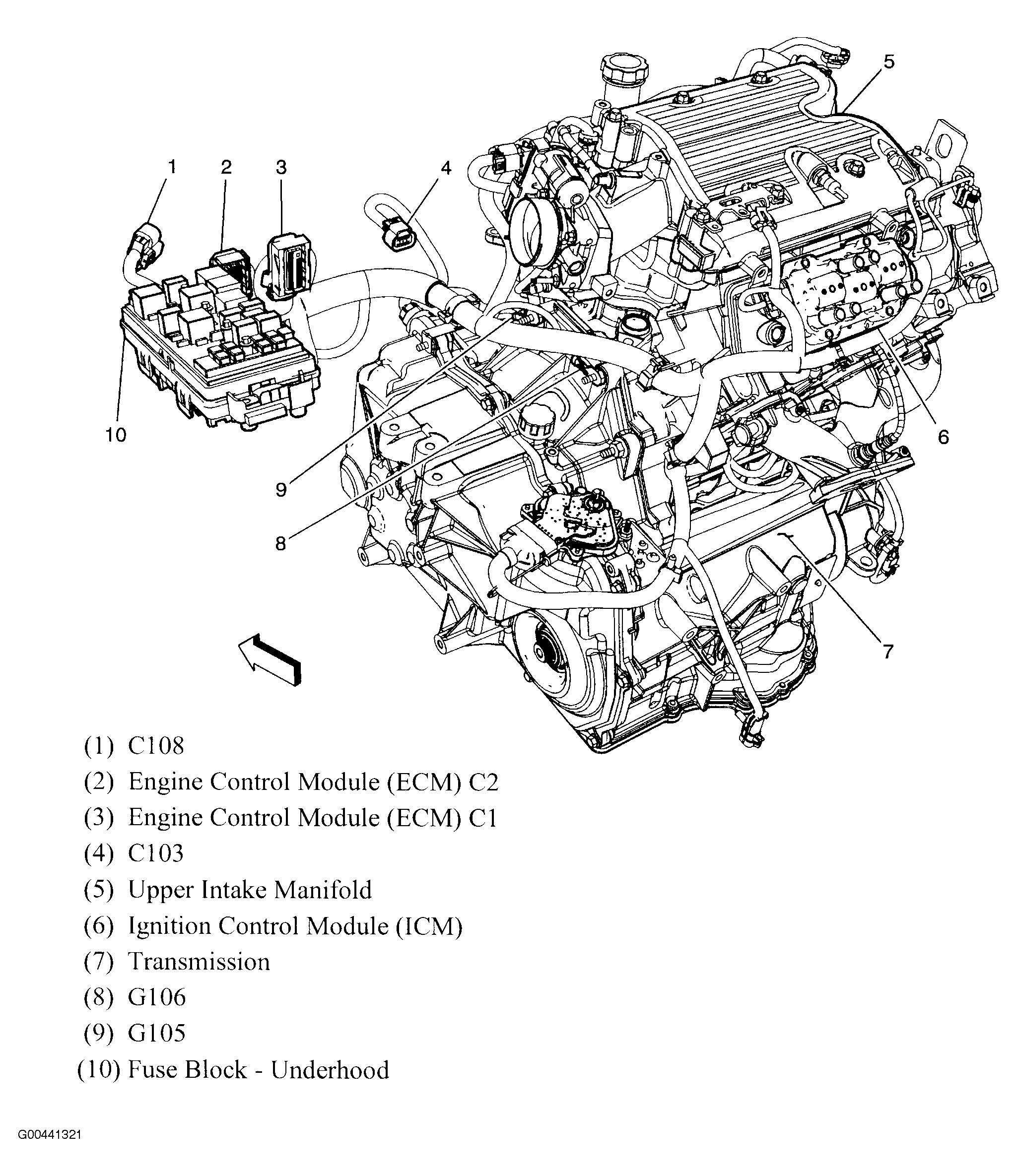

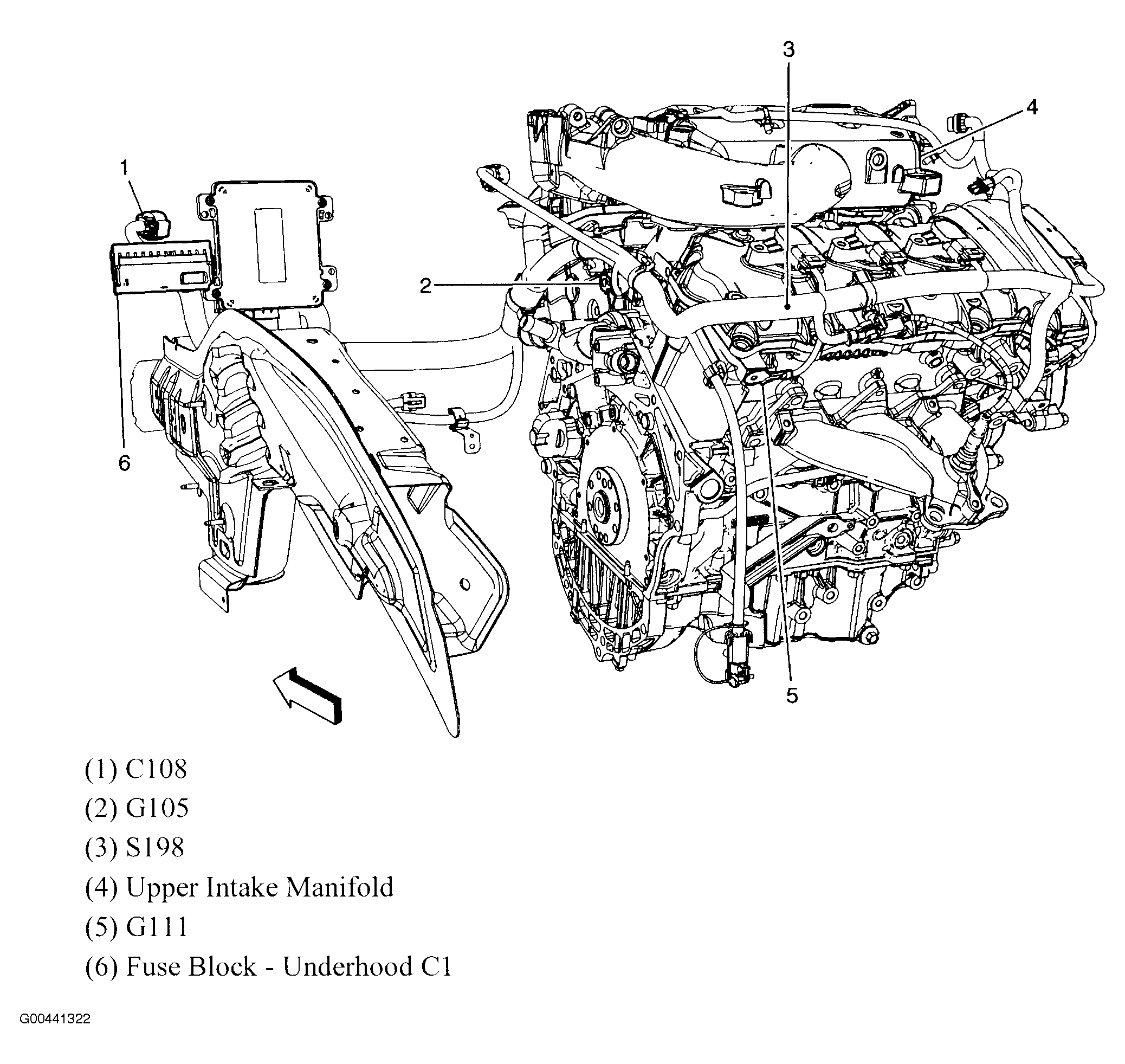

Fig 50: Engine Harness - Rear/Right - 3.5L
Courtesy of GENERAL MOTORS CORP.
Fig 51: Engine Harness - Rear/Right - 3.6L
Courtesy of GENERAL MOTORS CORP.
Fig 52: Behind Dash Harness
Courtesy of GENERAL MOTORS CORP.

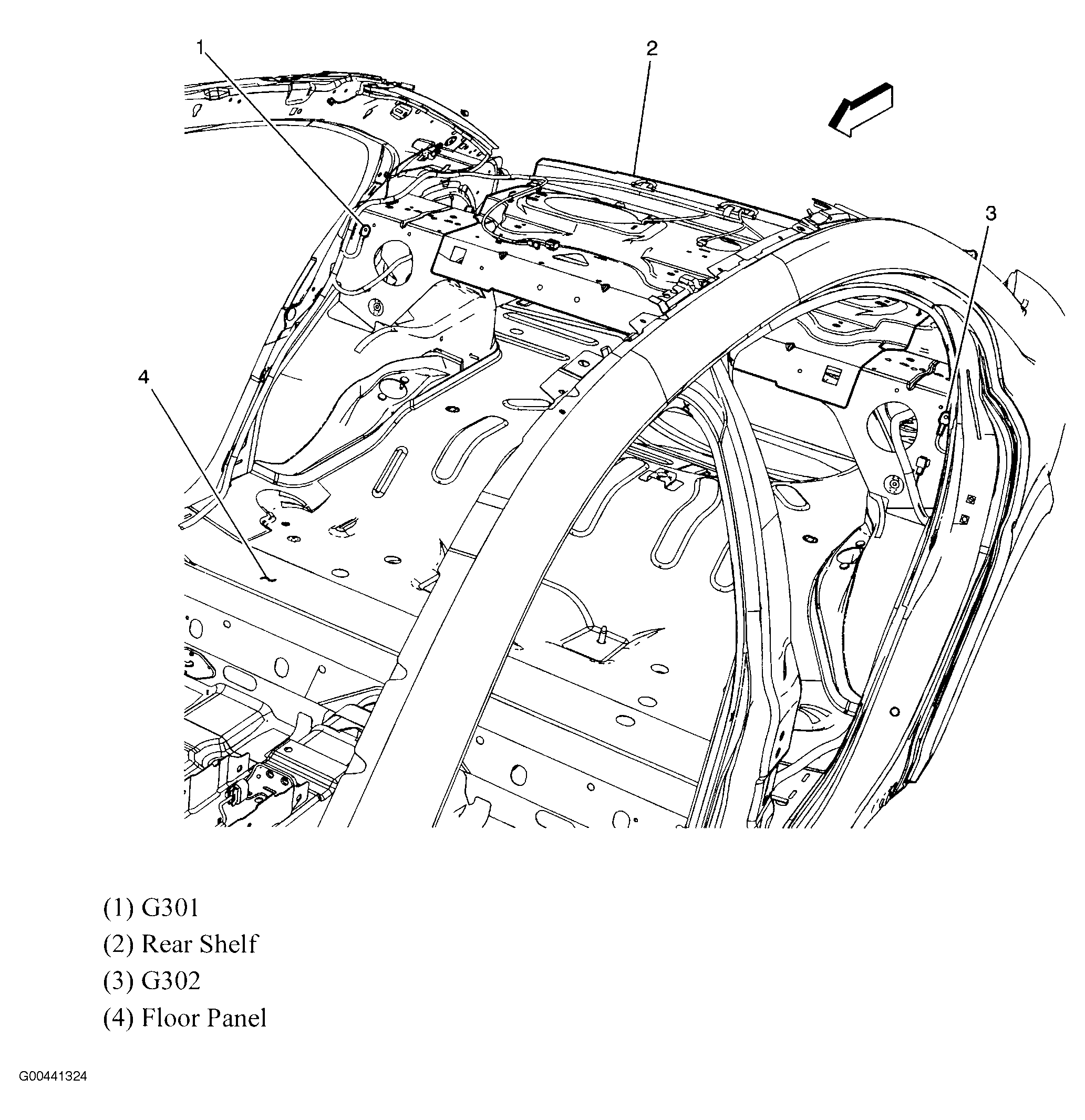

Fig 53: G301 & G302
Courtesy of GENERAL MOTORS CORP.

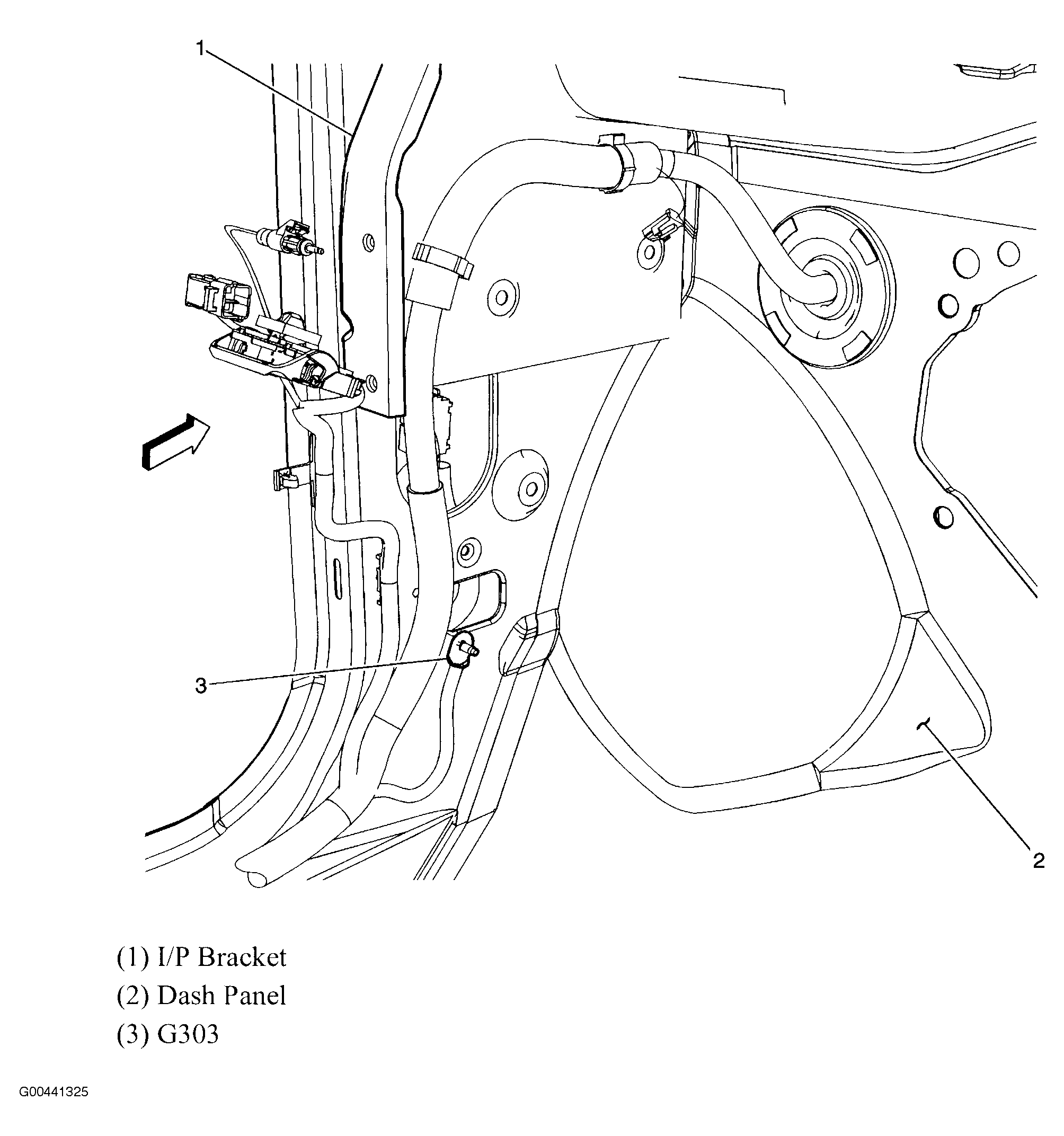

Fig 54: G303
Courtesy of GENERAL MOTORS CORP.

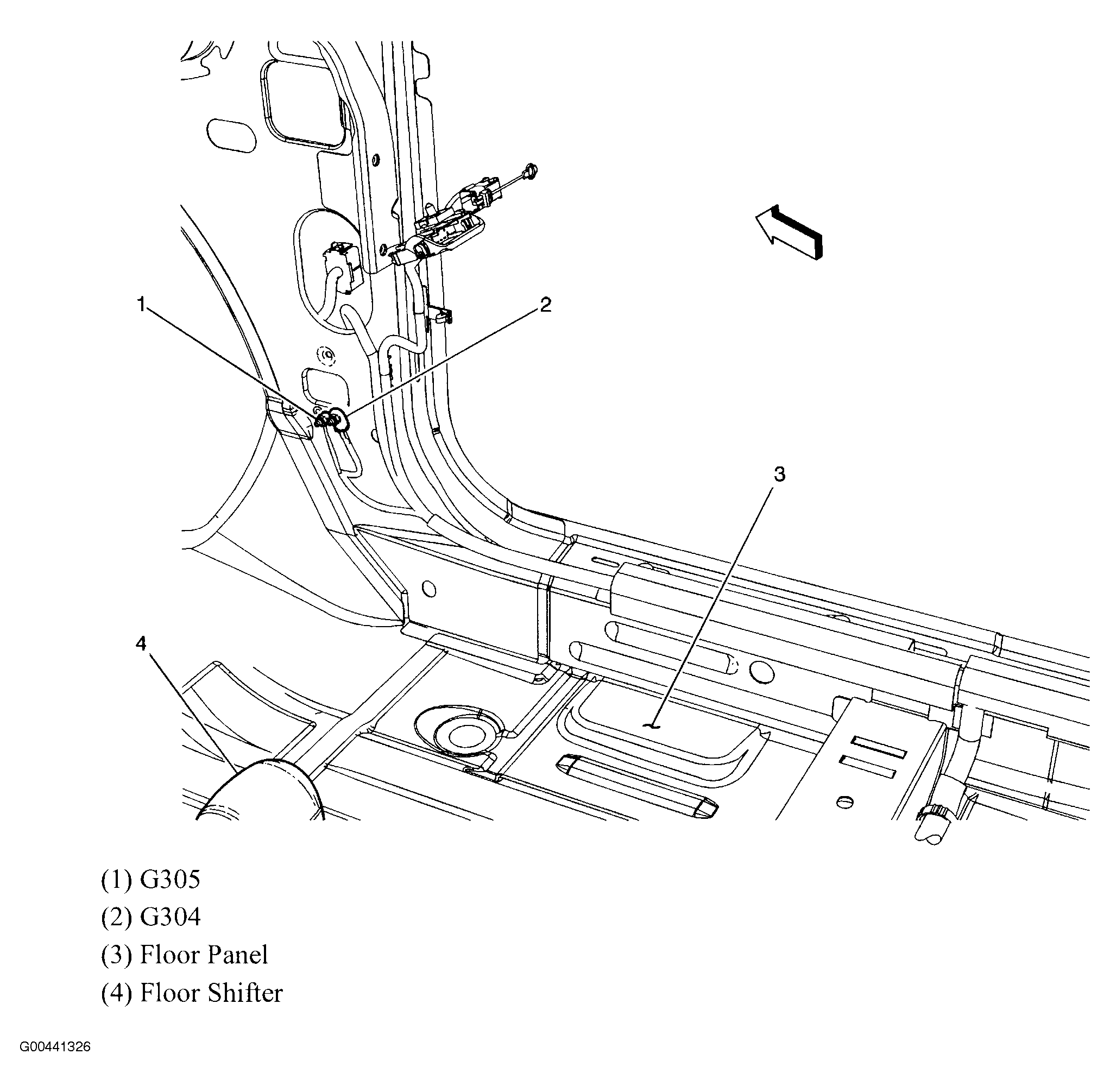

Fig 55: G304 & G305
Courtesy of GENERAL MOTORS CORP.

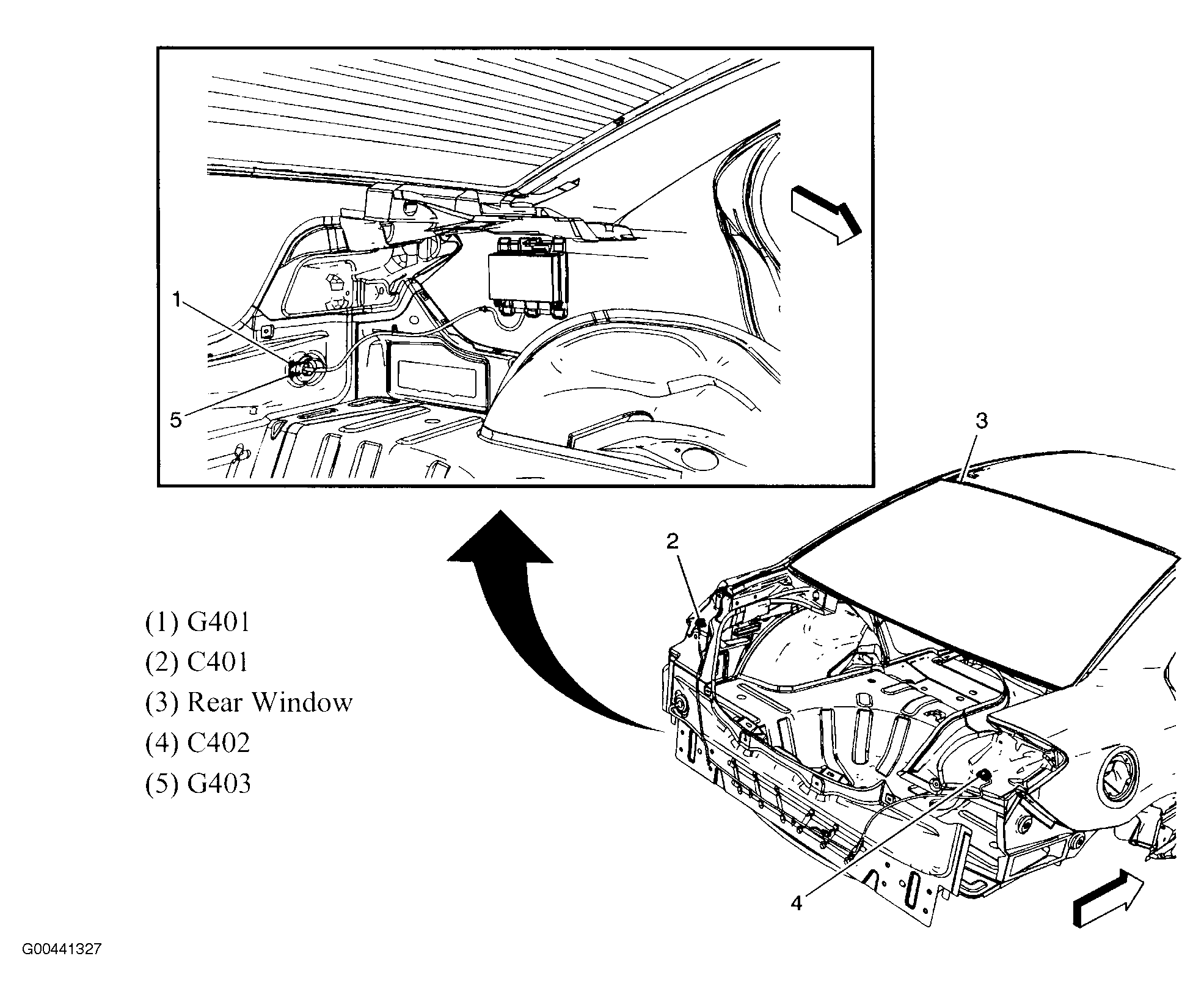

Fig 56: Rear Lamp Harness
Courtesy of GENERAL MOTORS CORP.

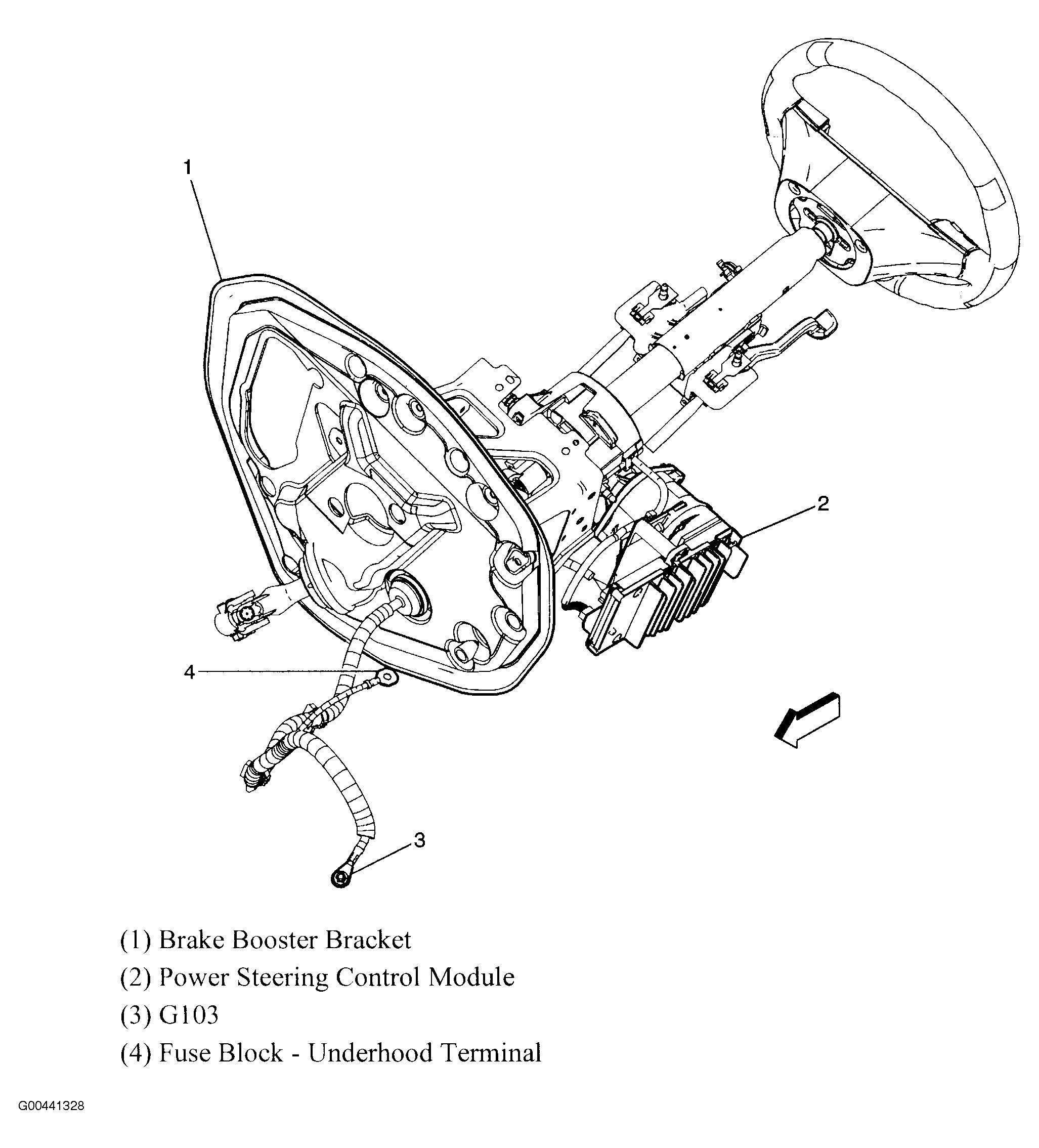

Fig 57: Power Steering
Courtesy of GENERAL MOTORS CORP.

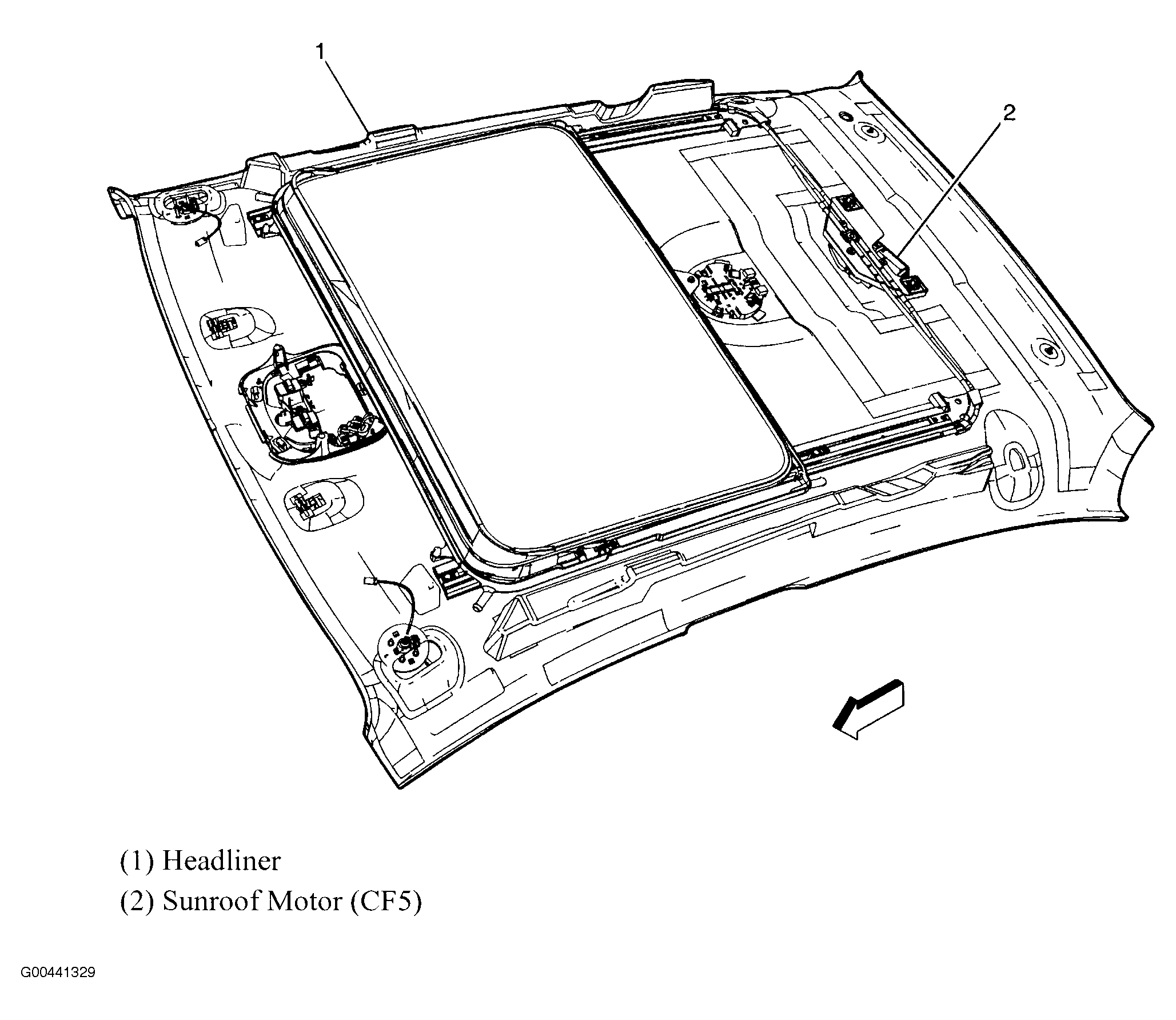

Fig 58: Above Headliner
Courtesy of GENERAL MOTORS CORP.

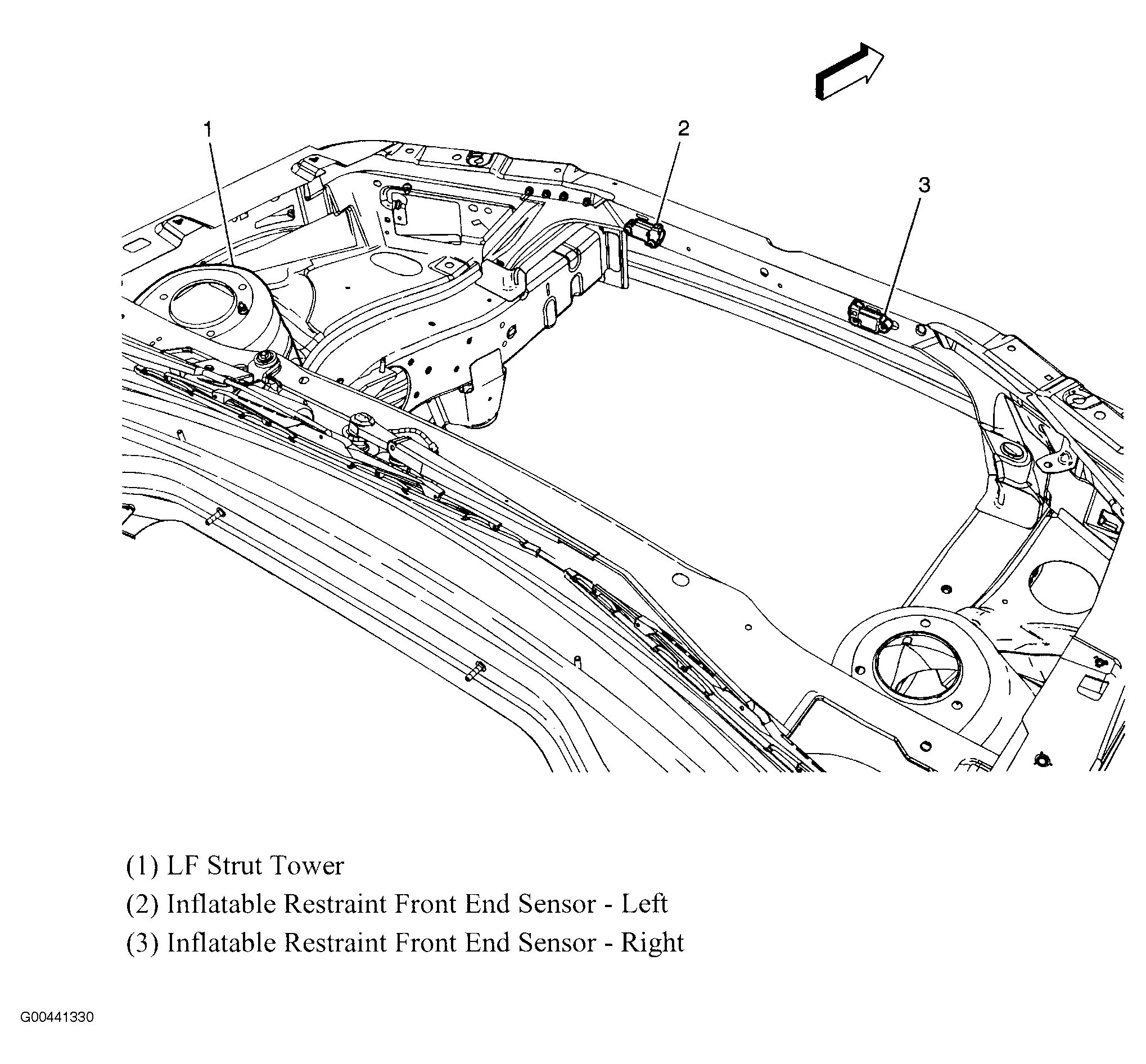

Fig 59: Front Inflatable Restraint Sensors
Courtesy of GENERAL MOTORS CORP.

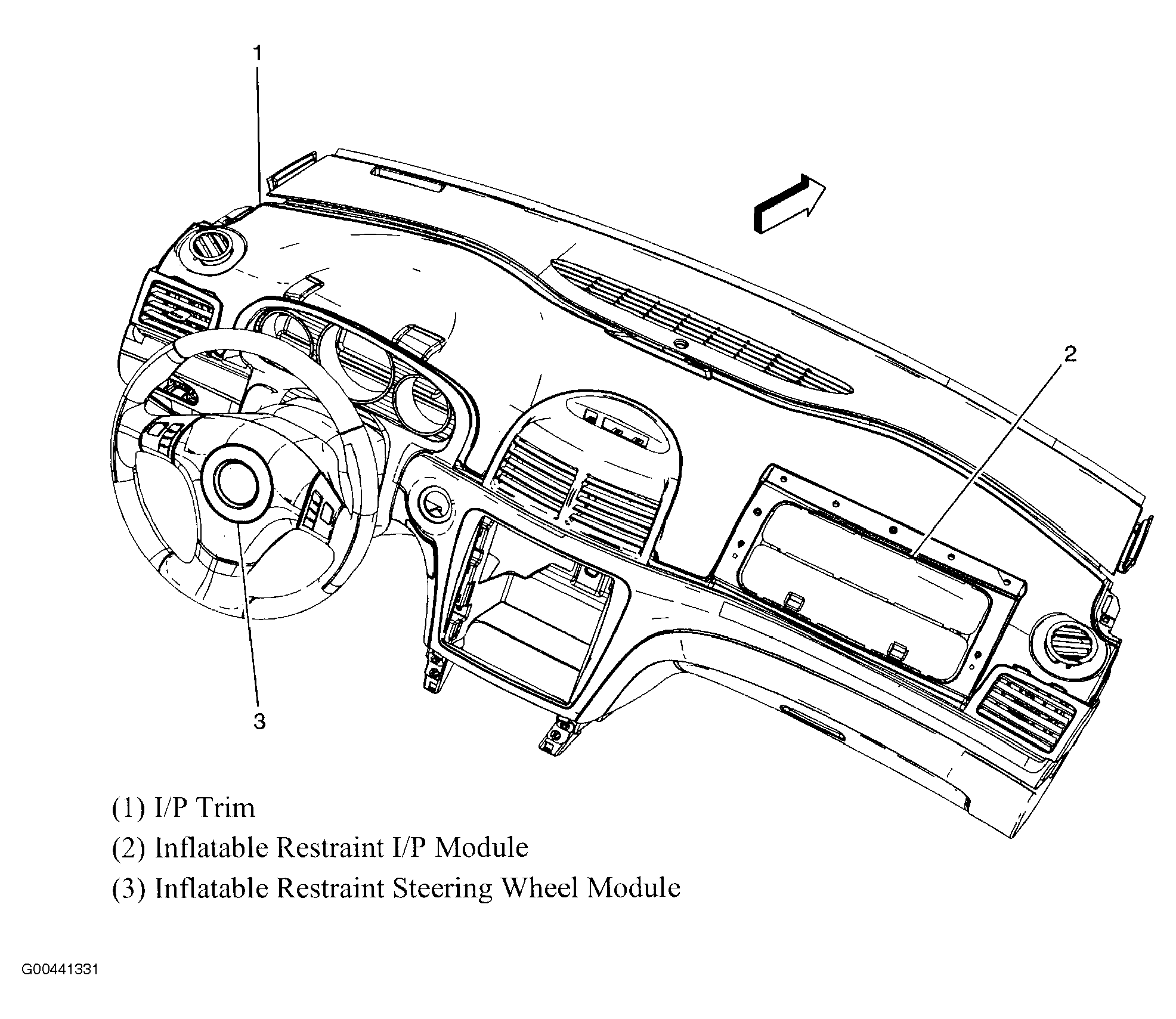

Fig 60: Front Air Bags
Courtesy of GENERAL MOTORS CORP.

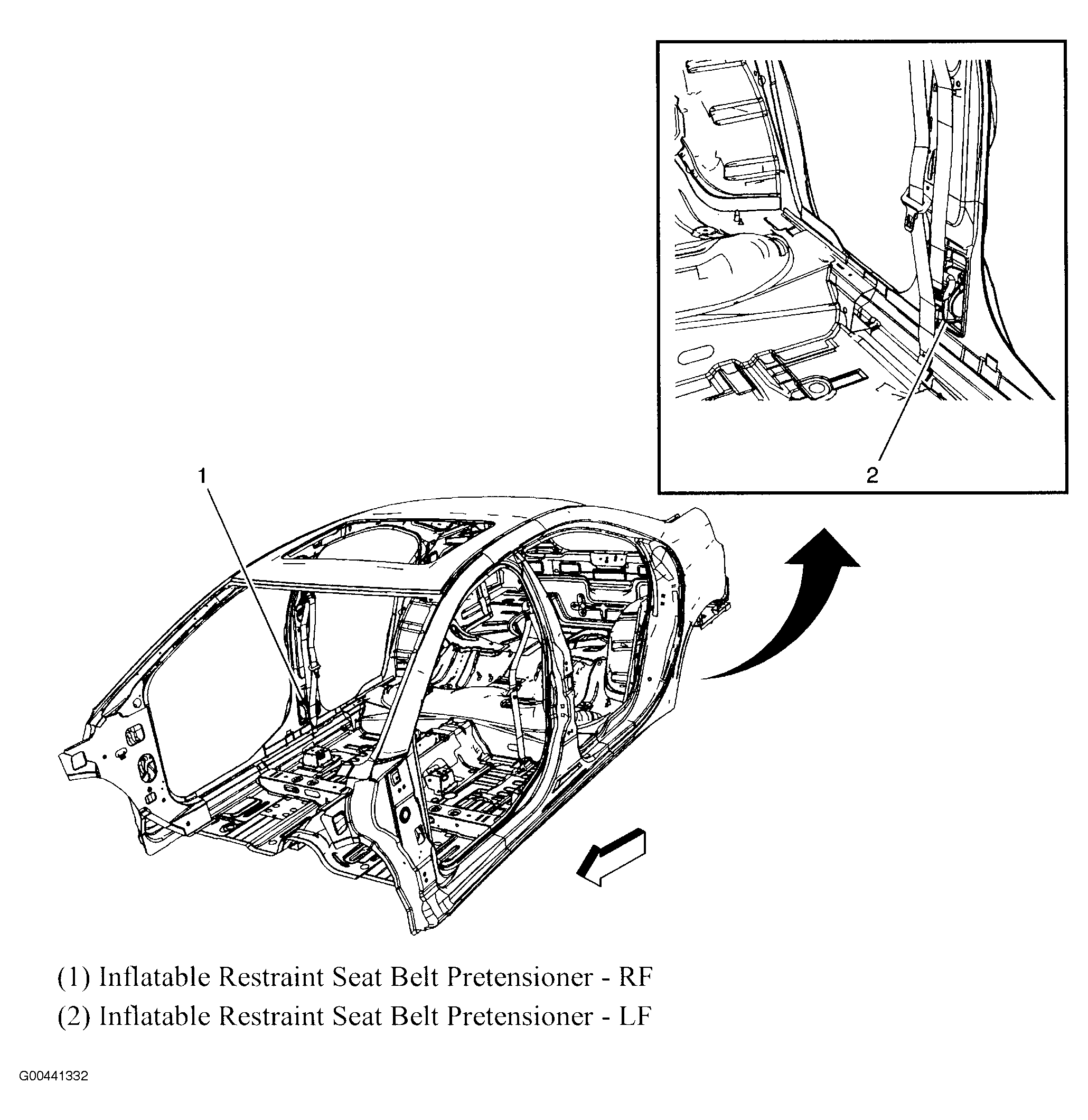

Fig 61: Seat Belt Pretensioners
Courtesy of GENERAL MOTORS CORP.

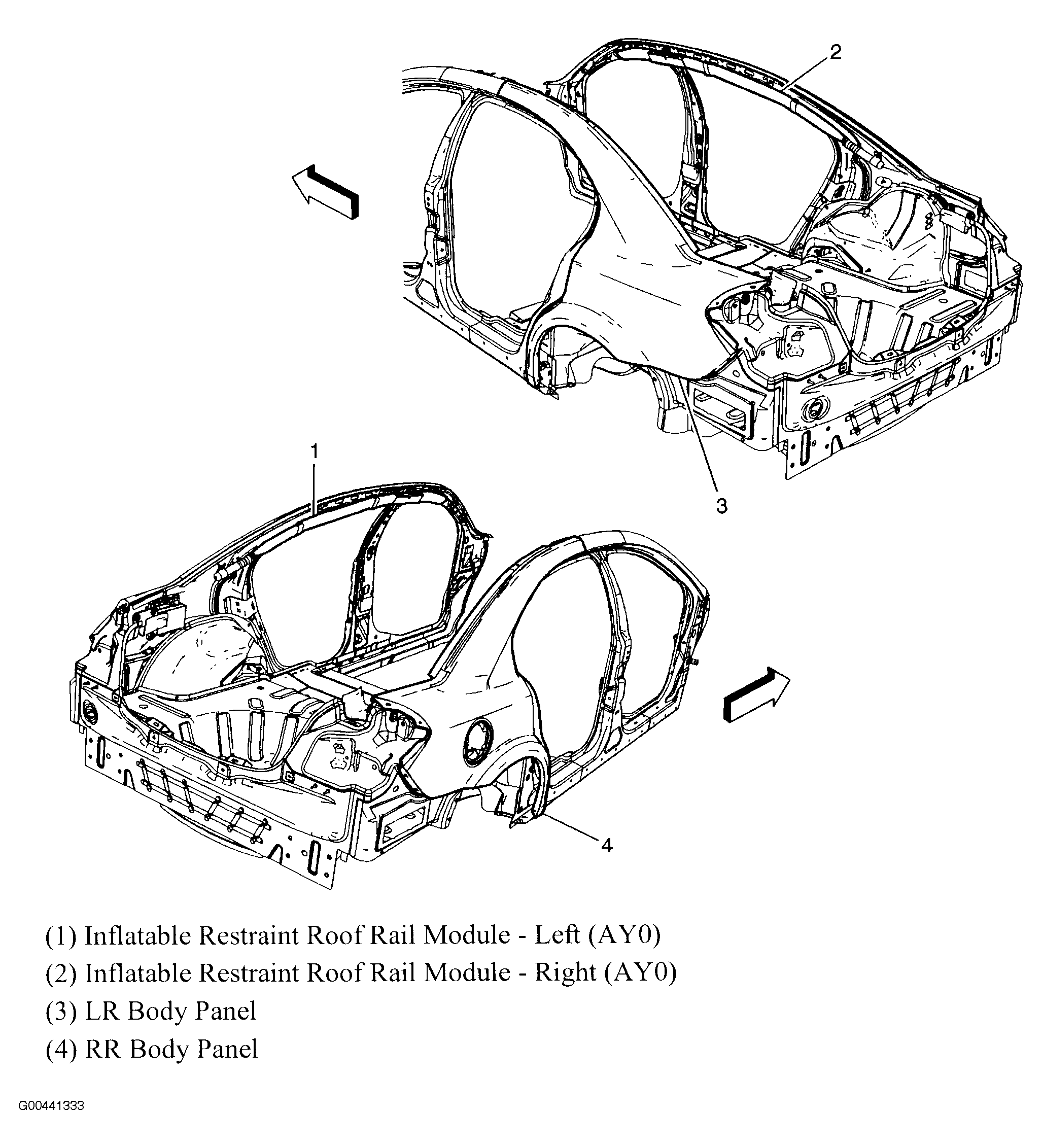

Fig 62: Roof Rail Air Bags
Courtesy of GENERAL MOTORS CORP.

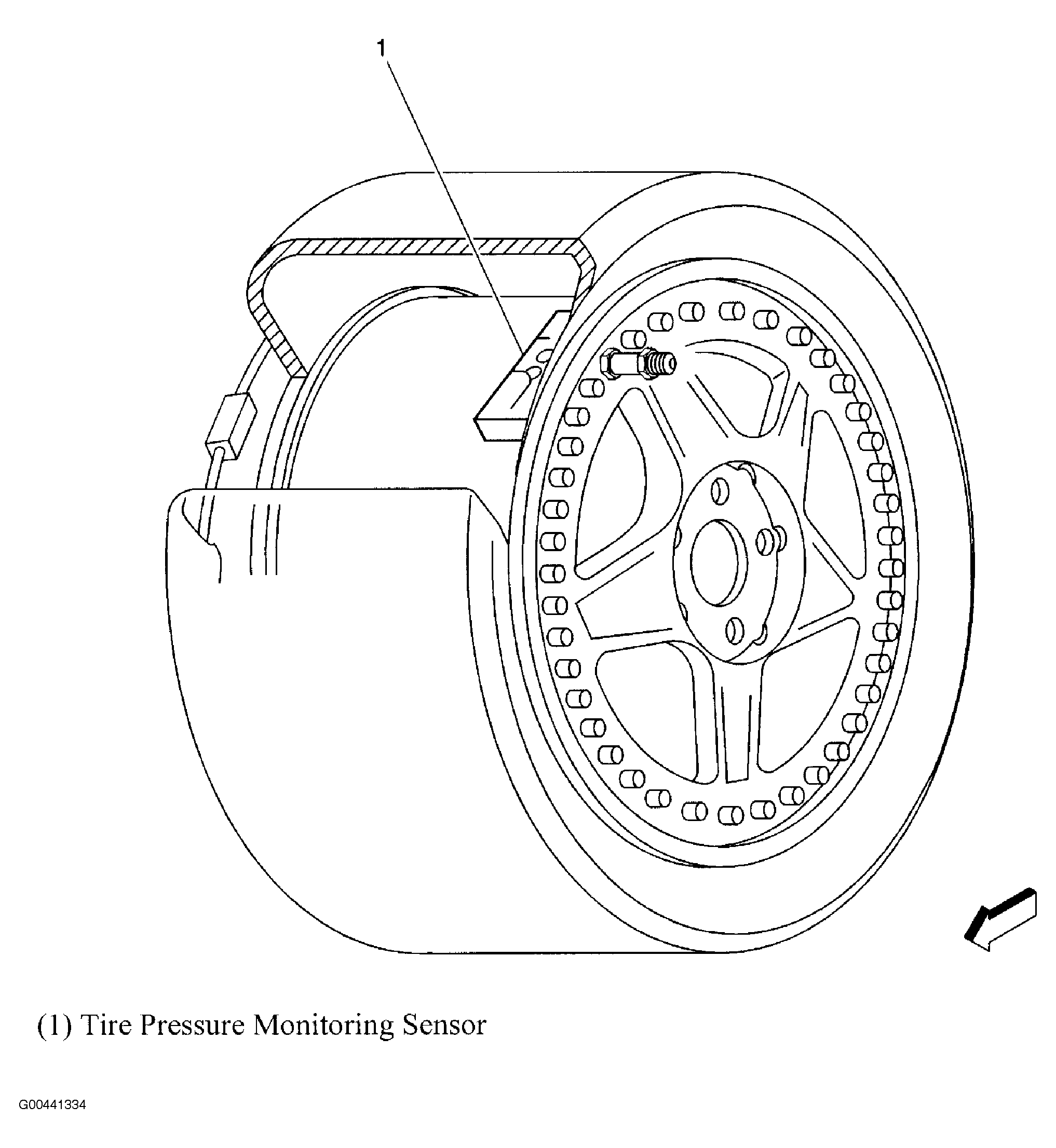

Fig 63: Tire Pressure Monitor
Courtesy of GENERAL MOTORS CORP.

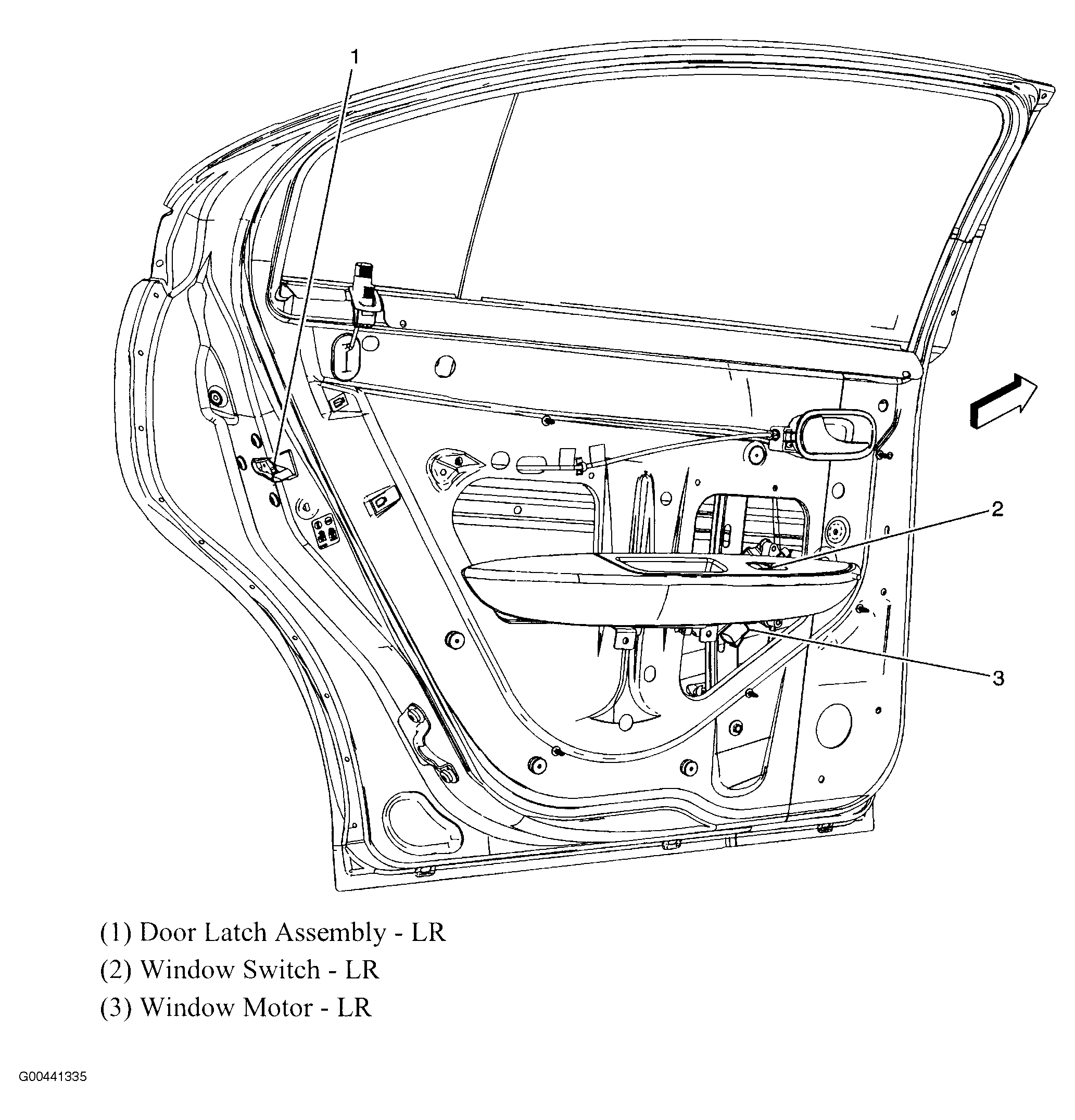

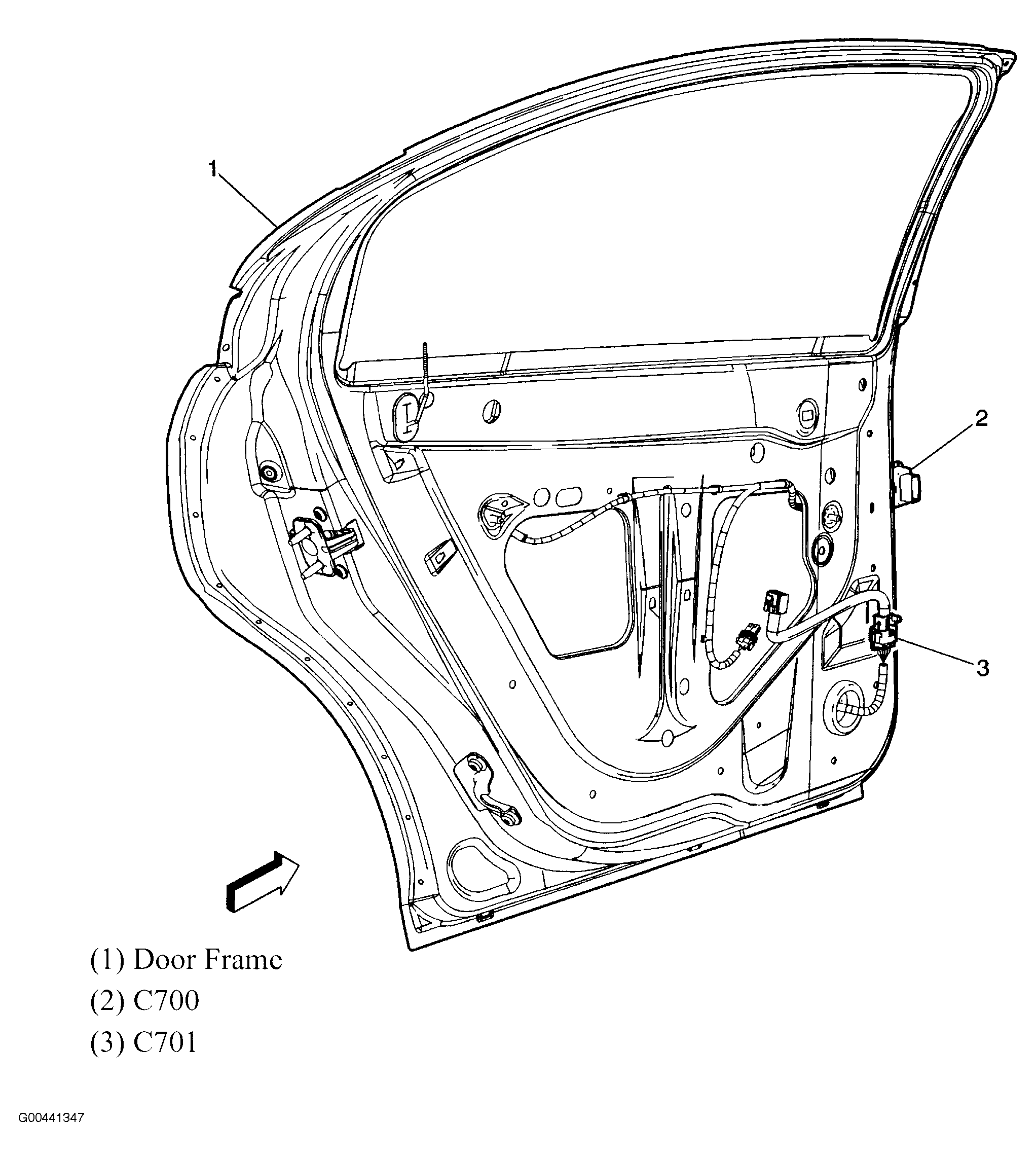

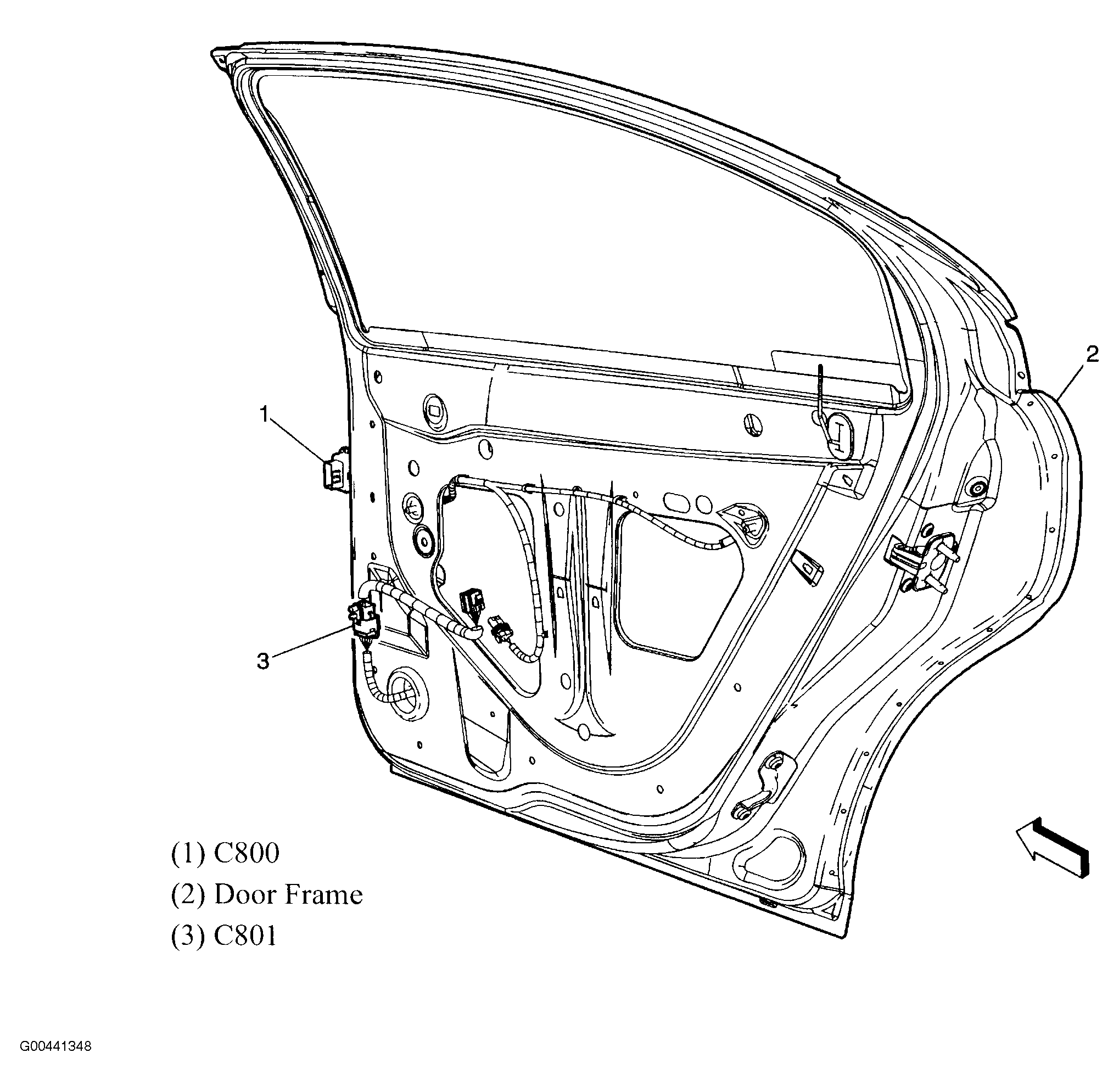

Fig 64: Left Rear Door
Courtesy of GENERAL MOTORS CORP.

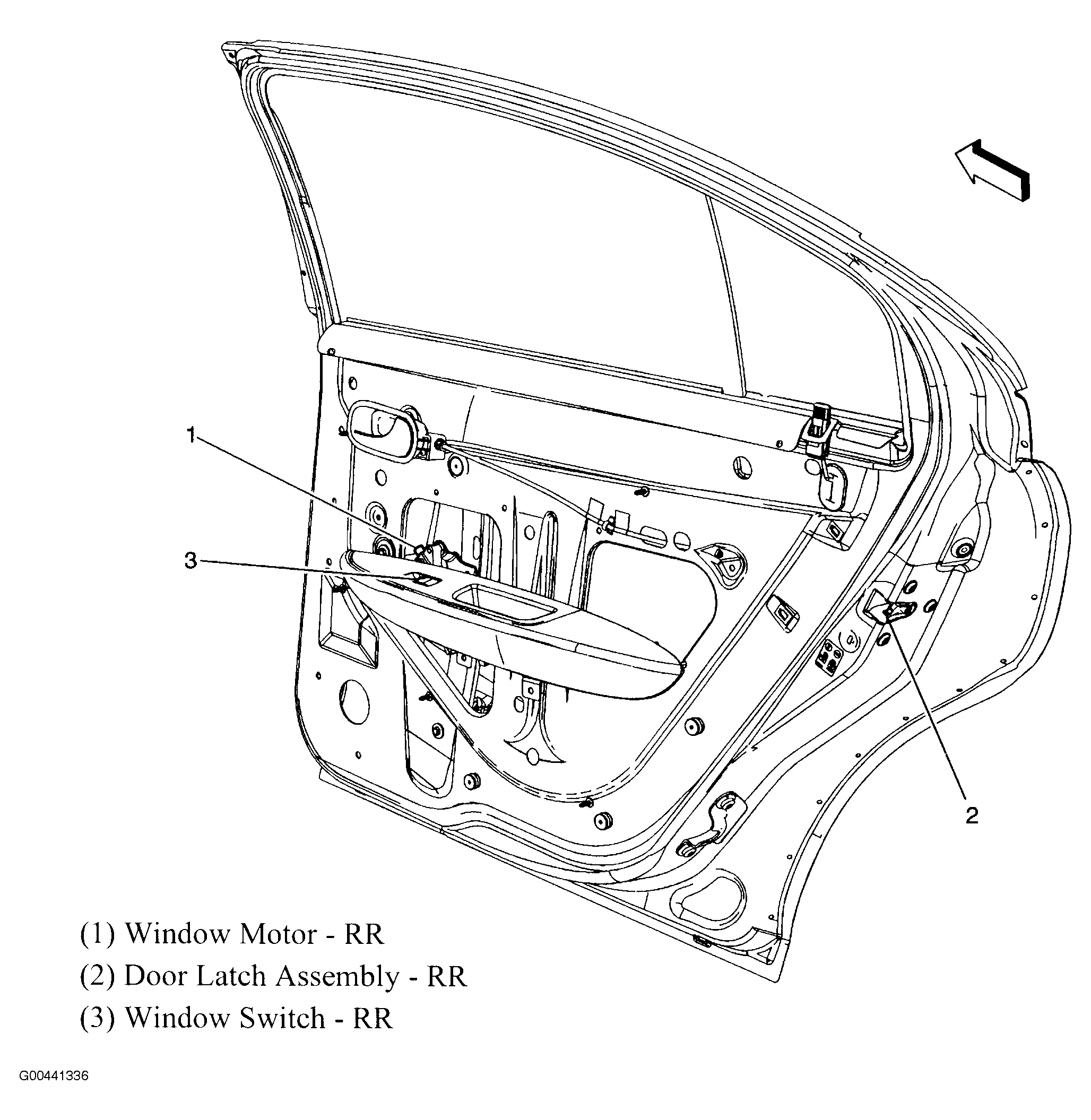

Fig 65: Right Rear Door
Courtesy of GENERAL MOTORS CORP.

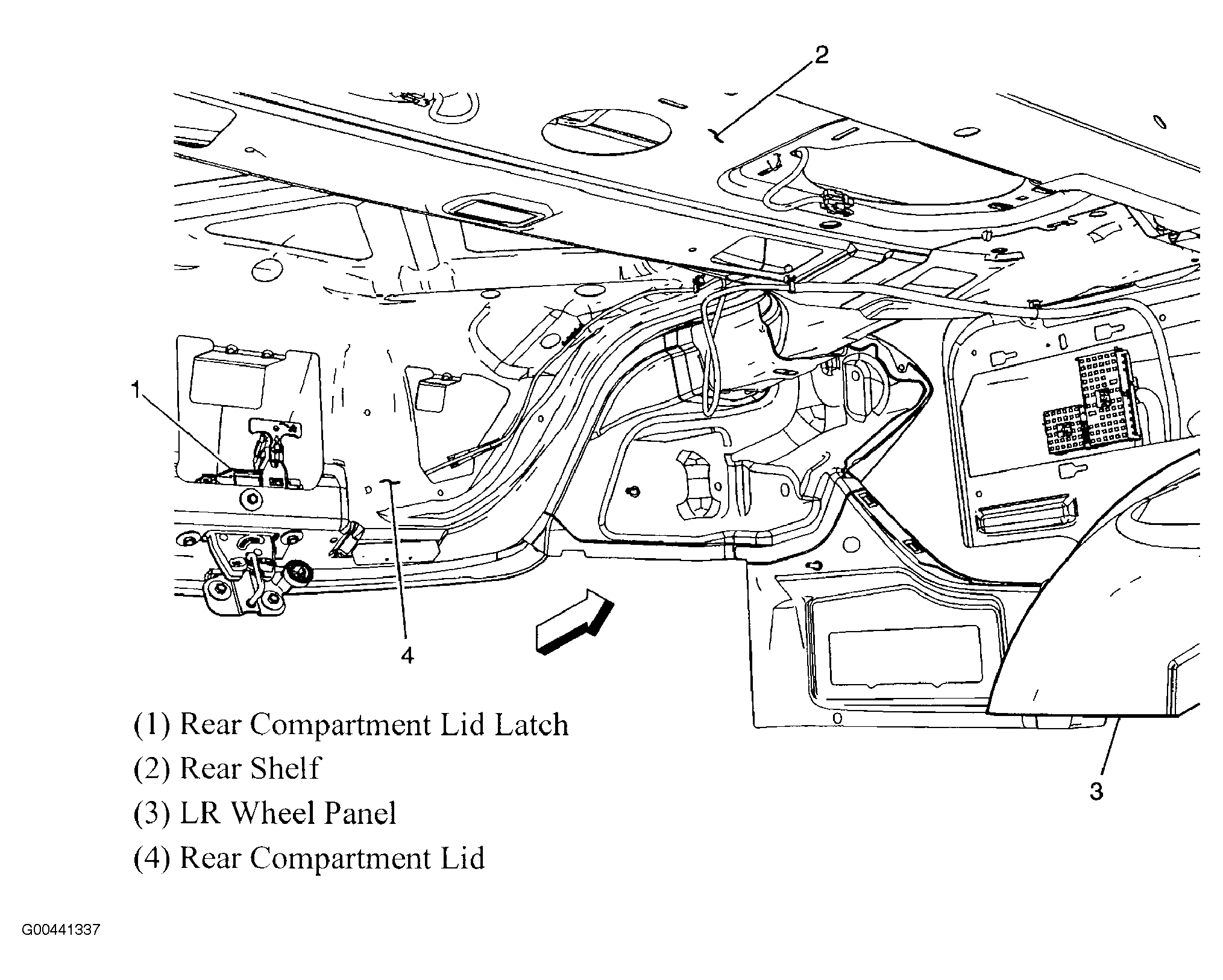

Fig 66: Rear Compartment Lid Latch
Courtesy of GENERAL MOTORS CORP.

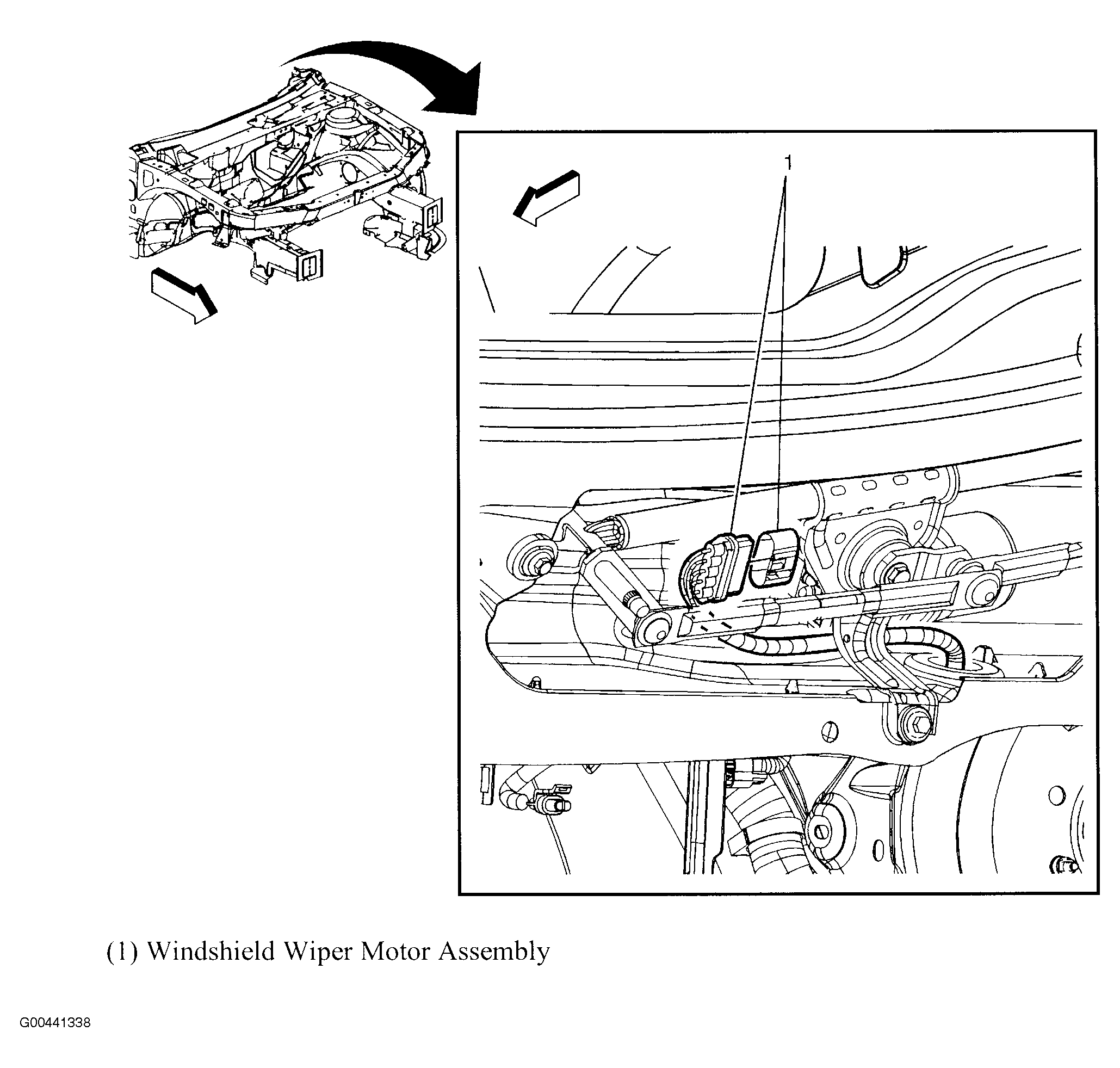

Fig 67: Wiper Motor
Courtesy of GENERAL MOTORS CORP.

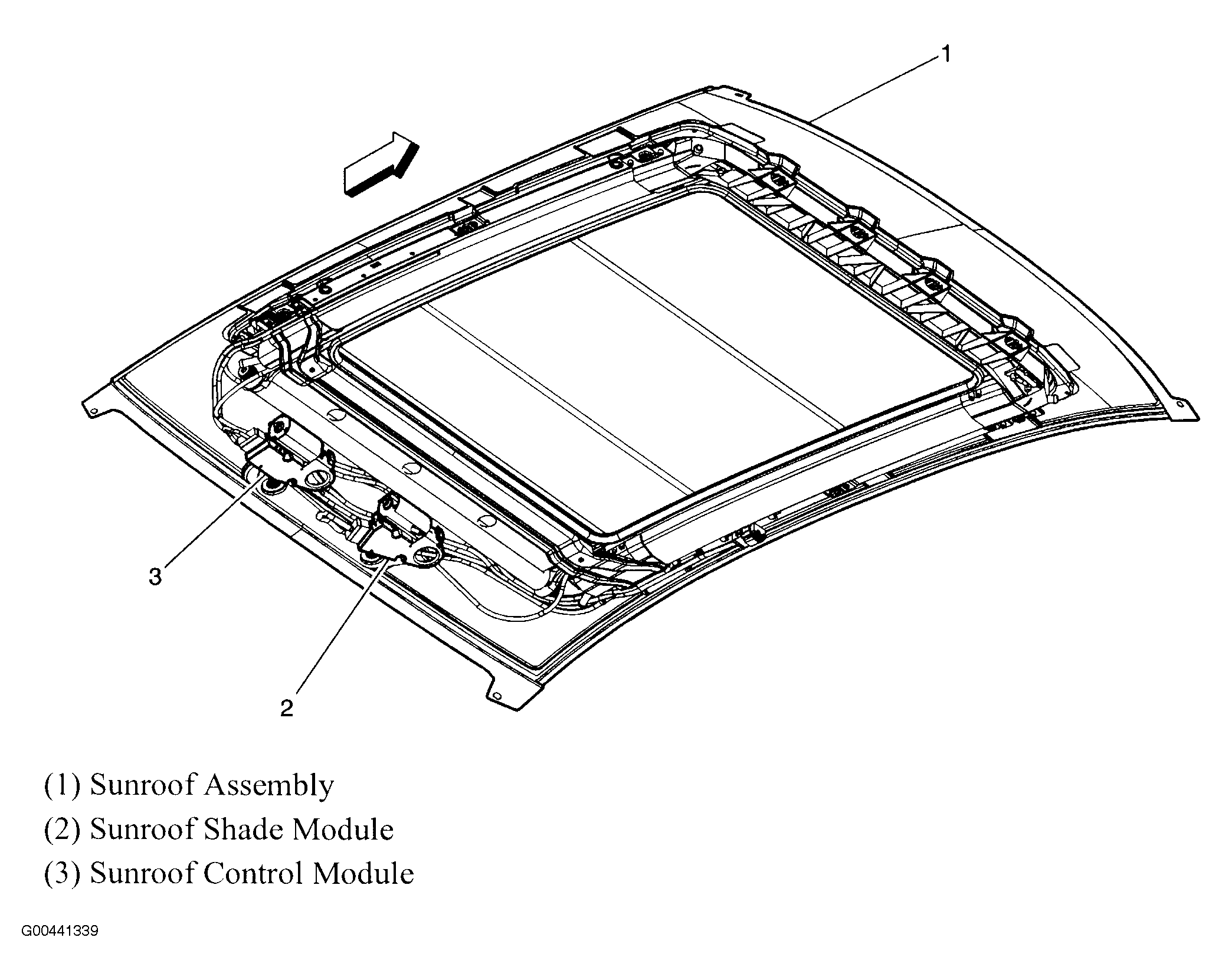

Fig 68: Sunroof Assembly Components
Courtesy of GENERAL MOTORS CORP.

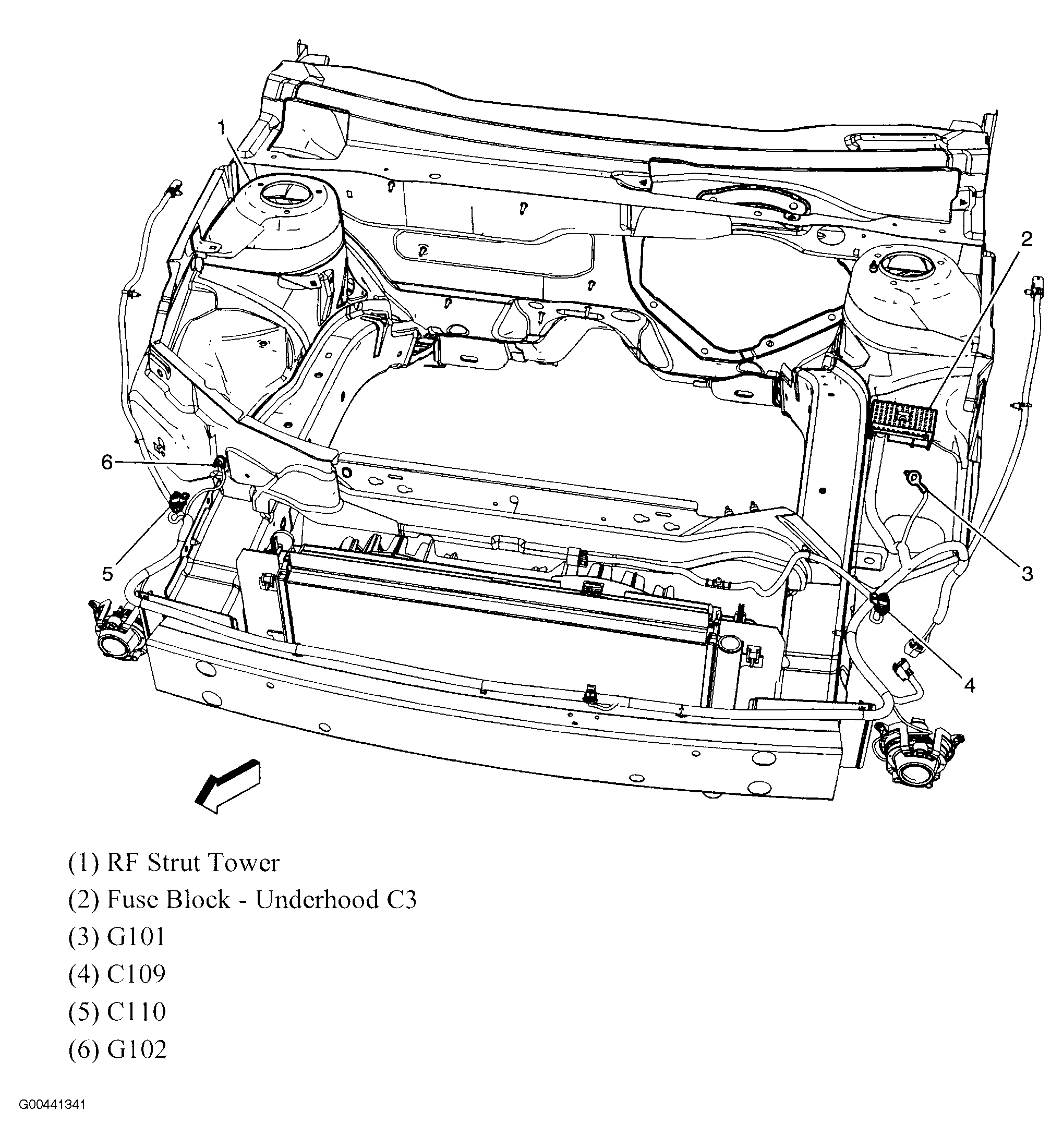

Fig 69: Body Harness - Front
Courtesy of GENERAL MOTORS CORP.
Fig 70: Forward Lamp Harness
Courtesy of GENERAL MOTORS CORP.

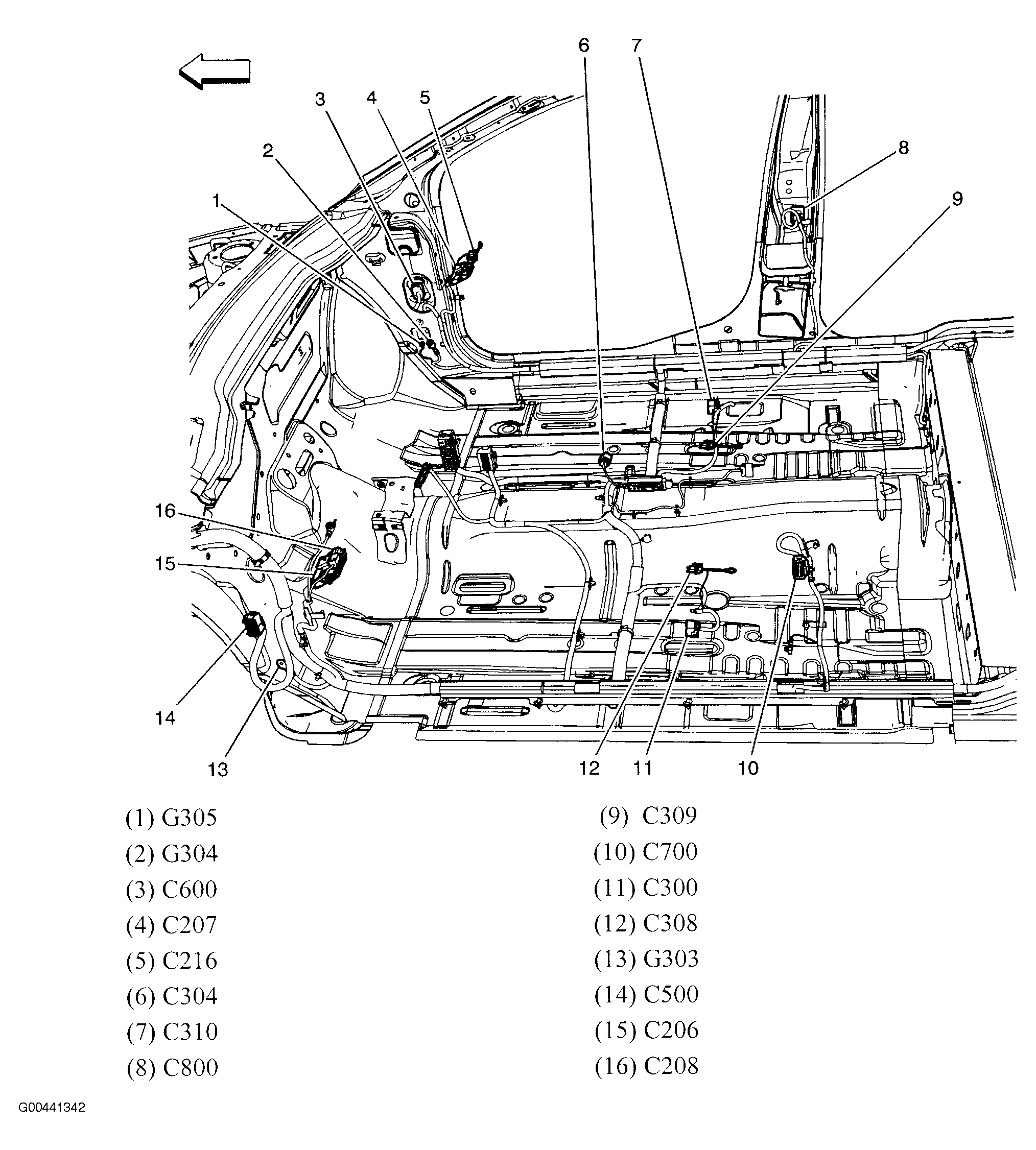

Fig 71: Body Harness - Passenger Compartment
Courtesy of GENERAL MOTORS CORP.

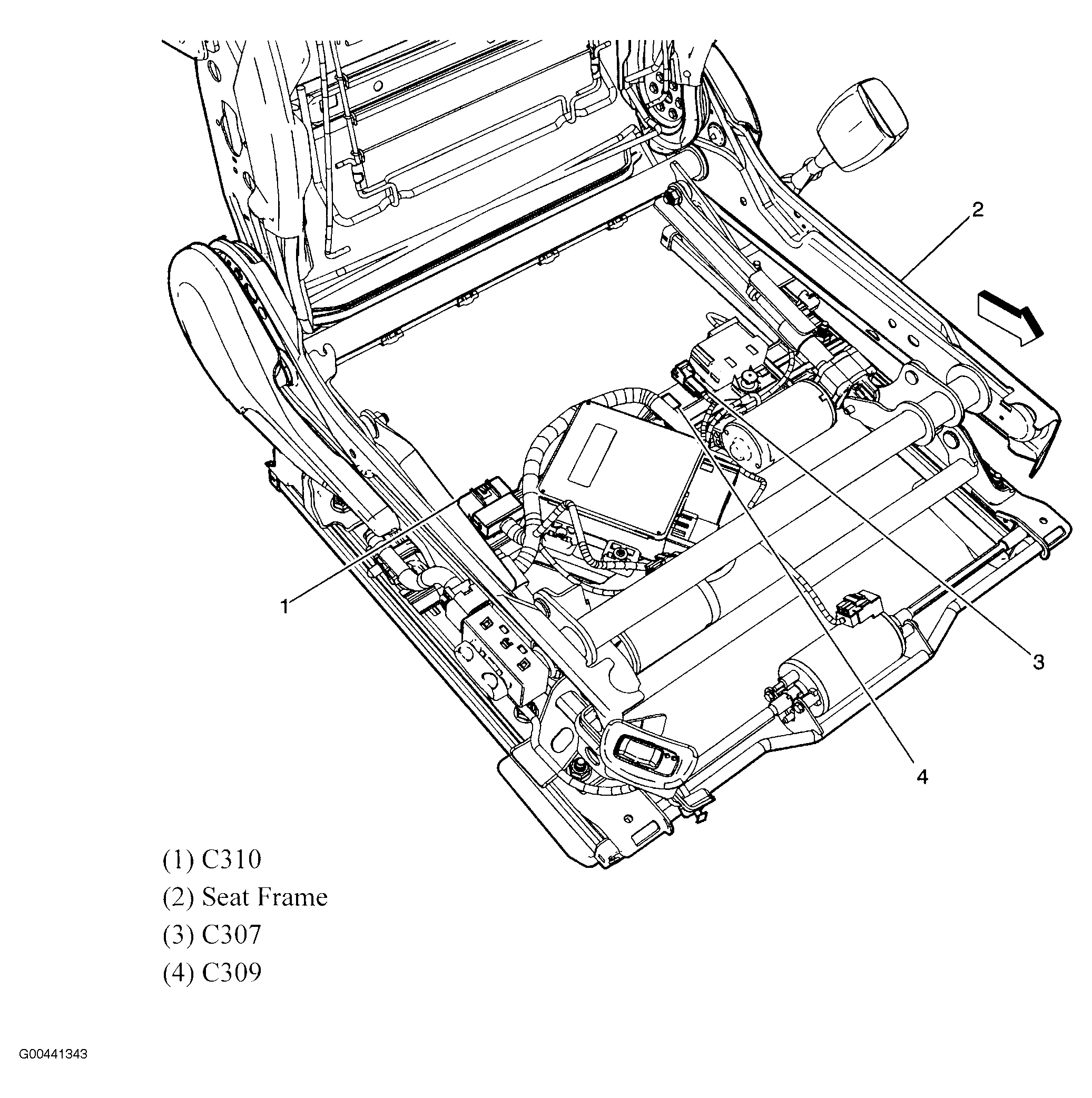

Fig 72: Passenger Seat Harness
Courtesy of GENERAL MOTORS CORP.

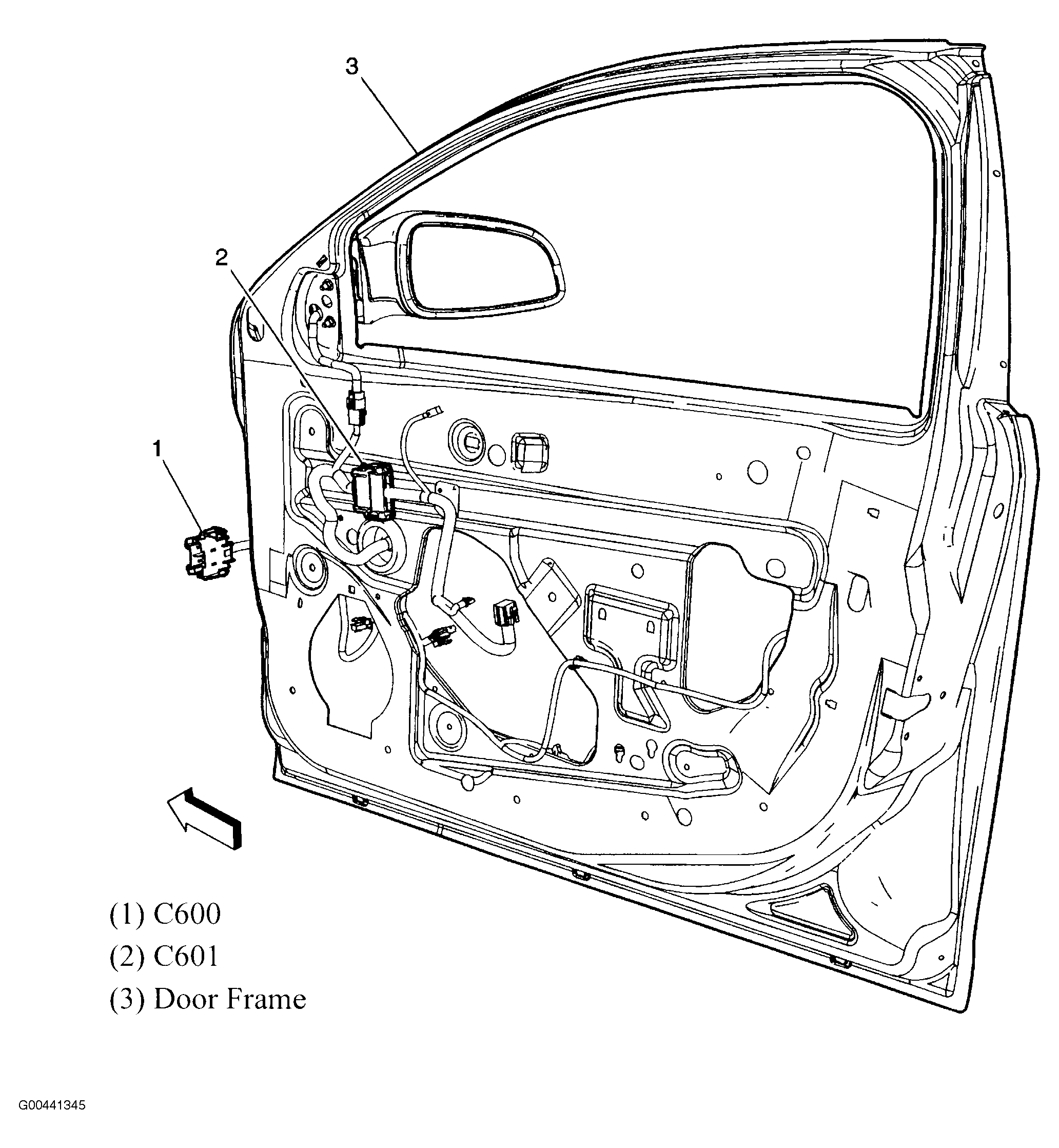

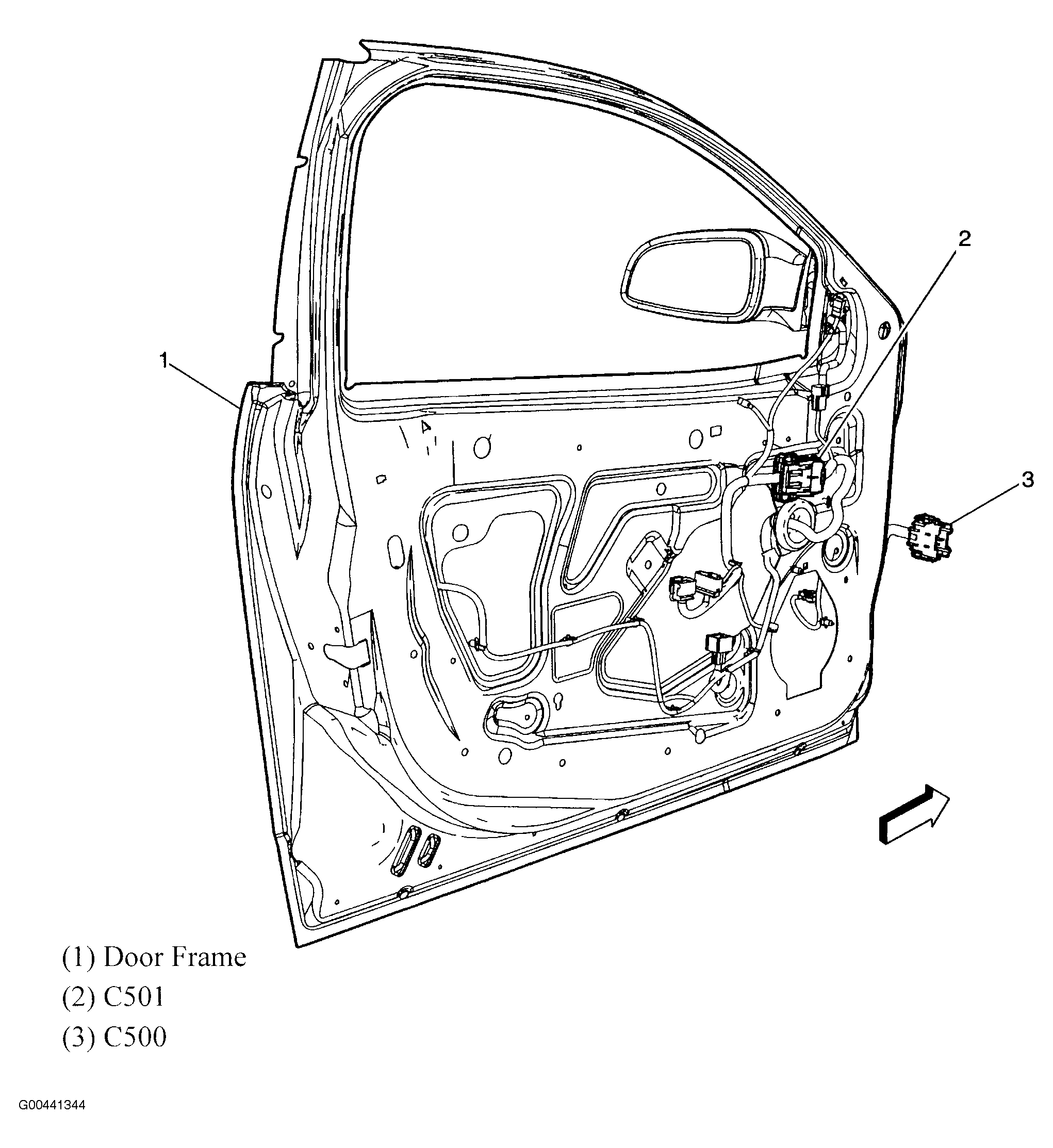

Fig 73: Driver Door Harness
Courtesy of GENERAL MOTORS CORP.
Fig 74: Passenger Door Harness
Courtesy of GENERAL MOTORS CORP.

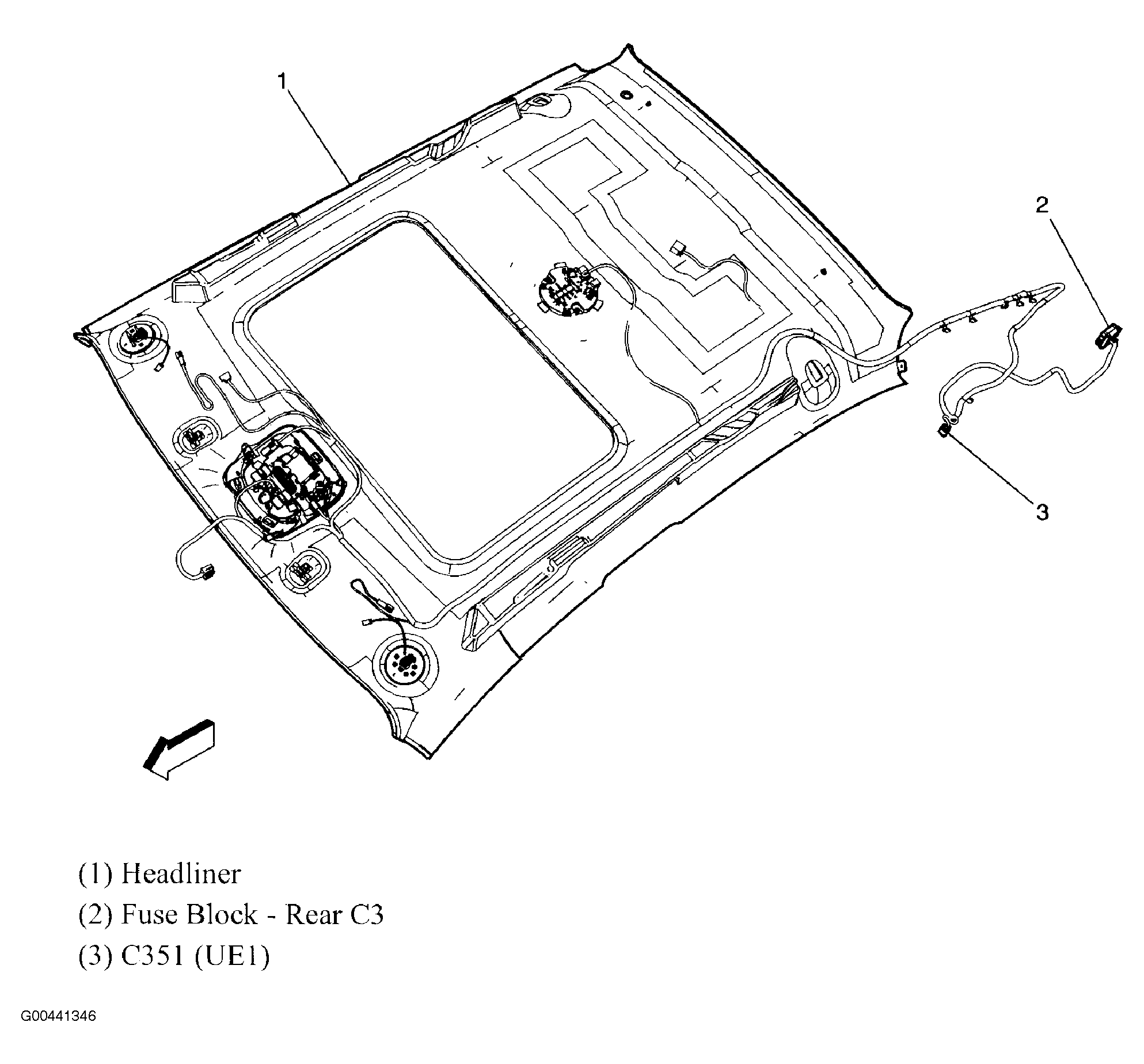

Fig 75: Headliner Harness
Courtesy of GENERAL MOTORS CORP.
Fig 76: LR Door Harness
Courtesy of GENERAL MOTORS CORP.
Fig 77: RR Door Harness
Courtesy of GENERAL MOTORS CORP.
Fig 78: Rear ABS/Fuel Tank Harness
Courtesy of GENERAL MOTORS CORP.

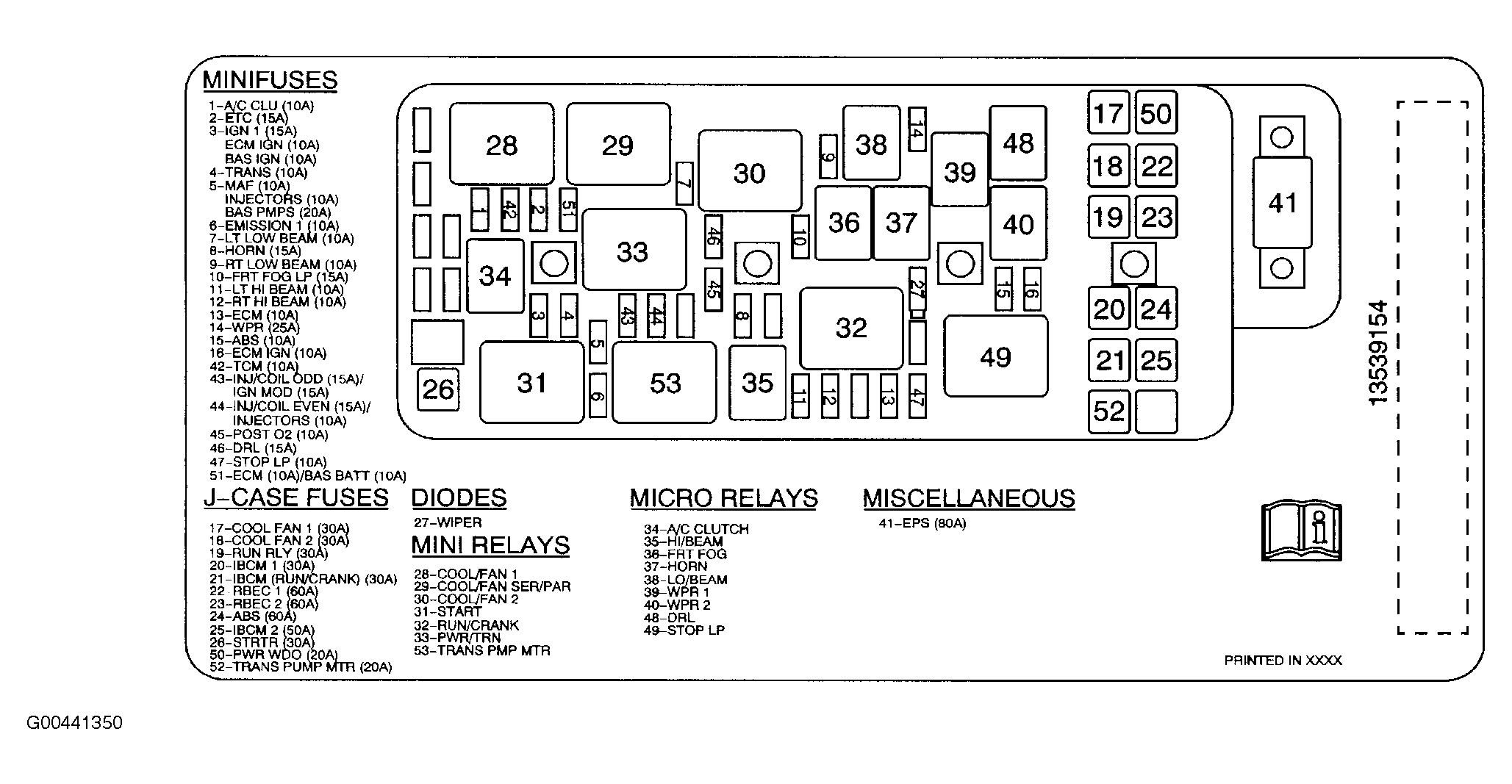

Fig 79: Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.
Fig 80: Body Control Module
Courtesy of GENERAL MOTORS CORP.
Fig 81: Fuel Injector Harness - 3.6L
Courtesy of GENERAL MOTORS CORP.
Fig 82: Fuel Injector Harness - 3.5L
Courtesy of GENERAL MOTORS CORP.

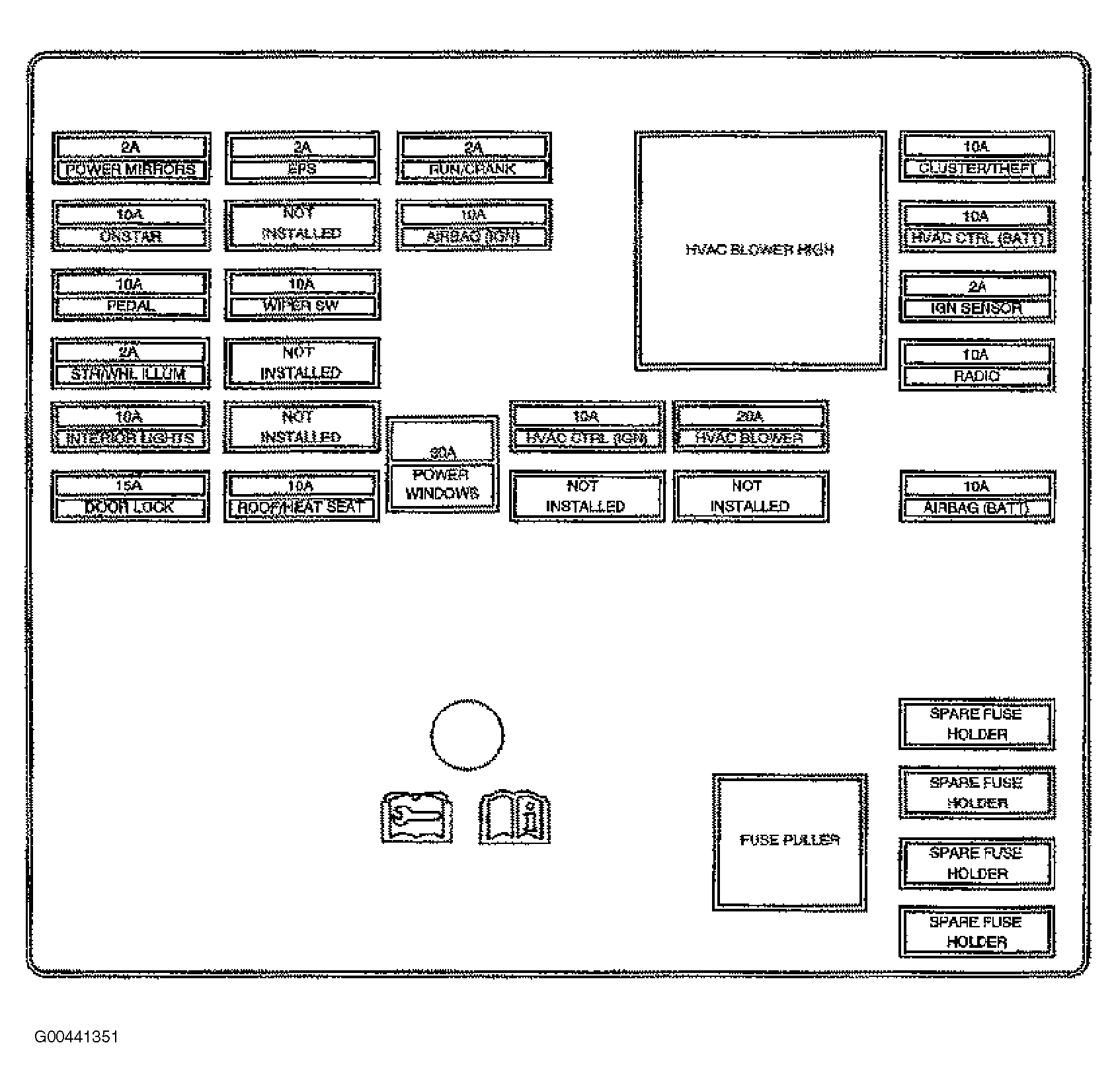

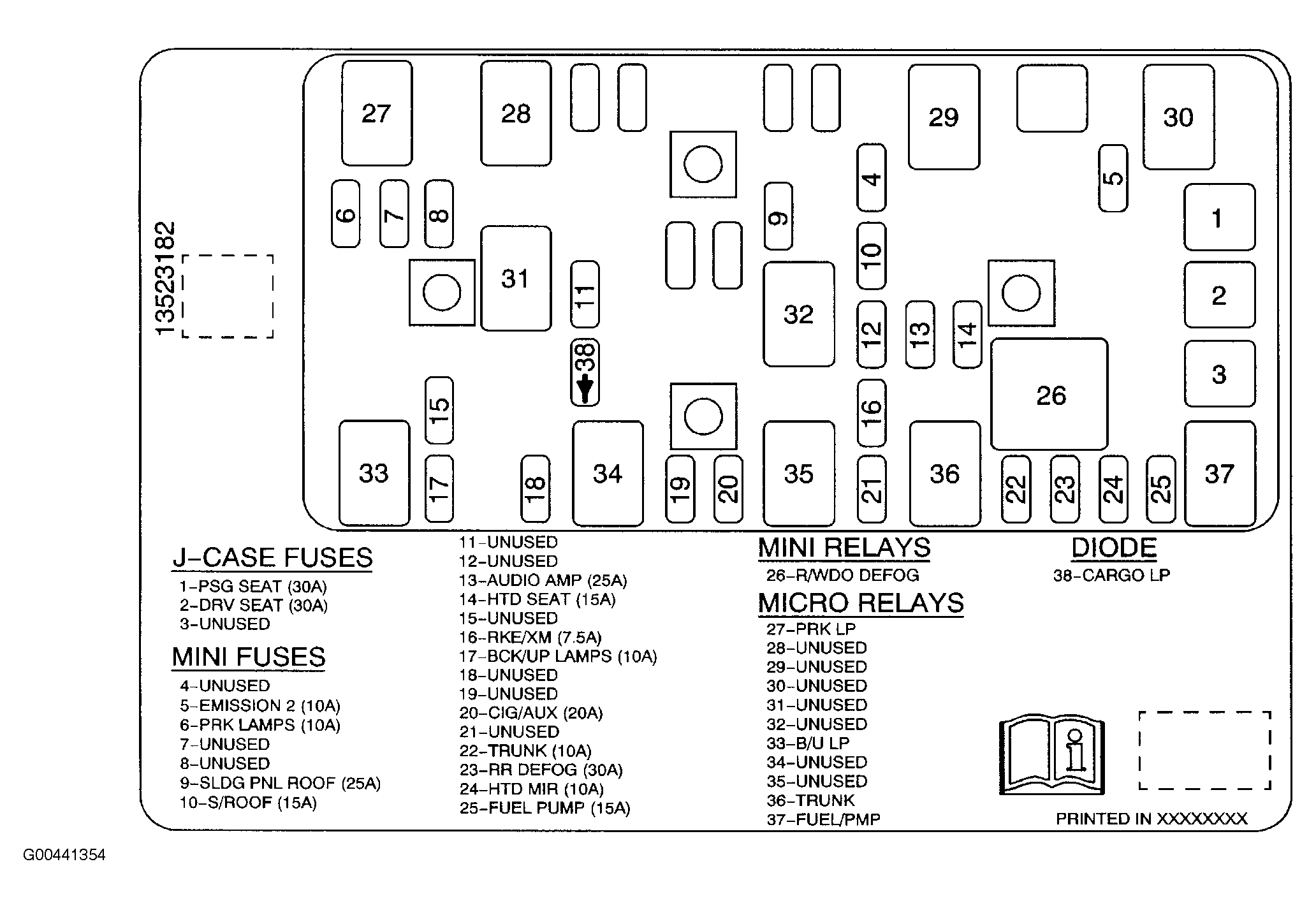

Fig 83: Rear Fuse Block
Courtesy of GENERAL MOTORS CORP.
