Installation Procedure

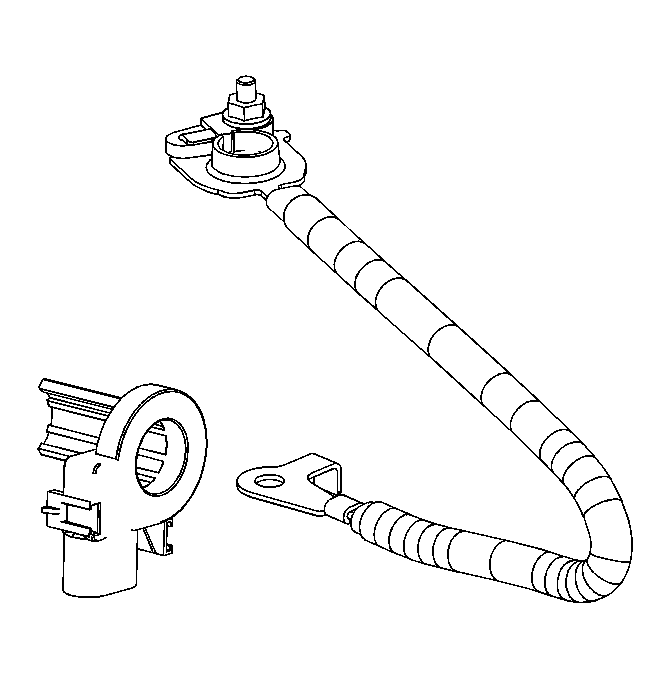

    Fig 1: View Of Battery Current Sensor
    GM1656238Courtesy of GENERAL MOTORS CORP.
  1. Install the battery current sensor by passing the ground end of the negative battery cable through the sensor.
    2. IMPORTANT: Ensure the battery current sensor is installed in the correct direction and location on the negative battery cable.
  2. Wrap electrical tape around the battery current sensor in order to secure the battery current sensor to the negative battery cable.
  3. Install the battery to battery tray negative battery cable. Refer to Battery Negative Cable Replacement (Battery to Battery Tray)  or Battery Negative Cable Replacement (Engine to Chassis) .
