Entertainment Component Views

WARNING: This page is about a different car, the 2004 Saturn Ion Red Line, 2004 Saturn Ion 3, 2004 Saturn Ion 2, and 2004 Saturn Ion 1. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Driver Door Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Driver Outside Rearview Mirror
2	LF Door Tweeter Speaker (UZ6)
3	Driver Door Jamb Switch
4	Instrument Panel (I/P) Dimmer Switch
5	Fog Lamp Switch (T37)
6	Rear Compartment Lid Release Switch
7	LF Door Speaker
8	Outside Rearview Mirror Switch (DG7)
9	Window Switch - Driver (A31)
10	Door Lock Switch - Driver (AU3)

Fig 2: Front Passenger Door Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Radio
2	Passenger Door Jamb Switch
3	RF Door Tweeter Speaker (UZ6)
4	Radio Antenna
5	Passenger Outside Rearview Mirror
6	Front Passenger Door Lock Switch (AU3)
7	Front Passenger Window Switch (A31)
8	RF Door Speaker

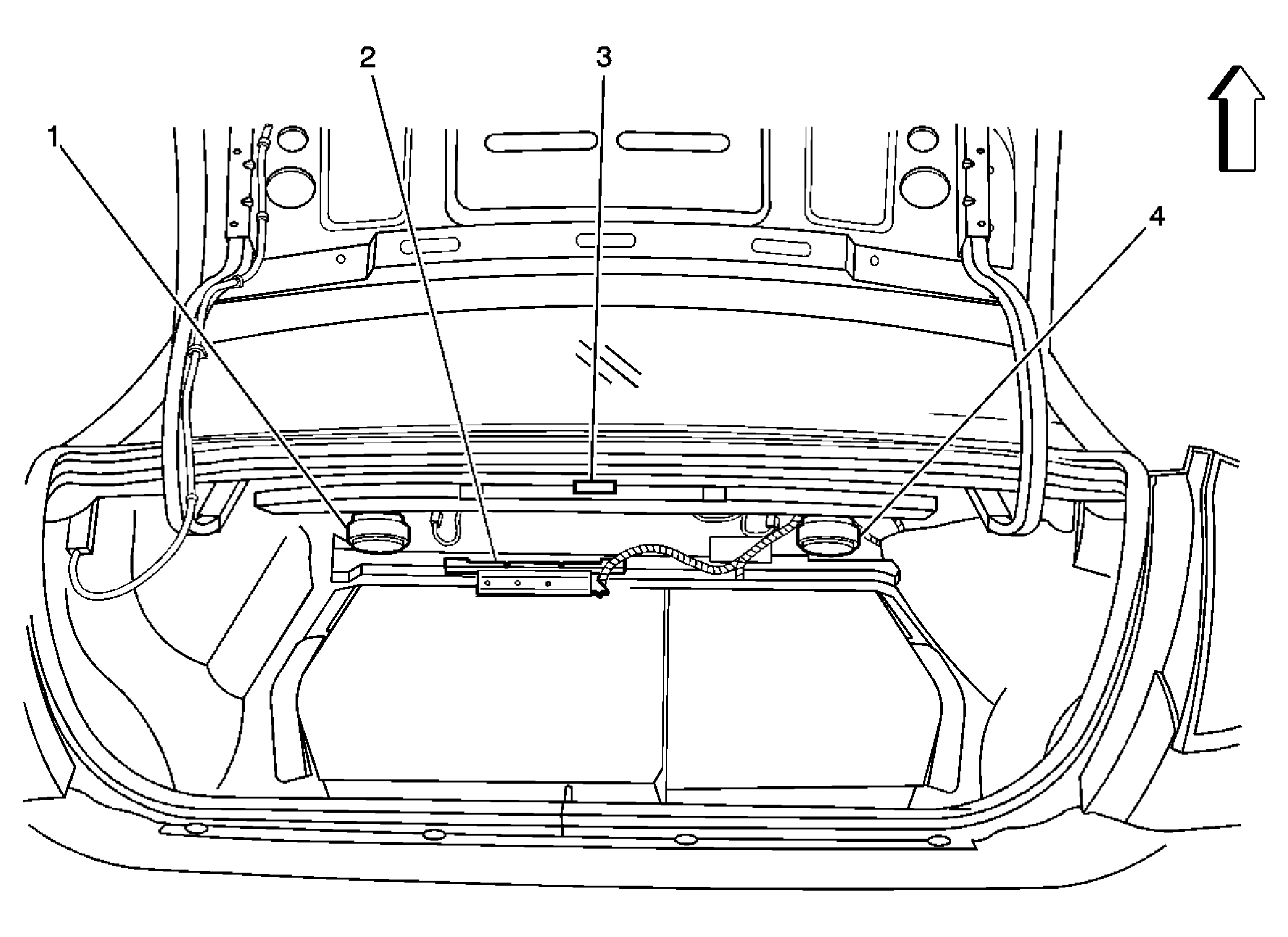

Fig 3: Luggage Compartment Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	LR Speaker
2	Audio Amplifier (UZ6)
3	Rear Compartment Courtesy Lamp
4	RR Speaker

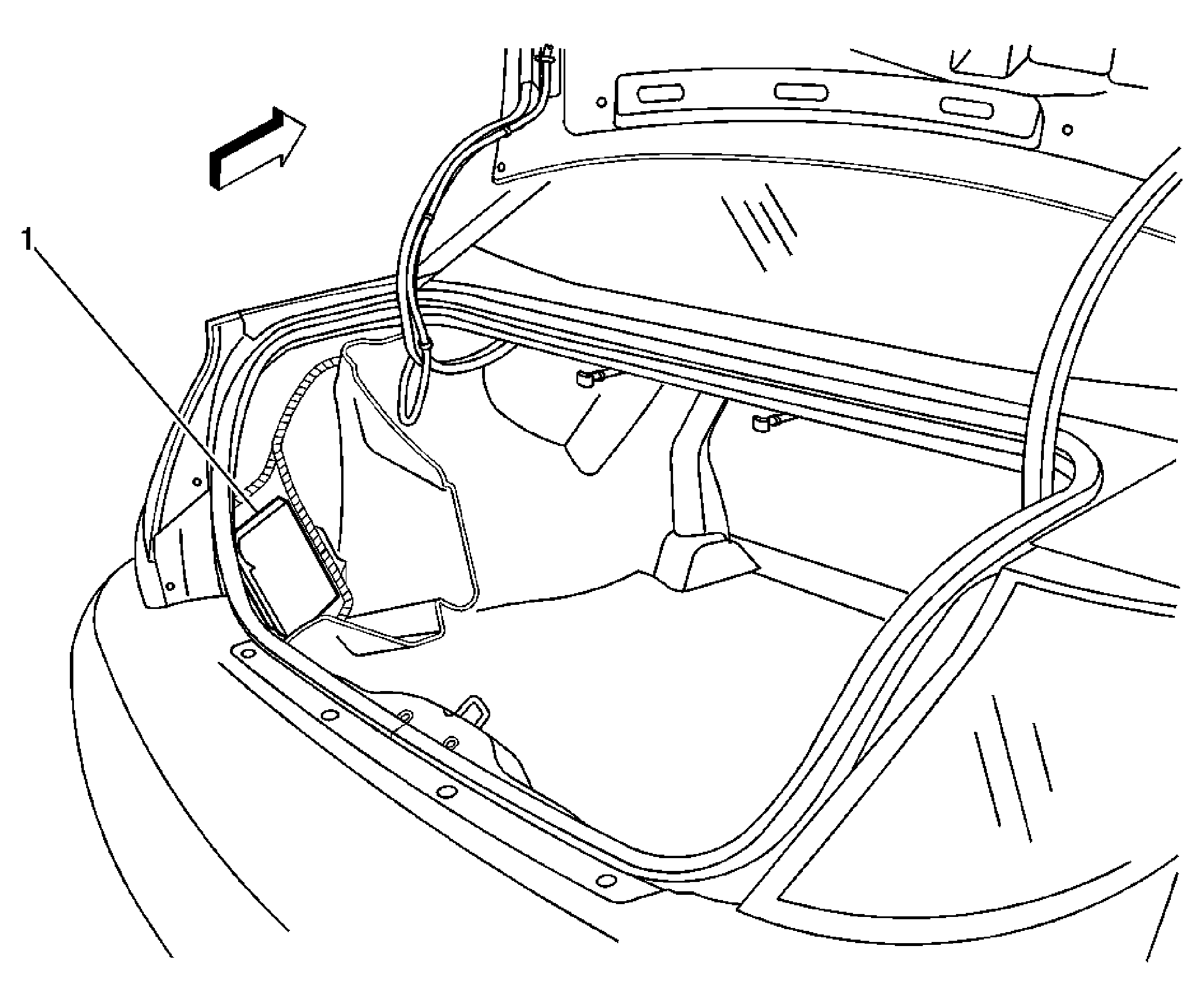

Fig 4: Left Side Of Luggage Compartment Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Digital Radio Receiver (U2K)

Fig 5: Roof Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Digital Radio Antenna (U2K)
2	Cellular/Navigation Antenna (UE1)
