Cruise Control Component Views
WARNING: This page is about a different car, the 2004 Saturn Ion Red Line, 2004 Saturn Ion 3, 2004 Saturn Ion 2, and 2004 Saturn Ion 1. However, it is still accessible from the selected car via links, so may be relevant.

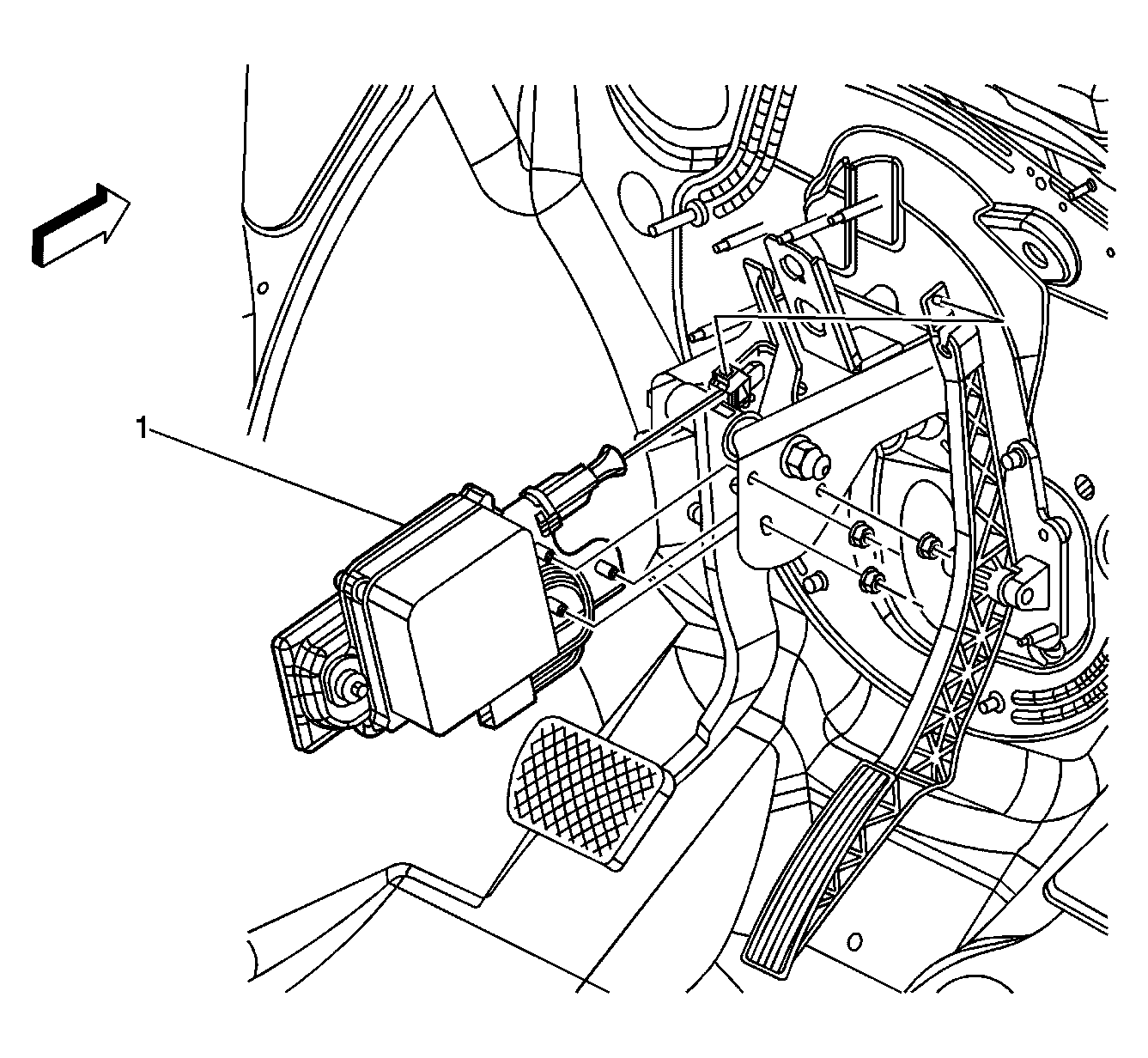

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Cruise Control Module (CCM) |
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Turn Signal/Multifunction Switch |
| 2 |
Windshield Wiper/Washer Switch |
| 3 |
Hazard Switch |
| 4 |
Instrument Panel Cluster (IPC) |
| 5 |
Traction Control Switch (NW7) |
| 6 |
Radio |
| 7 |
A/T Shifter (M75/M43) |
| 8 |
HVAC Control Assembly |
| 9 |
Steering Wheel Controls - Right (K34) |
| 10 |
Steering Wheel Controls - Left (K34) |
| 11 |
Rear Compartment Lid Release Switch |
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Stop Lamp Switch - Upper |
| 2 |
Stop Lamp Switch - Lower |
