Front Camber Adjustment

  1. Loosen both strut to knuckle nuts just enough to allow for movement.

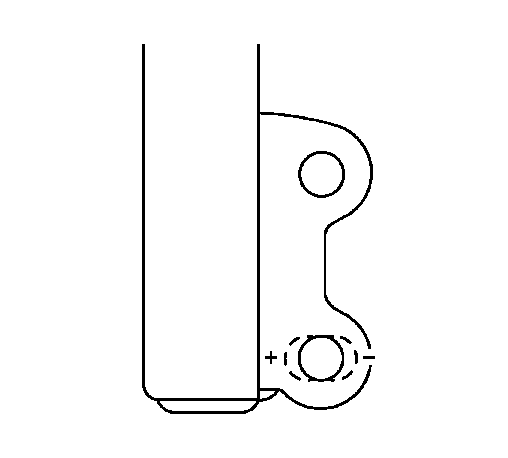

    2. Fig 1: Modifying Strut
    GM866401Courtesy of GENERAL MOTORS CORP.
  2. If the strut has not been modified previously, perform the following steps before continuing with the wheel alignment:
    1. Disconnect the strut from the knuckle. Refer to Strut Assembly Replacement .
    2. File the lower hole until the groove of the stamped ring around the hole.
    3. Connect the strut to the knuckle. Refer to Strut Assembly Replacement .
    3. Fig 2: Adjusting Front Camber
    GM165165Courtesy of GENERAL MOTORS CORP.
  3. Adjust the camber to specification by moving the top of the wheel in or out. Refer to Wheel Alignment Specifications .
