Mirror Component Views

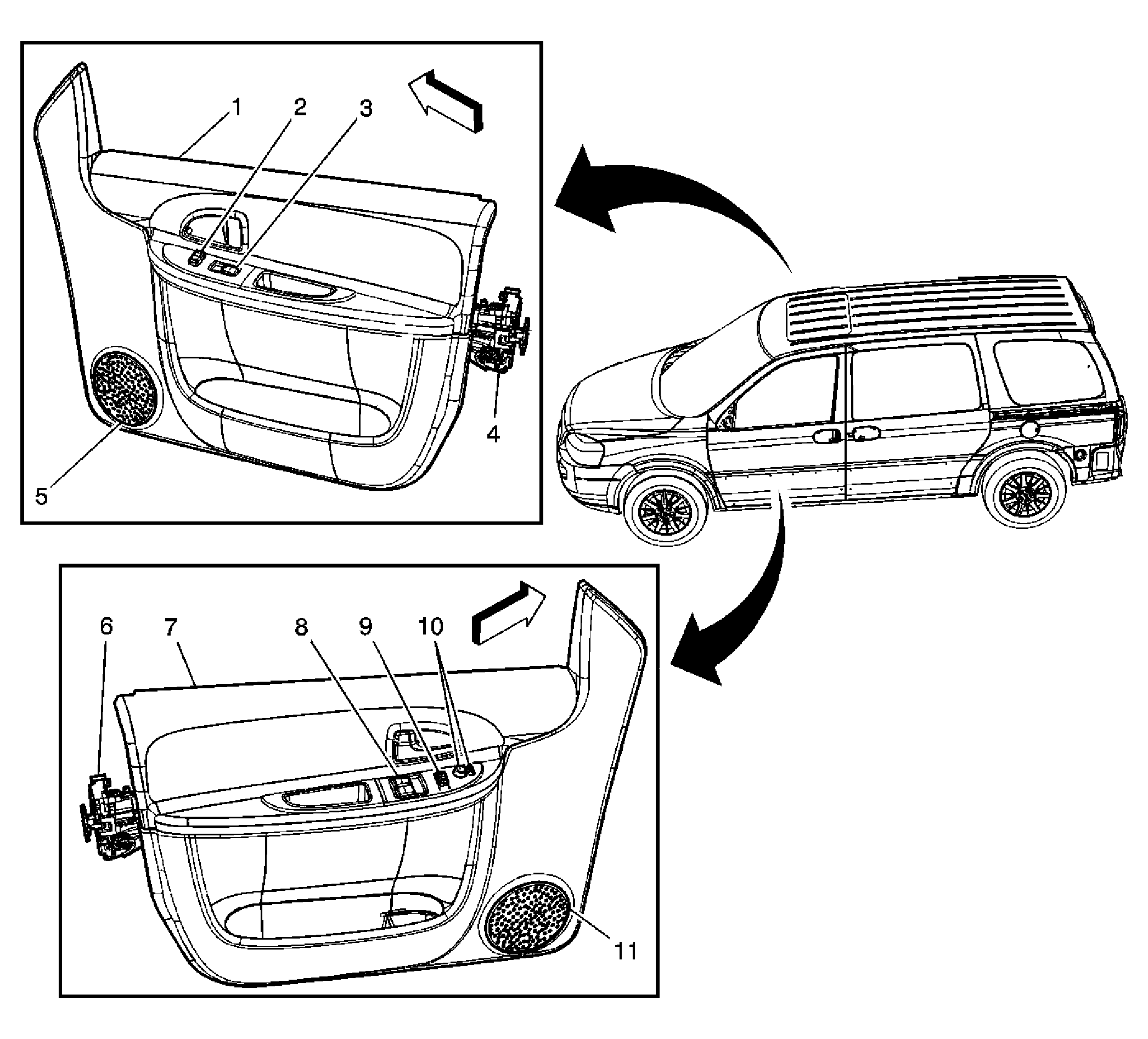

| Callout | Component Name |
|---|---|
| 1 | Passenger Door Trim Panel |
| 2 | Door Lock Switch - Passenger |
| 3 | Window Switch - Passenger |
| 4 | Door Latch Assembly - Passenger |
| 5 | Speaker - RF |
| 6 | Door Latch Assembly - Driver |
| 7 | Driver Door Trim Panel |
| 8 | Window Switch - Driver |
| 9 | Door Lock Switch - Driver |
| 10 | Outside Rearview Mirror Switch |
| 11 | Speaker - LF |

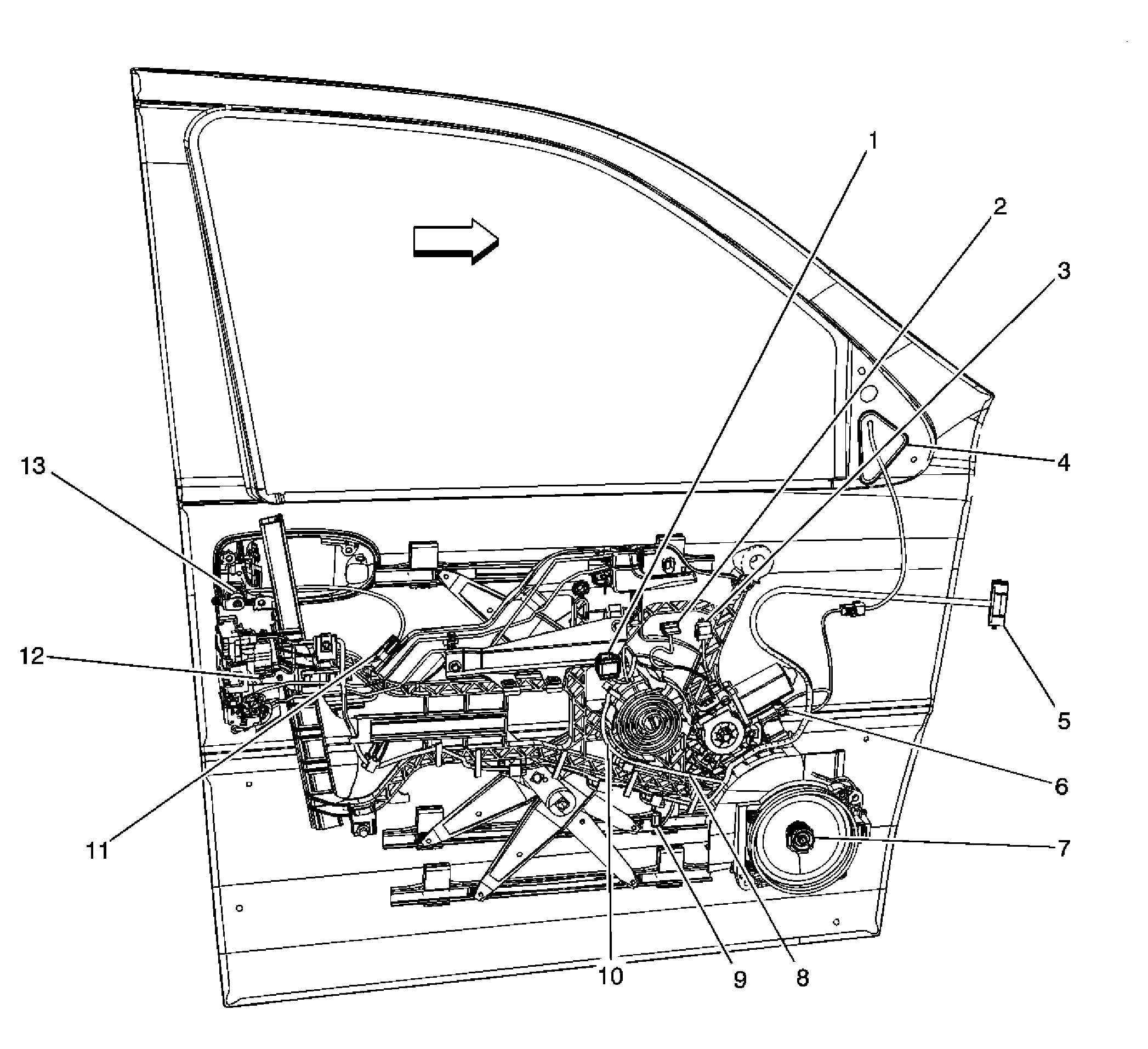

| Callout | Component Name |
|---|---|
| 1 | Outside Rearview Mirror Switch - Left Connector |
| 2 | Window Switch - Driver Connector |
| 3 | Door Lock Switch - Driver Connector |
| 4 | Outside Rearview Mirror - Driver |
| 5 | C301 Driver Door Harness to Body Harness |
| 6 | Window Motor - Driver |
| 7 | Speaker - LF |
| 8 | S555 |
| 9 | Memory Seat Switch - Driver (AG0) Connector |
| 10 | S551 |
| 11 | Driver Door Key Switch Connector |
| 12 | Door Latch Assembly - Driver |
| 13 | Driver Door Key Switch (AU6) |

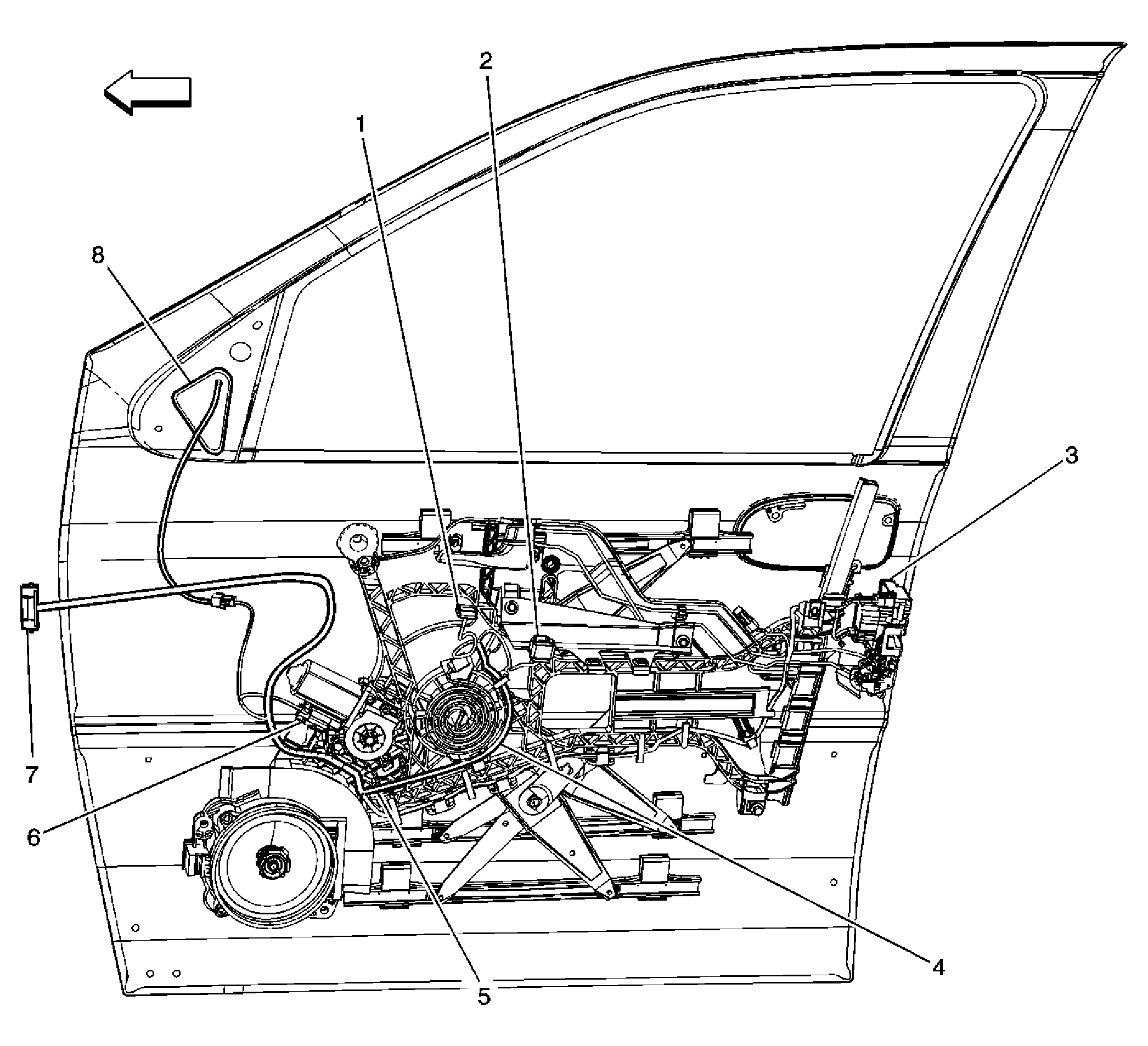

| Callout | Component Name |
|---|---|
| 1 | Door Lock Switch - Passenger Connector |
| 2 | Window Switch - Passenger Connector |
| 3 | Door Latch Assembly - Passenger |
| 4 | S660 |
| 5 | S666 |
| 6 | Window Motor - Passenger |
| 7 | C302 Passenger Door Harness to Body Harness |
| 8 | Outside Rearview Mirror - Passenger |
