Component Location

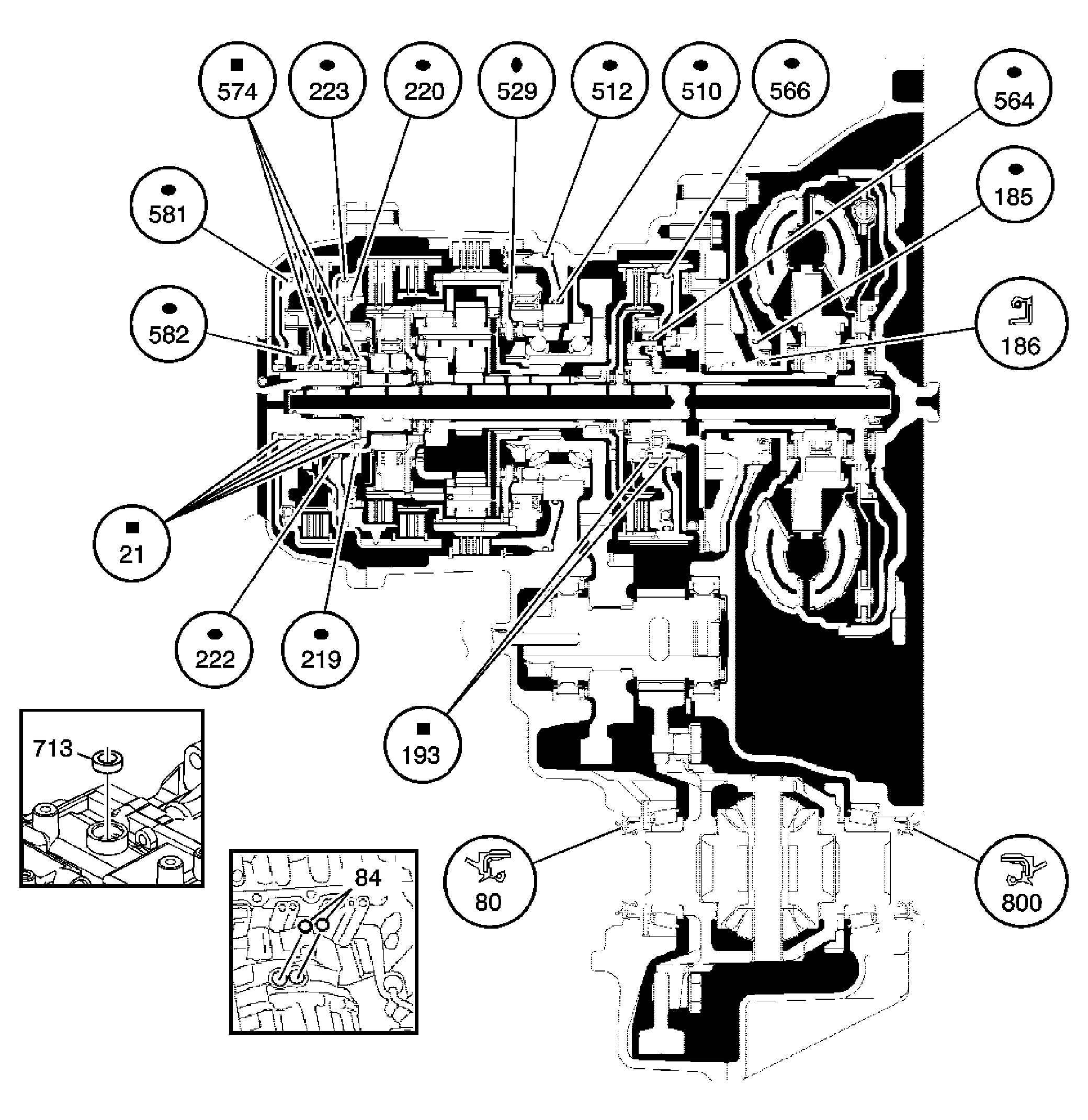

Fig 1: Seal Locations Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
21	Transmission Case Cover Fluid Seal Ring (Qty: 5)
80	Front Wheel Drive Shaft Oil Seal
84	Transmission Case Fluid Passage Seal
185	Transmission Fluid Pump Body O-Ring Seal
186	Transmission Fluid Pump Body Seal Assembly
193	Fluid Pump Cover O-Ring Seals (Qty: 2)
219	Coast Clutch Piston Inner Seal
220	Coast Clutch Piston Outer Seal
222	Overdrive Clutch Piston Inner Seal
223	Overdrive Clutch Piston Outer Seal
510	1st and Reverse Clutch Piston Inner Seal
512	1st and Reverse Clutch Piston Outer Seal
529	Front Planetary Ring Gear O-Ring Seal
564	Reverse Gear Clutch Piston Inner Seal
566	Reverse Gear Clutch Piston Outer Seal
574	Forward Clutch Housing Seal - Slotted
581	Forward Clutch Piston Outer Seal
582	Forward Clutch Piston Inner Seal
713	Manual Shift Shaft Seal Assembly
800	Front Differential Carrier Seal Assembly

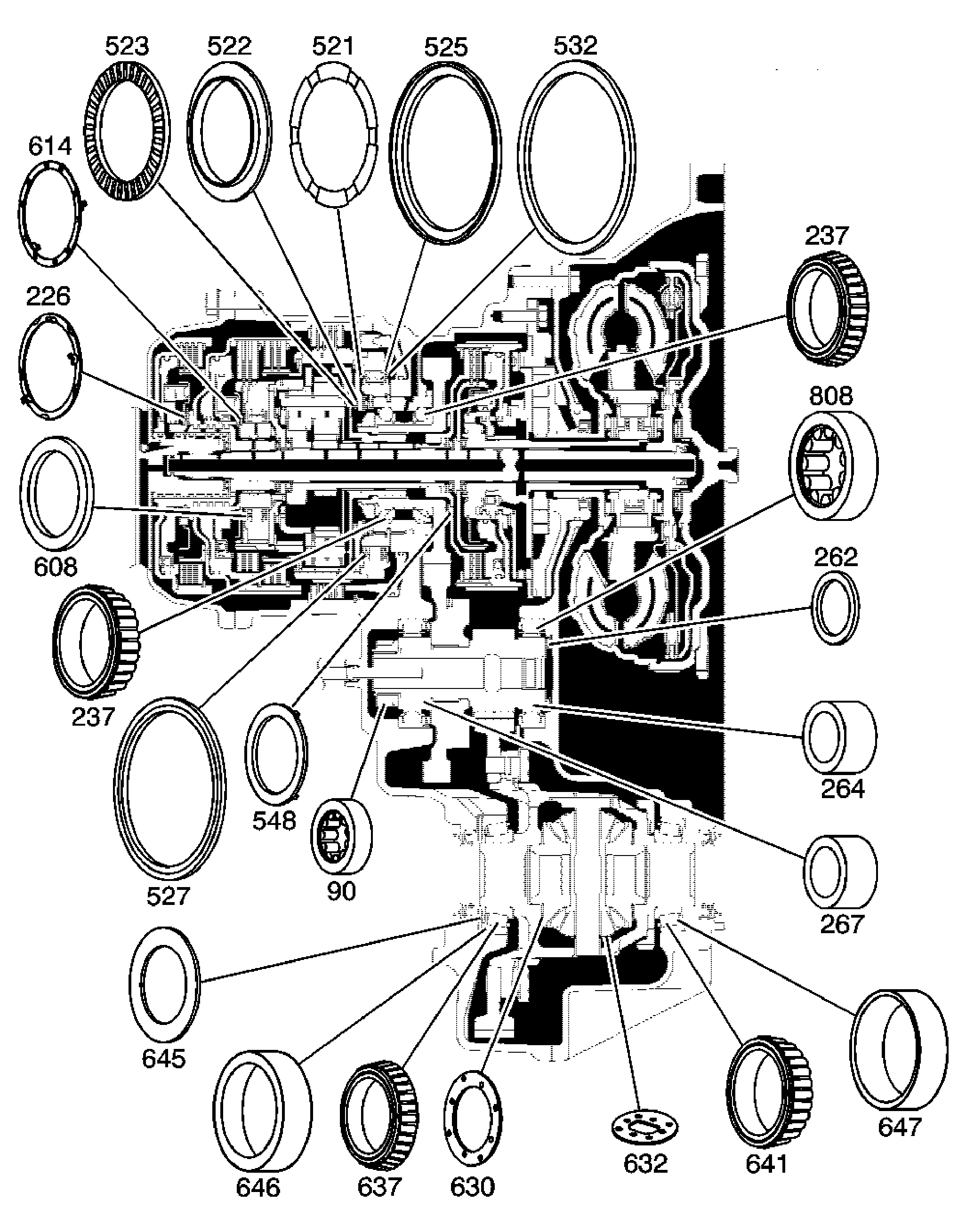

Fig 2: Bearing, Race and Thrust Washer Locations Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
90	Front Differential Transfer Drive Gear Assembly Bearing
226	Overdrive and Coast Clutch Housing Thrust Washer
237	Output Gear Bearing Assembly
262	Front Differential Transfer Drive Gear Front Thrust Bearing Assembly
264	Front Differential Transfer Drive Gear Drive Pinion Bearing Inner Race
267	Front Differential Transfer Drive Gear Bearing Inner Race
521	Overrun Clutch Inner Race Thrust Washer
522	Overrun Clutch Inner Race Thrust Bearing Race
523	Overrun Clutch Inner Race Thrust Bearing with Race
525	Overrun Clutch End Bearing
527	Overrun Clutch Thrust Washer
532	Front Planetary Ring Gear Flange Thrust Washer
548	Sun Gear Input Flange Thrust Washer
608	Coast Clutch End Bearing
614	Rear Planetary Ring Gear Flange Thrust Washer
630	Front Differential Side Gear Thrust Washer
632	Front Differential Pinion Shaft Thrust Washer
637	Front Differential Tapered Outer Roller Bearing
641	Front Differential Tapered Outer Roller Bearing
645	Front Differential Carrier Bearing Shim - Selective
646	Front Differential Carrier Bearing Race
647	Front Differential Carrier Bearing Race
808	Front Differential Transfer Drive Gear Assembly Bearing

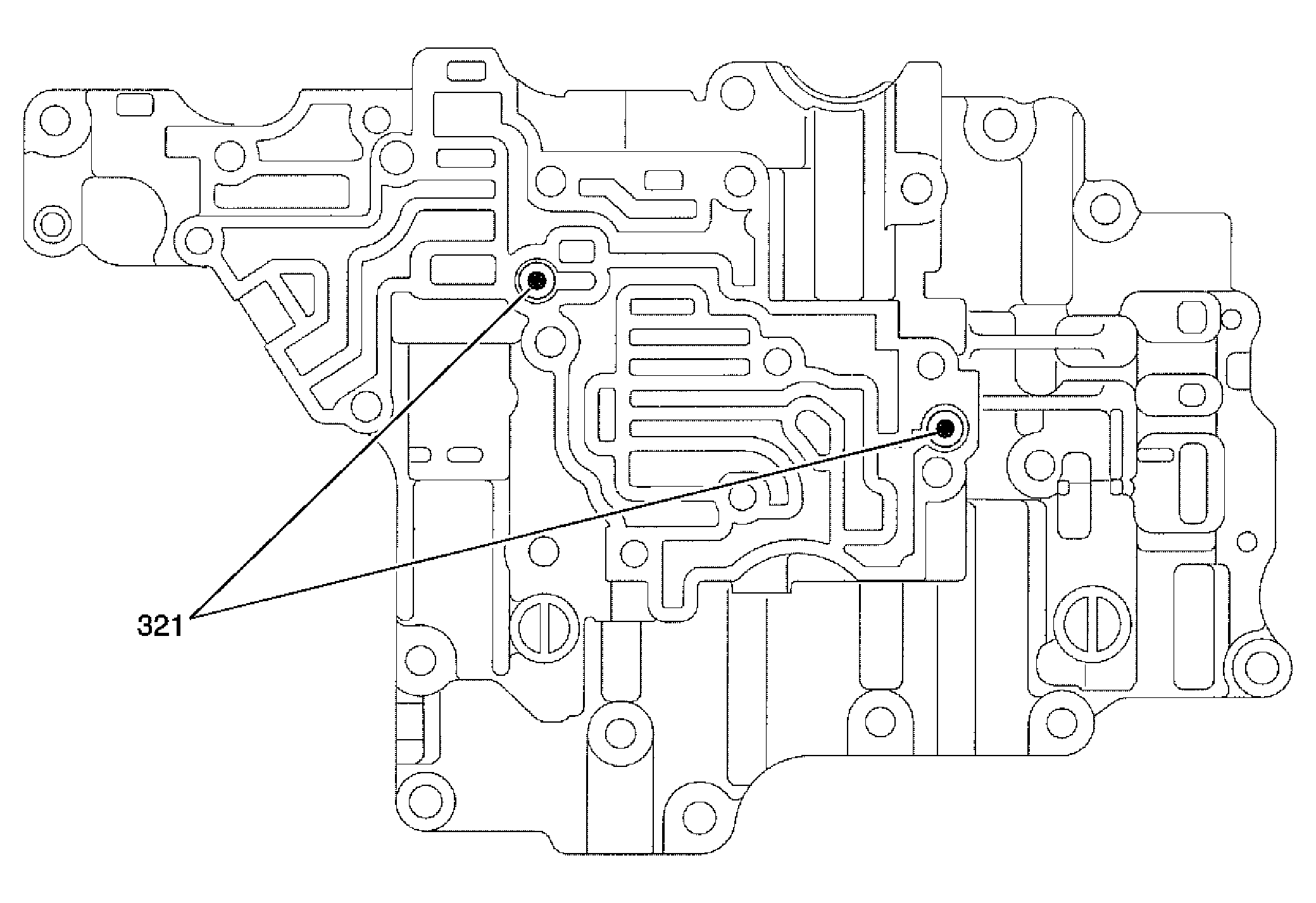

Fig 3: Front Valve Body Strainer Location Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
321	Fluid Strainer

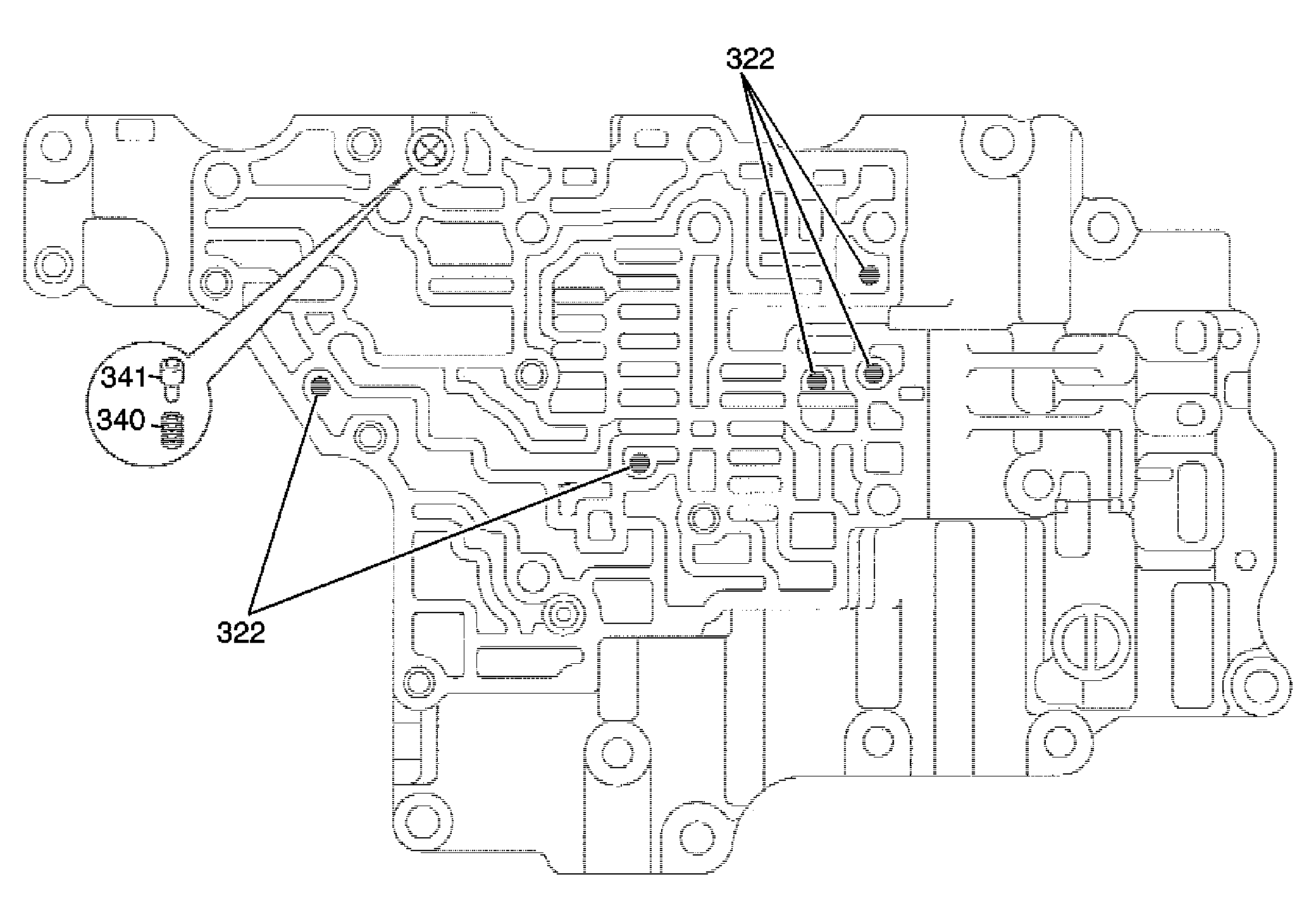

Fig 4: Middle Valve Body Check Ball and Relief Valve Spring Location Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
322	Check Ball
340	Pressure Relief Valve Spring
341	Pressure Relief Valve

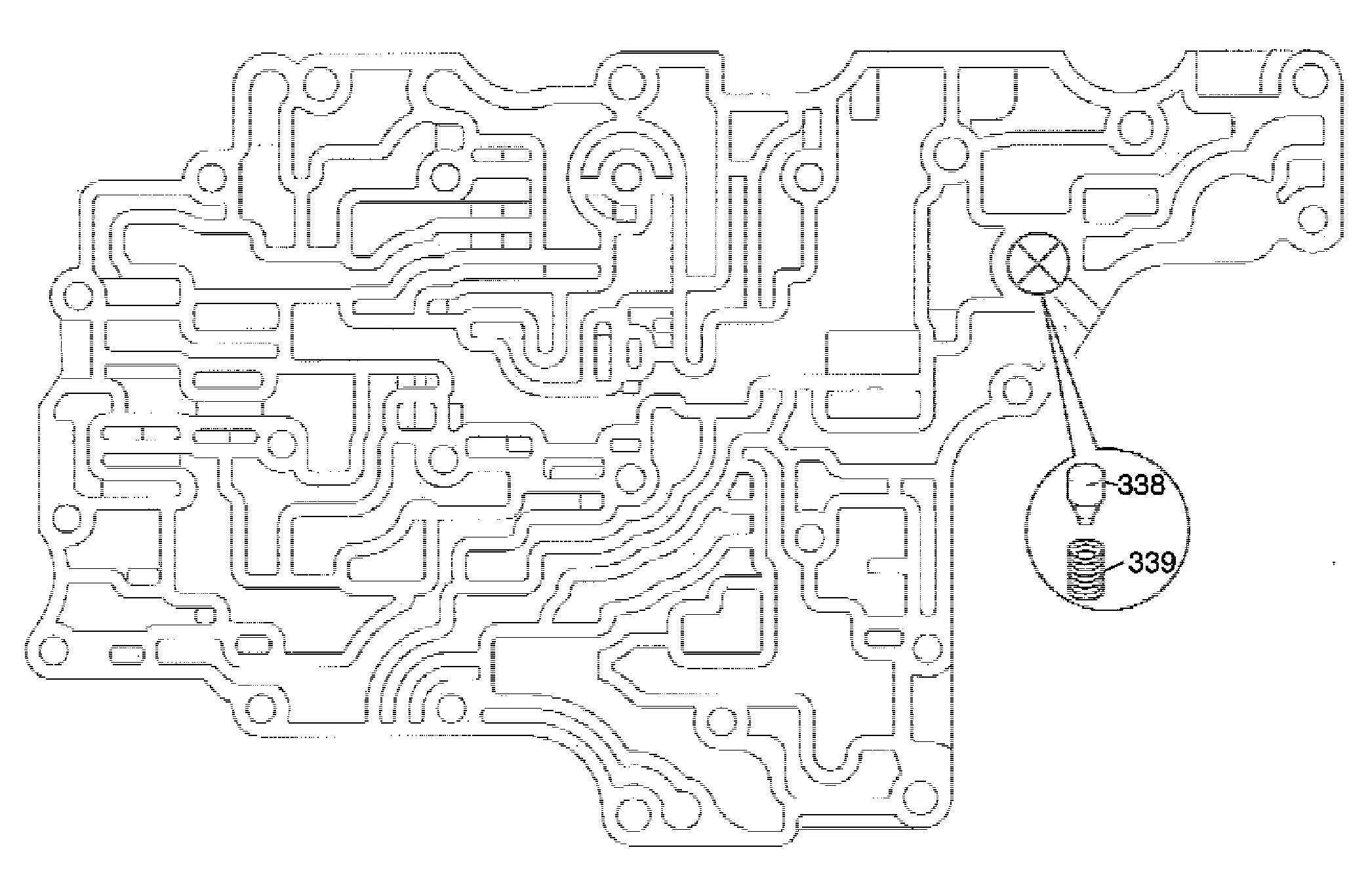

Fig 5: Middle Valve Body Bypass Valve Spring Location Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
338	Pressure Relief Valve
339	Pressure Relief Valve Spring

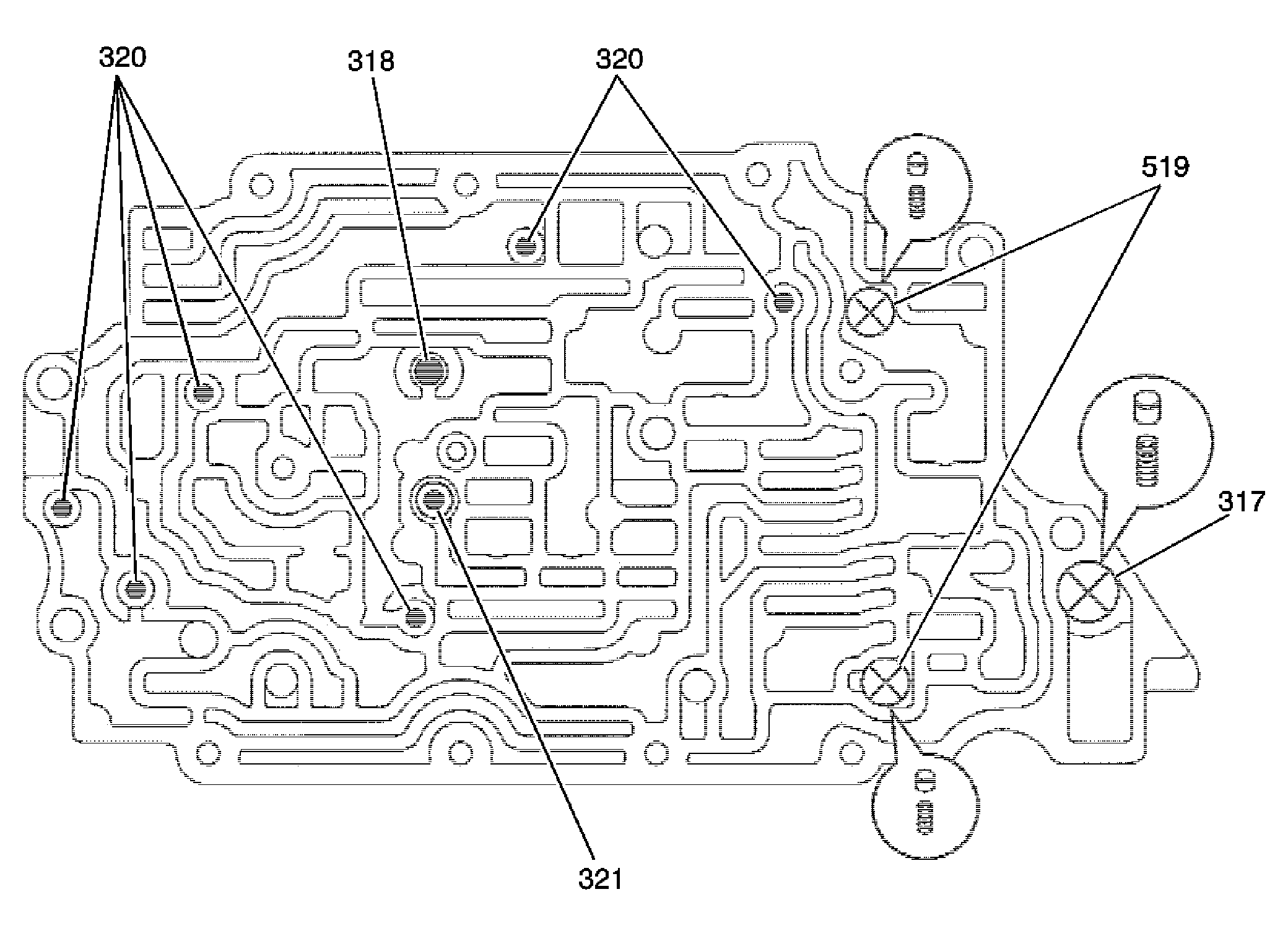

Fig 6: Rear Valve Body Check Balls, Strainers and Check Valve Spring Location Component Views

Courtesy of GENERAL MOTORS CORP.

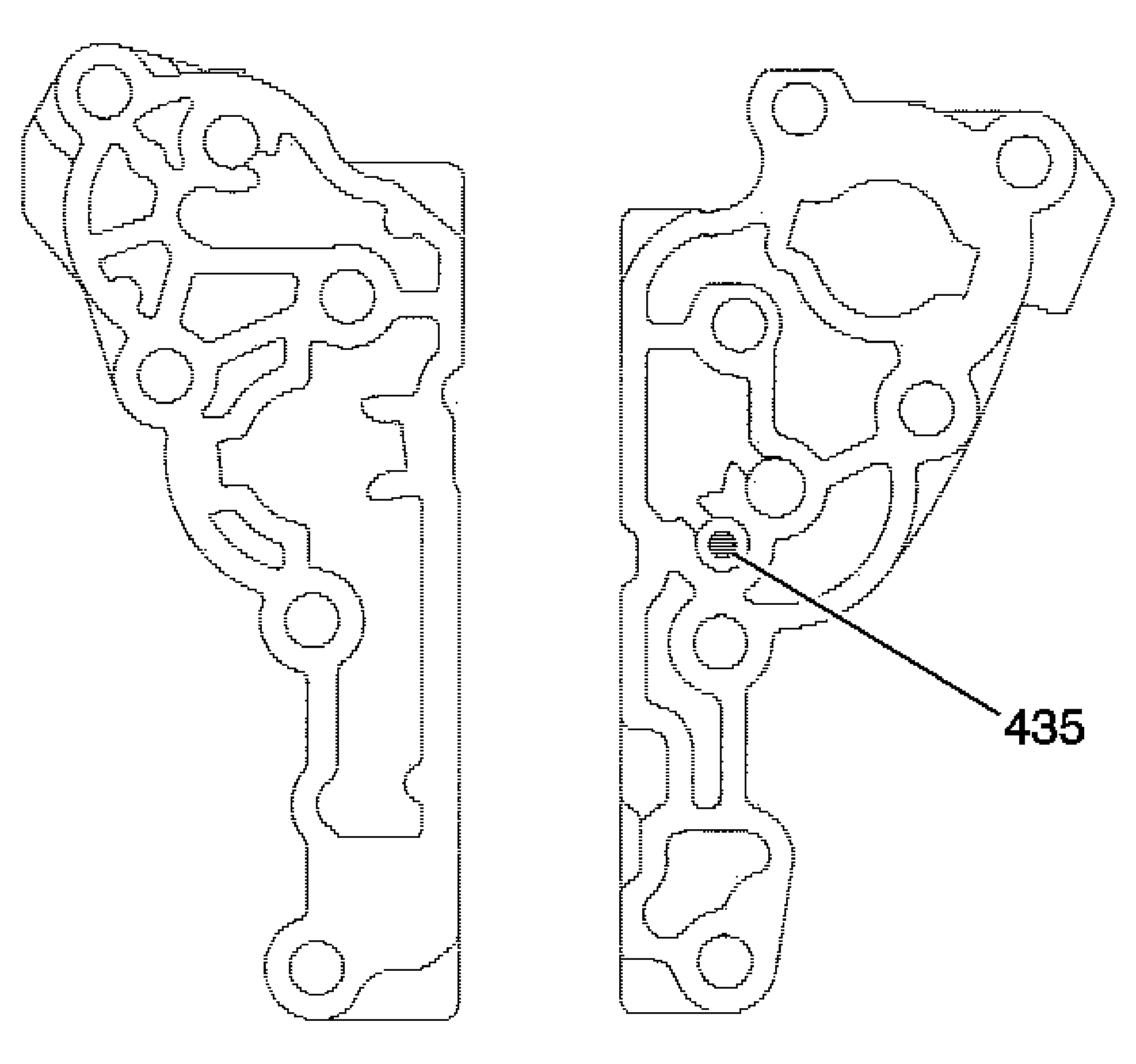

Fig 7: Rear Valve Body Cover No. 1 Check Ball Location Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
435	Rear Valve Body Cover No. 1 Check Ball
