Body Control System Schematics

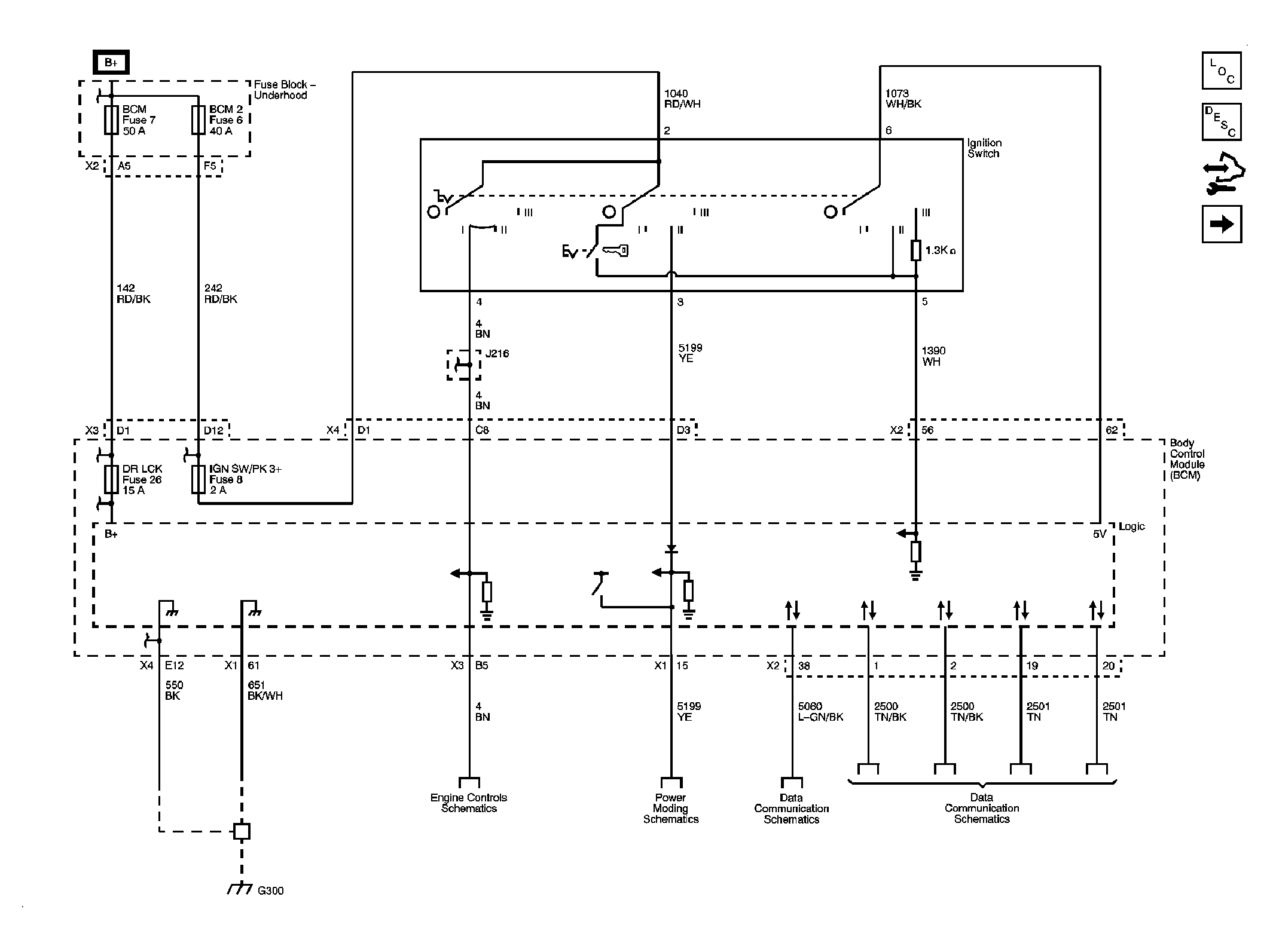

Fig 1: Power, Ground & Data Link
GM2049658Courtesy of GENERAL MOTORS CORP.

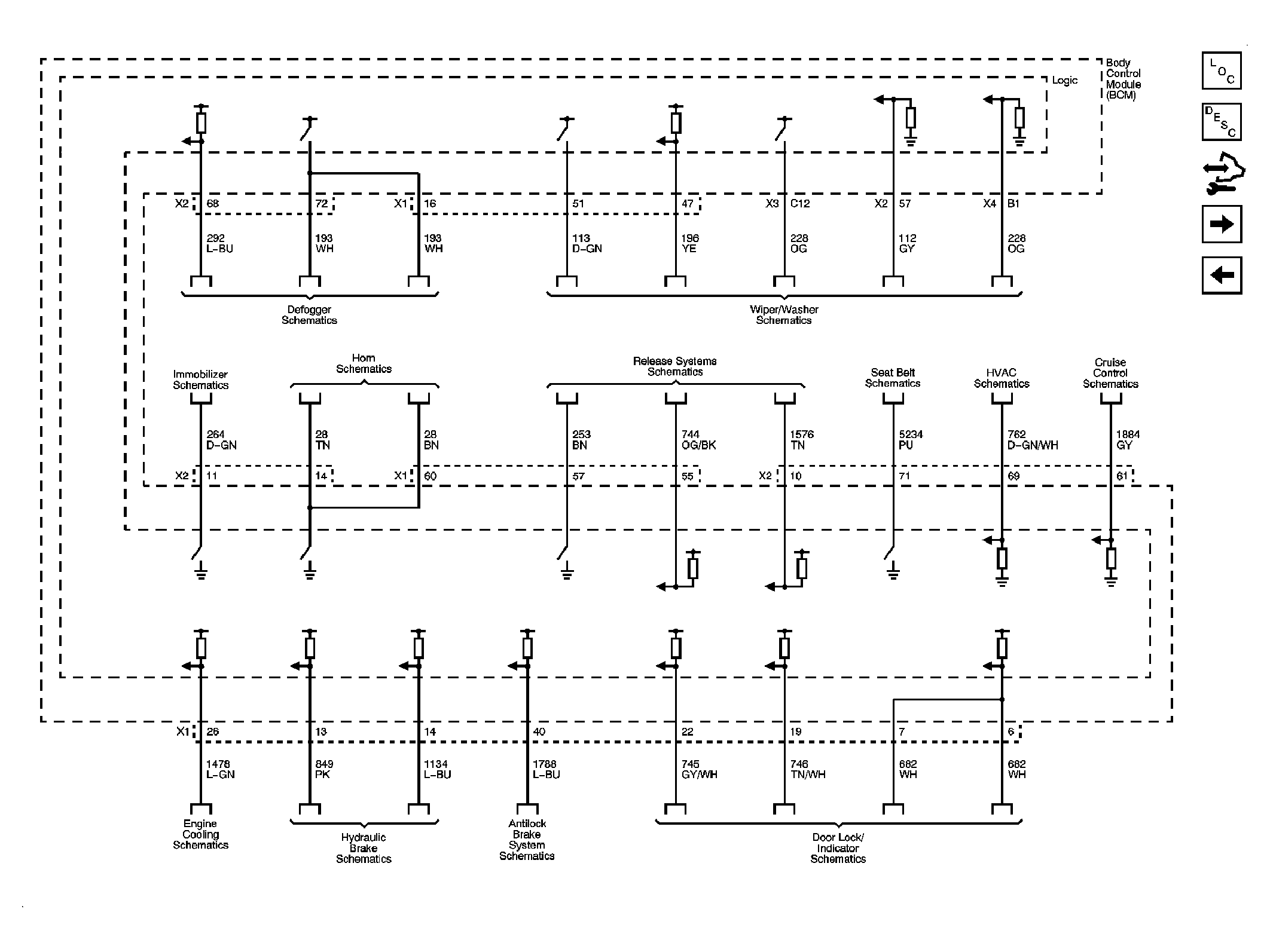

Fig 2: Defogger, Wiper/Washer, Immobilizer, Horn, Release Systems, Seat Belt, HVAC, Cruise, Brakes, Cooling System & Door Lock/Indicator References
GM2049660Courtesy of GENERAL MOTORS CORP.

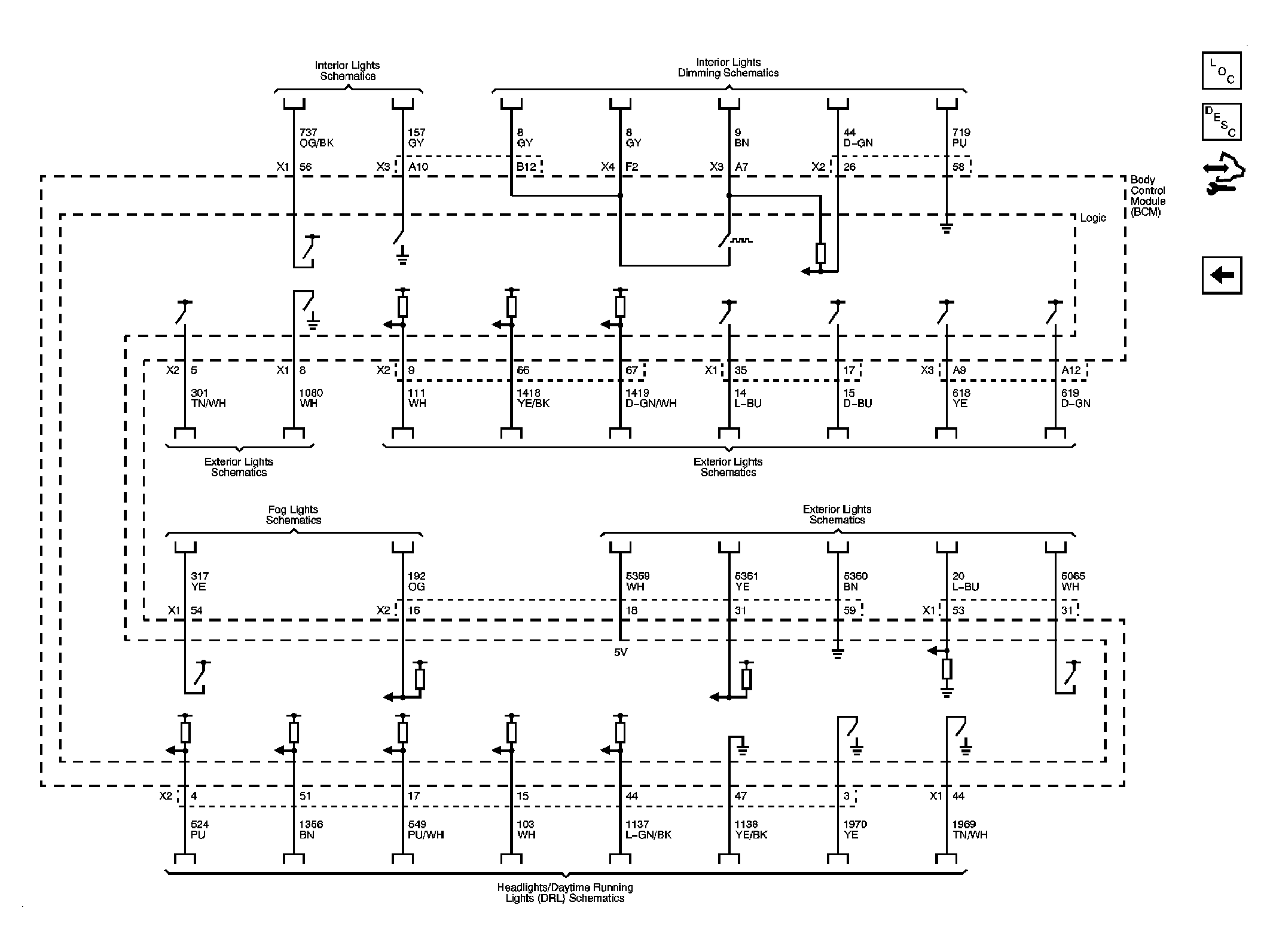

Fig 3: Lights
GM2049662Courtesy of GENERAL MOTORS CORP.
