Installation Procedure

    Fig 1: View Of Upper Air Cleaner Cover
    GM1594070Courtesy of GENERAL MOTORS CORP.
  1. Install the air cleaner filter into the lower air cleaner housing.
  2. Install the upper air cleaner cover to the lower air cleaner housing.
  3. Latch the upper air cleaner cover retainer clips.

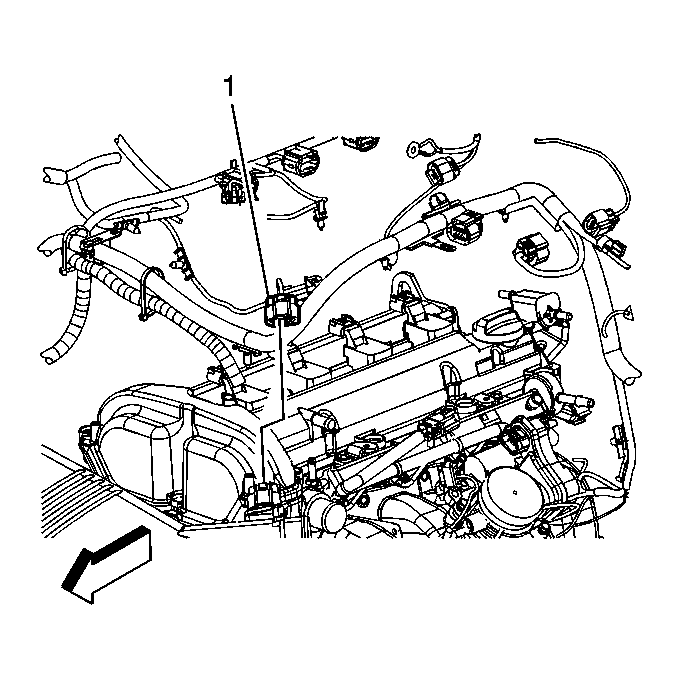

    4. Fig 2: Identifying MAF/IAT Sensor Electrical Connector
    GM1592530Courtesy of GENERAL MOTORS CORP.
  4. Connect the MAF/IAT sensor electrical connector (1).
