Installation Procedure

    Fig 1: Identifying ECT Sensor
    GM1713085Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  1. Install the ECT and tighten to 20 N.m (15 lb ft).

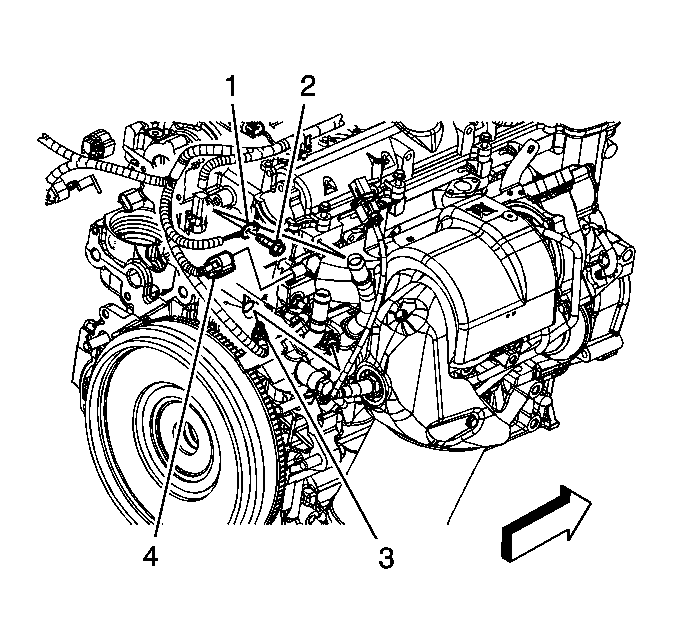

    2. Fig 2: Identifying Engine Wiring Harness Electrical Connector & ECT Sensor
    GM1826284Courtesy of GENERAL MOTORS CORP.
  2. Connect the engine wiring harness electrical connector (3) to the ECT sensor.
  3. Install the heat shield around the electrical connector, if necessary.
  4. Fill the cooling system as needed. Refer to Cooling System Draining and Filling (GE-47716) or Cooling System Draining and Filling (2.4L LE5) or Cooling System Draining and Filling (Static Fill-LNF) .
