Power Door Lock Control System: Inspection

INSPECT FRONT DOOR W/MOTOR LOCK ASSY LH

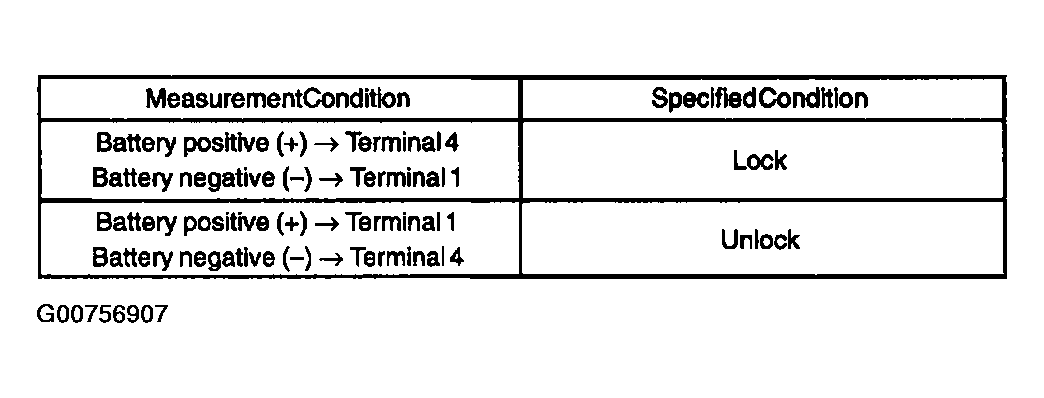

1. Apply battery voltage to the door lock and check operation of the door lock motor.
  Standard:

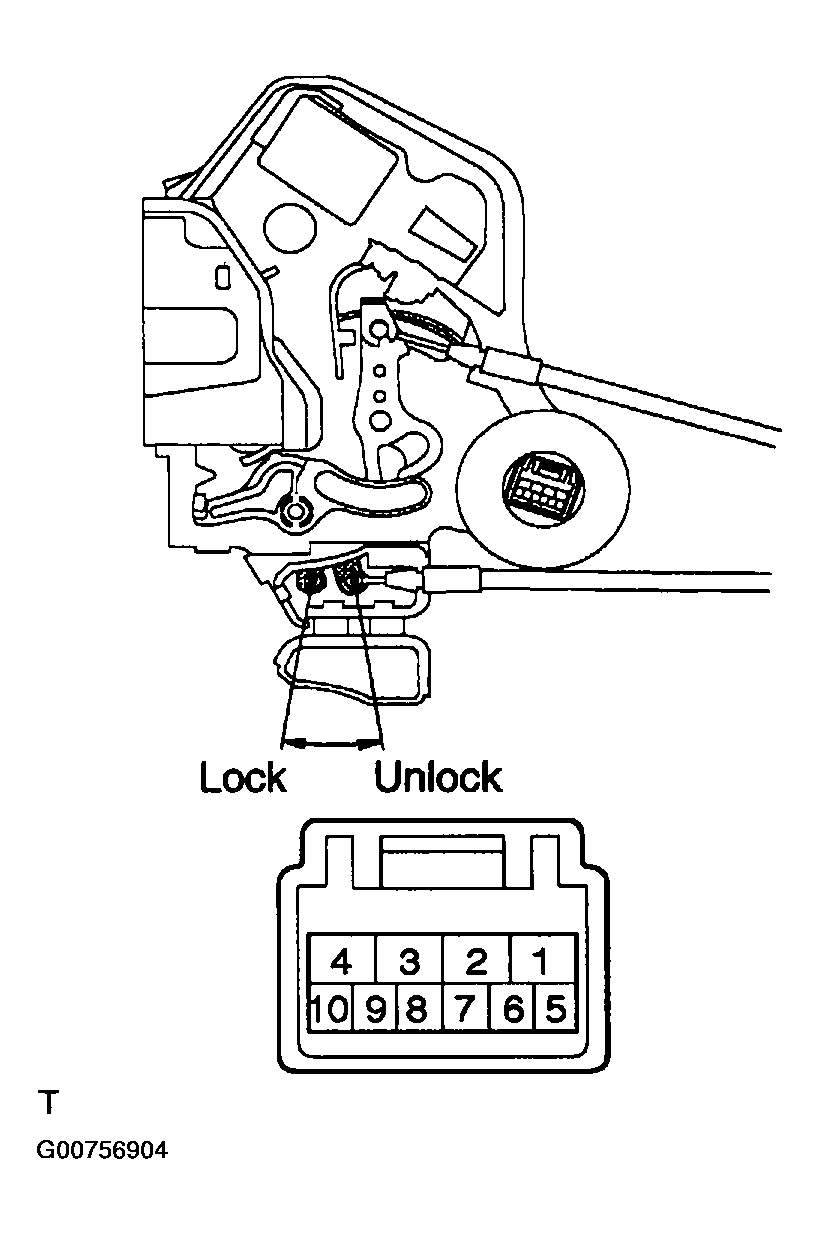

  Fig 1: Inspecting Front Door W/Motor Lock Assembly LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the result is not as specified, replace the door lock assy.

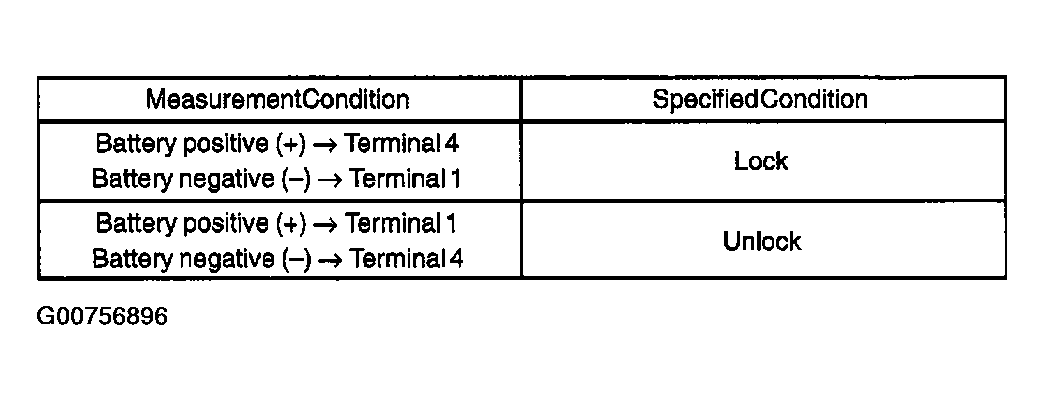

  Fig 2: Reference Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

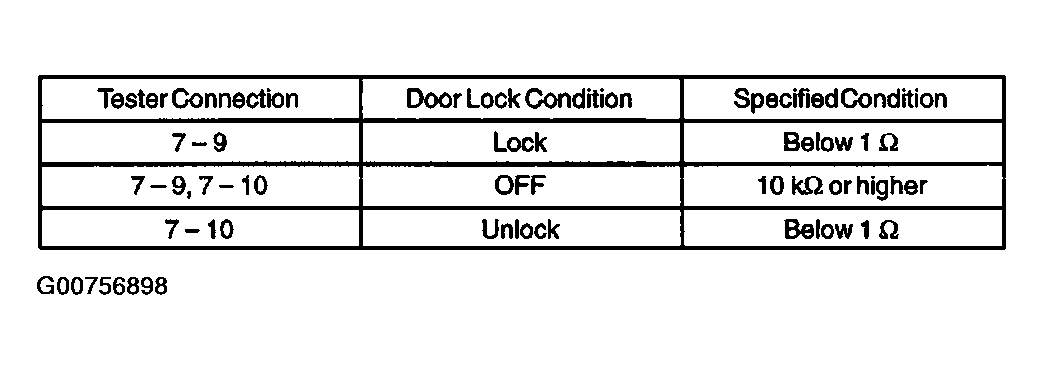

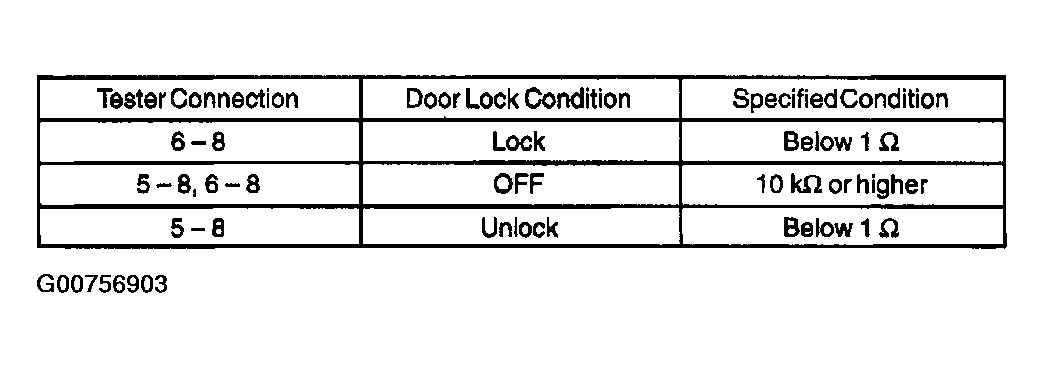

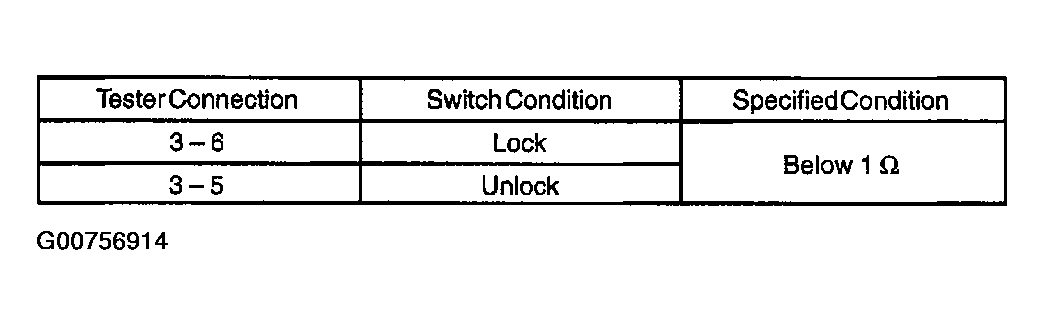

2. Check the resistance of the door lock and unlock switch.
  Standard:

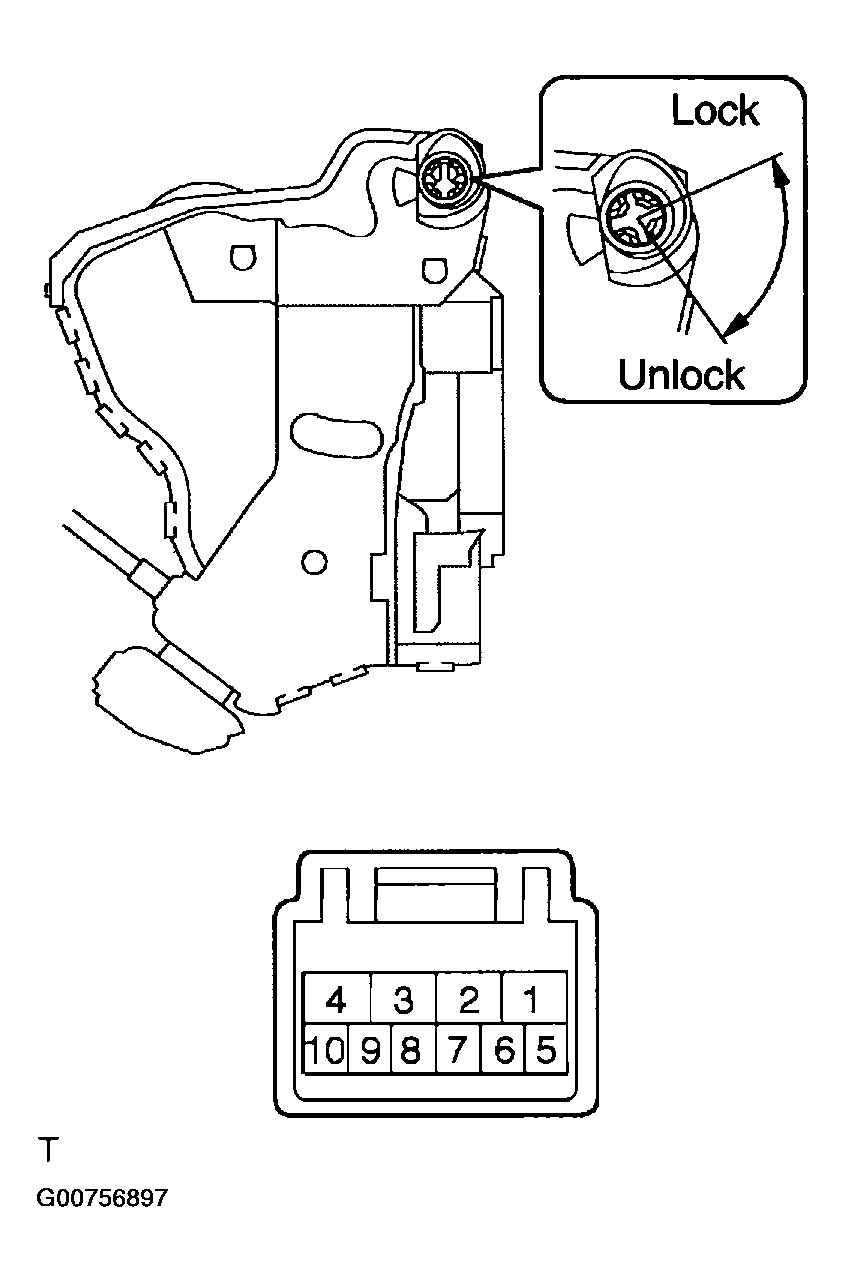

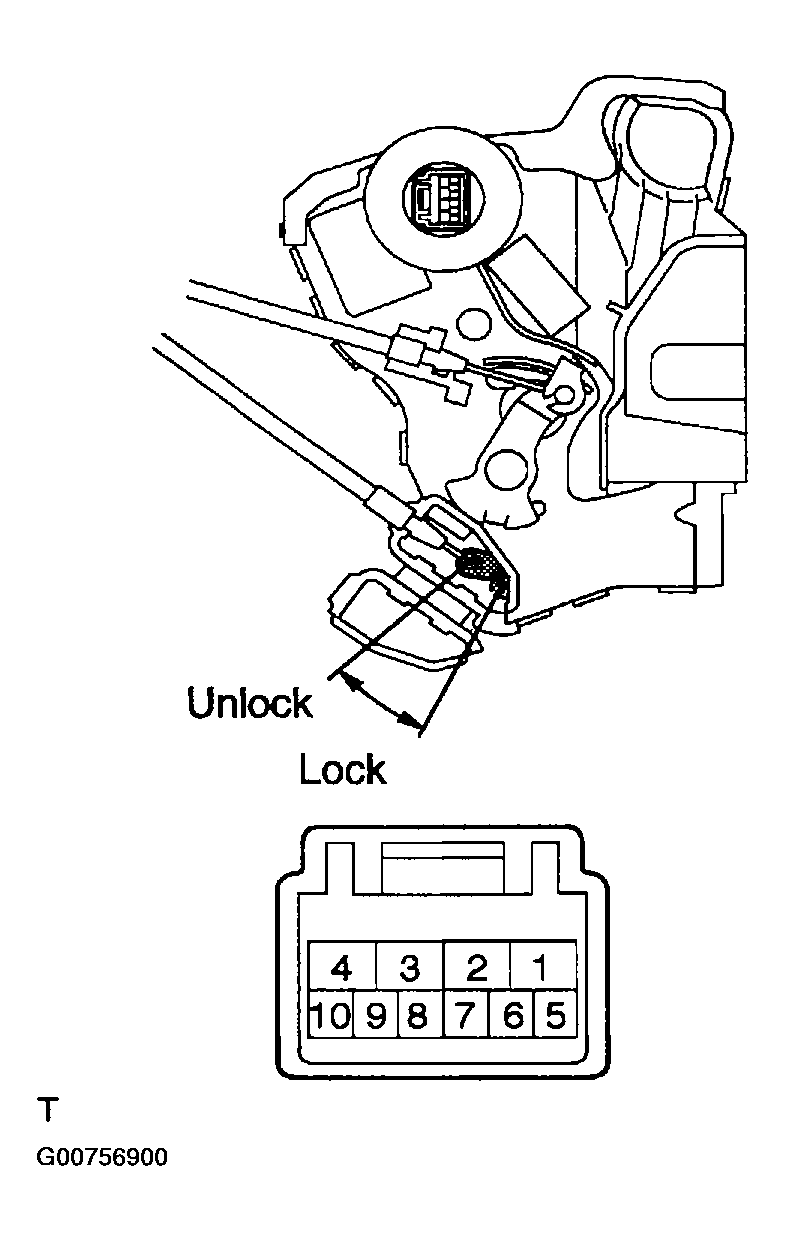

  Fig 3: Checking Door Lock And Unlock Switch Resistance
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the result is not as specified, replace the door lock assy.
3. Check the resistance of the position switch.
  Standard:

  Fig 4: Reference Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the result is not as specified, replace the door lock assy.

  Fig 5: Reference Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT FRONT DOOR W/MOTOR LOCK ASSY RH

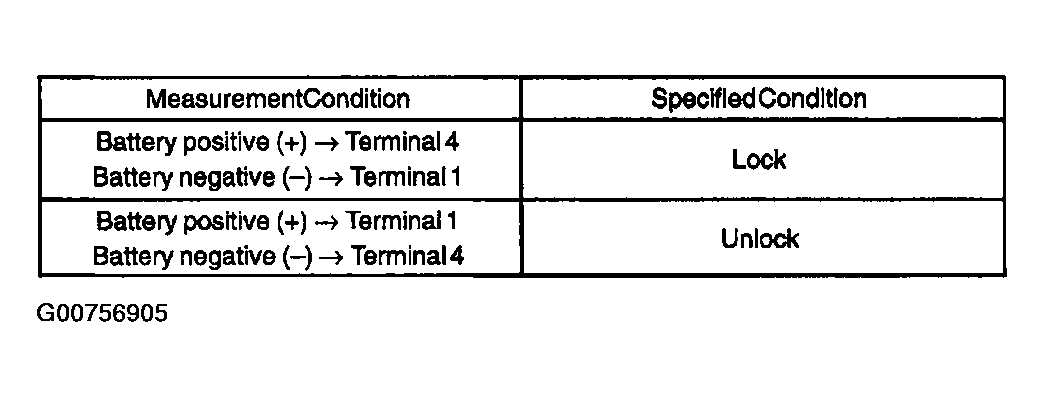

1. Apply battery voltage to the door lock and check operation of the door lock motor.
  Standard:

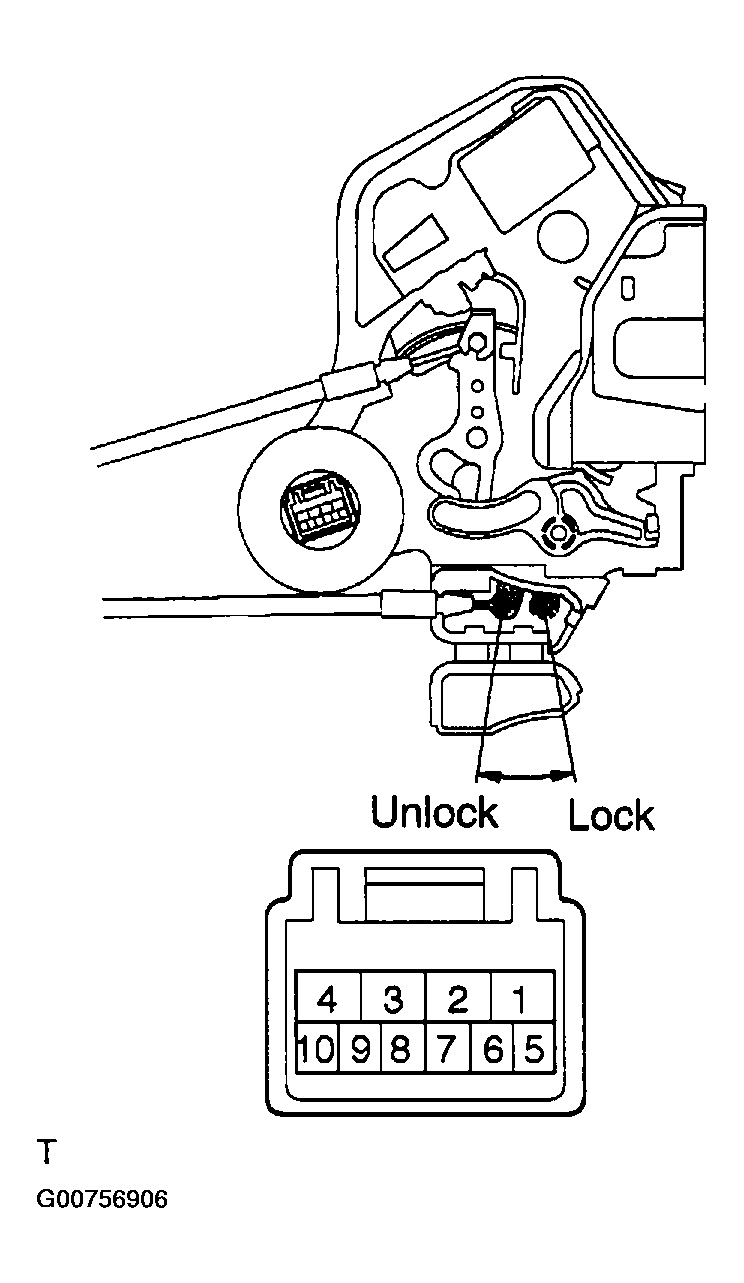

  Fig 6: Inspecting Front Door W/Motor Lock Assembly RH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the result is not as specified, replace the door lock assy.

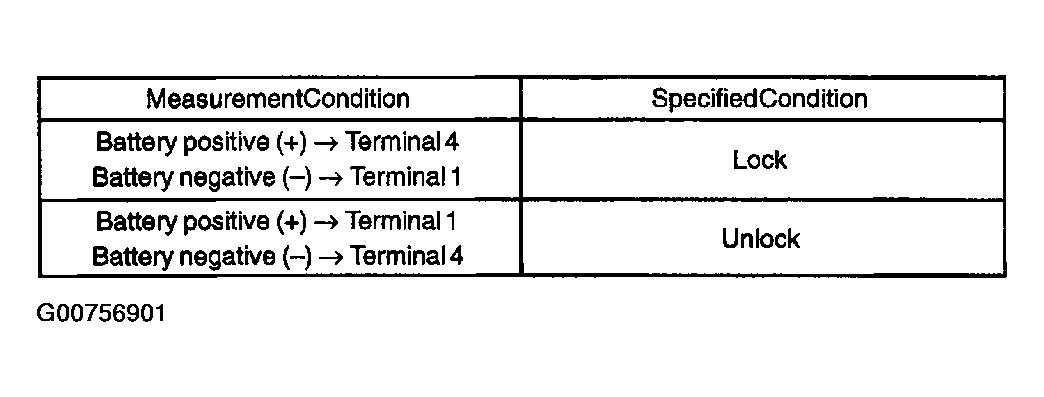

  Fig 7: Reference Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check the resistance of the door lock and unlock switch.
  Standard:

  Fig 8: Checking Door Lock And Unlock Switch Resistance
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the result is not as specified, replace the door lock assy.

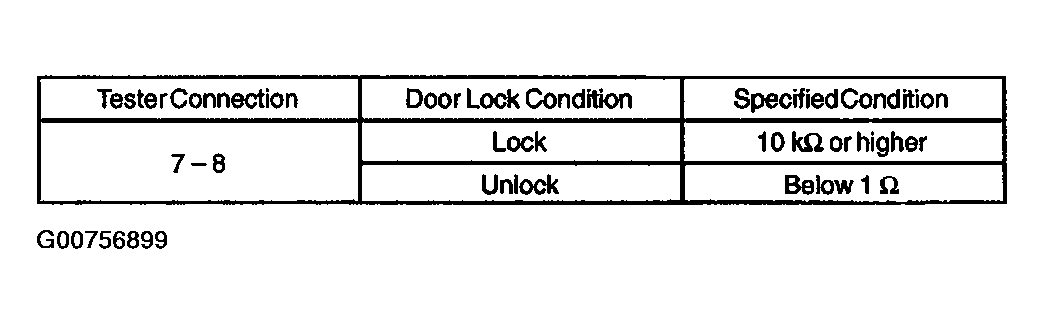

  Fig 9: Reference Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT REAR DOOR W/MOTOR LOCK ASSY LH
1. Apply battery voltage to the door lock and check operation of the door lock motor.
  Standard:

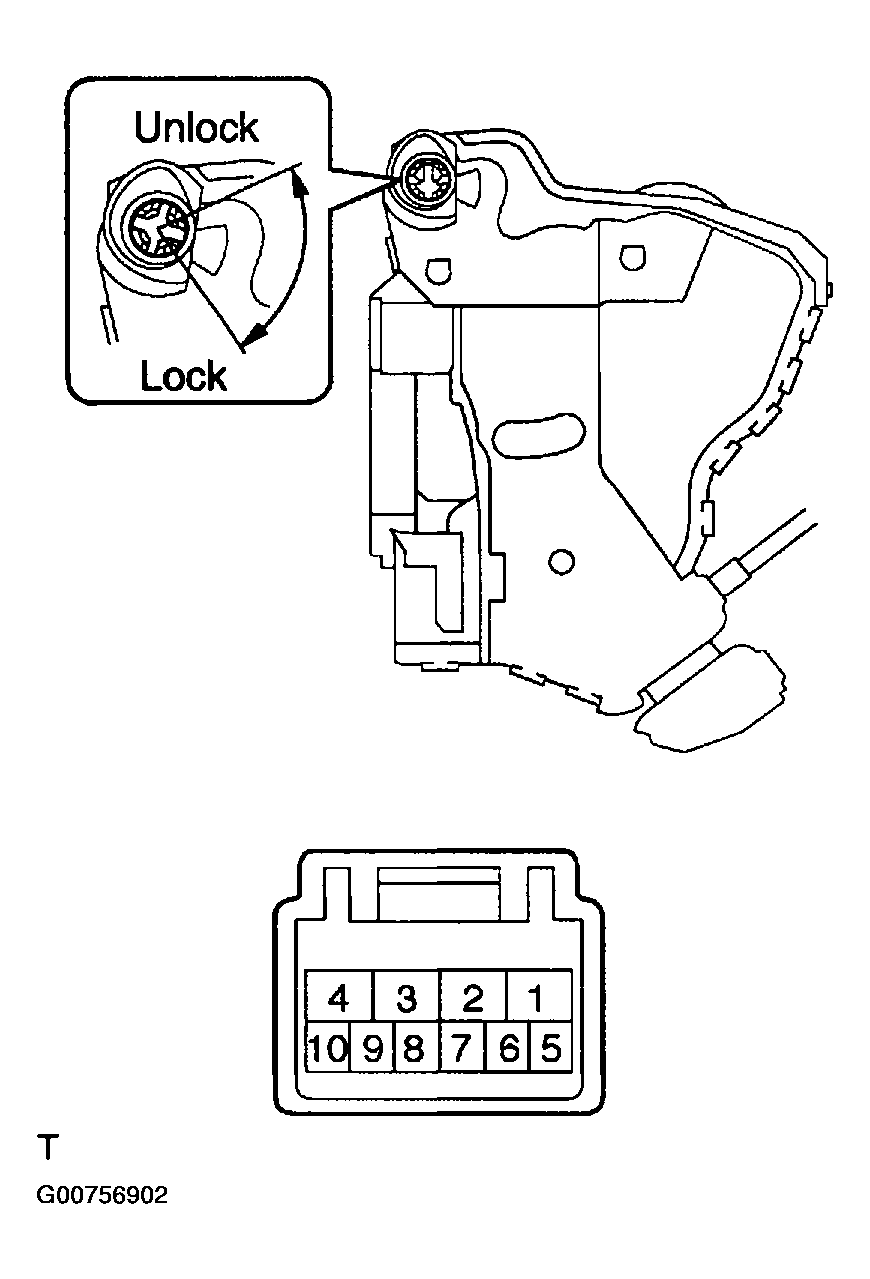

  Fig 10: Inspecting Rear Door W/Motor Lock Assembly LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
If the result is not as specified, replace the door lock assy.

Fig 11: Reference Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT REAR DOOR W/MOTOR LOCK ASSY RH
1. Apply battery voltage to the door lock and check operation of the door lock motor.
  Standard:

  Fig 12: Inspecting Rear Door W/Motor Lock Assembly RH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
If the result is not as specified, replace the door lock assy.

Fig 13: Reference Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT BACK DOOR LOCK ASSY

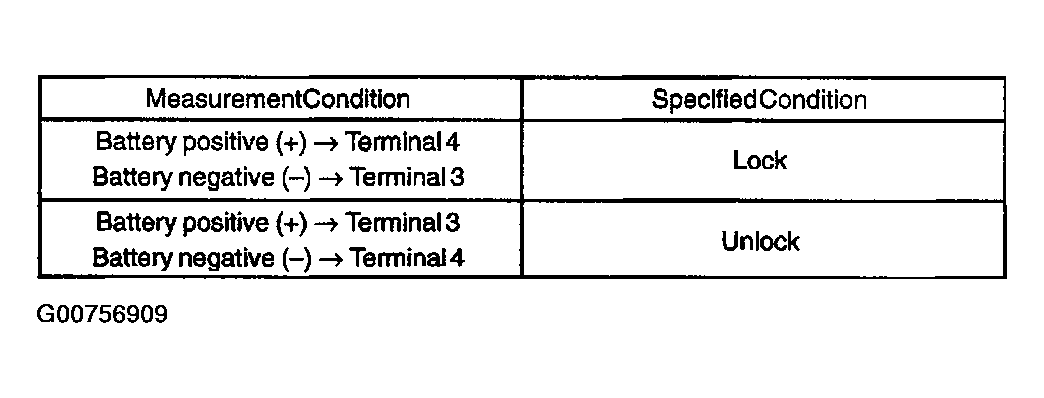

1. Apply battery voltage to the door lock and check operation of the latch.

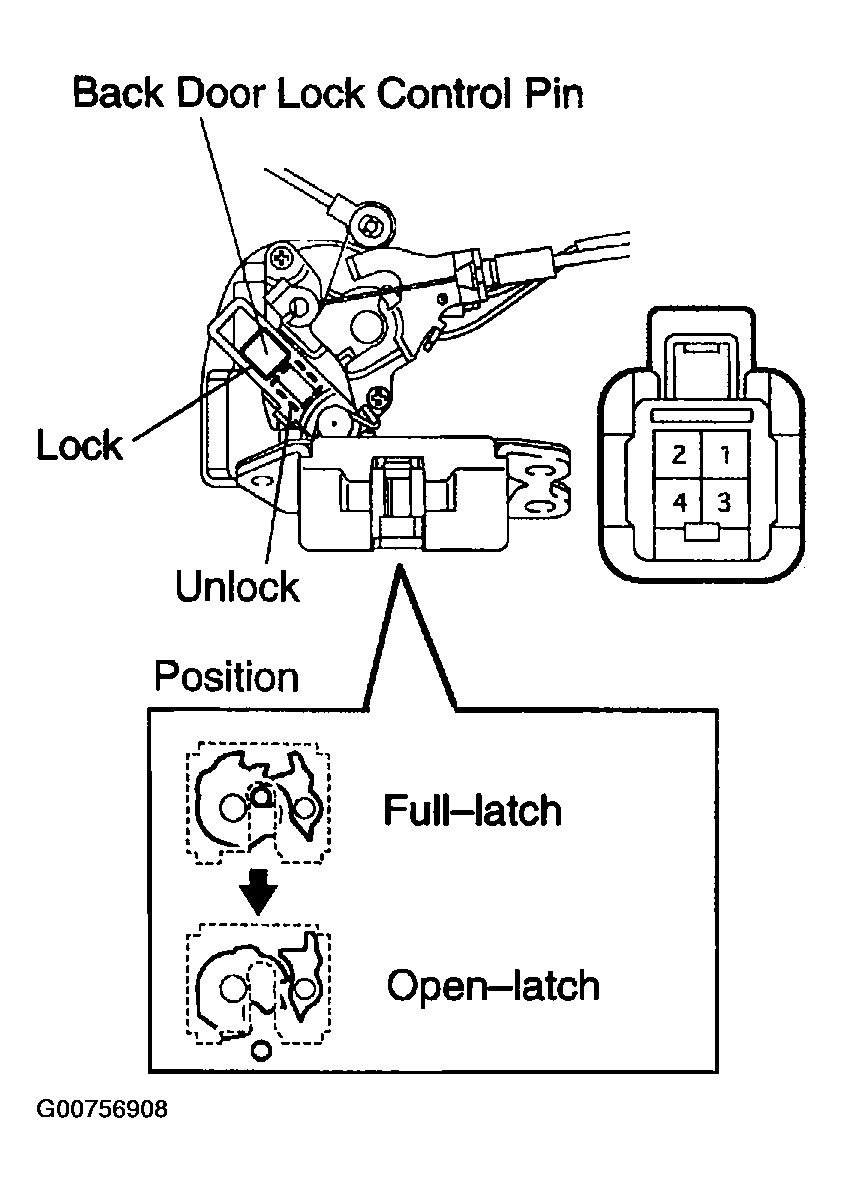

  Fig 14: Inspecting Back Door Lock Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the result is not as specified, replace the door lock assy.

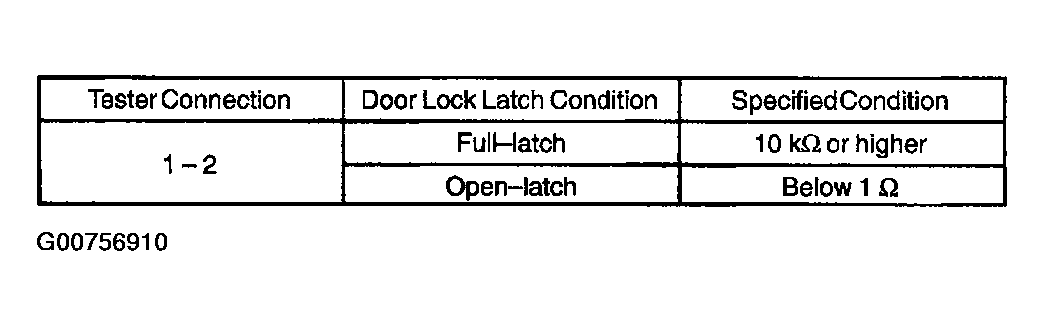

2. Check the back door courtesy switch resistance.
  Standard:

  Fig 15: Reference Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
If the result is not as specified, replace the door lock assy.

Fig 16: Reference Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSY

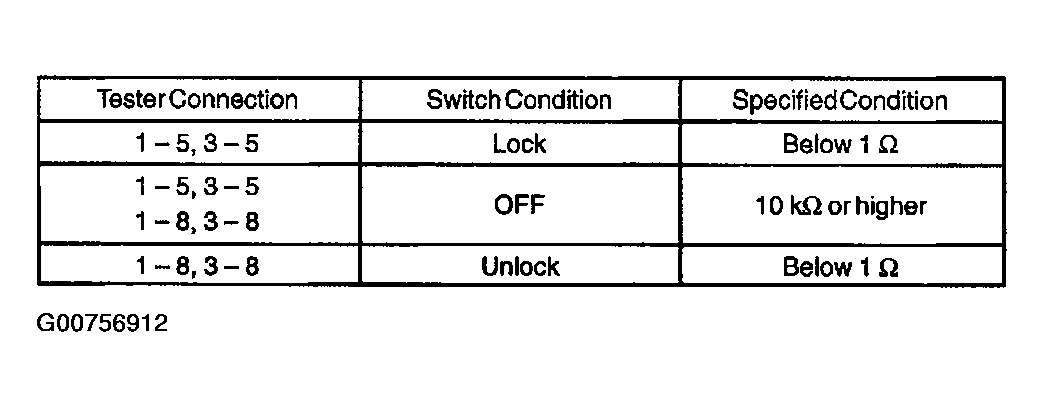

1. Check the resistance of the door control switch.
  Standard:

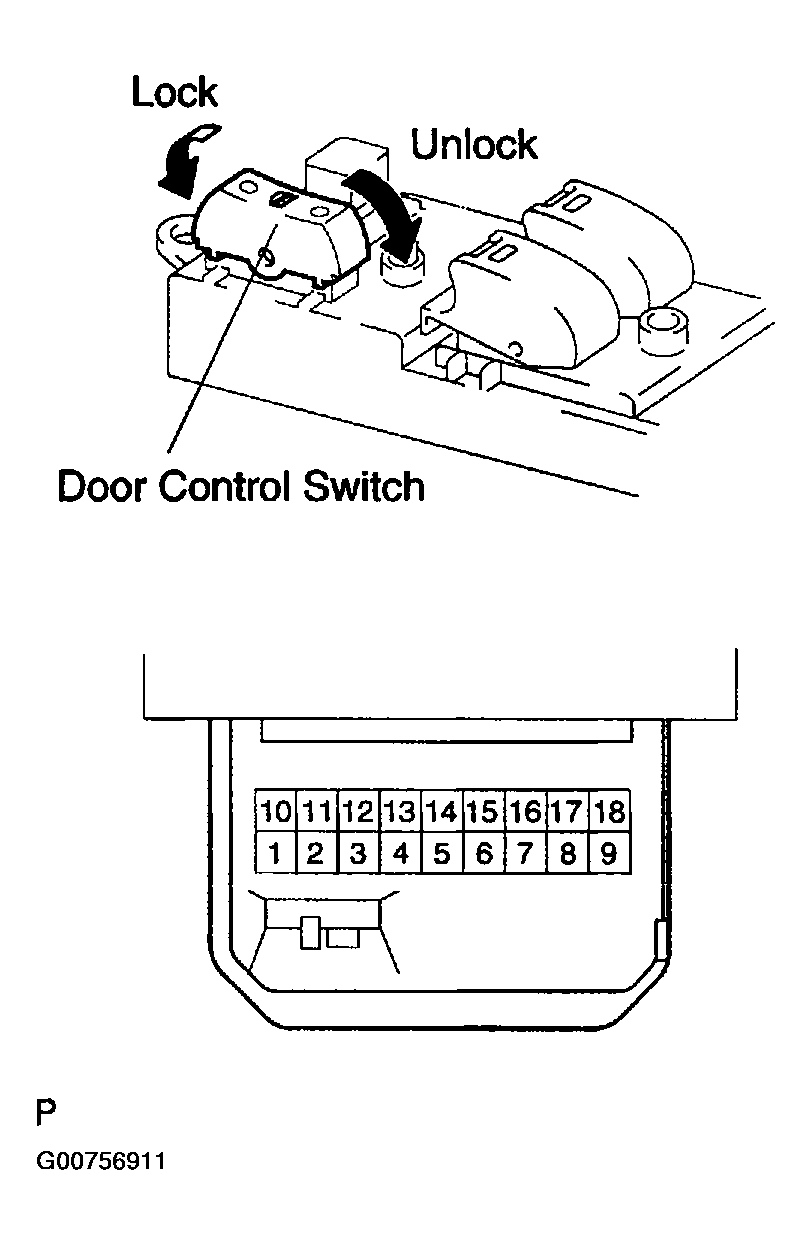

  Fig 17: Inspecting Power Window Regulator Master Switch Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
If the result is not as specified, replace the switch assy.

Fig 18: Reference Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT DOOR CONTROL SWITCH ASSY
1. Check the resistance of the door control switch.
  Standard:

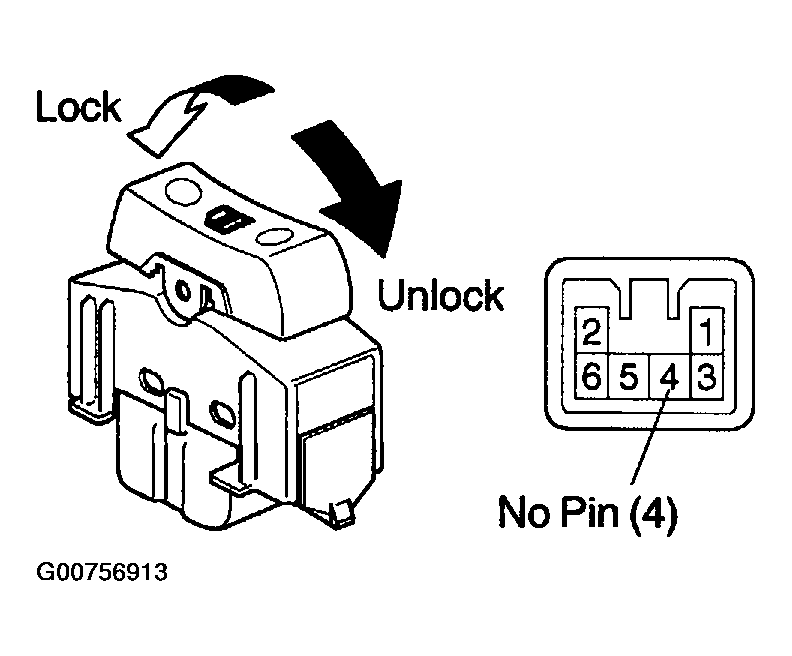

  Fig 19: Inspecting Door Control Switch Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
If the result is not as specified, replace the switch assy.

Fig 20: Reference Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
