Control Units

CONTROL UNITS LOCATION

Component Location

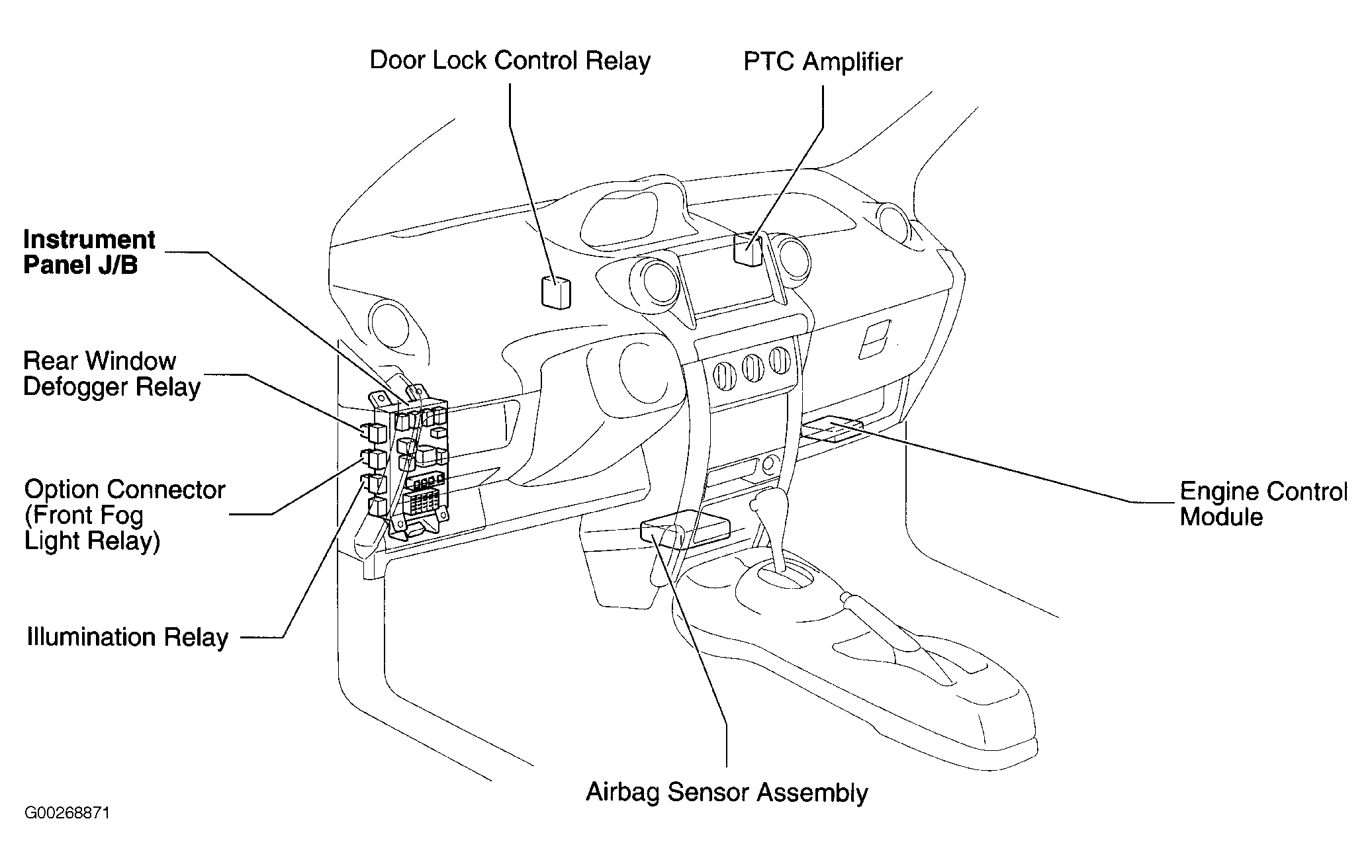

Engine Control Module Behind lower right side of dash. See Figure.
PTC Amplifier Behind upper right side of dash. See Figure.

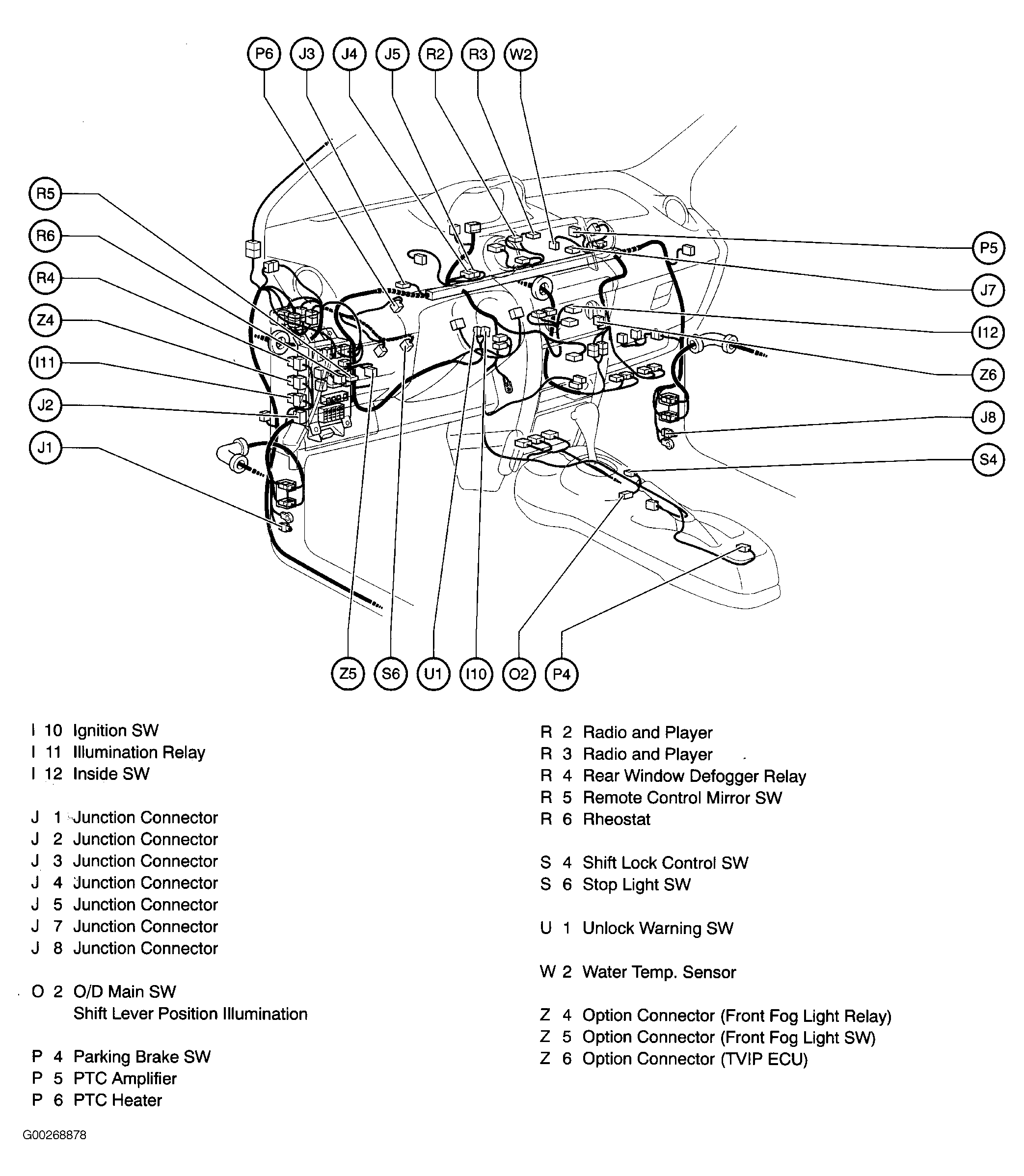

TVIP ECU Right side of dash. See Figure.
