Problem Symptoms Table

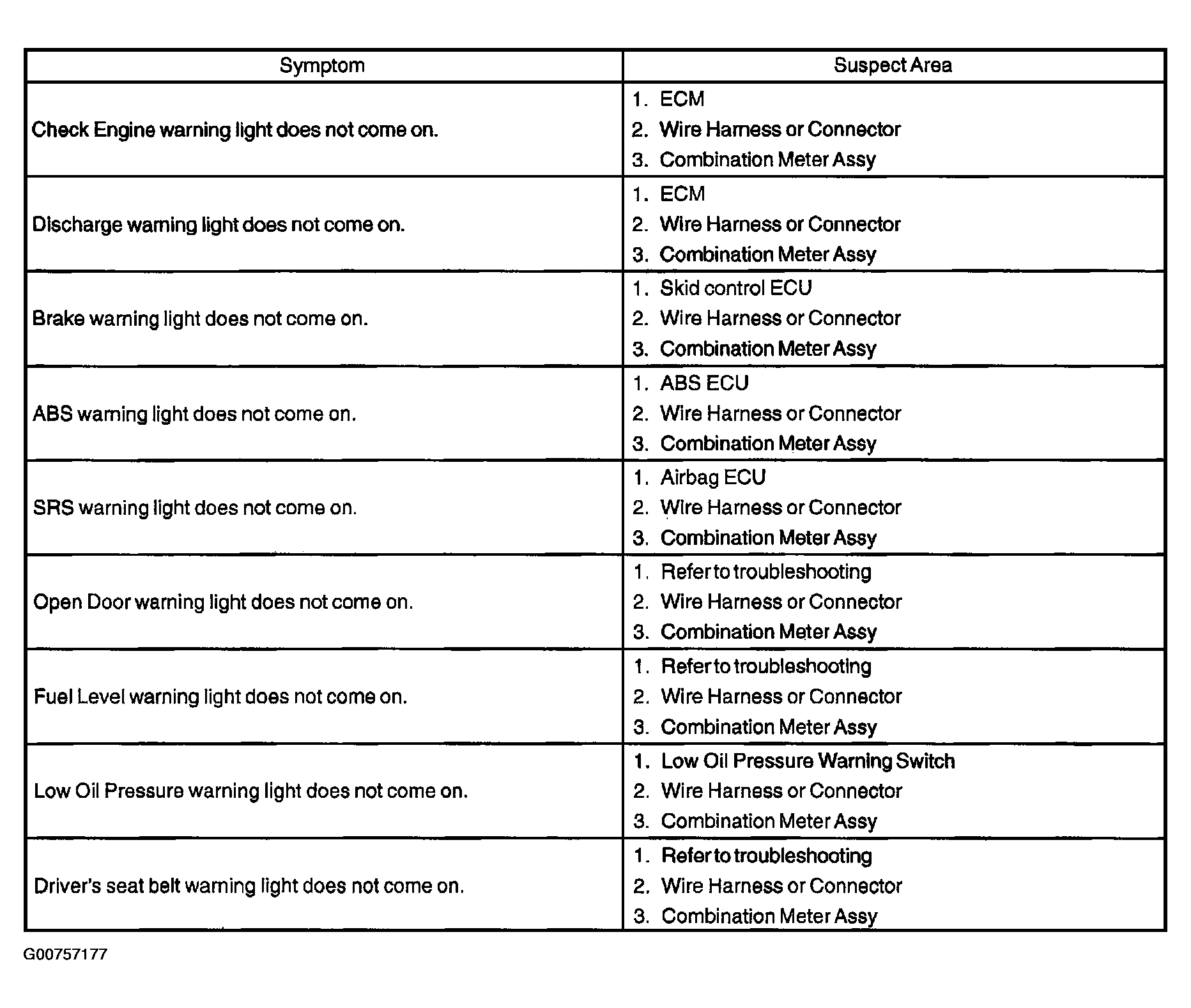

Warning Lights:

Fig 1: Wiring Systems Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

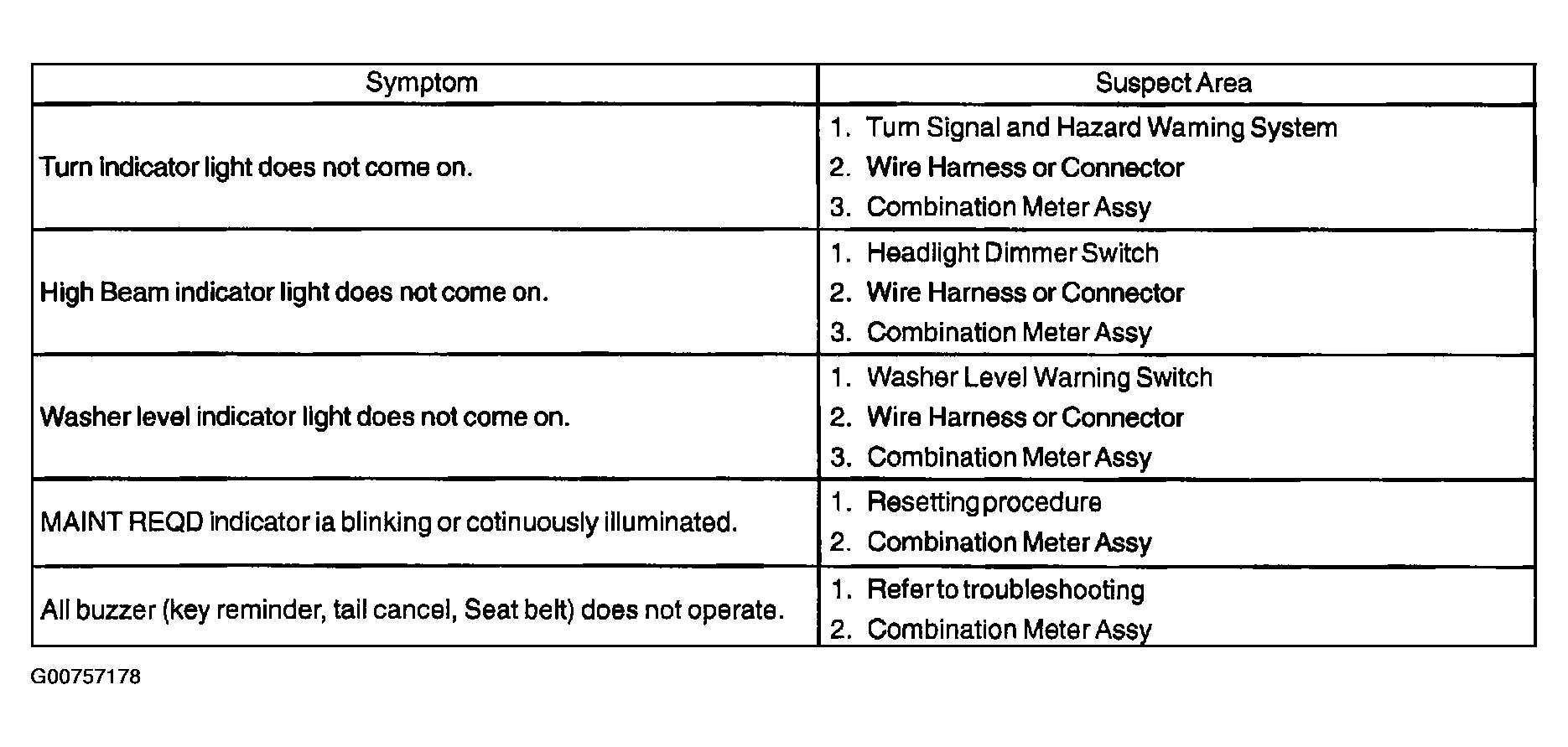

Indicator Lights:

Fig 2: Indicator Light Symptoms Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

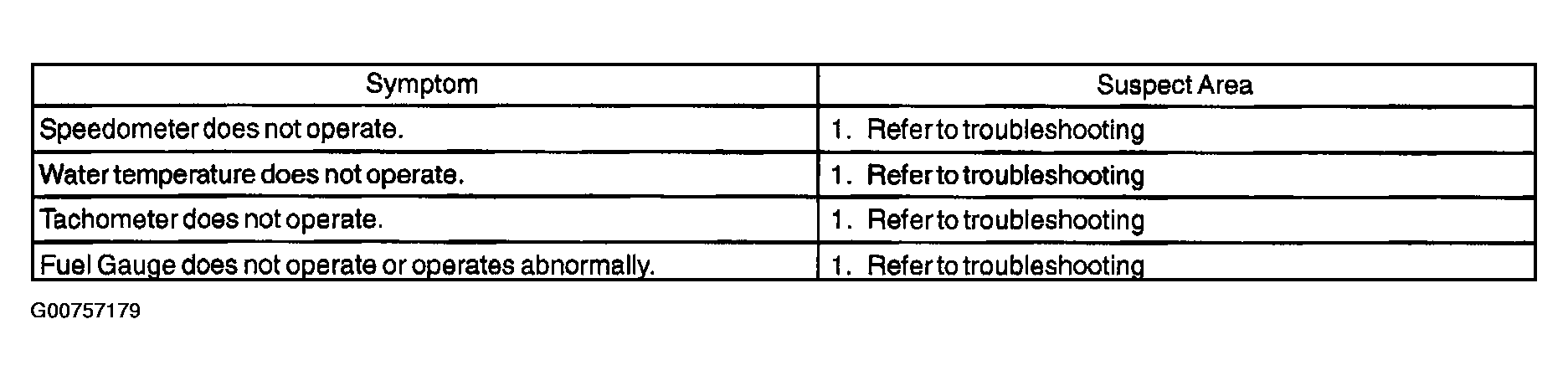

Meter Gauges:

Fig 3: Meter Gauge Symptoms Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
