Instrument Panel Sub-ASSY: Replacement

HINT:

COMPONENTS: See COMPONENTS

1. TABLE OF BOLT, SCREW AND NUT

   HINT:

   The bolts, screws and nuts necessary for installation and removal of the instrument panel, are illustrated below and coded alphabetically.

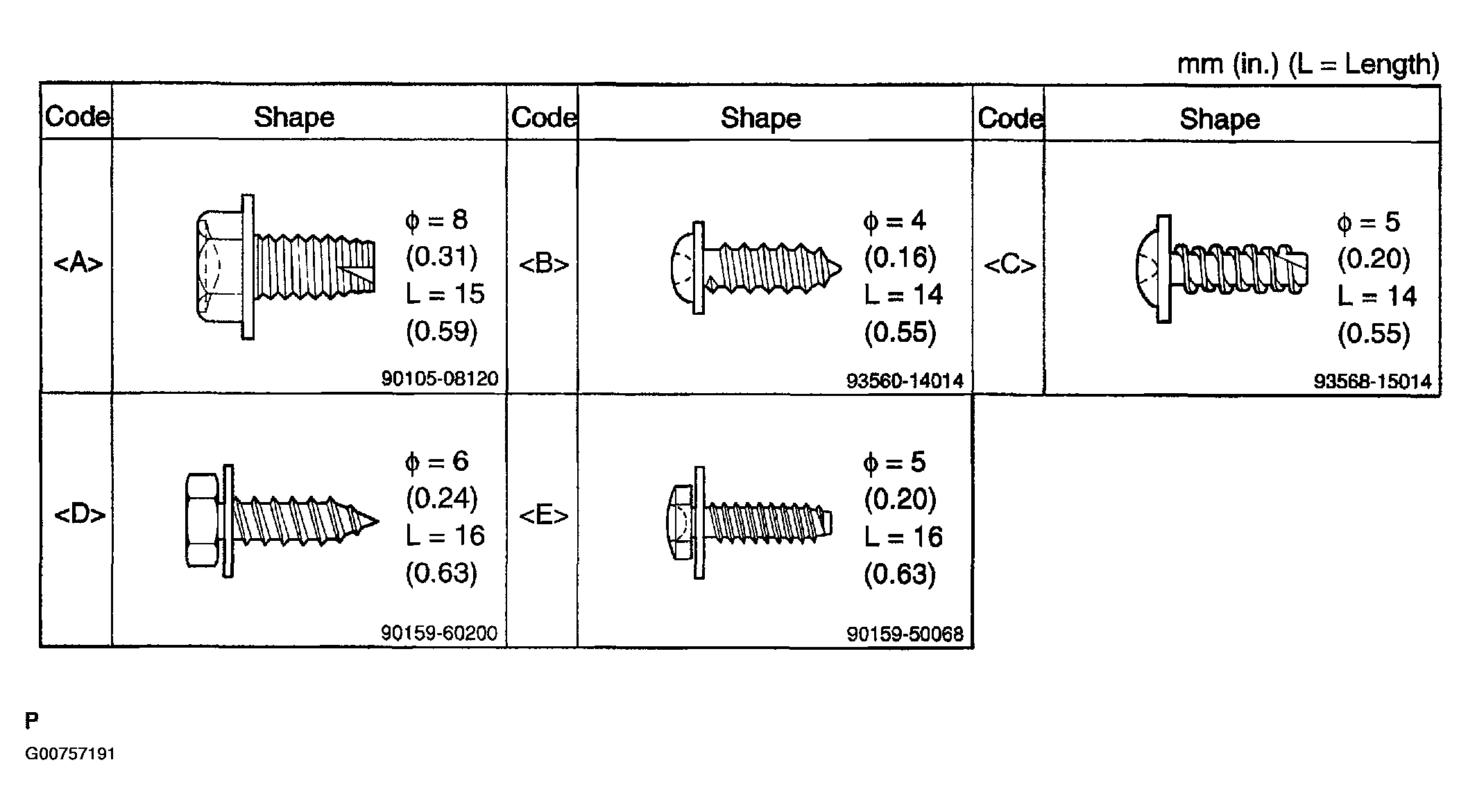

   Fig 1: Specification Chart Of Bolt Screw And Nut

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. DISCONNECT BATTERY NEGATIVE TERMINAL (See  AIR BAG RESTRAINT SYSTEMS  )
3. REMOVE FRONT PILLAR GARNISH LH
   1. Disengage the 2 clips and the 2 claws, and remove the front pillar garnish LH.

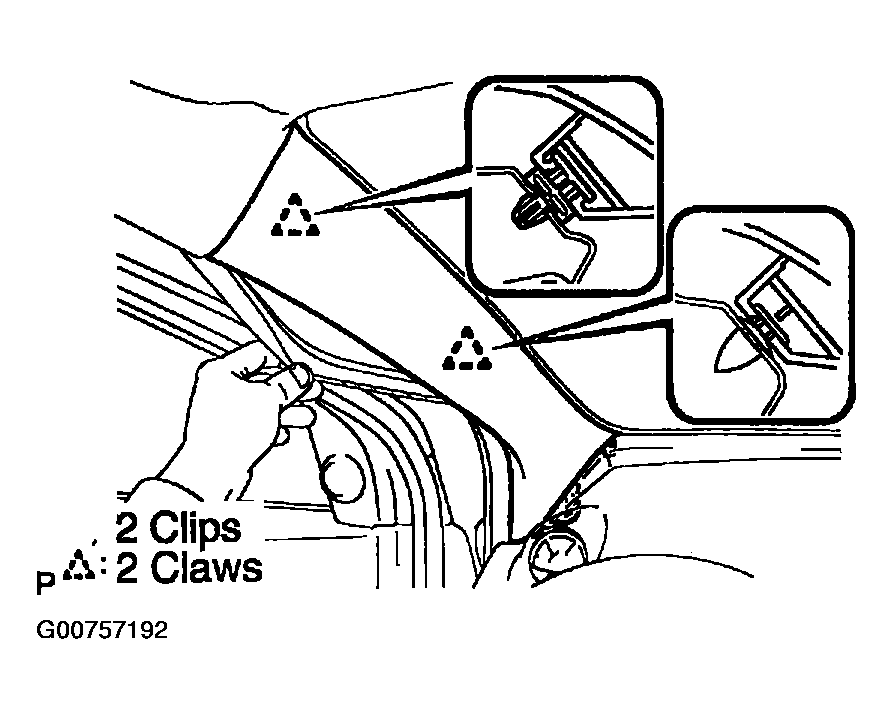

      Fig 2: Removing Pillar Garnish

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. REMOVE FRONT PILLAR GARNISH RH
5. REMOVE INSTRUMENT PANEL FINISH LOWER PANEL LH
   1. Disengage the 2 clips and the claw, and remove the instrument panel finish lower panel LH.

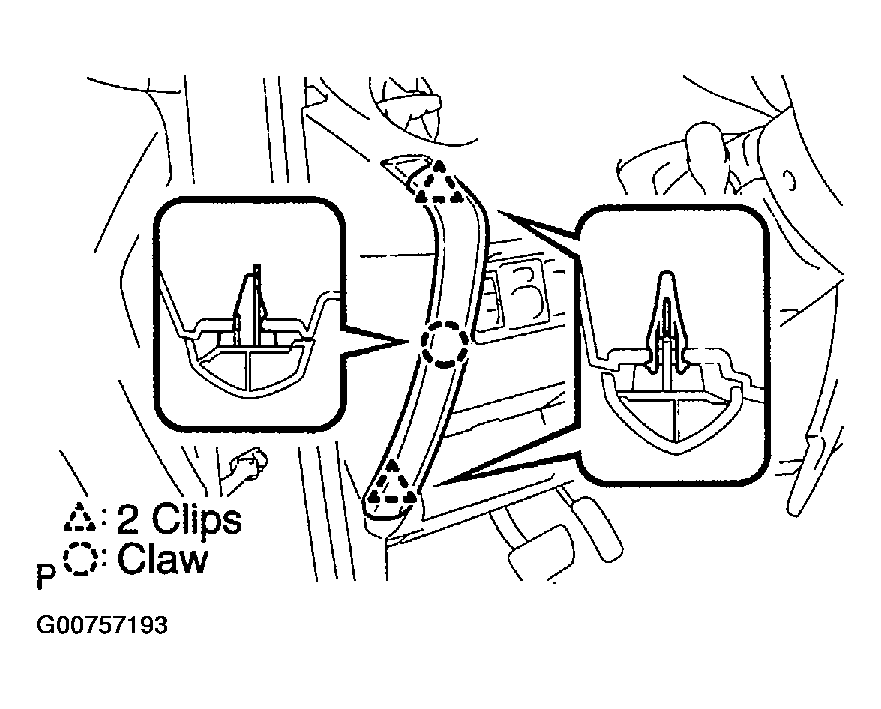

   Fig 3: Removing Instrument Panel Lower LH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. REMOVE INSTRUMENT PANEL FINISH LOWER PANEL RH
7. REMOVE INSTRUMENT CLUSTER FINISH PANEL
   1. Remove the 2 clips.
   2. Disengage the 6 claws, and remove the instrument cluster finish panel.

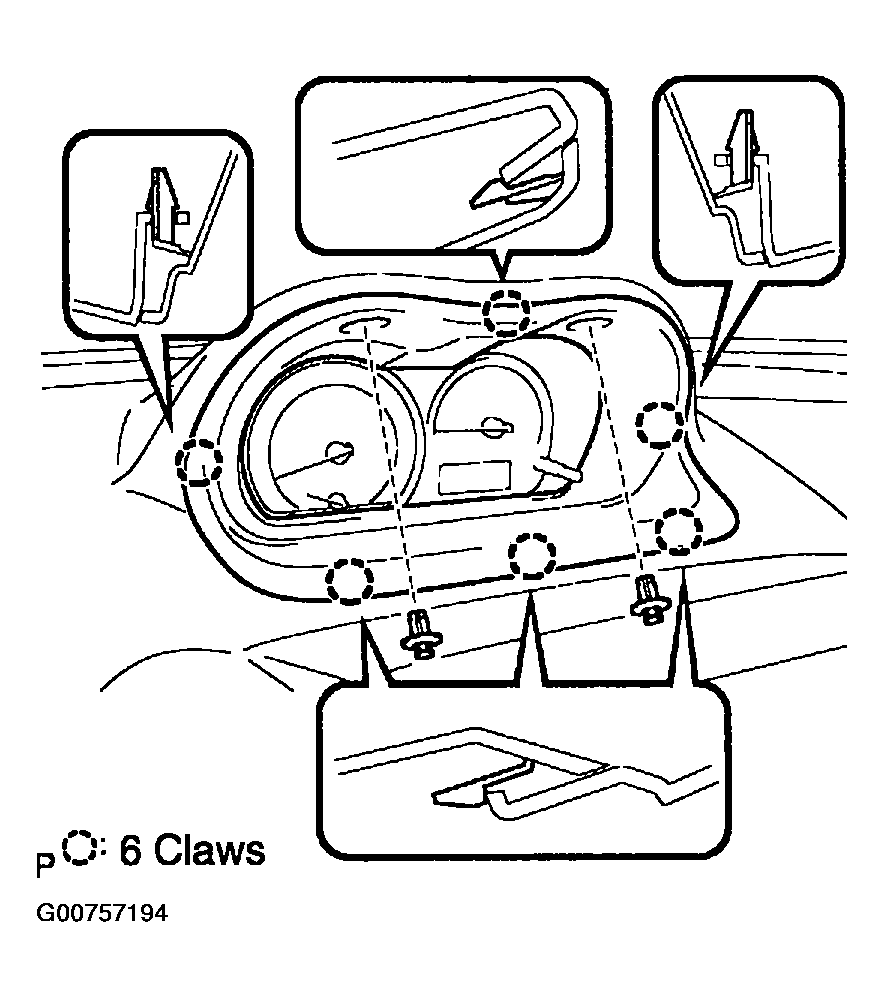

   Fig 4: Removing Instrument Cluster Finish Panel

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. REMOVE COMBINATION METER ASSY
   1. Remove the 3 screws < E >.
   2. Disconnect the connectors, and remove the combination meter assy.

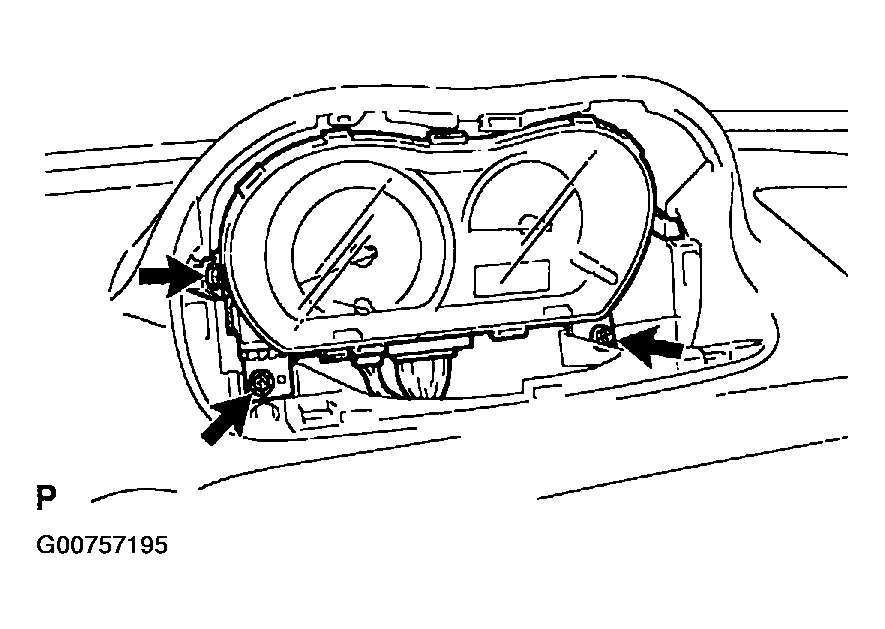

   Fig 5: Removing Combination Meter Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

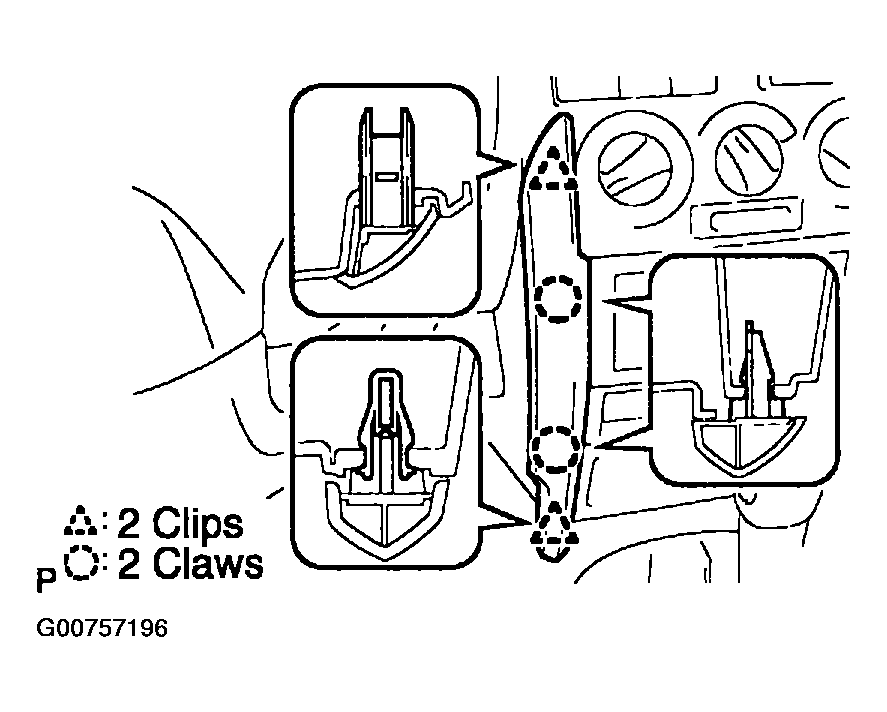

9. REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH NO. 2
   1. Disengage the 2 clips and the 2 claws, and remove the instrument cluster finish panel garnish No. 2.
   Fig 6: Removing Instrument Cluster Garnish

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
10. REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH NO. 1
11. REMOVE HEATER CONTROL KNOB
    1. Remove the 3 heater control knobs.

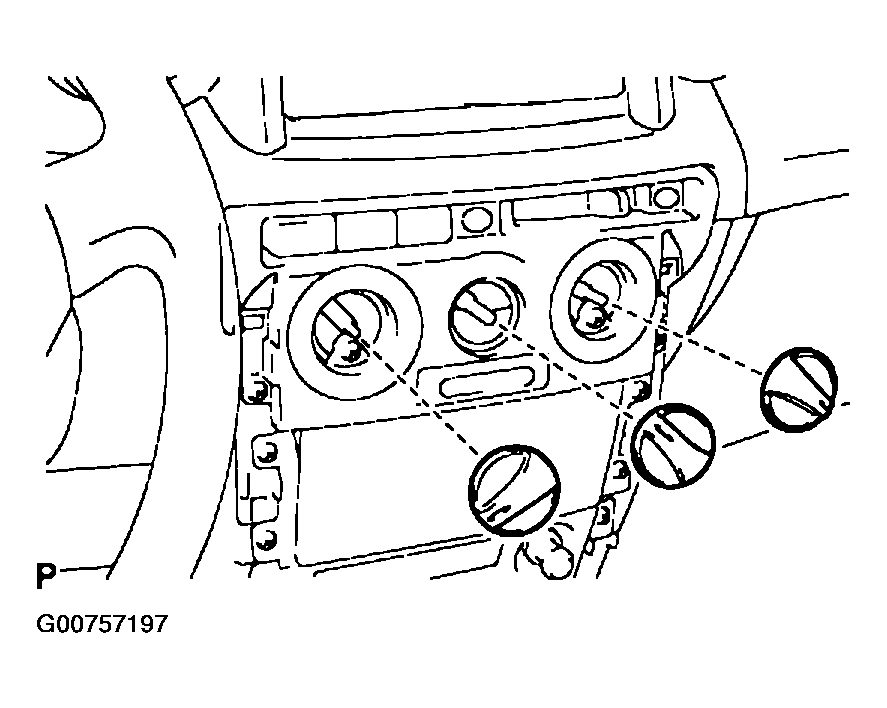

    Fig 7: Removing Heater Control Knob

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
12. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CTR
    1. Remove the 4 screws. < B >
    2. Disengage the 4 clips and the claw, and remove the instrument cluster finish panel sub-assy CTR.
    3. Disconnect the connectors.

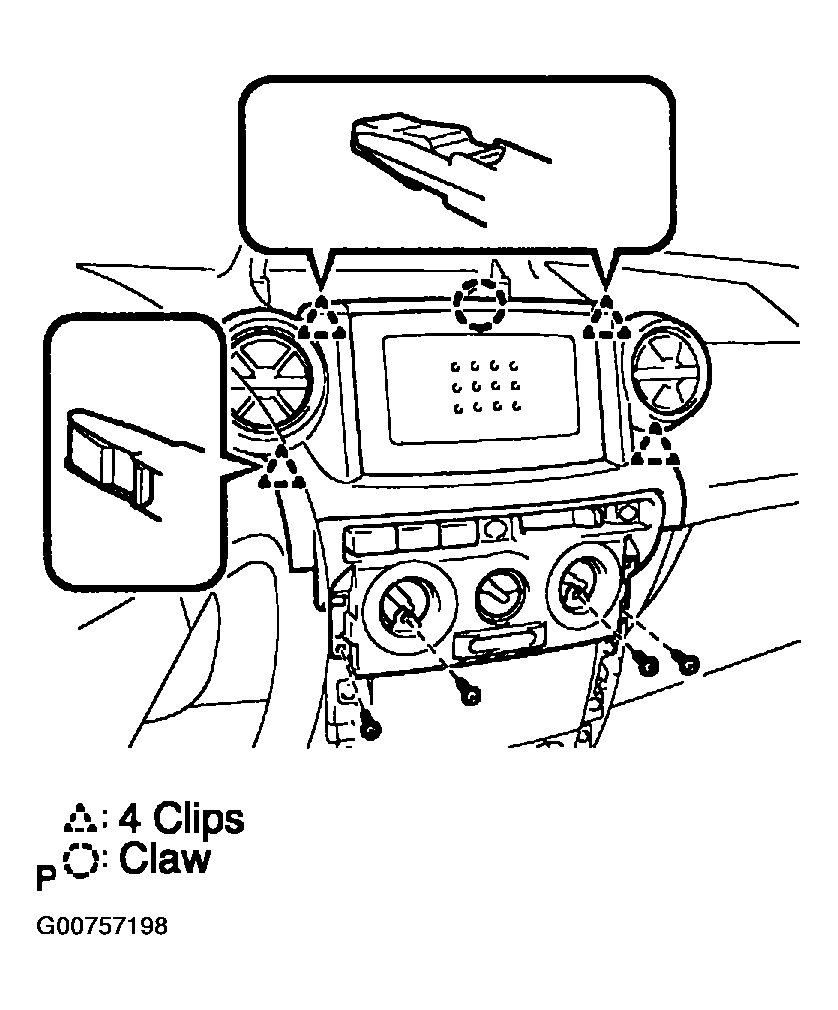

    Fig 8: Removing Instrument Cluster Panel

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
13. REMOVE RADIO BRACKET NO. 1 & NO. 2 (W/O RADIO)
    1. Remove the 4 screws and the radio bracket No. 1 & No. 2.

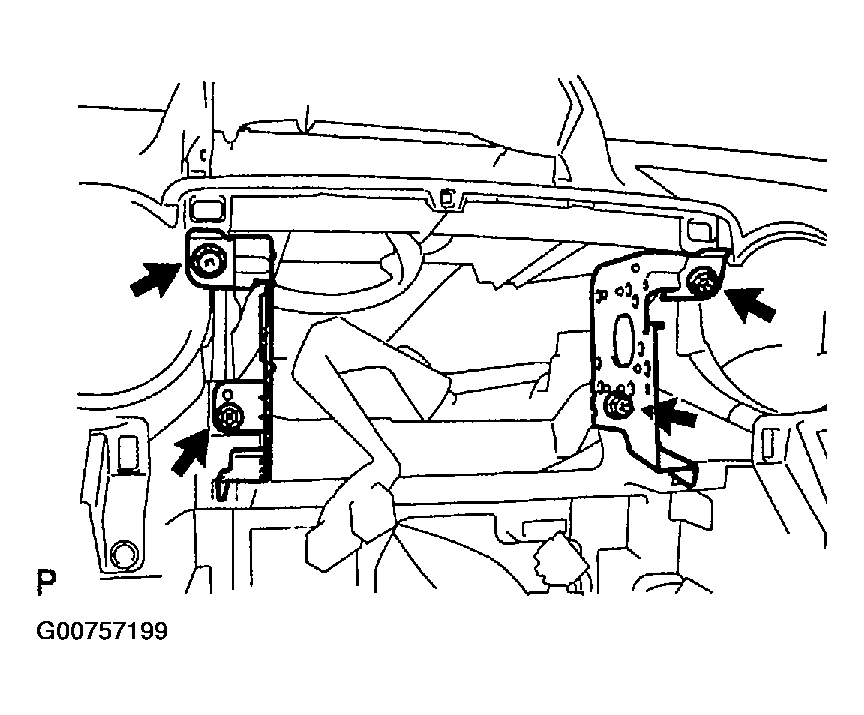

    Fig 9: Removing Radio Bracket

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
14. REMOVE RADIO RECEIVER ASSY (W/ RADIO) (See  AUDIO & VISUAL SYSTEM  )
15. REMOVE GLOVE COMPARTMENT DOOR ASSY
    1. Push in the sides of the upper part of the glove compartment door assy to release the stoppers.
    2. Pull the glove compartment door assy and remove it.

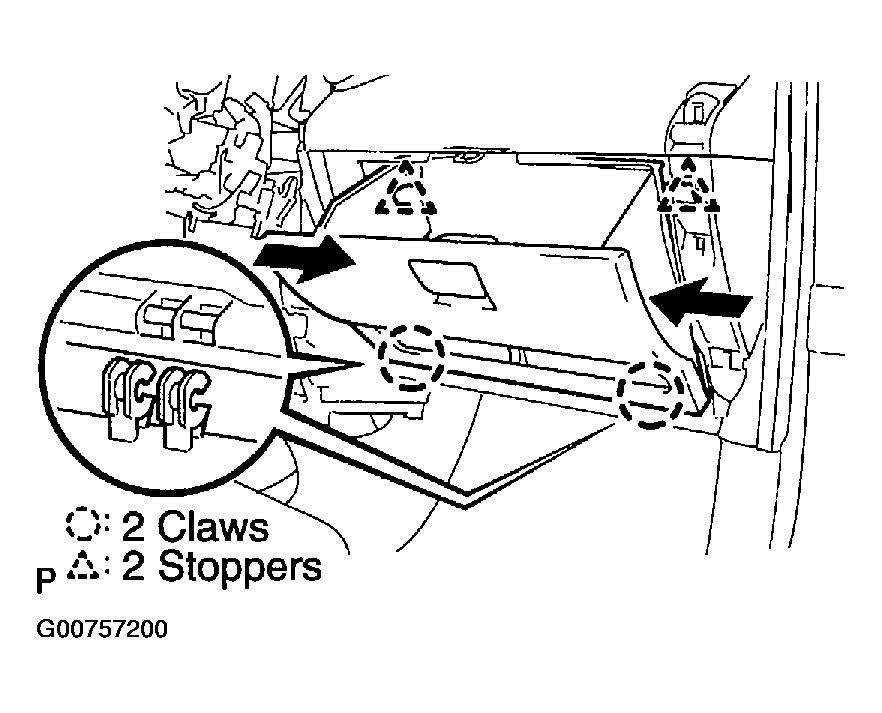

    Fig 10: Removing Glove Box Compartment

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
16. DISCONNECT PASSENGER AIRBAG CONNECTOR

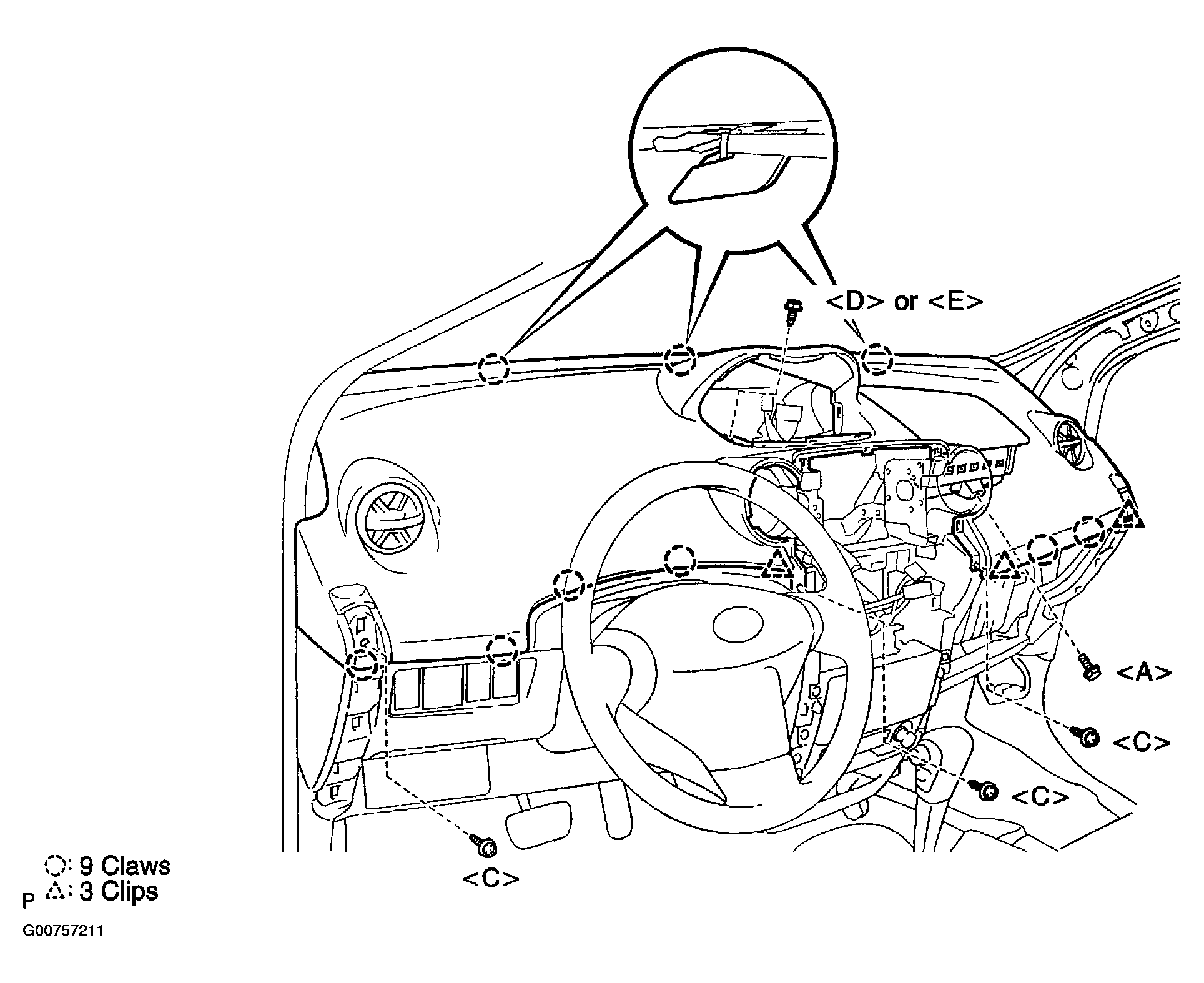

17. REMOVE INSTRUMENT PANEL SUB-ASSY W/PASSENGER AIRBAG ASSY
    1. Remove the 4 screws < C >, < D > or < E >and the bolt < A >.
    2. Disengage the 3 clips and the 9 claws.
    3. Disconnect the connectors.
    4. Pull the instrument panel sub-assy w/ passenger airbag assy and remove it.

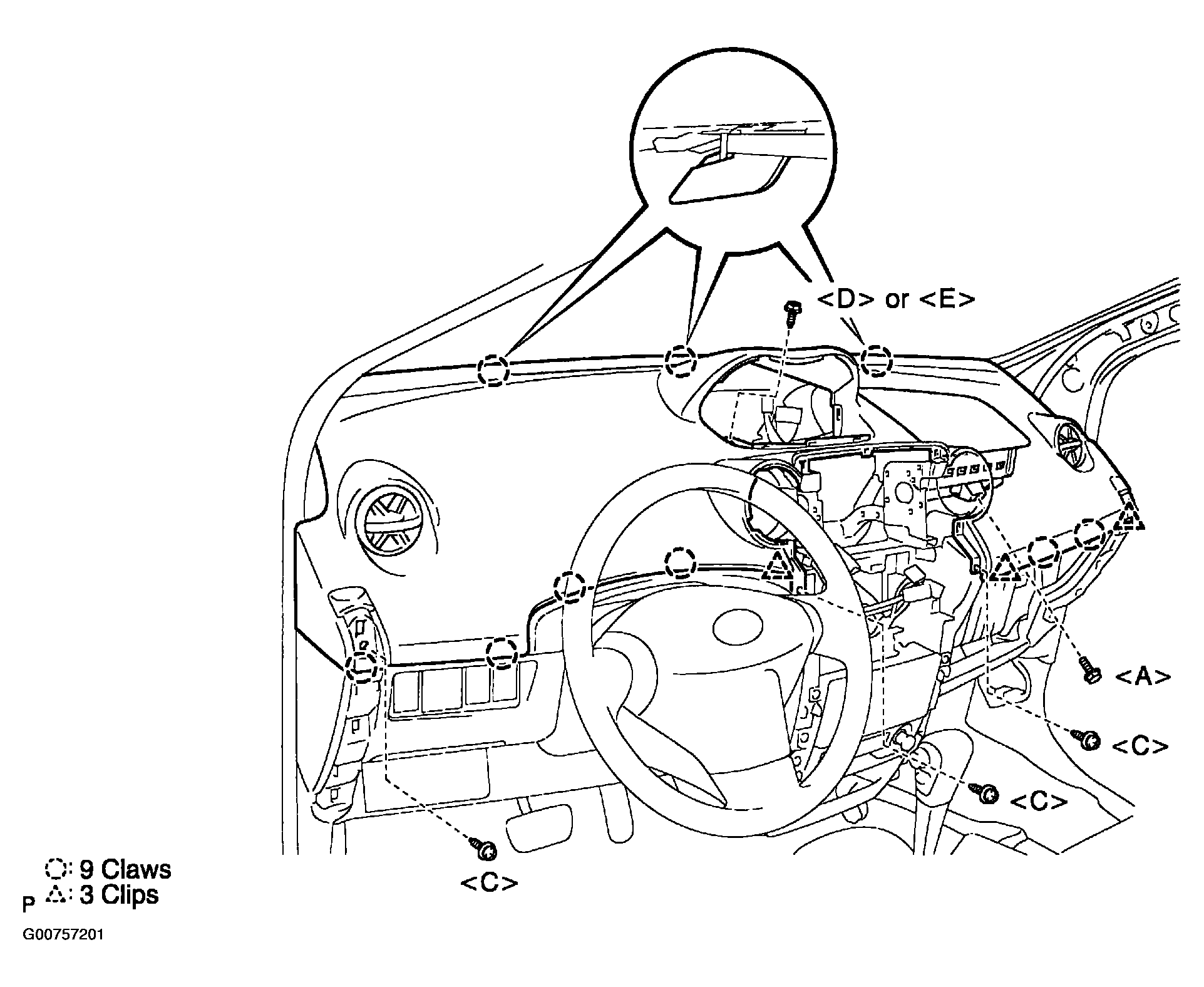

    Fig 11: Removing Passenger Side Air Bag

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
18. REMOVE INSTRUMENT PANEL PASSENGER AIR BAG ASSY (See  AIR BAG RESTRAINT SYSTEMS  )
19. REMOVE HEATER TO REGISTER DUCT NO. 1
    1. Using nippers etc., cut off the ultrasonic welding portion as shown in the illustration to remove the heater to register duct No. 1 from the instrument panel sub-assy.

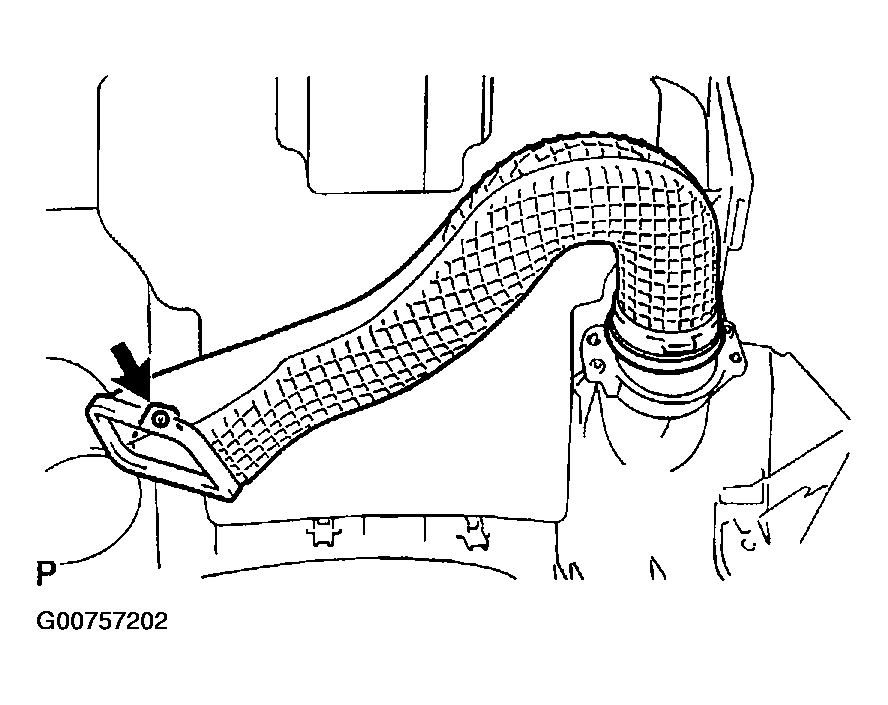

    Fig 12: Removing Heater Resister Duct

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

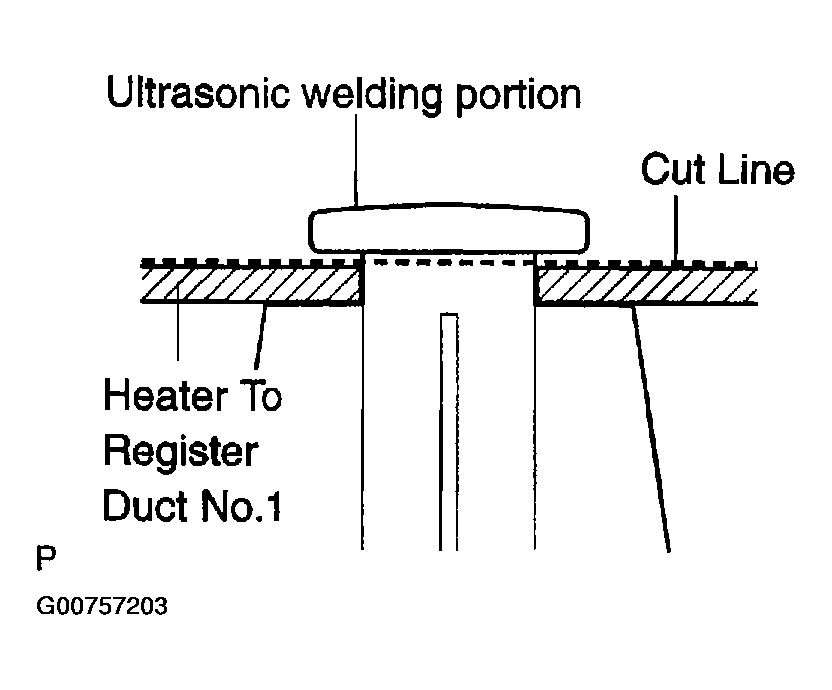

    Fig 13: Locating Ultrasonic Welding Portion

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
20. REMOVE HEATER TO REGISTER DUCT NO. 3
21. REMOVE INSTRUMENT PANEL REGISTER ASSY NO. 1
    1. Using nippers etc., cut off the ultrasonic welding portion as shown in the illustration to remove the instrument panel register assy No. 1 from the instrument panel sub-assy.

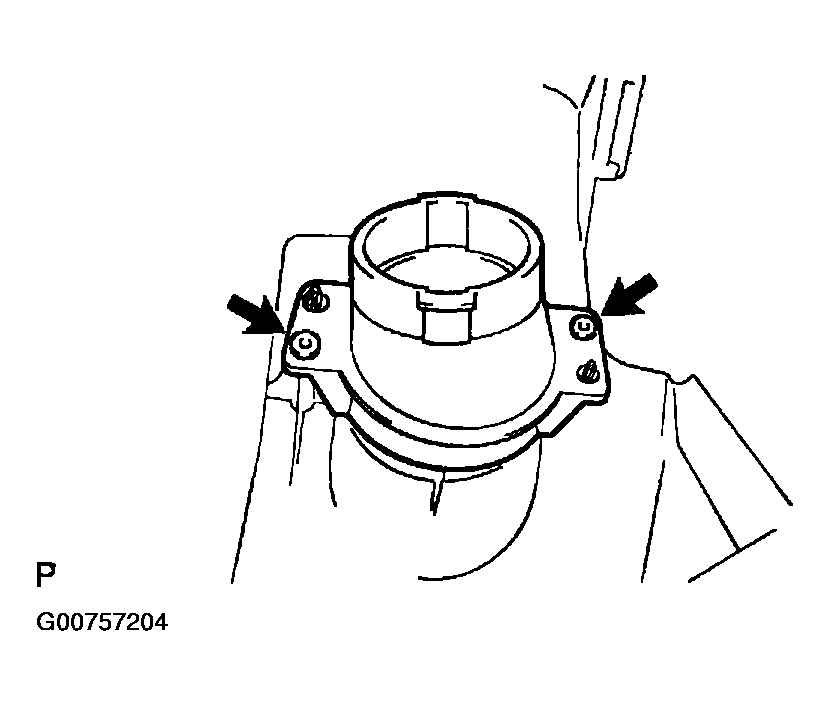

    Fig 14: Removing Instrument Panel Resister Assembly

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

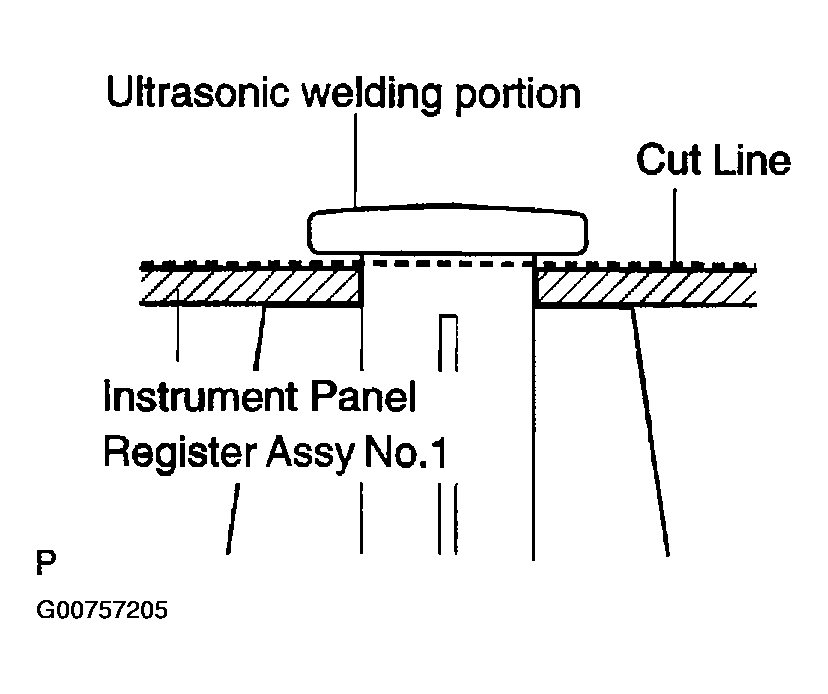

    Fig 15: Locating Ultrasonic Welding Part

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
22. REMOVE INSTRUMENT PANEL CUSHION NO. 1
    1. Remove the instrument panel cushion No. 1 from the instrument panel sub-assy.

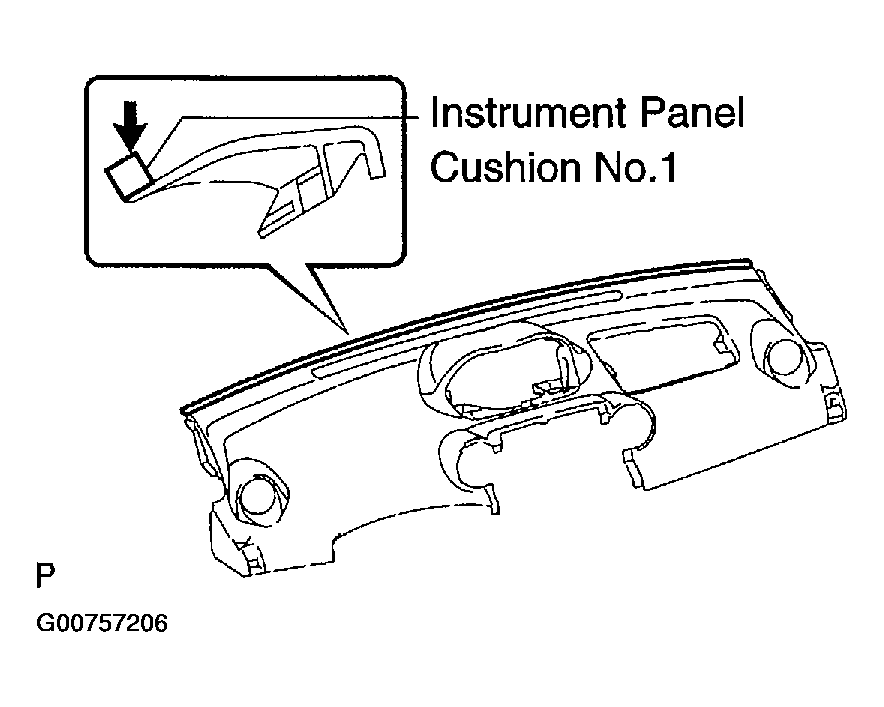

    Fig 16: Removing Instrument Panel Cushion

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
23. REMOVE INSTRUMENT PANEL SUB-ASSY
24. INSTALL INSTRUMENT PANEL REGISTER ASSY NO. 1

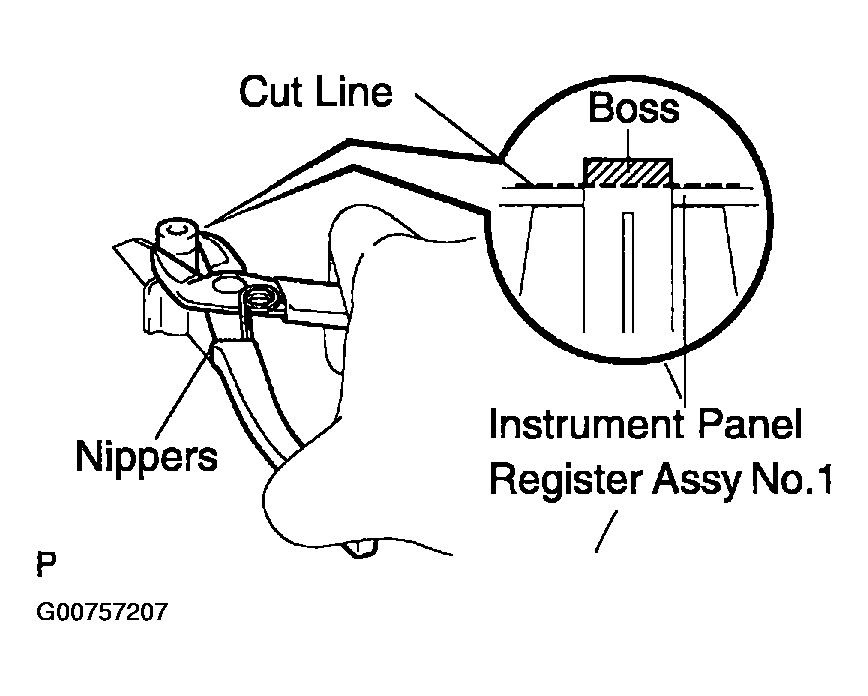

    1. When replacing the instrument panel sub-assy with a new one, cut the boss off using nippers, etc. as shown in the illustration.
       NOTE: When reusing the instrument panel sub-assy, start from step (b).
       Fig 17: Installing Instrument Panel Resister

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a screw, install the instrument panel register assy No. 1 to the instrument panel sub-assy.

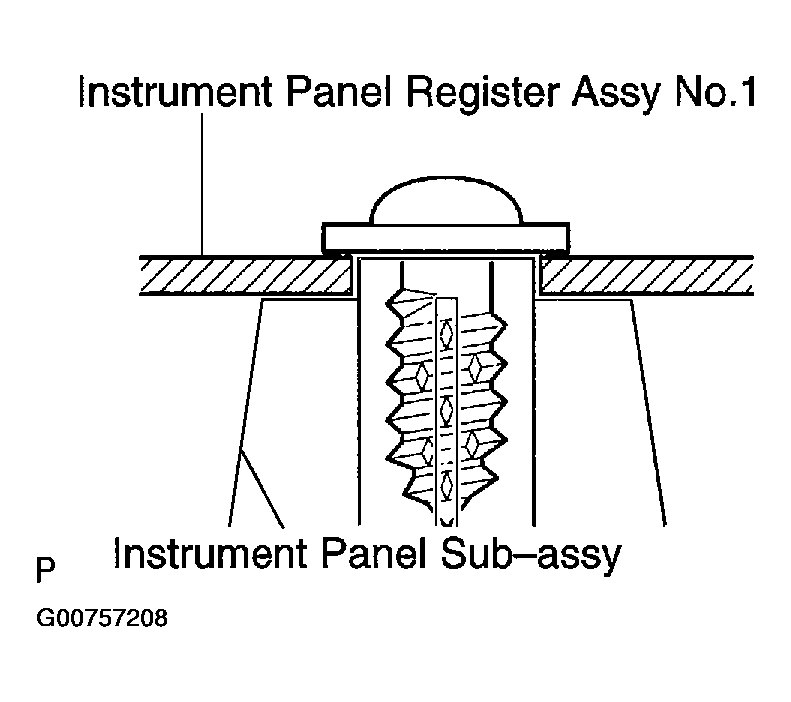

    Fig 18: Locating Instrument Panel Screw

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
25. INSTALL HEATER TO REGISTER DUCT NO. 1

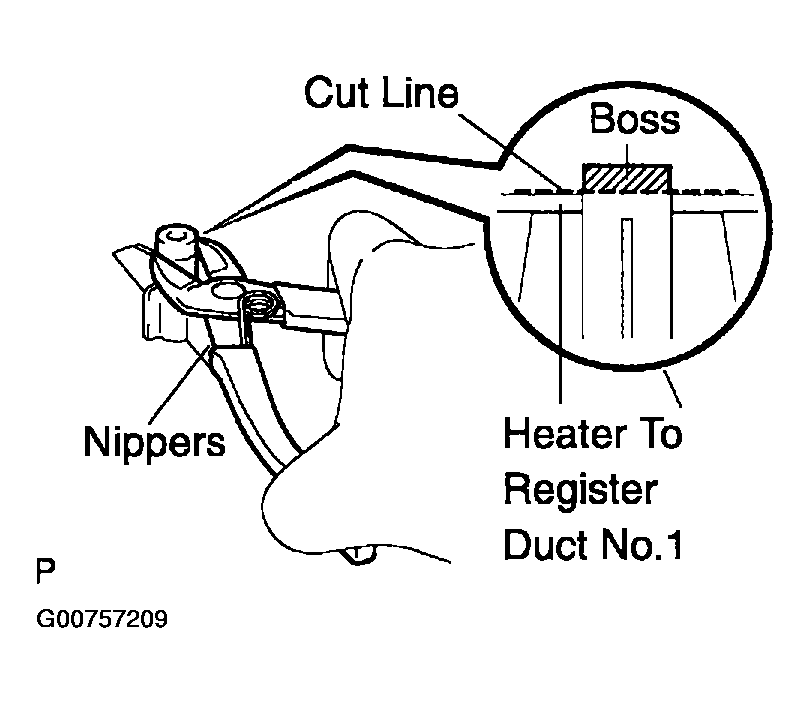

    1. When replacing the instrument panel sub-assy with a new one, cut the boss off using nippers, etc. as shown in the illustration.
       NOTE: When reusing the instrument panel sub-assy, start from step (b).
       Fig 19: Installing Heater Resister Duct

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

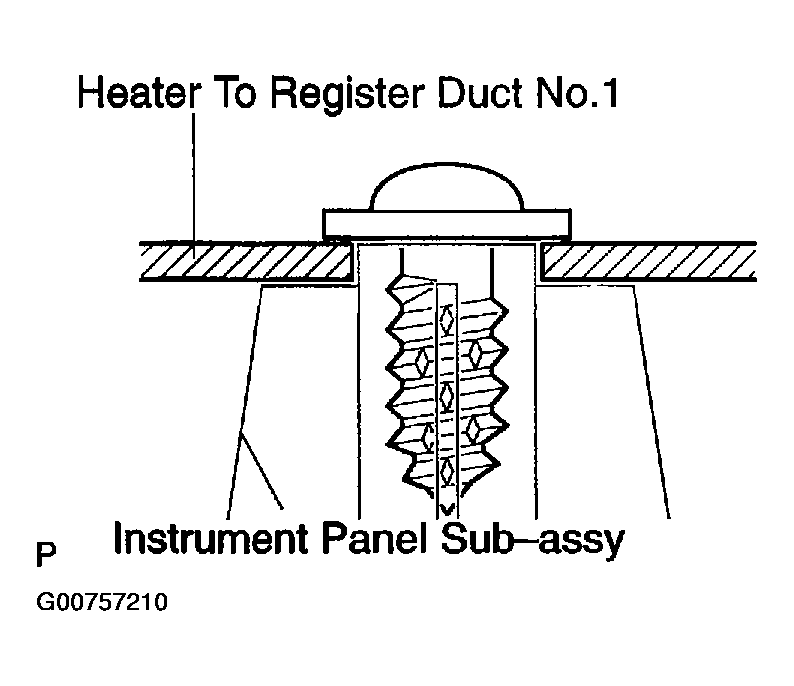

    2. Using a screw, install the heater to register duct No. 1 to the instrument panel sub-assy.
    Fig 20: Locating Heater Duct Screw

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
26. INSTALL HEATER TO REGISTER DUCT NO. 3
27. INSTALL INSTRUMENT PANEL SUB-ASSY W/PASSENGER AIRBAG ASSY
    1. Using a torque wrench, install the instrument panel sub-assy w/ passenger airbag assy with bolt < A >.

       Torque: 18 N.m (184 kgf.cm, 13 ft.Ibf)

       Fig 21: Installing Passenger Side Air Bag

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
28. INSPECT SRS WARNING LIGHT (See  AIR BAG RESTRAINT SYSTEMS  )
