Partial Engine ASSY: Components

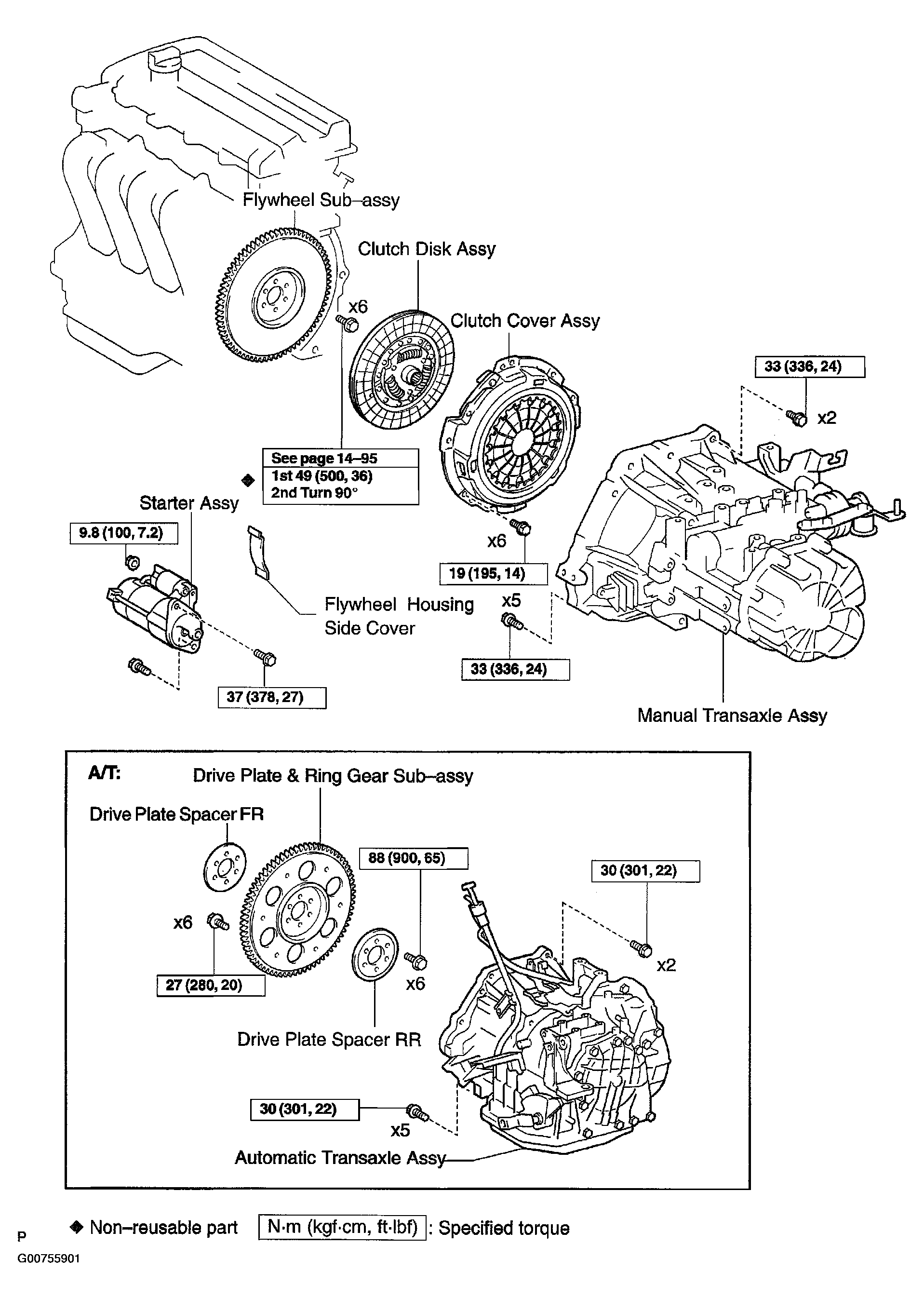

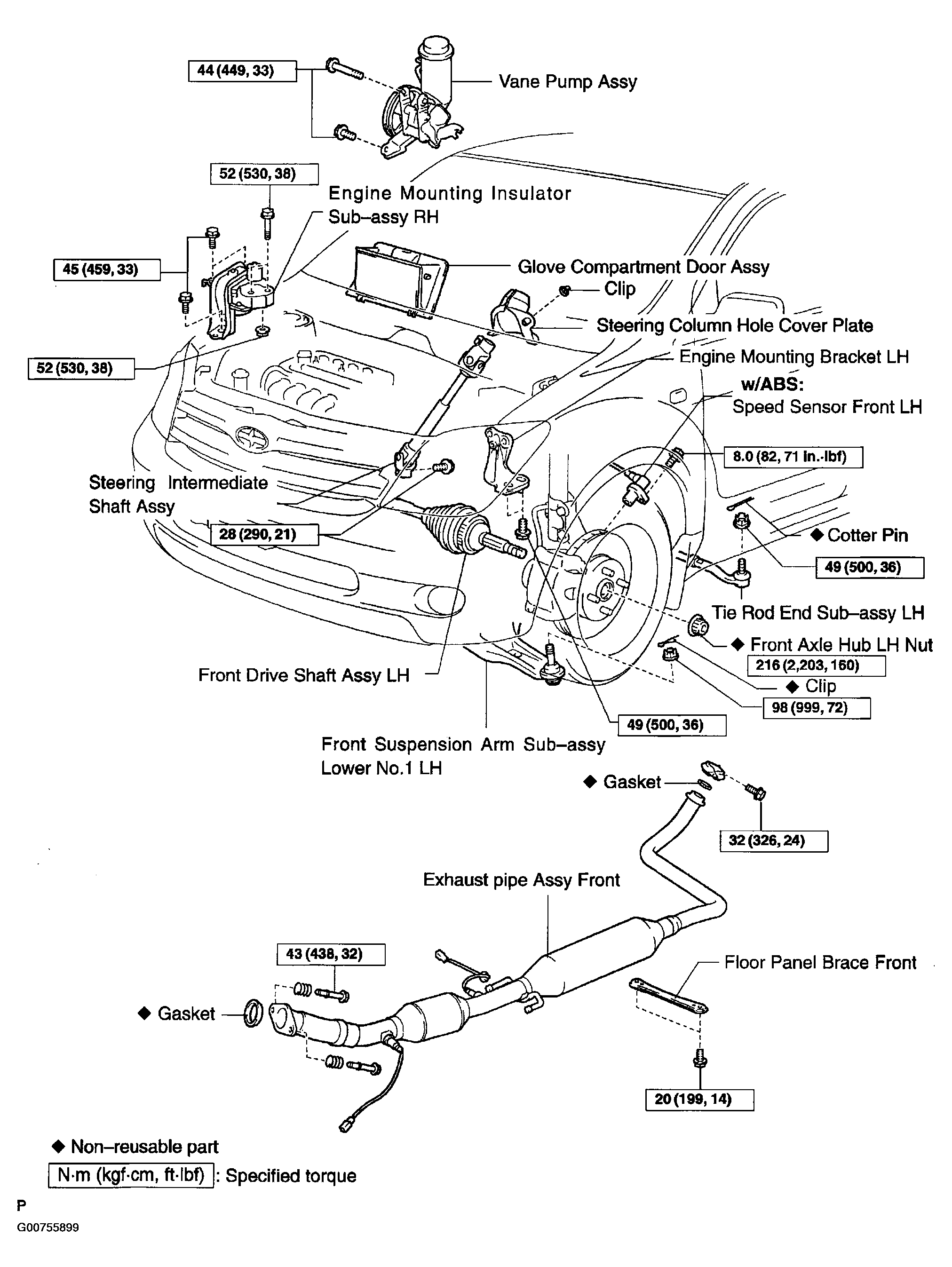

Fig 1: Locating Component Of Engine Assembly (1 Of 9)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

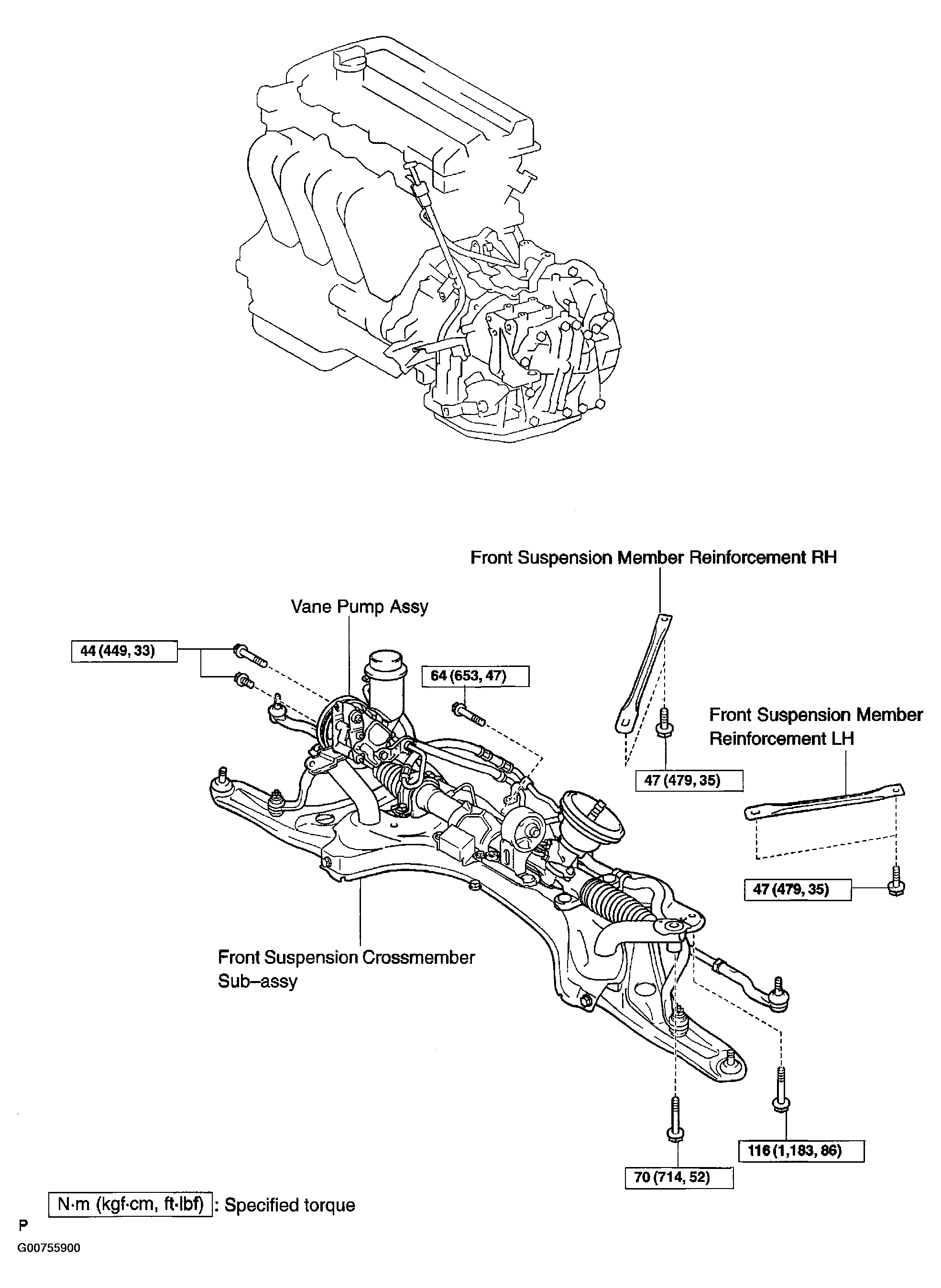

Fig 2: Locating Component Of Engine Assembly (2 Of 9)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

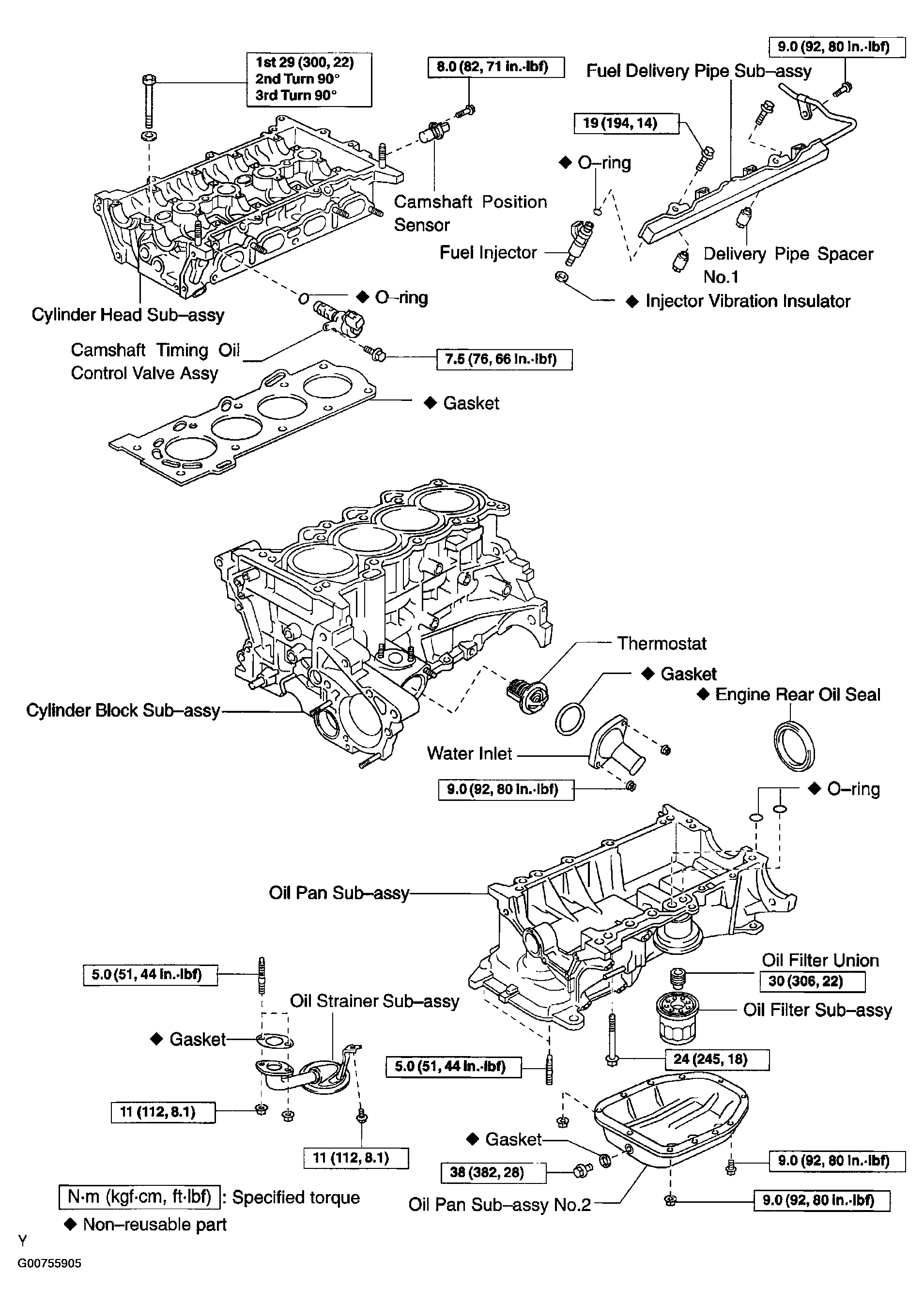

Fig 3: Locating Component Of Engine Assembly (3 Of 9)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

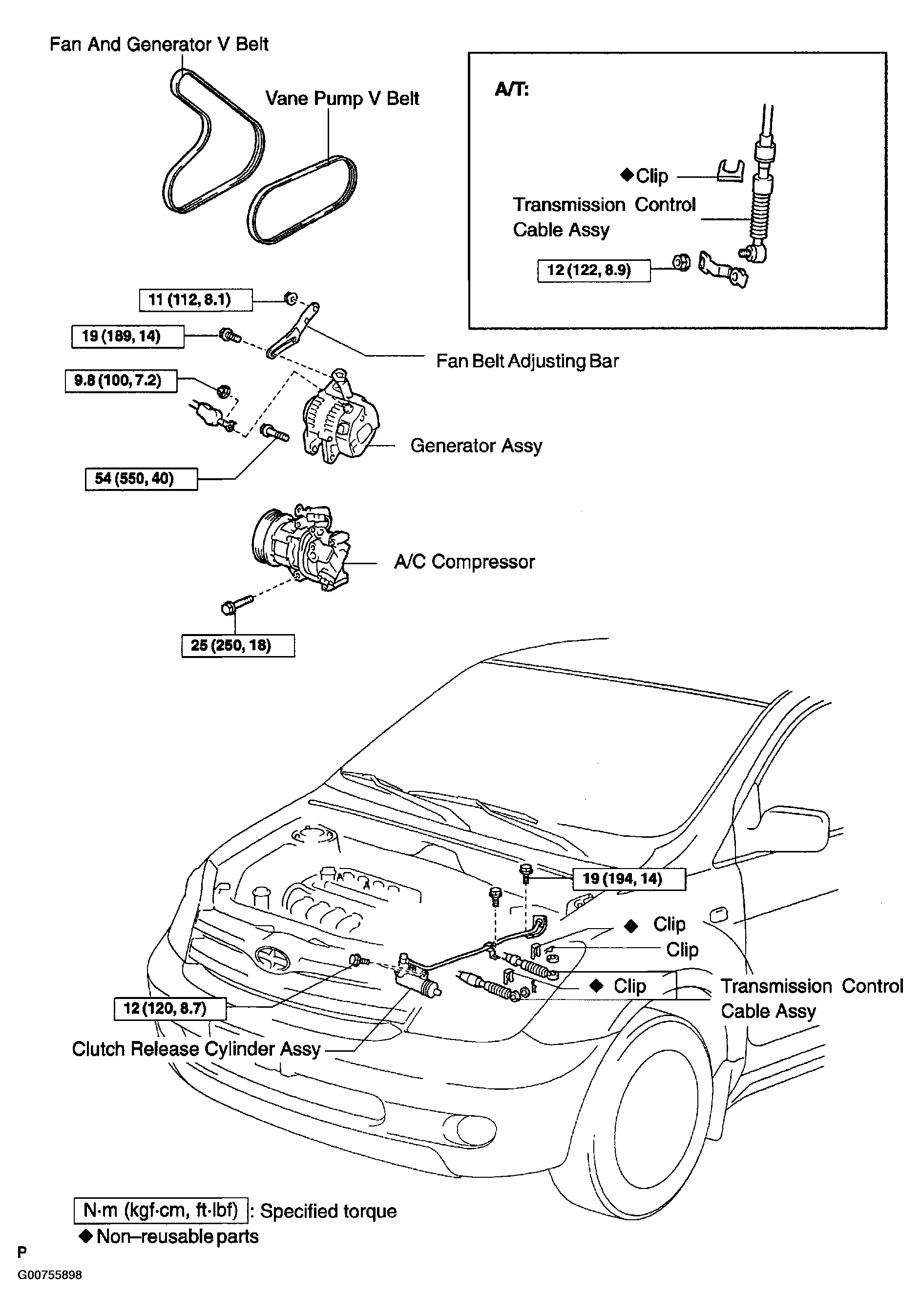

Fig 4: Locating Component Of Engine Assembly (4 Of 9)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

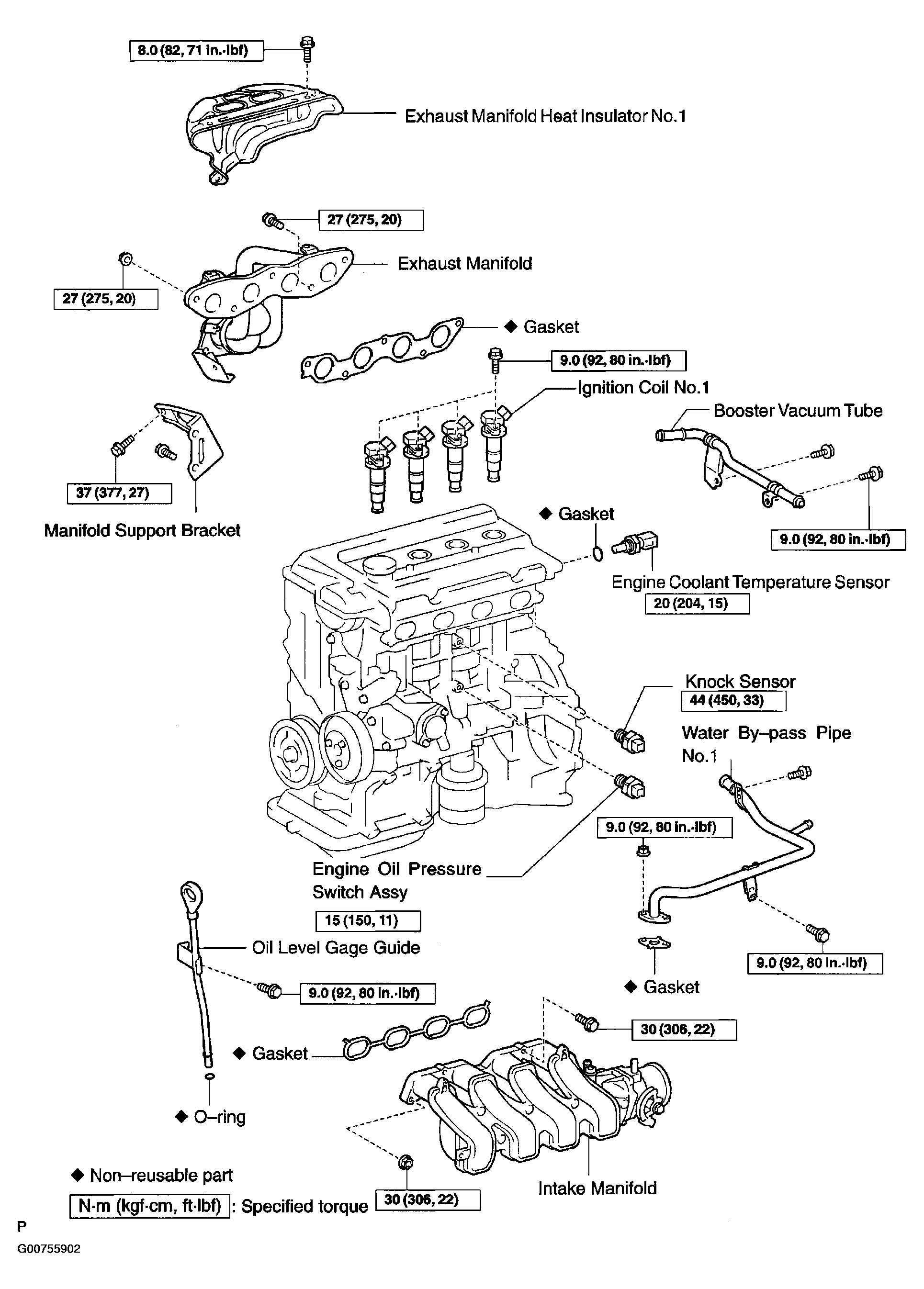

Fig 5: Locating Component Of Engine Assembly (5 Of 9)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

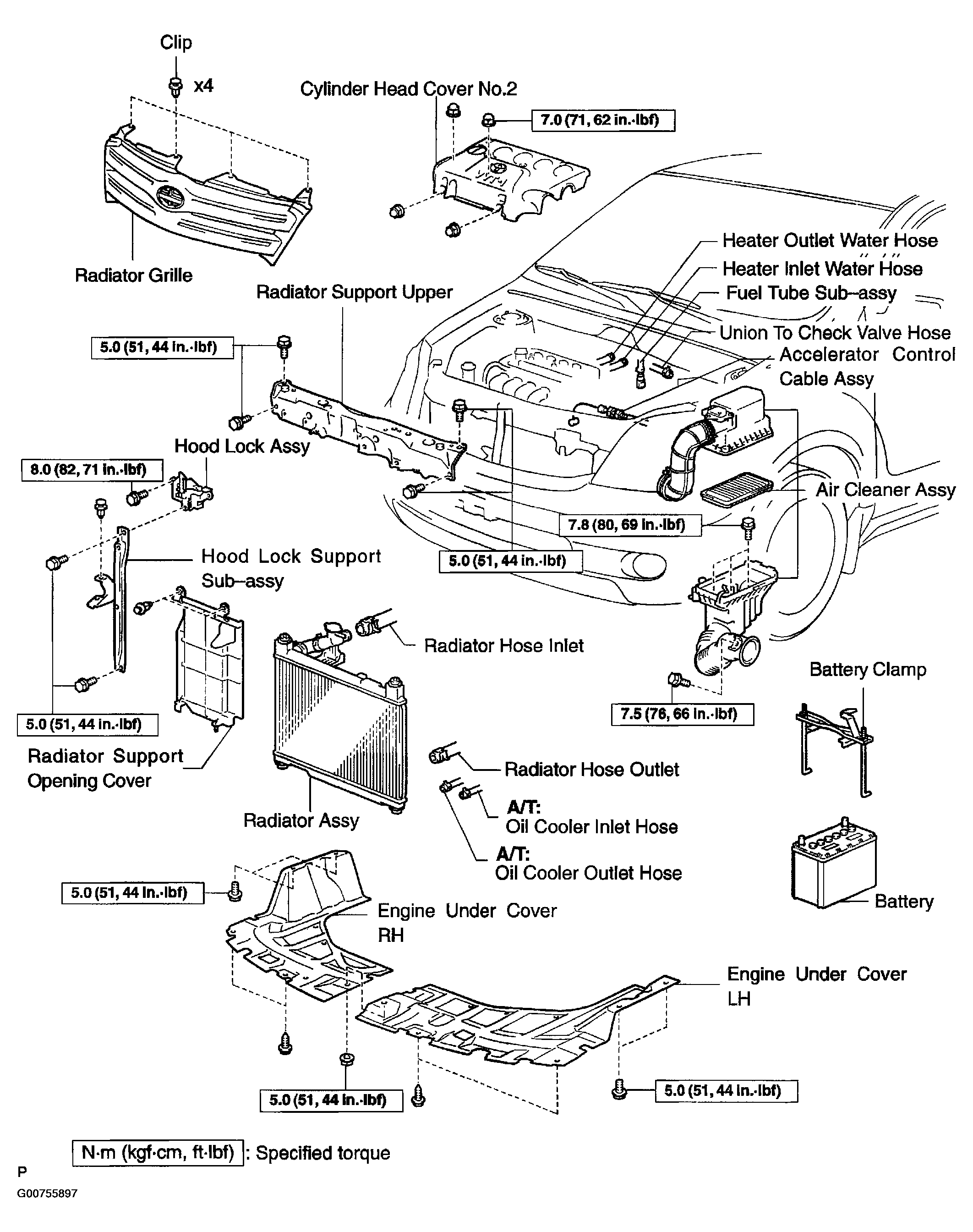

Fig 6: Locating Component Of Engine Assembly (6 Of 9)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

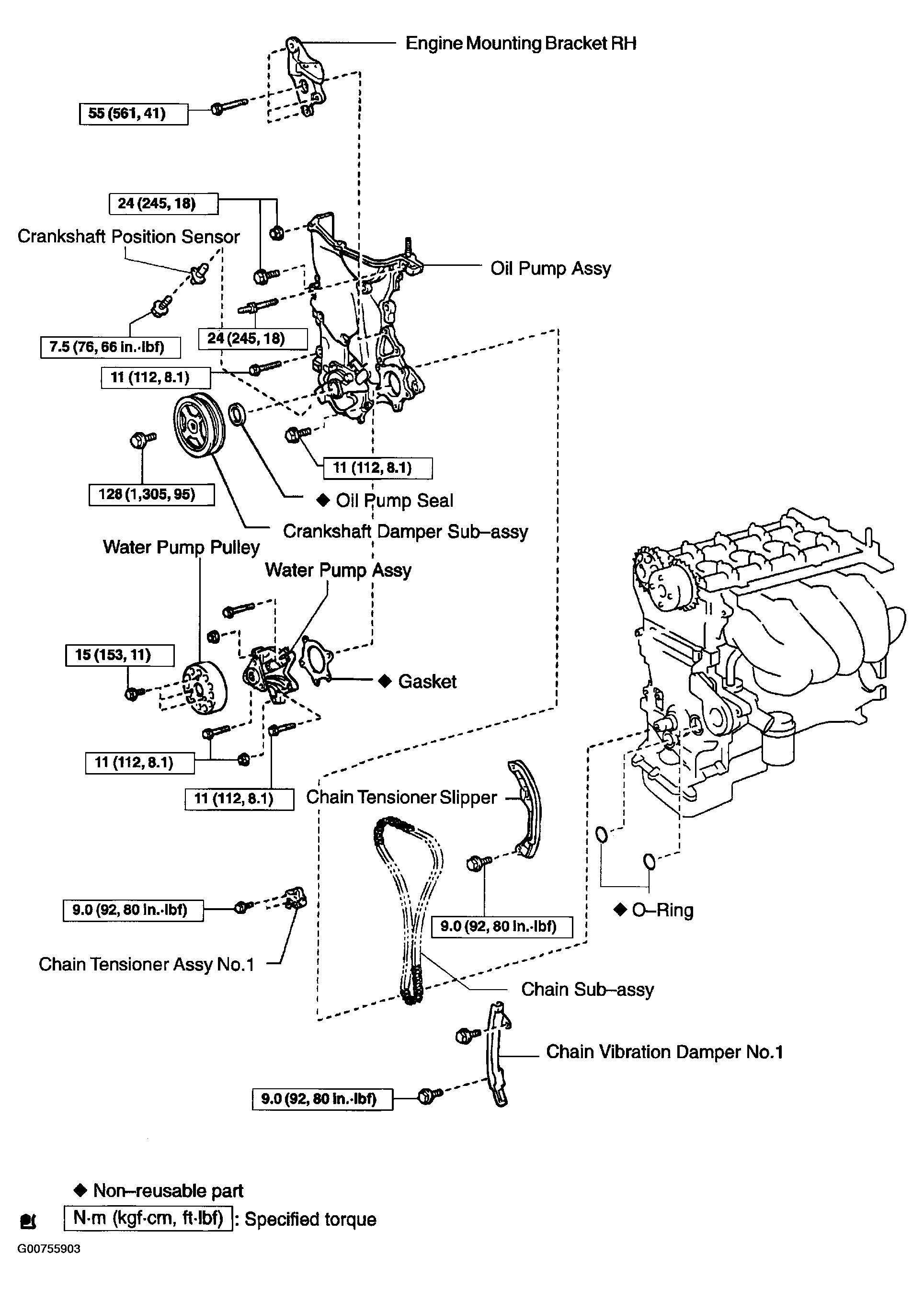

Fig 7: Locating Component Of Engine Assembly (7 Of 9)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

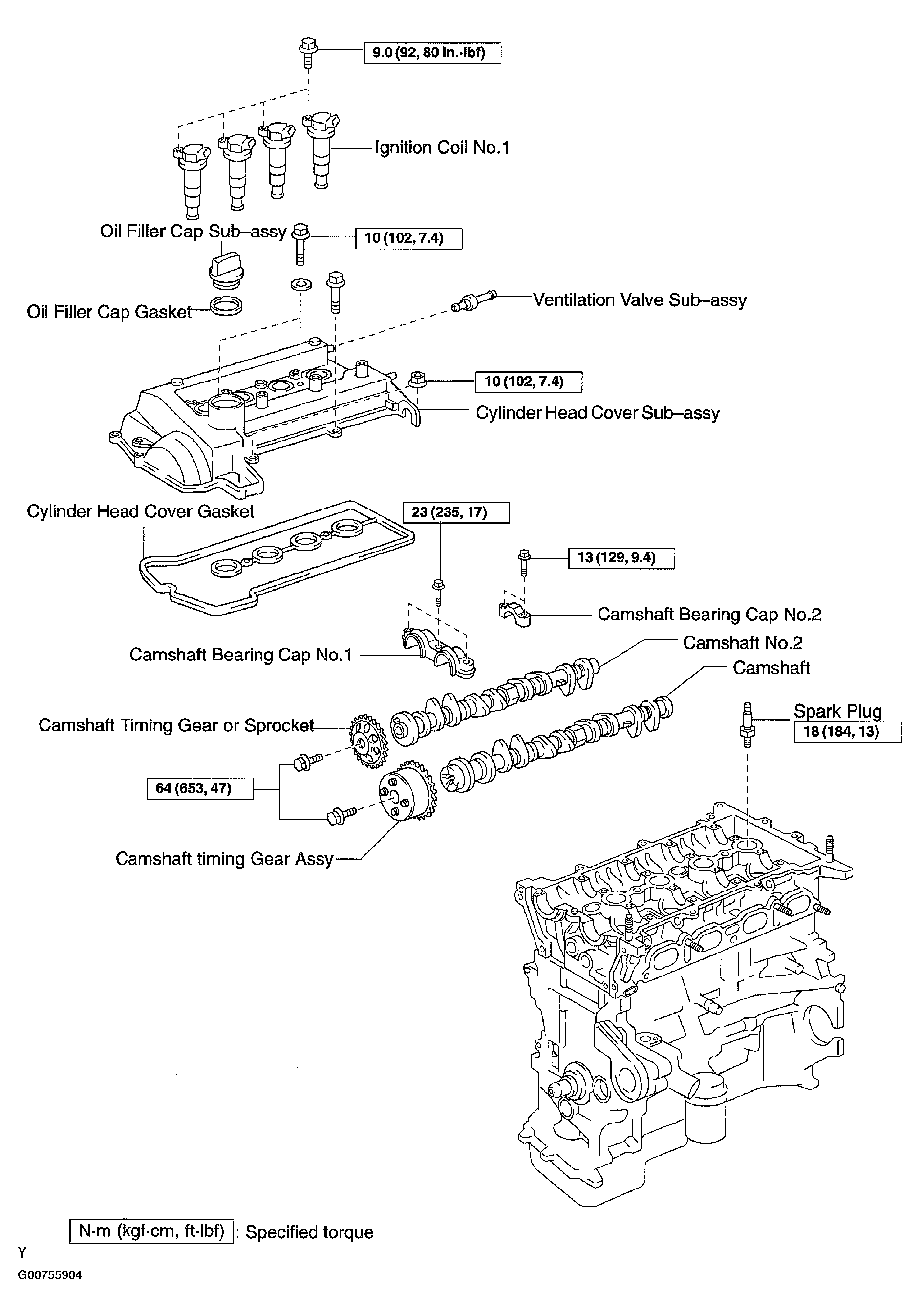

Fig 8: Locating Component Of Engine Assembly (8 Of 9)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 9: Locating Component Of Engine Assembly (9 Of 9)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
