Home >> Scion >> 2004 >> xA Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle - Diagnostics >> Location

Automatic Transaxle - Diagnostics: Location

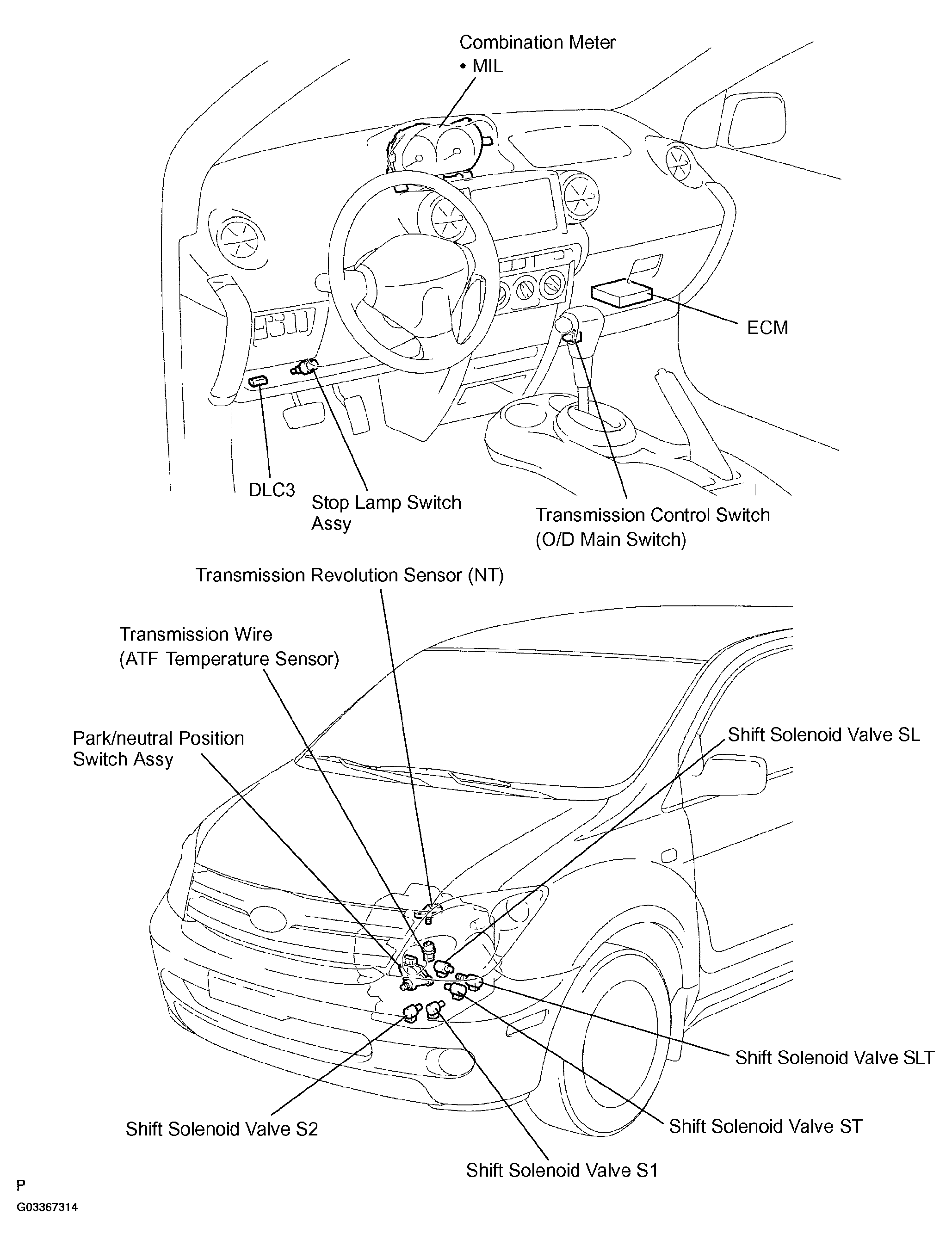

Fig 1: Identifying Electronic Controlled Automatic Transaxle Components

G03367314

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
