Inner Rear View Mirror: Replacement

HINT:

The installation procedures are the removal procedures in reverse order.

1. REMOVE INNER REAR VIEW MIRROR ASSY
   1. Using a screwdriver, disengage the claws and mirror cover.

      HINT:

      Tape the screwdriver tip before use.

   2. Remove the 2 screws and mirror.

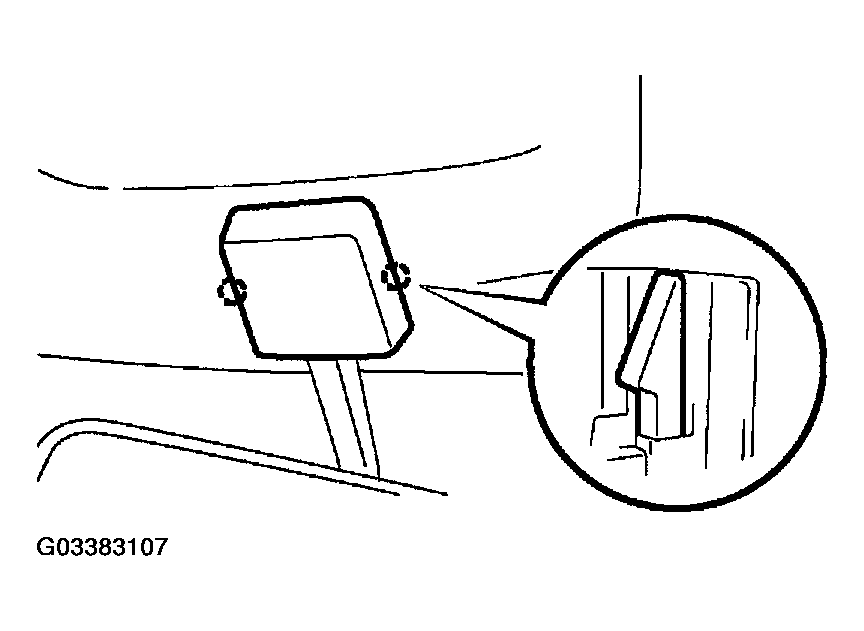

      Fig 1: Disengaging Claws & Mirror Cover

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
