Combination Meter: Inspection

  1. LIGHT CONTROL RHEOSTAT
    1. Measure the resistance according to the value(s) in the table below.

      Standard:

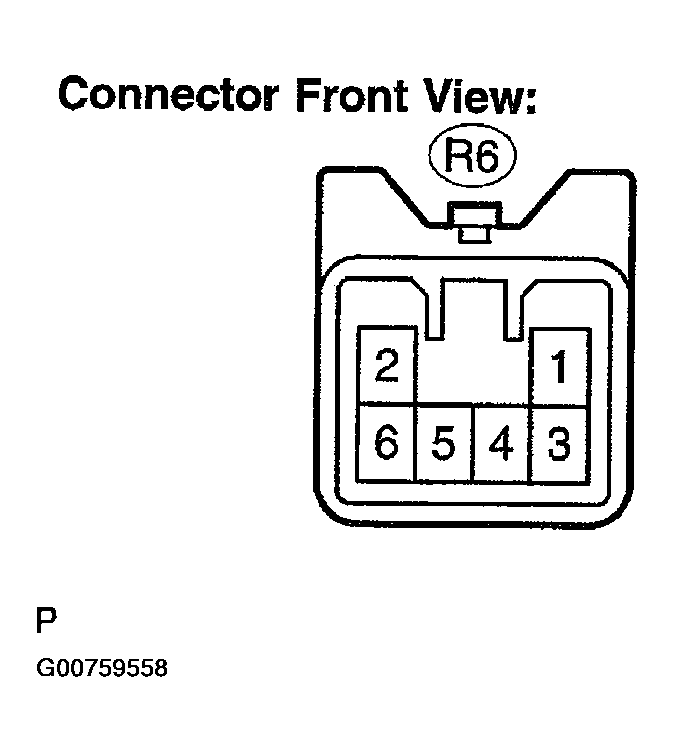

      Fig 1: Identifying Light Control Rheostat Connector Terminals
      G00759558Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

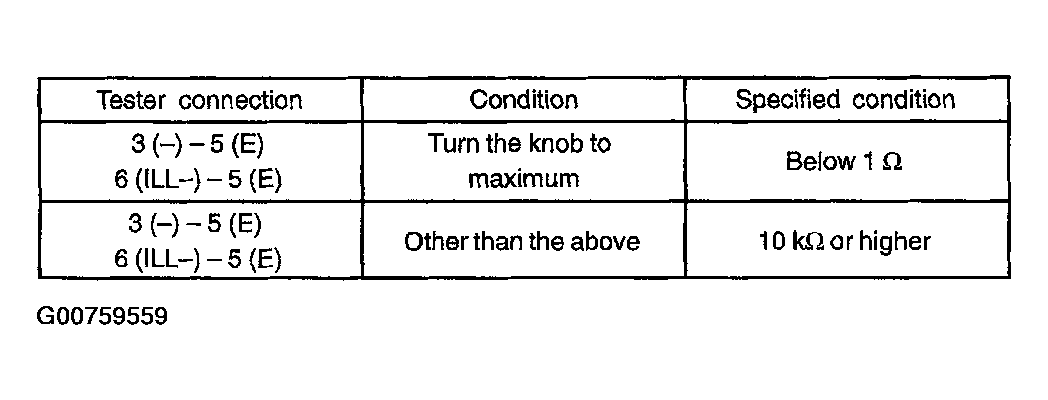

    Fig 2: Light Control Rheostat Connector Terminals Specified Condition Table
    G00759559Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
