Engine Exhaust Assembly: Components

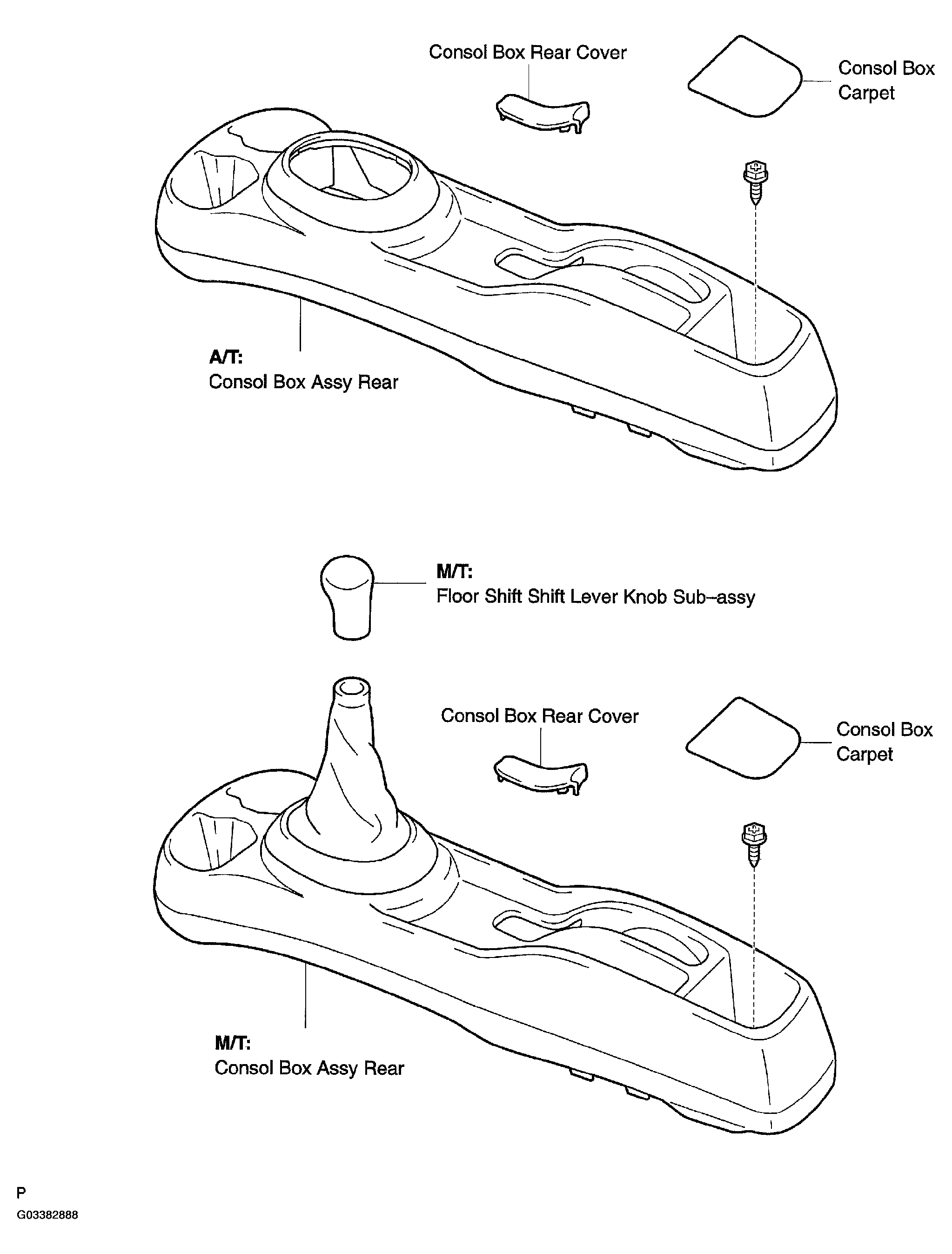

Fig 1: Identifying Console Box Assy Rear Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

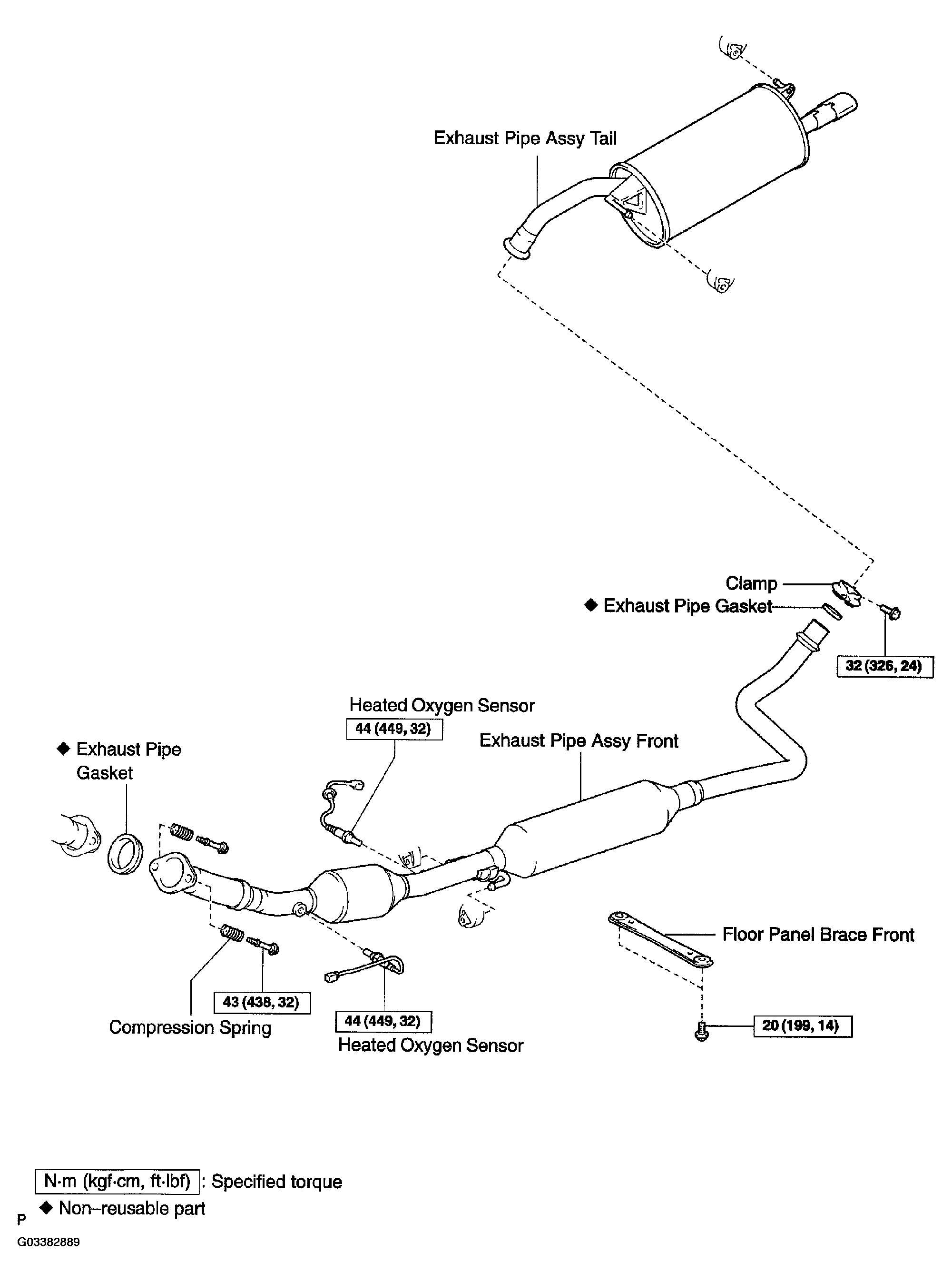

Fig 2: Identifying Exhaust Pipe Assy Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
