Partial Engine ASSY: Components

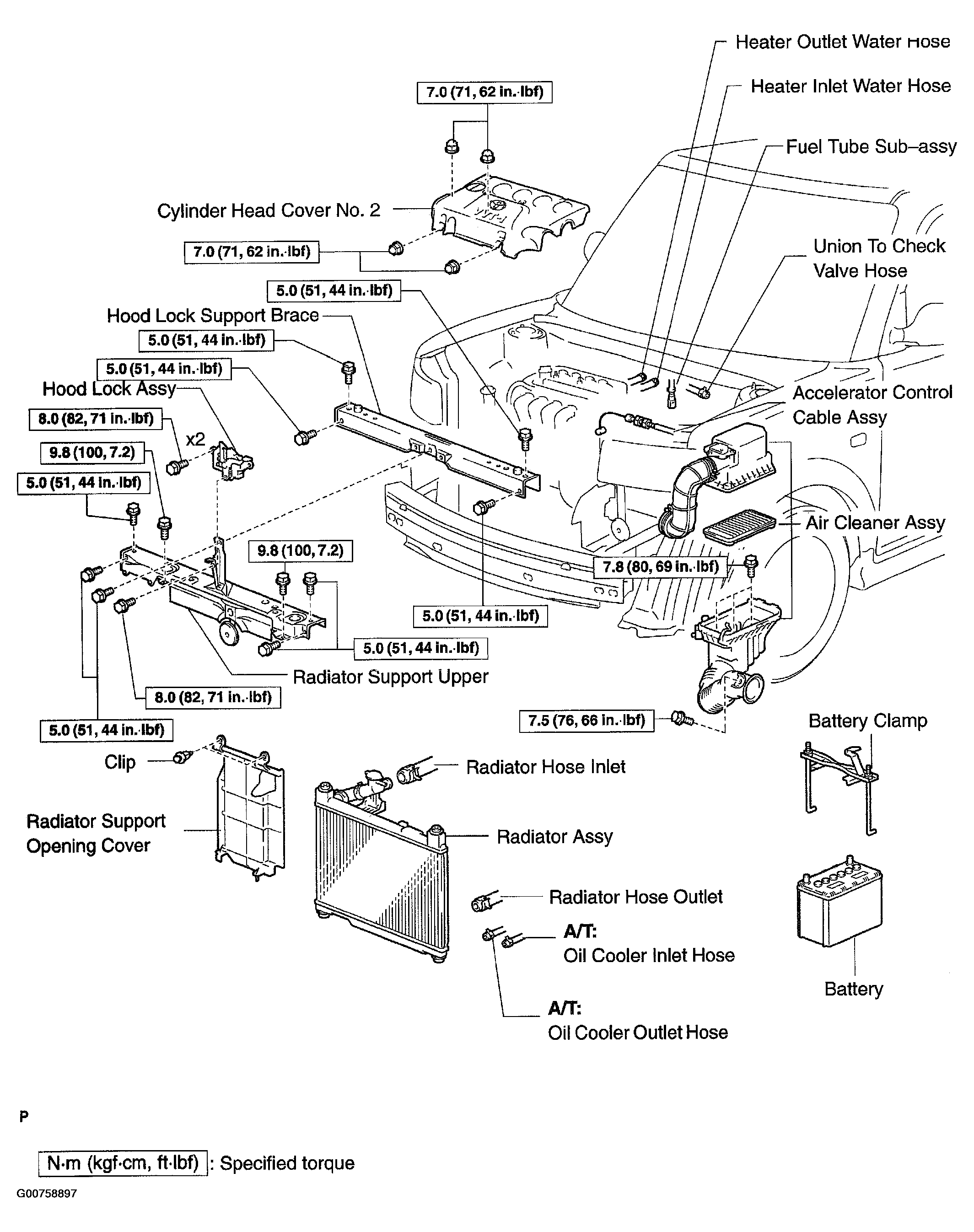

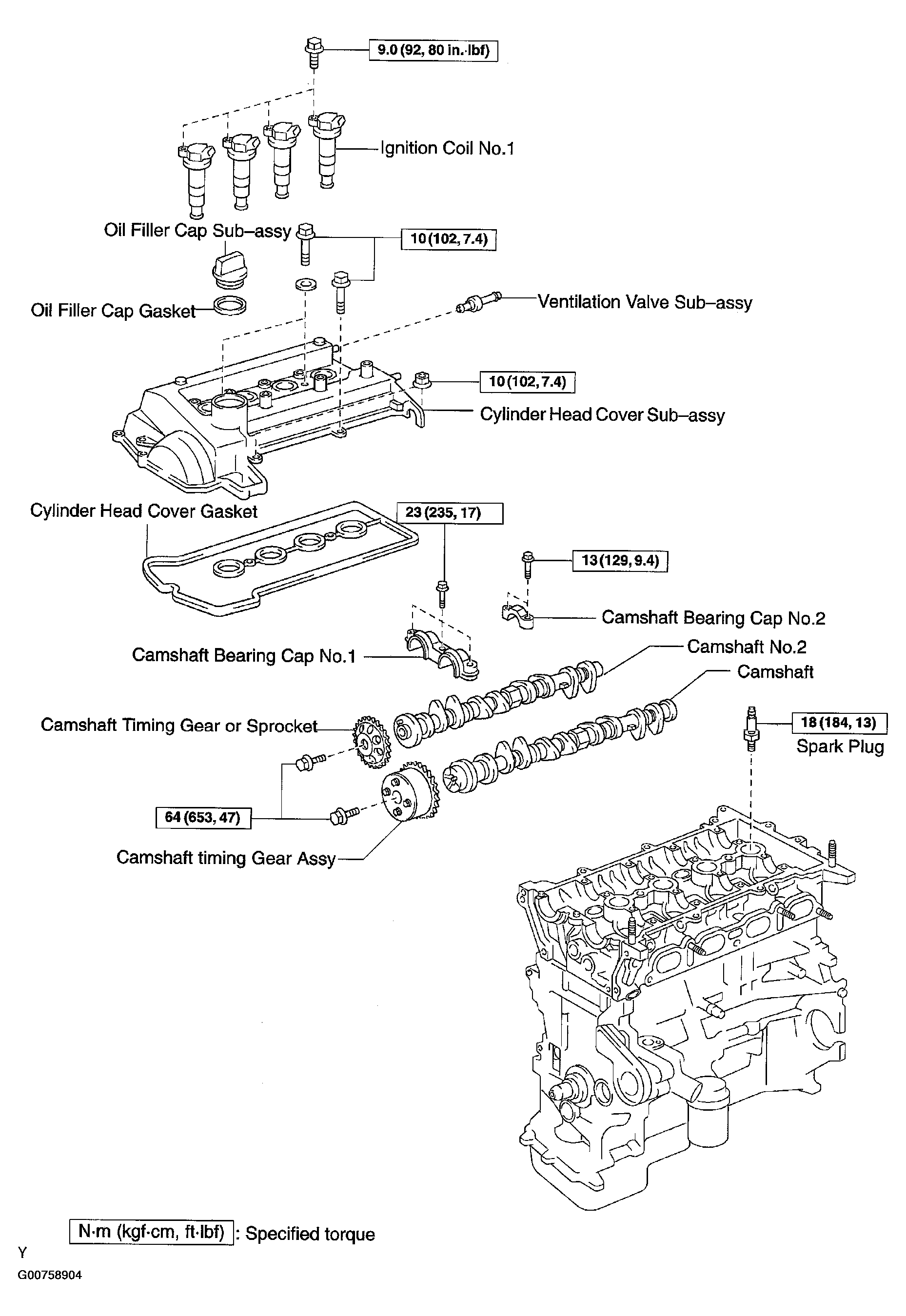

Fig 1: Identifying Partial Engine Assy Components (1 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

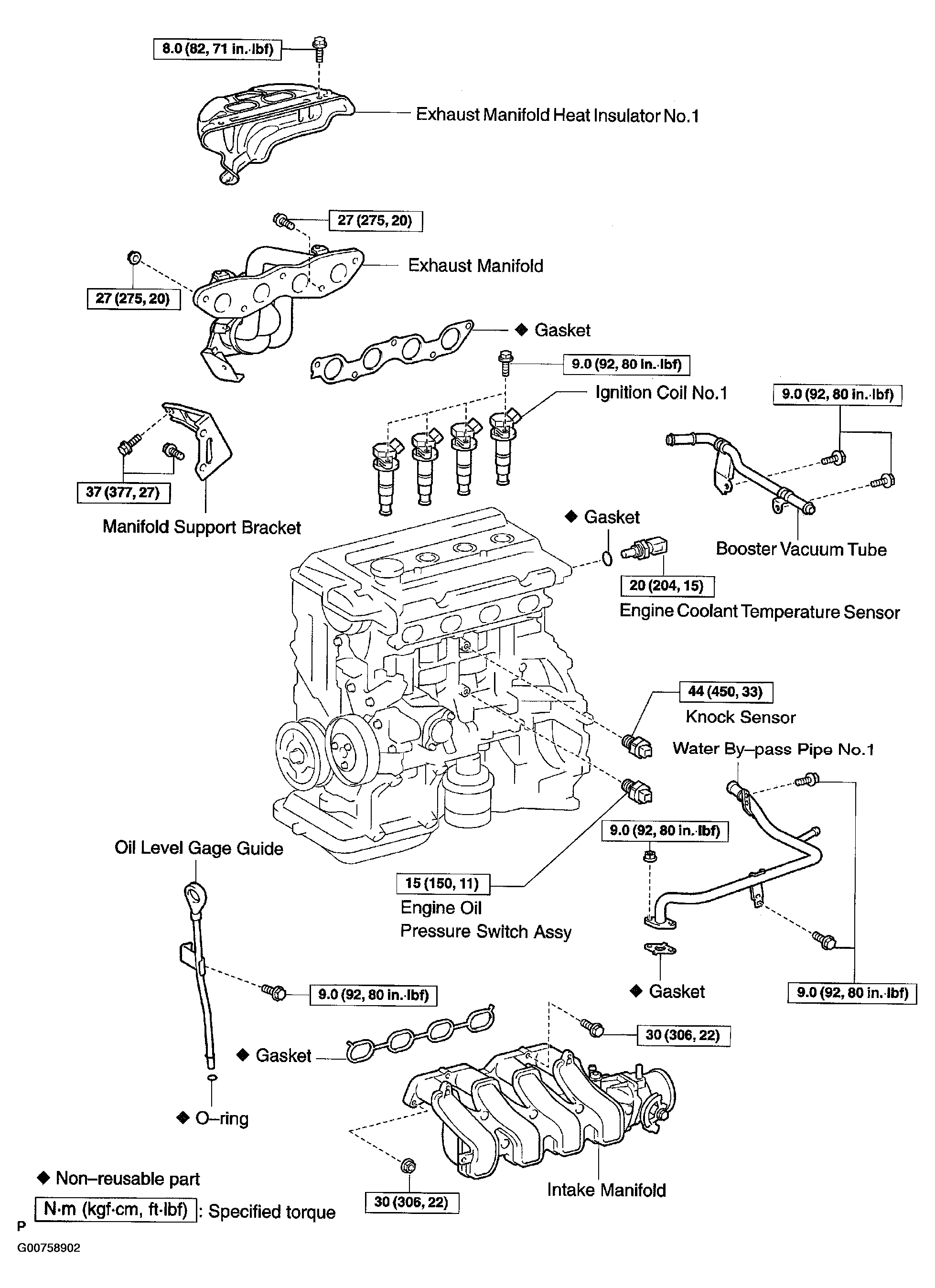

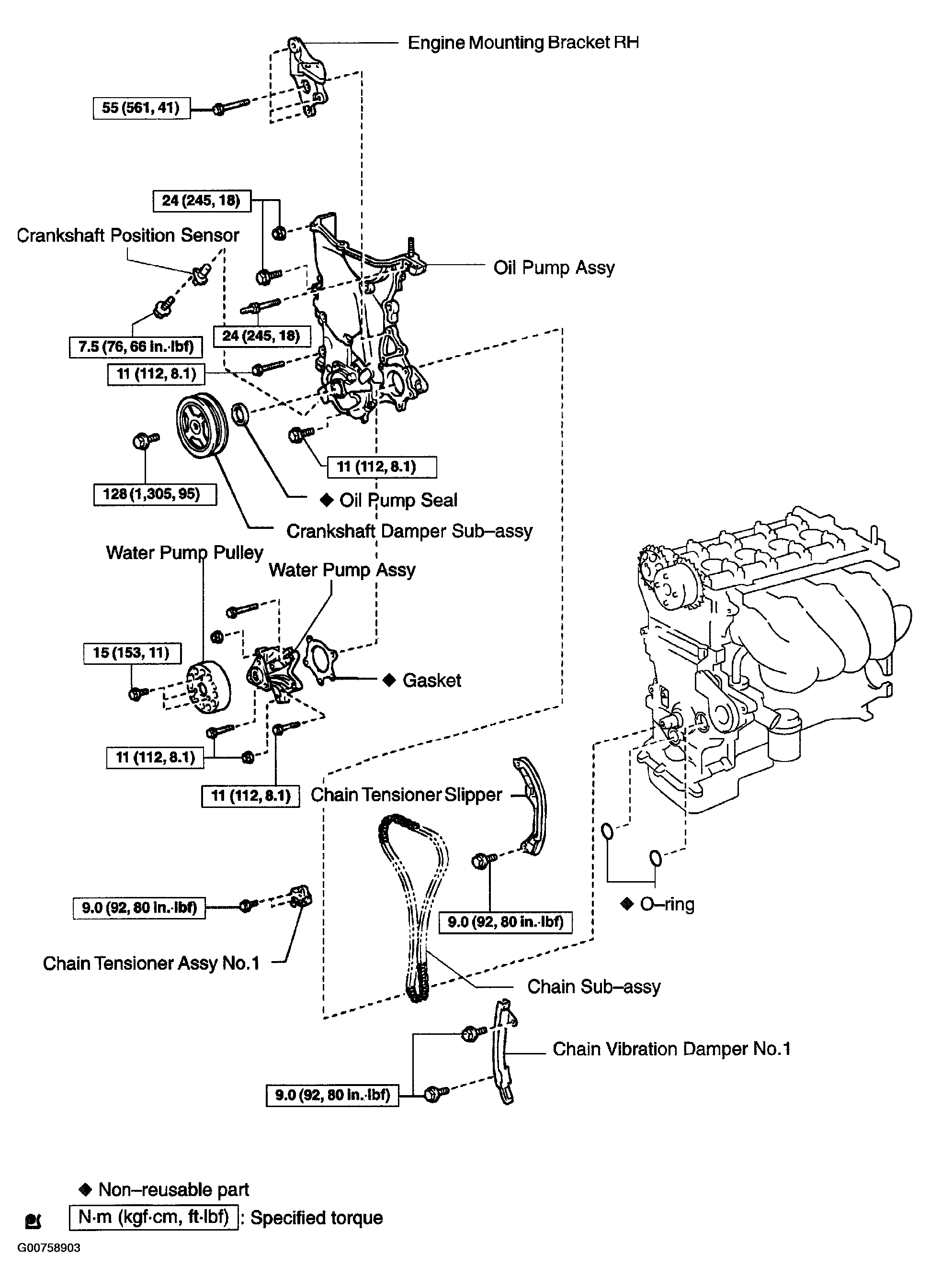

Fig 2: Identifying Partial Engine Assy Components (2 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

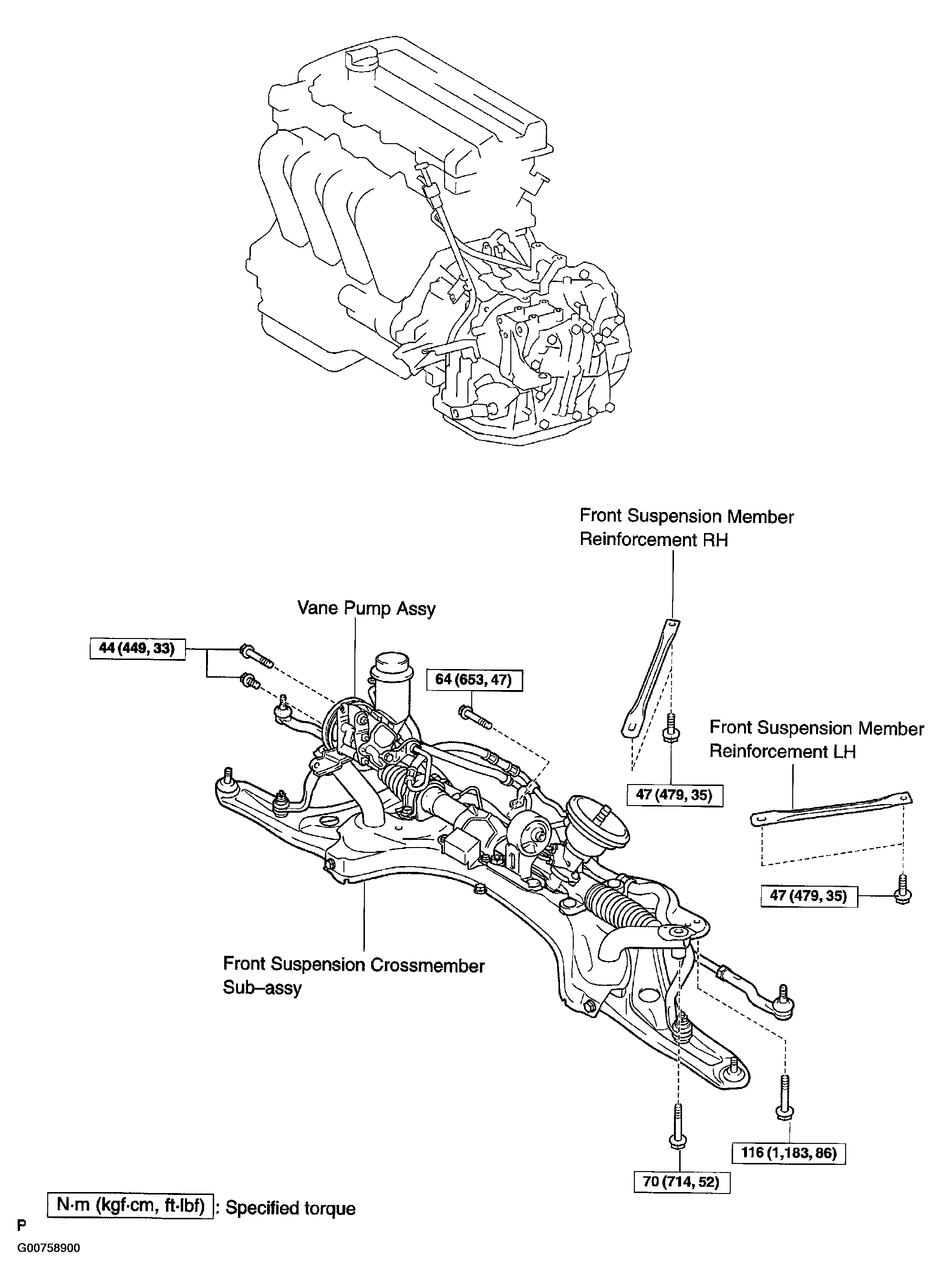

Fig 3: Identifying Partial Engine Assy Components (3 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

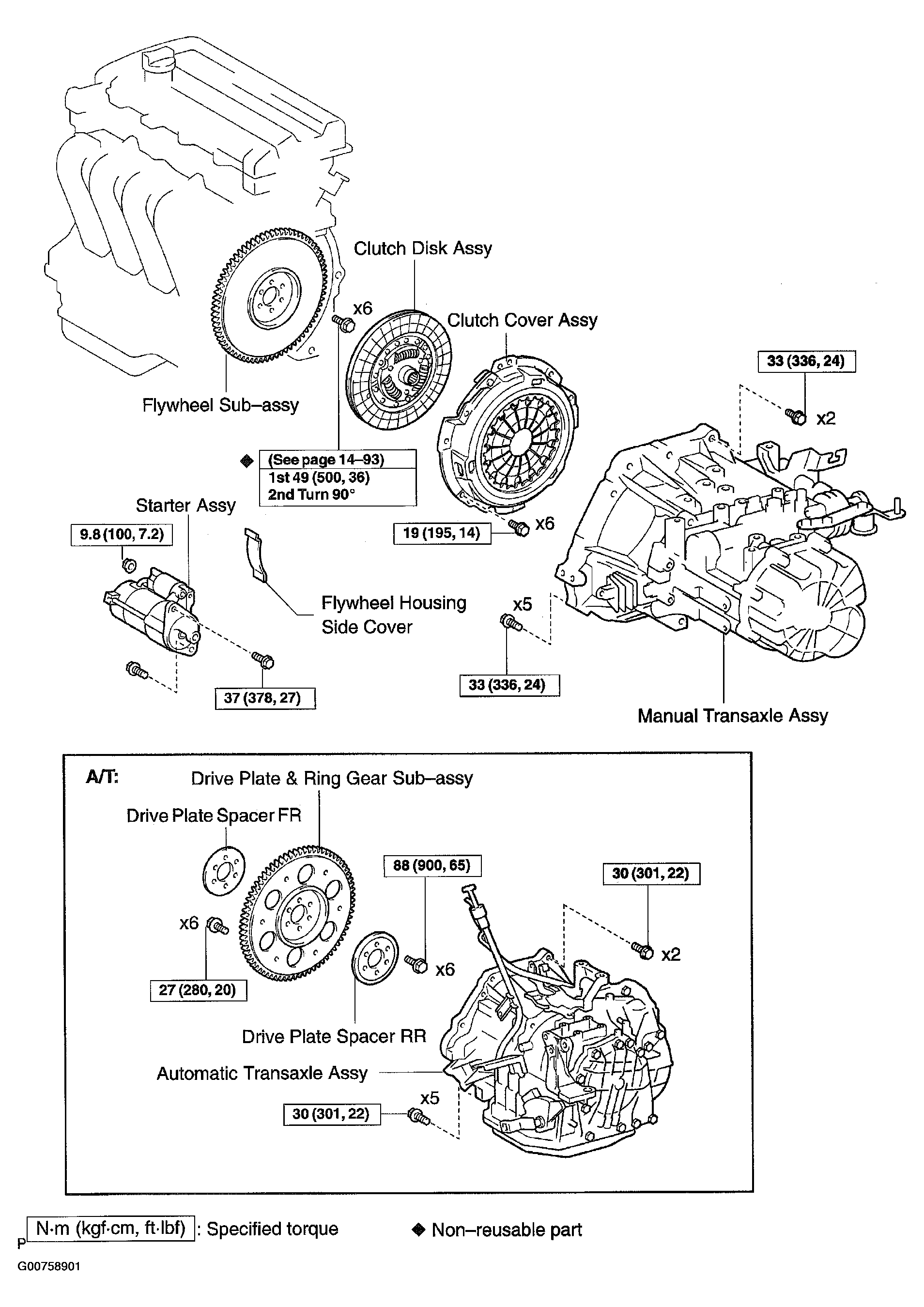

Fig 4: Identifying Partial Engine Assy Components (4 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

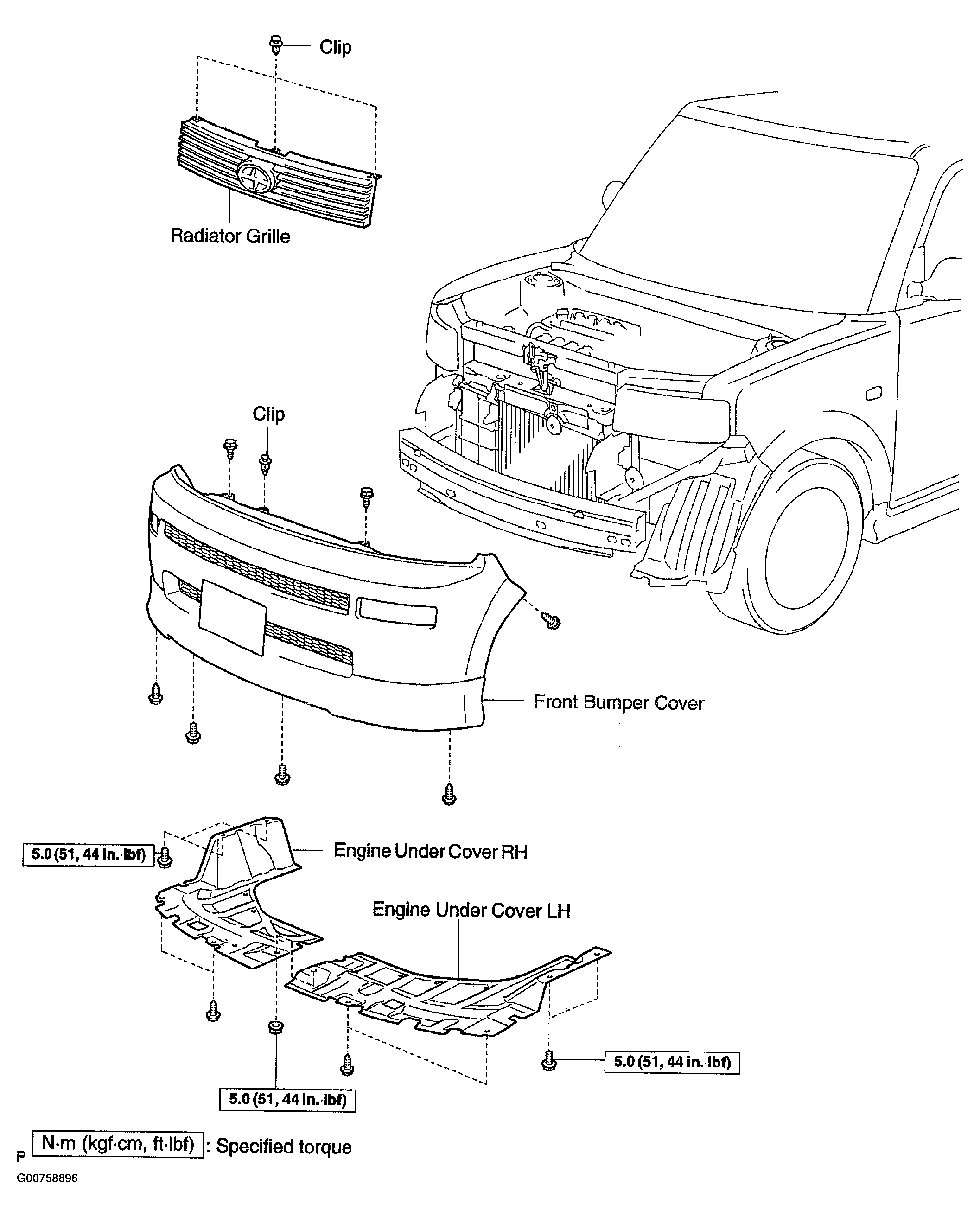

Fig 5: Identifying Partial Engine Assy Components (5 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

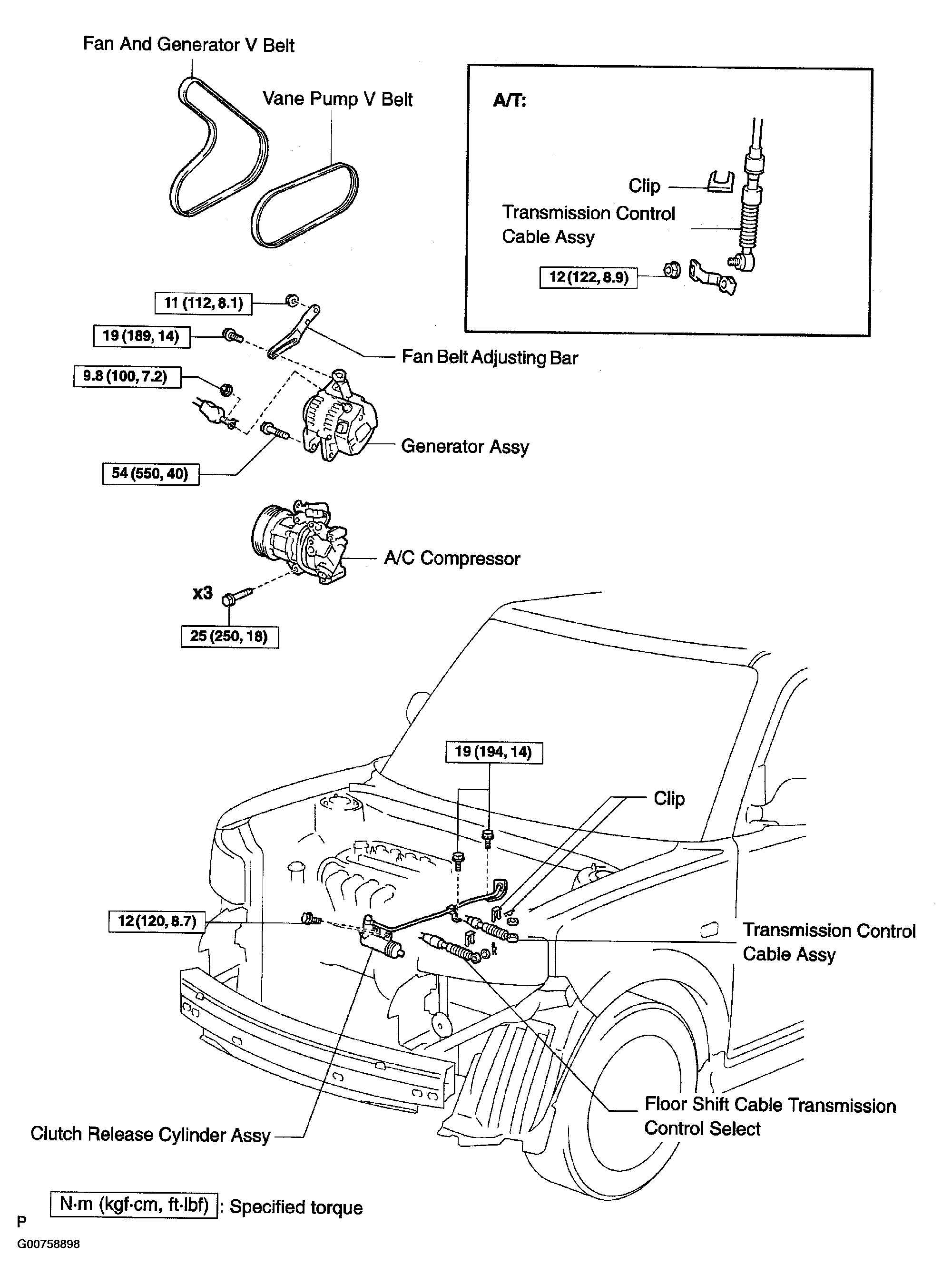

Fig 6: Identifying Partial Engine Assy Components (6 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

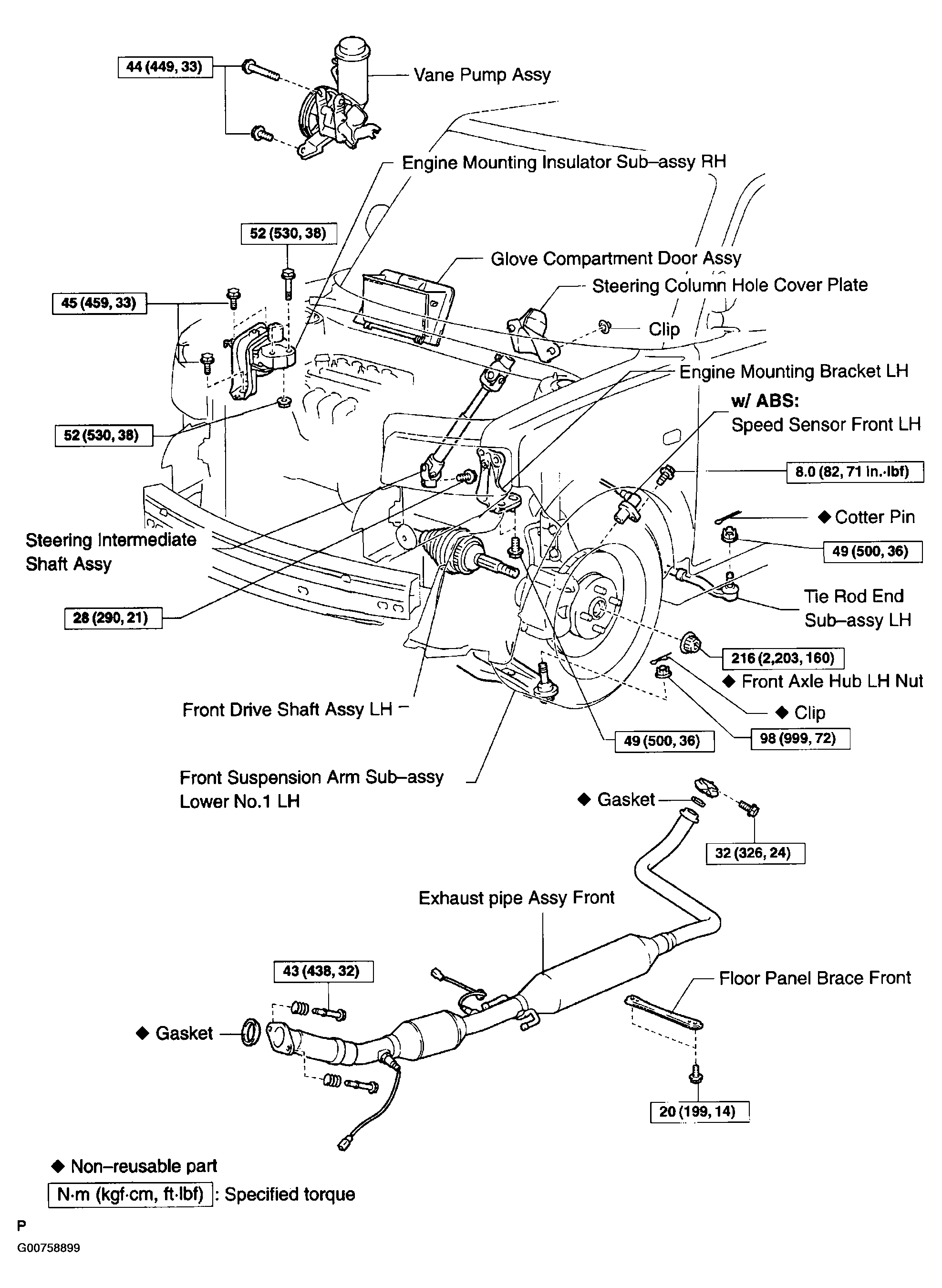

Fig 7: Identifying Partial Engine Assy Components (7 Of 10)

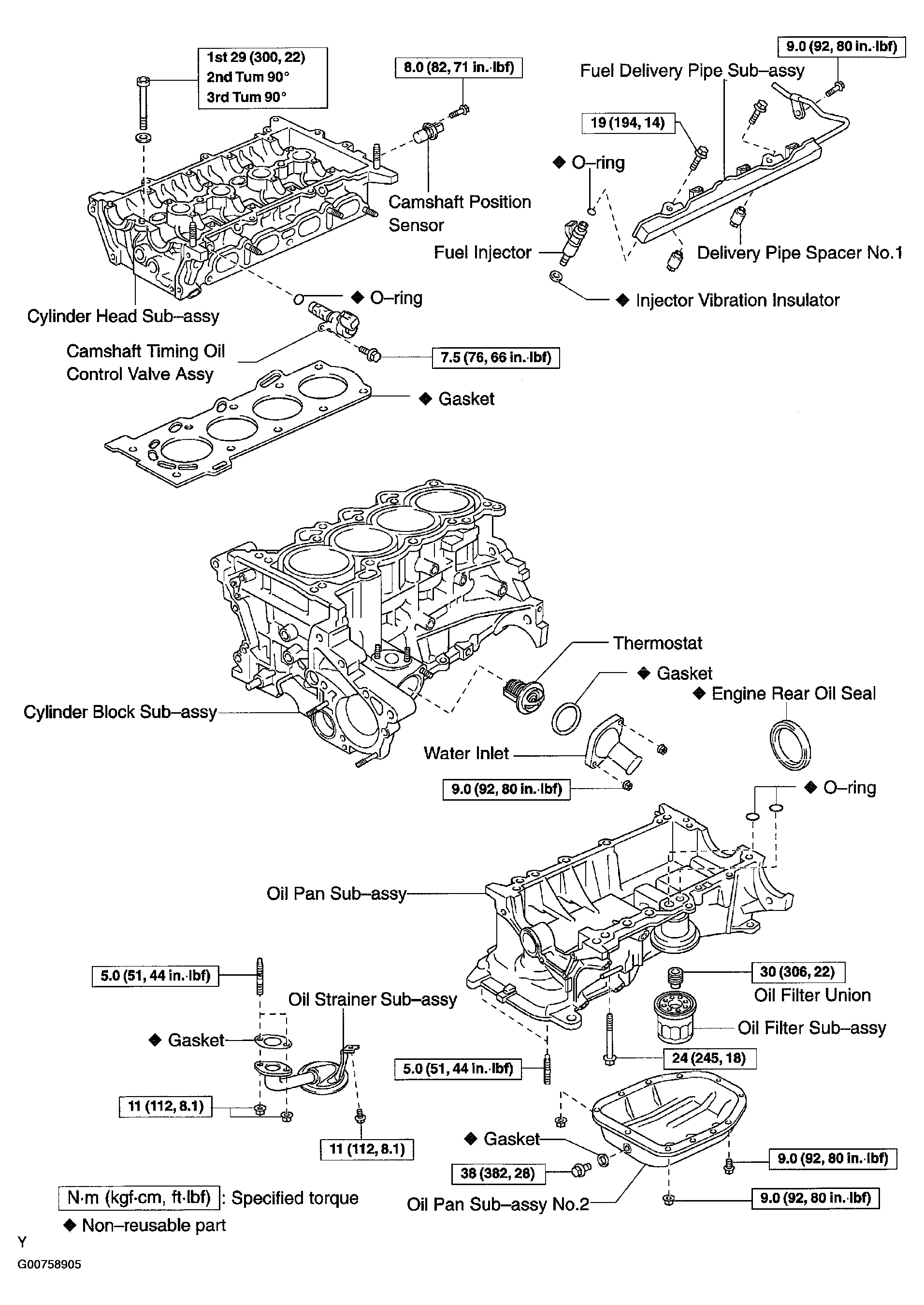

Fig 8: Identifying Partial Engine Assy Components (8 Of 10)

Fig 9: Identifying Partial Engine Assy Components (9 Of 10)

Fig 10: Identifying Partial Engine Assy Components (10 Of 10)
