Instrument Panel/Meter: Components

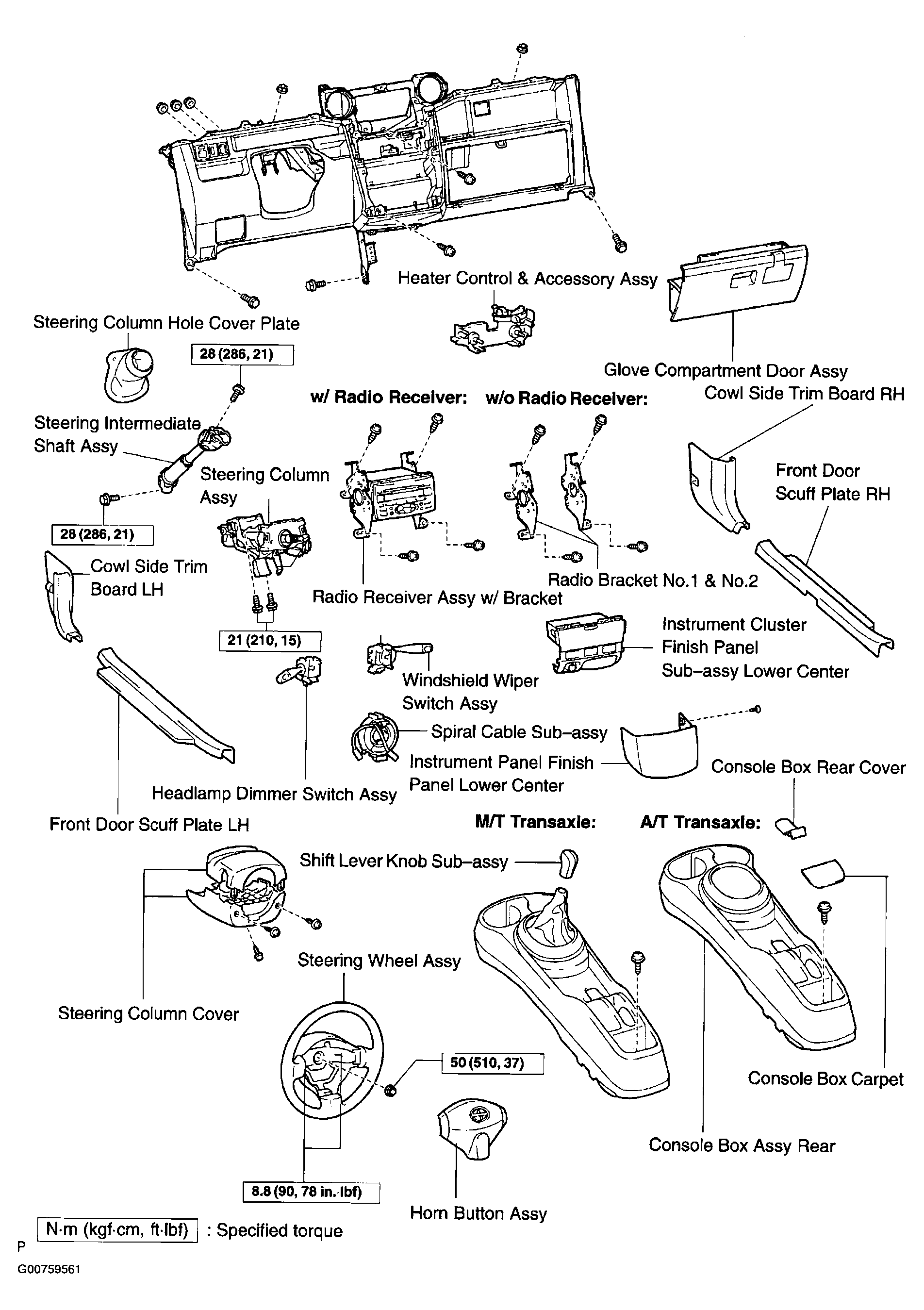

Fig 1: Removing/Installing Instrument Panel/Meter (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

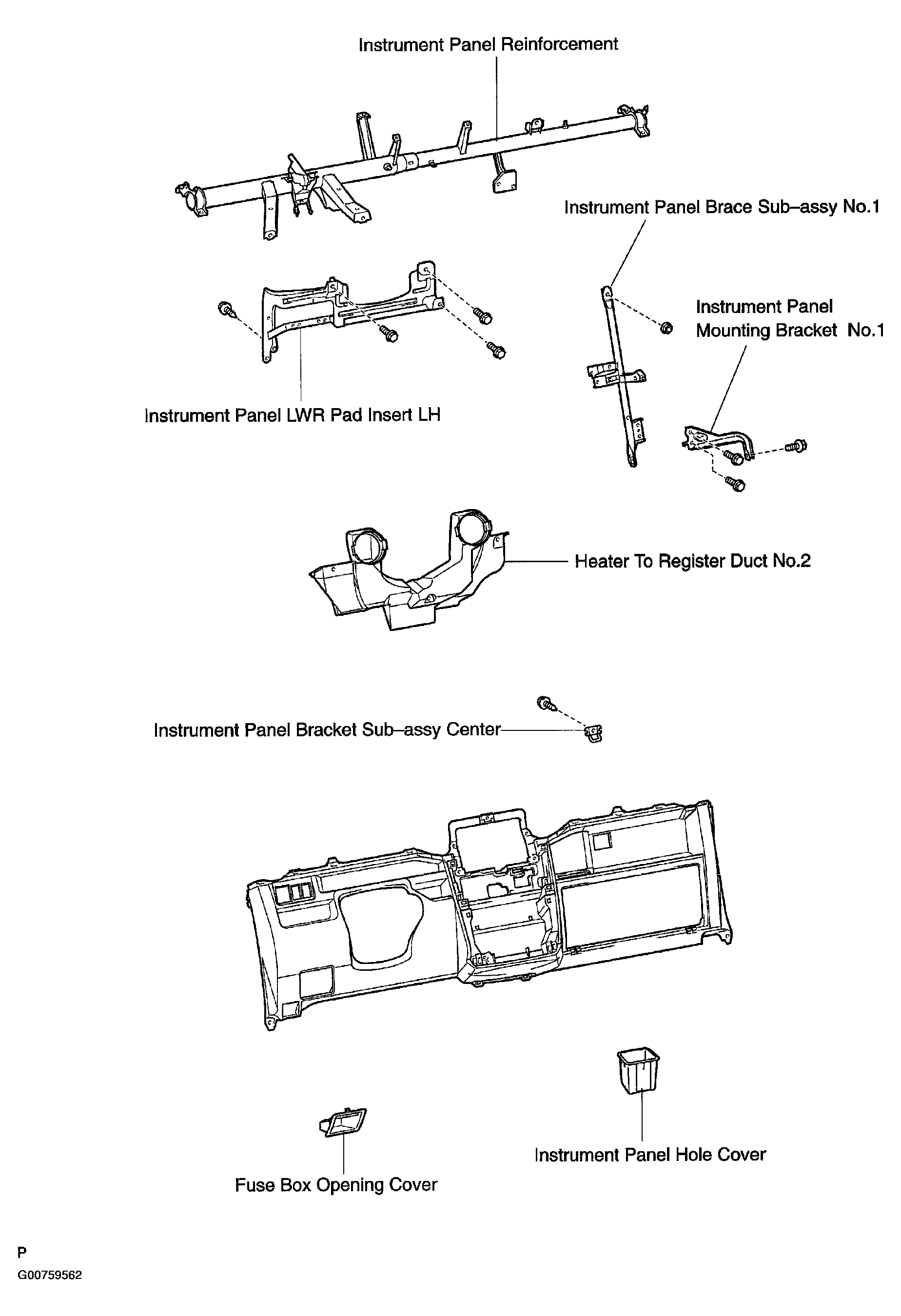

Fig 2: Removing/Installing Instrument Panel/Meter (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

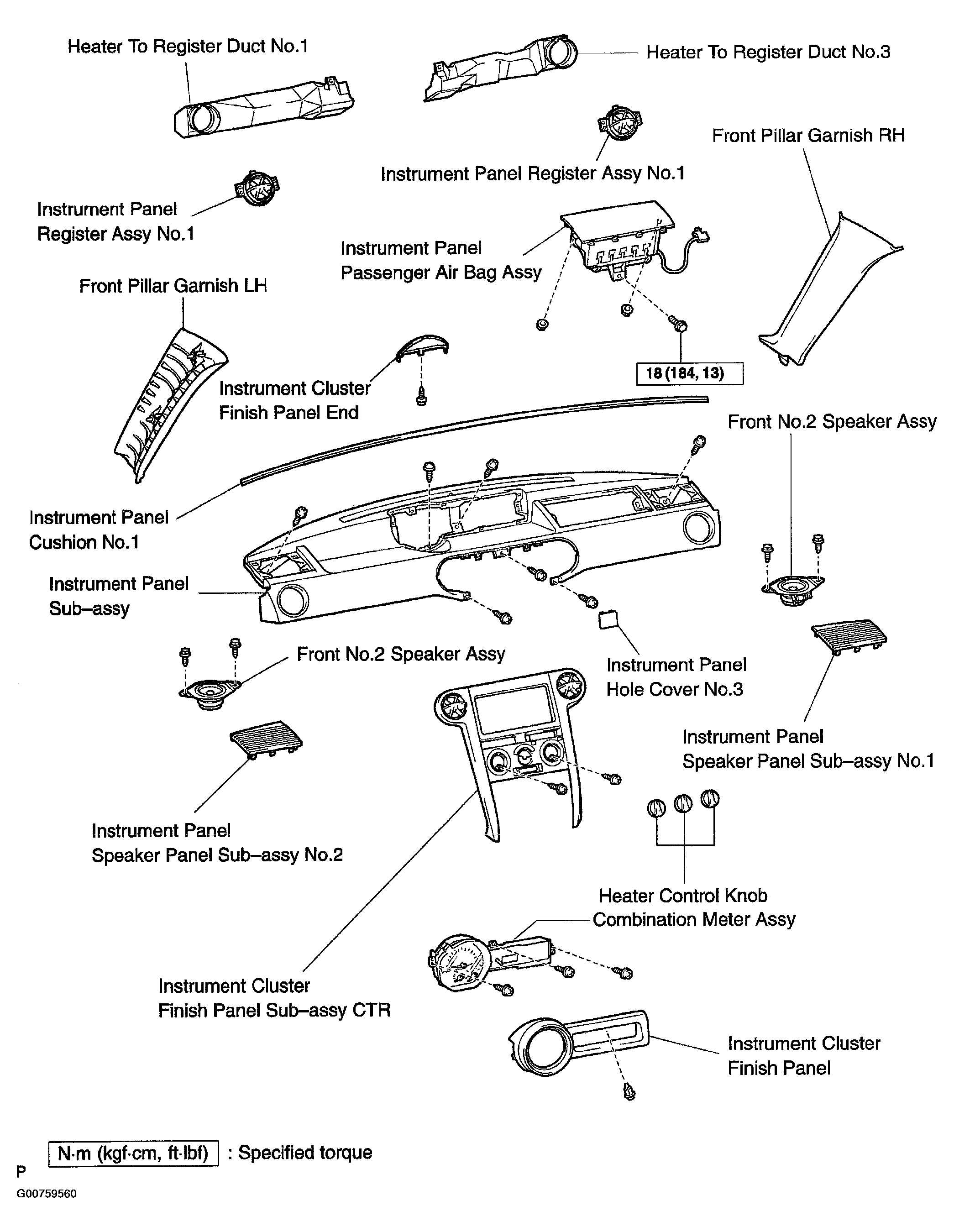

Fig 3: Removing/Installing Instrument Panel/Meter (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

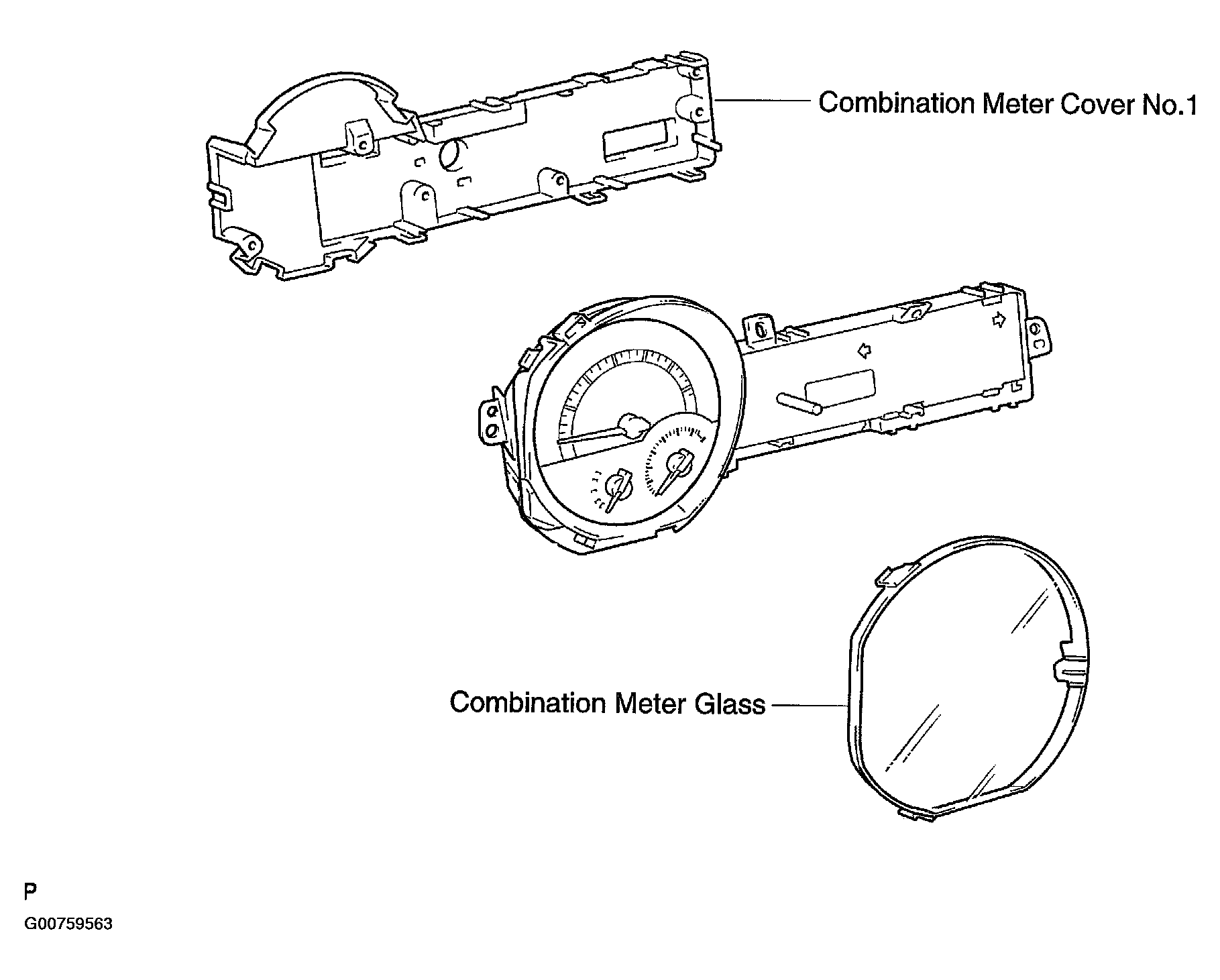

Fig 4: Removing/Installing Instrument Panel/Meter (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
