Rear Wheel Alignment: Inspection

INSPECT TIRE
MEASURE VEHICLE HEIGHT (See FRONT WHEEL ALIGNMENT )
NOTE: Before inspecting wheel alignment, adjust vehicle height to the specified value.
INSPECT TOE-IN
Toe-in:

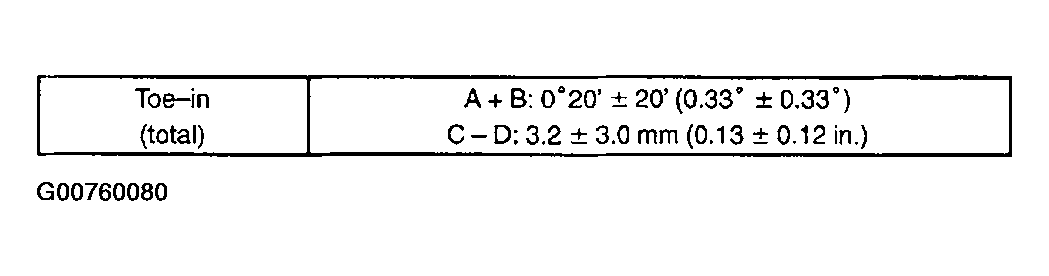

Fig 1: Toe-In Data
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the toe-in is not within the specified value, inspect and replace the suspension parts as necessary.

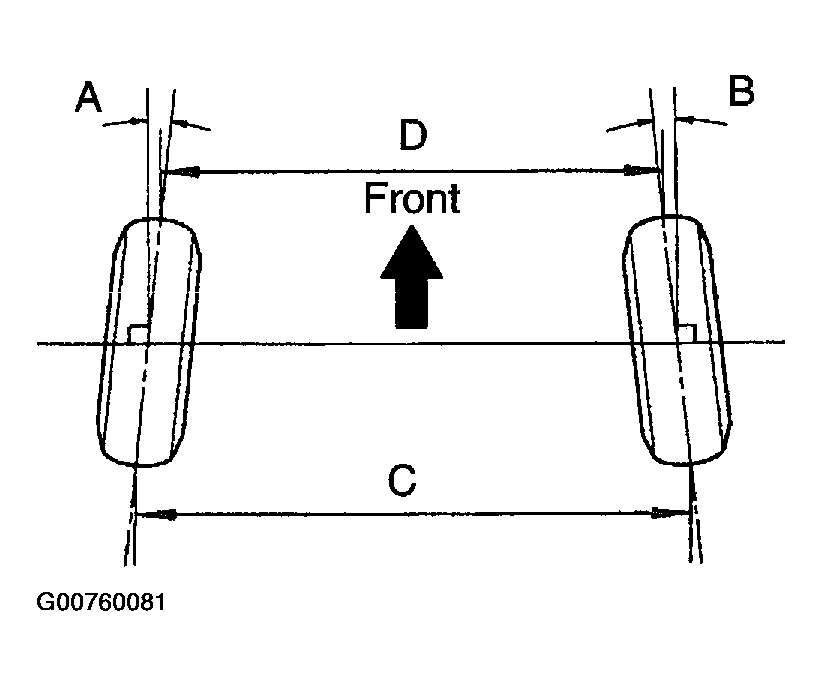

Fig 2: Inspecting Toe-In
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT CAMBER
1. Install the camber-caster-kingpin gage or position the vehicle on the wheel alignment tester.
2. Inspect the camber.
Camber:

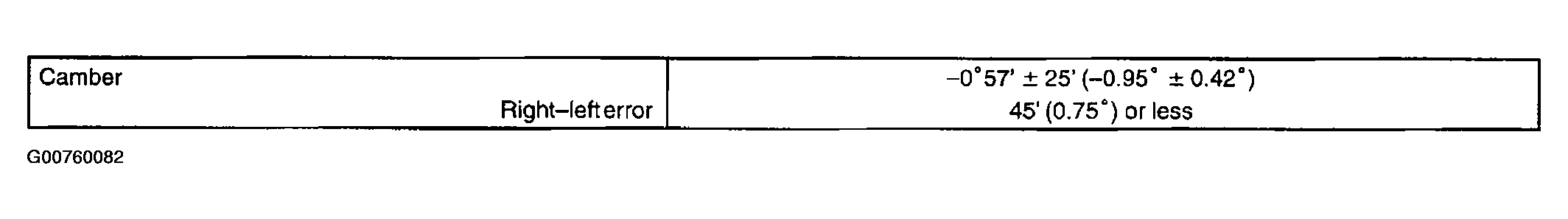

Fig 3: Camber Data
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the measured value is not within the specified value, inspect the suspension parts for damage and/or wear and replace them as necessary because the camber is not adjustable.
