DTC Check/Clear

CHECK DTC
1. Connect the hand-held tester to the DLC3.

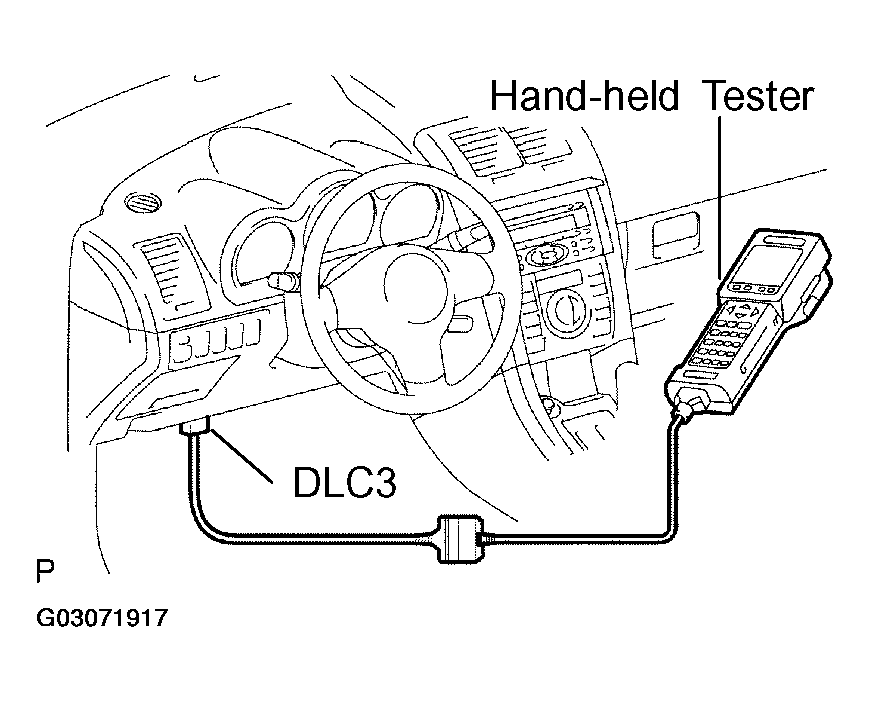

  Fig 1: Connecting Hand-Held Tester To DLC3
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Turn the ignition switch ON.
3. Read the DTCs by following the directions on the tester's screen.
HINT:

Refer to the hand-held tester operator's manual for further details.
CLEAR DTC
1. Connect the hand-held tester to the DLC3.
2. Turn the ignition switch ON.
3. Erase the DTCs by following the directions on the tester's screen.
HINT:

Refer to the hand-held tester operator's manual for further details.
