System Description
All doors are locked and unlocked simultaneously by the door lock motor. The motors are operated by the integration relay (instrument panel J/B). The integration relay receives lock/unlock signals from the driver and passenger door key cylinders, and the driver and passenger side door control switches. The signals are sent when: 1) the driver/passenger door key cylinder is turned with the key, and 2) the driver/passenger side door control switch is pressed.

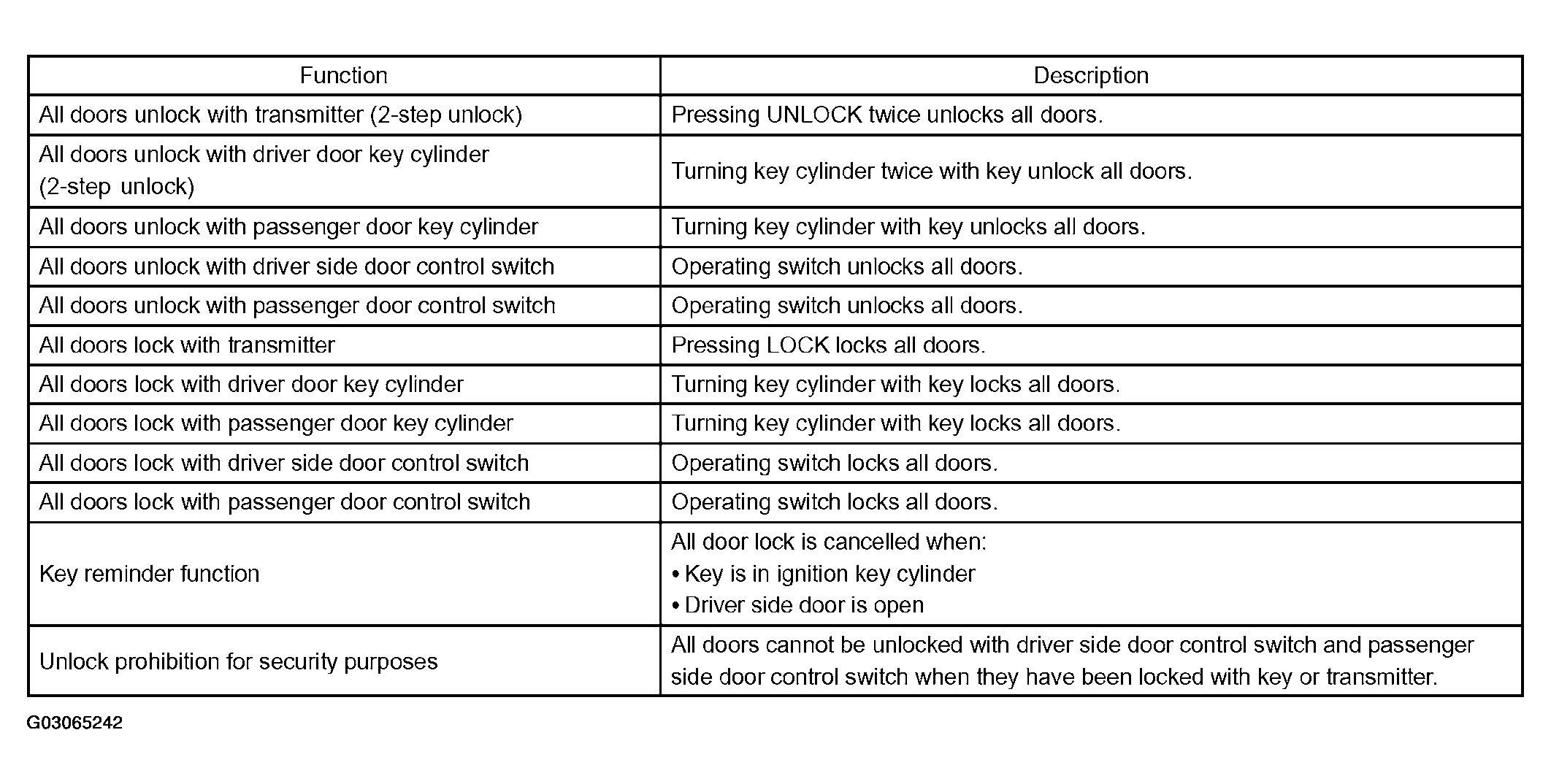

The power door lock system has the following functions:
