Home >> Scion >> 2005 >> tC Automatic >> Repair and Diagnosis >> Body & Frame >> Windows >> Windshield/WINDOWGLASS/Mirror >> Quarter Window ASSY LH >> Components

Quarter Window ASSY LH: Components

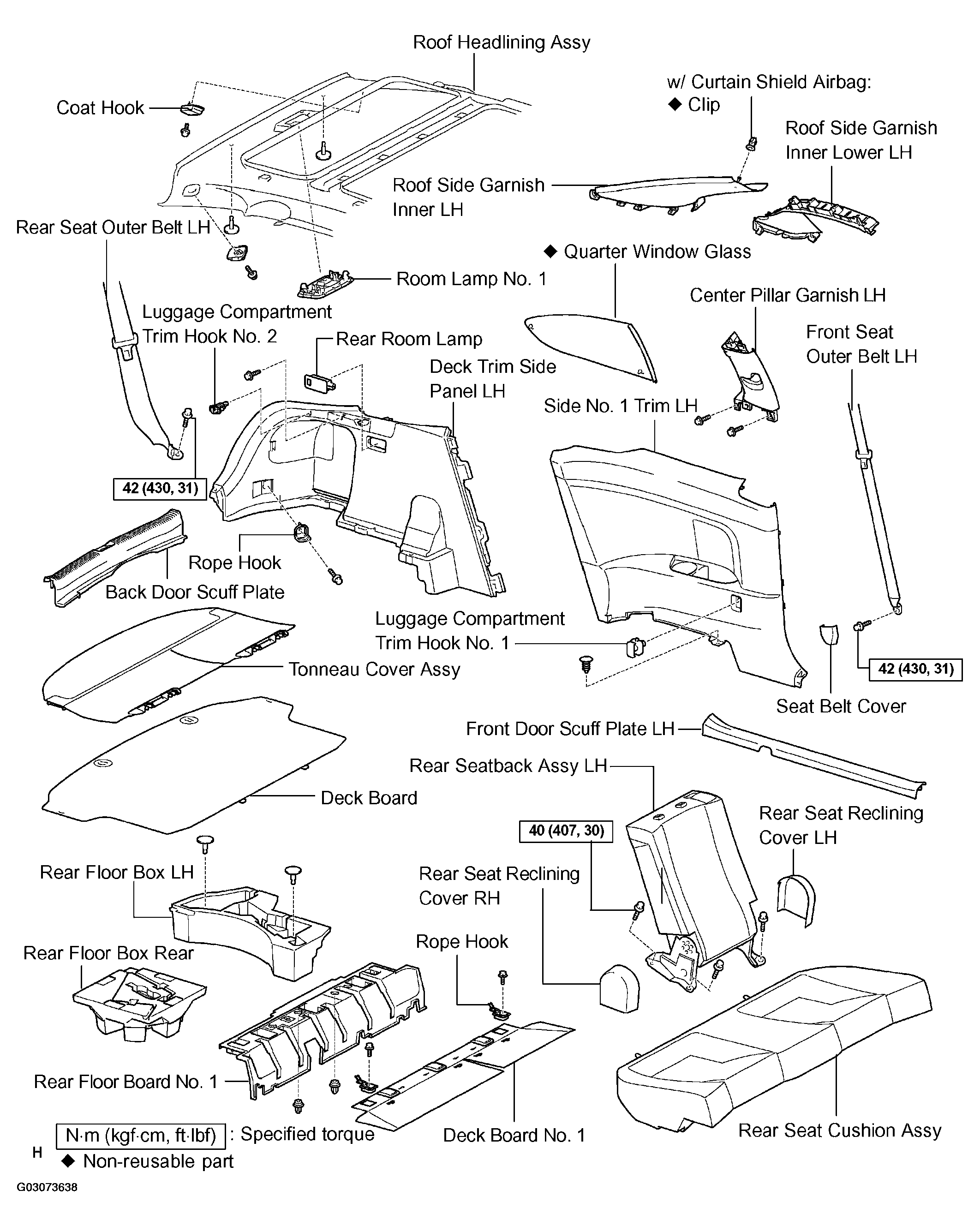

Fig 1: Identifying Quarter Window Assembly Component
G03073638Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
