Windshield Glass: Components

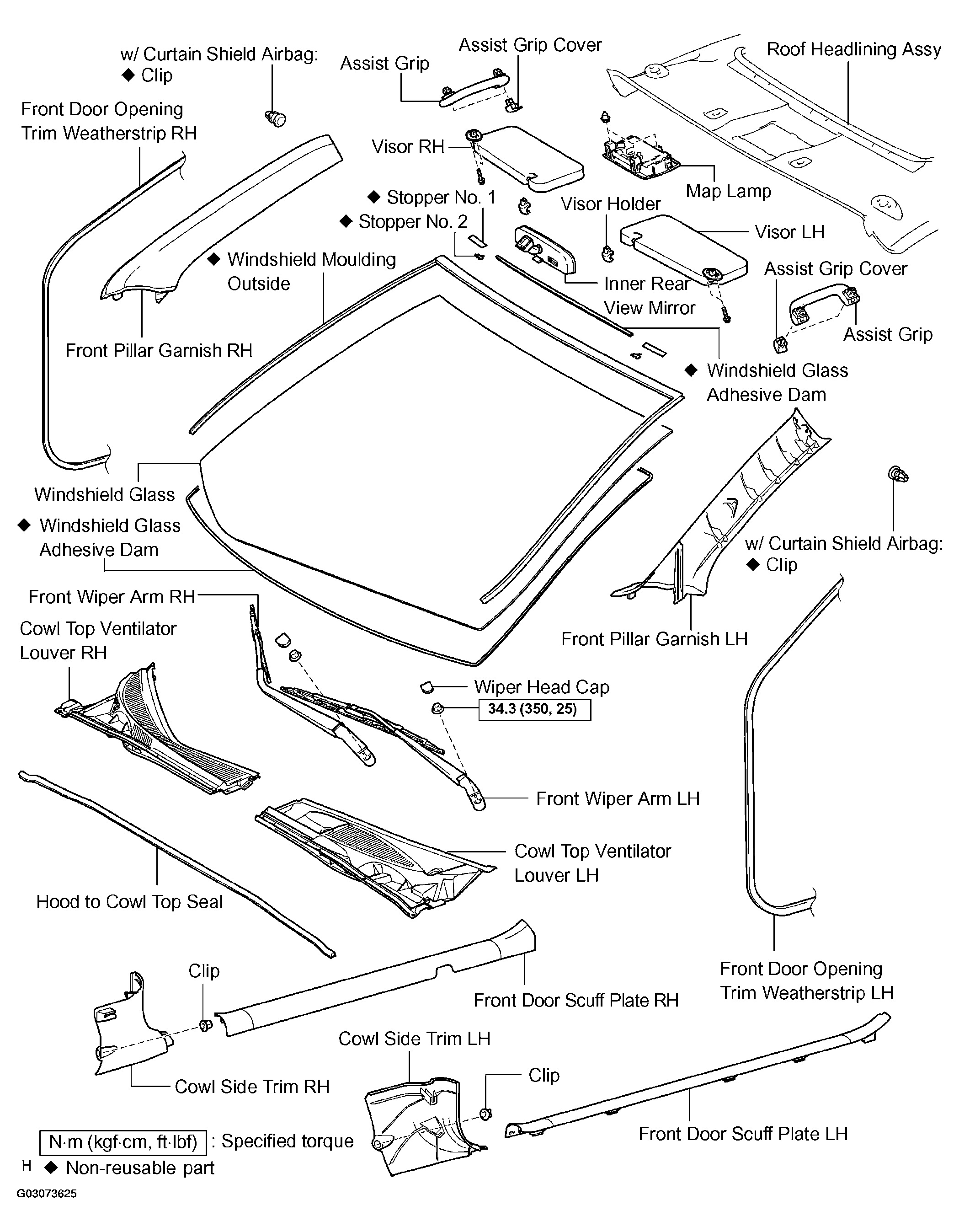

Fig 1: Identifying Windshield Glass Component

G03073625

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
