Diagnostic Trouble Code Chart
NOTE:
When removing parts, turn the ignition switch off.
HINT:
- Using SST 09843-18040, connect terminals TC and CG of the DLC3.
- If any abnormality is not found when inspecting parts, inspect the ECU and ground points for poor contact.
- If a trouble code is displayed during the DTC check, check the circuit listed for that code. For details of each code, go to the service category referred to under the "Refer To" for respective "DTC No." in the DTC chart.
- When 2 or more DTCs are recorded and the problem is not identified, perform circuit inspection of the other DTCs.

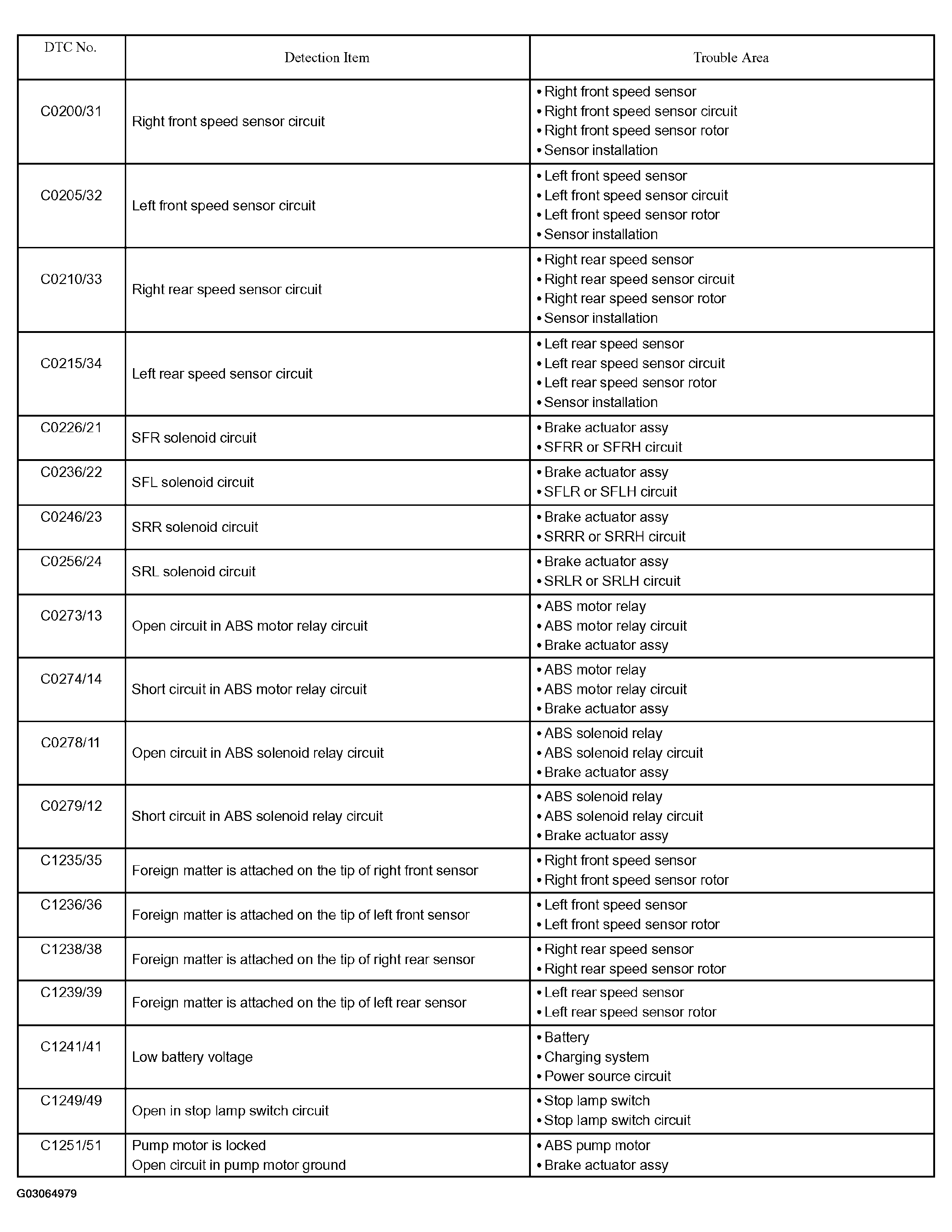

DIAGNOSTIC TROUBLE CODES (DTC) LIST
| DTC | Description |
|---|---|
| DTC C0200/31, C0205/32, C1235/35, C1236/36 | RIGHT/LEFT FRONT SPEED SENSOR CIRCUIT & FOREIGN MATTER IS ATTACHED ON TIP OF RIGHT/LEFT FRONT SENSOR |
| DTC C0210/33, C0215/34, C1238/38, C1239/39 | RIGHT/LEFT REAR SPEED SENSOR CIRCUIT & FOREIGN MATTER IS ATTACHED ON TIP OF RIGHT/LEFT REAR SENSOR |
| DTC C0226/21, C0236/22, C0246/23, C0256/24 | SFR/SFL/SRR/SRL SOLENOID CIRCUIT |
| DTC C0273/13, C0274/14 | OPEN/B+ SHORT CIRCUIT IN ABS MOTOR RELAY CIRCUIT |
| DTC C0278/11, C0279/12 | OPEN/SHORT CIRCUIT IN ABS SOLENOID RELAY CIRCUIT |
| DTC C1241/41 | LOW BATTERY POSITIVE VOLTAGE |
| DTC C1249/49 | OPEN CIRCUIT IN STOP LIGHT SWITCH CIRCUIT |
| DTC C1251/51 | PUMP MOTOR IS LOCKED/OPEN CIRCUIT IN PUMP MOTOR GROUND |
