Problem Symptoms Table

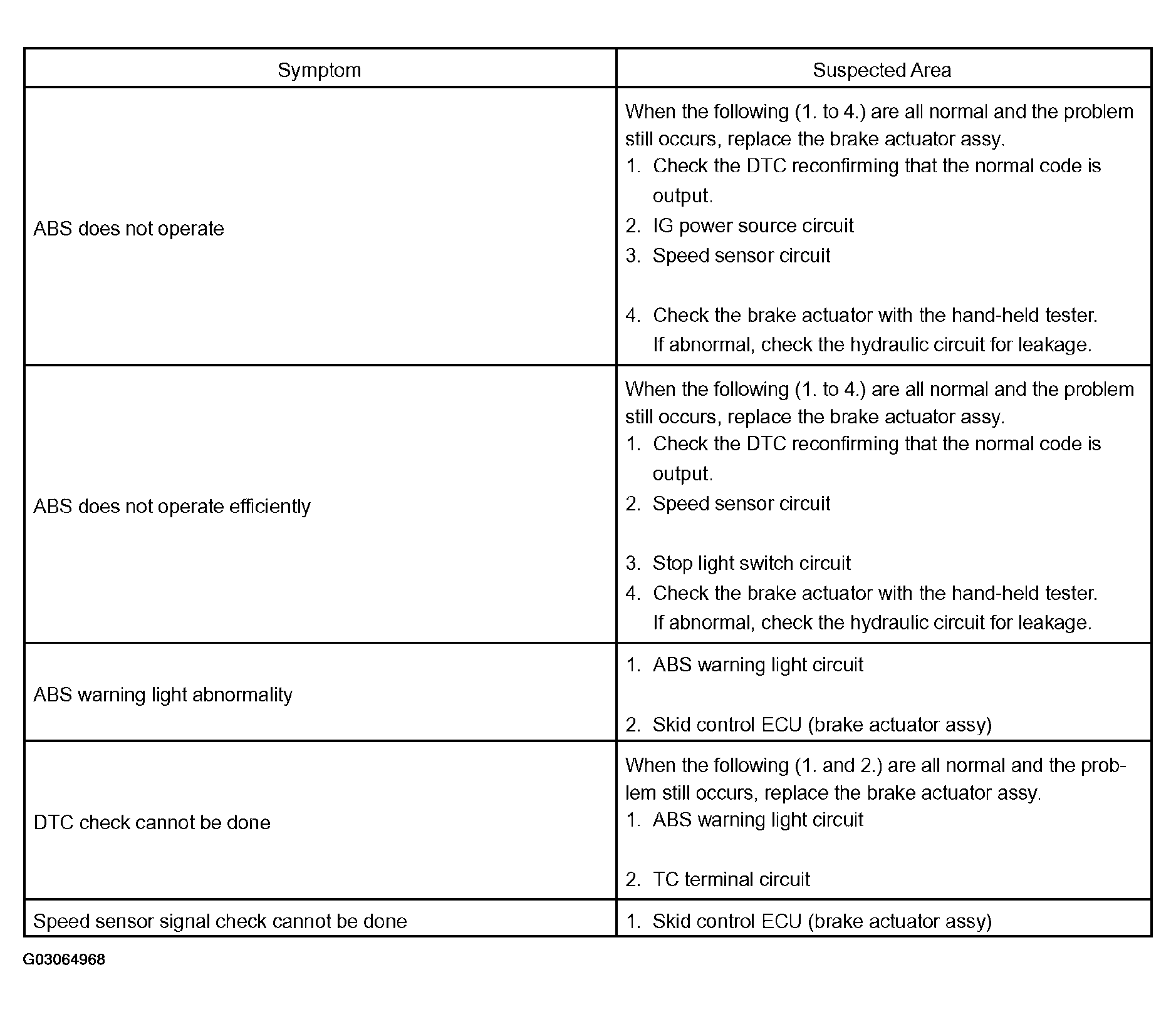

If a normal system code is displayed during the DTC check but the problem still occurs, check the circuits for each problem symptom in the order given in the table shown in Fig 1 and proceed to the relevant troubleshooting service category.
NOTE:
When replacing the brake actuator assy or sensor, turn the ignition switch off.
