Instrument Panel Sub-ASSY Lower: Replacement

HINT:

• COMPONENTS: See INSTRUMENT PANEL/METER  .
• Installation is in the reverse order of removal.

1. (See  PRECAUTION  )
   NOTE: When disconnecting the battery terminal, initialize the following systems after the terminal is reconnected.
   SYSTEM INDEX



   System	Refer To
   Power window control system	INITIALIZATION
   Sliding roof system	INITIALIZATION

2. TABLE OF BOLT, SCREW AND NUT

   HINT:

   All bolts, screws and nuts relevant to installing and removing the instrument panel along with their alphabet codes are shown in Fig 1 .

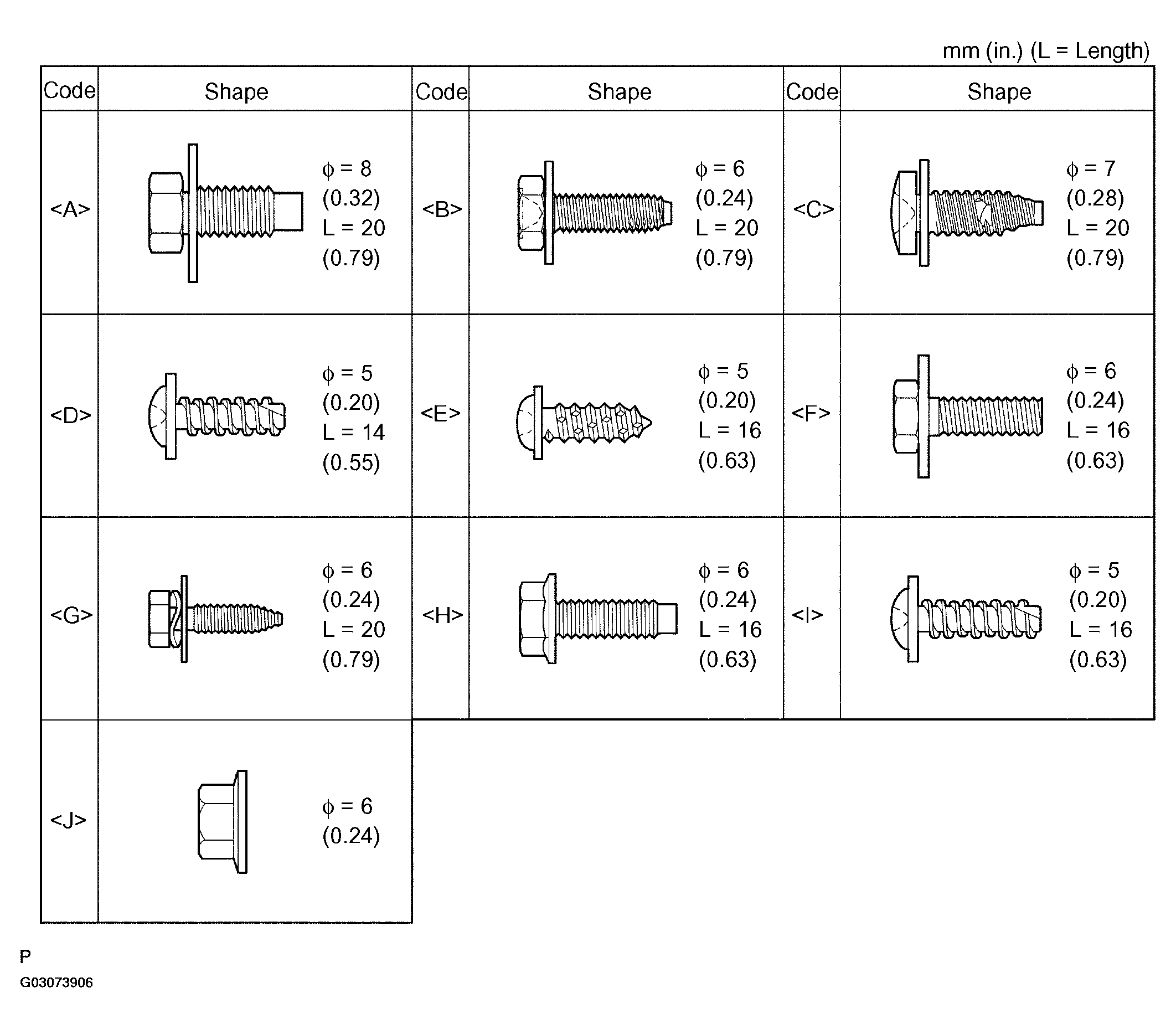

   Fig 1: Identifying Bolt Specification

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. DISCONNECT BATTERY NEGATIVE TERMINAL (See  PRECAUTION  )
4. REMOVE INSTRUMENT PANEL SUB-ASSY UPPER W/FRONT PASSENGER AIRBAG ASSY (See  INSTRUMENT PANEL SUB-ASSY UPPER   )
5. REMOVE HORN BUTTON ASSY (See  REPLACEMENT  )
6. REMOVE STEERING WHEEL ASSY (See  OVERHAUL  )
   1. SST 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05021)
7. REMOVE STEERING COLUMN COVER (See  OVERHAUL  )
8. REMOVE HEADLAMP DIMMER SWITCH ASSY (See  HEADLAMP DIMMER SWITCH ASSY  )
9. REMOVE WINDSHIELD WIPER SWITCH ASSY (See  WINDSHIELD WIPER SWITCH ASSY  )
10. REMOVE CONSOLE UPPER REAR PANEL SUB-ASSY
    1. Disengage the 7 claws, and remove the console upper rear panel sub-assy.

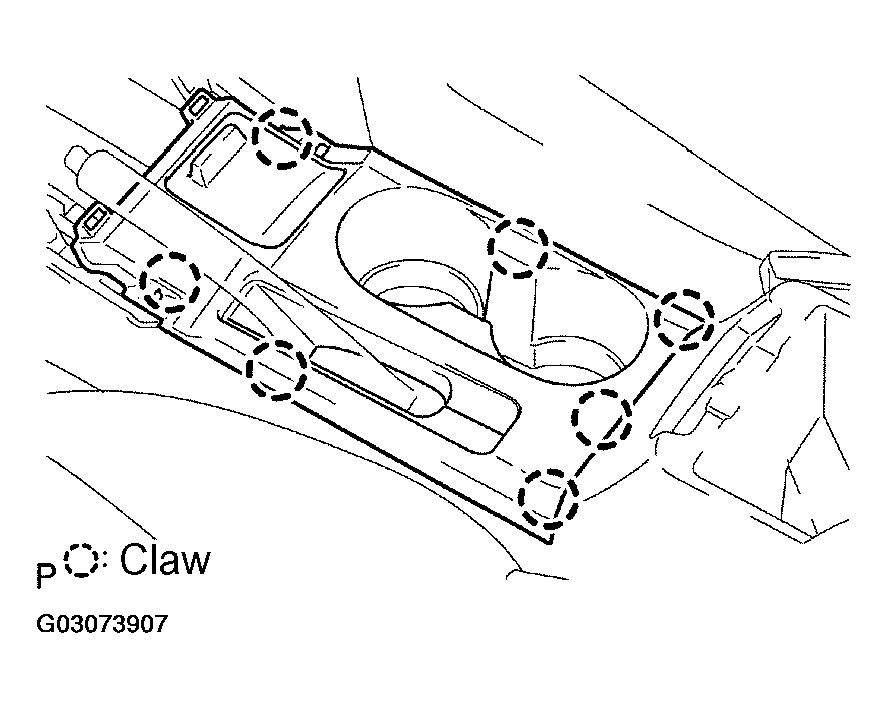

    Fig 2: Removing Console Upper Rear Panel Sub-Assy

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
11. REMOVE CONSOLE BOX ASSY RR
    1. Disconnect the connector.
    2. Remove the console box carpet.

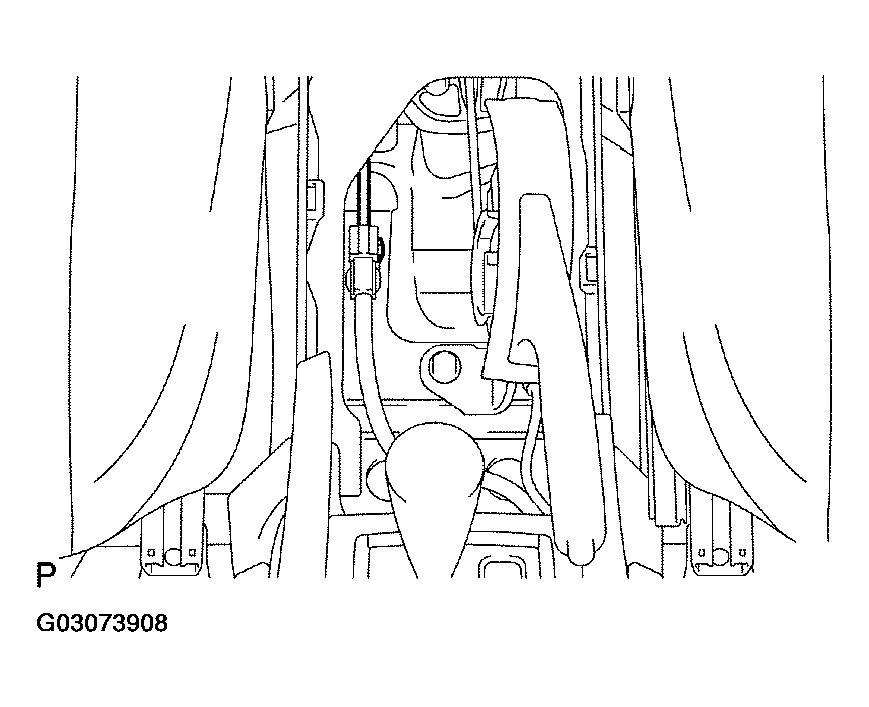

       Fig 3: Removing Console Box Assy RR

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Manual transaxle:

       Remove the 2 screws < I >.

    4. Automatic transaxle:

       Remove the 4 screws < I >.

    5. Remove the 2 bolts < H >.
    6. Remove the clamp, and console box assy RR.

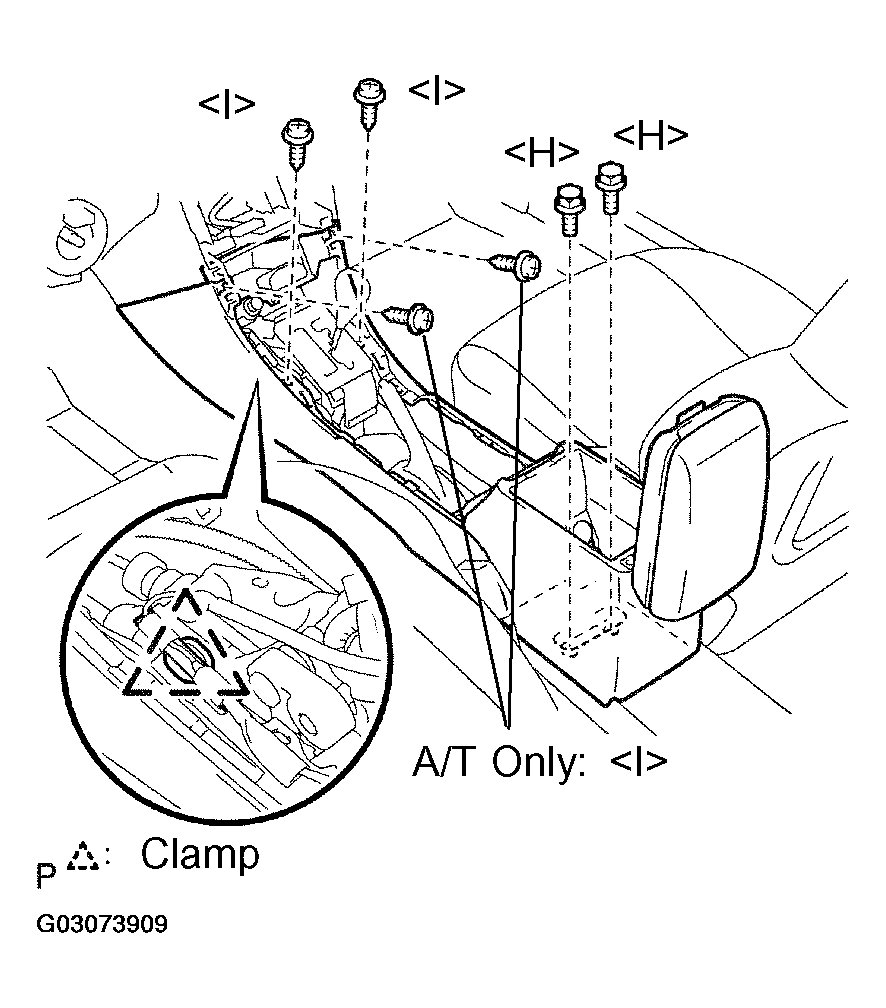

    Fig 4: Removing Screws & Bolts

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
12. REMOVE INSTRUMENT PANEL AIR BAG ASSY LOWER NO.1 (See  REPLACEMENT  )

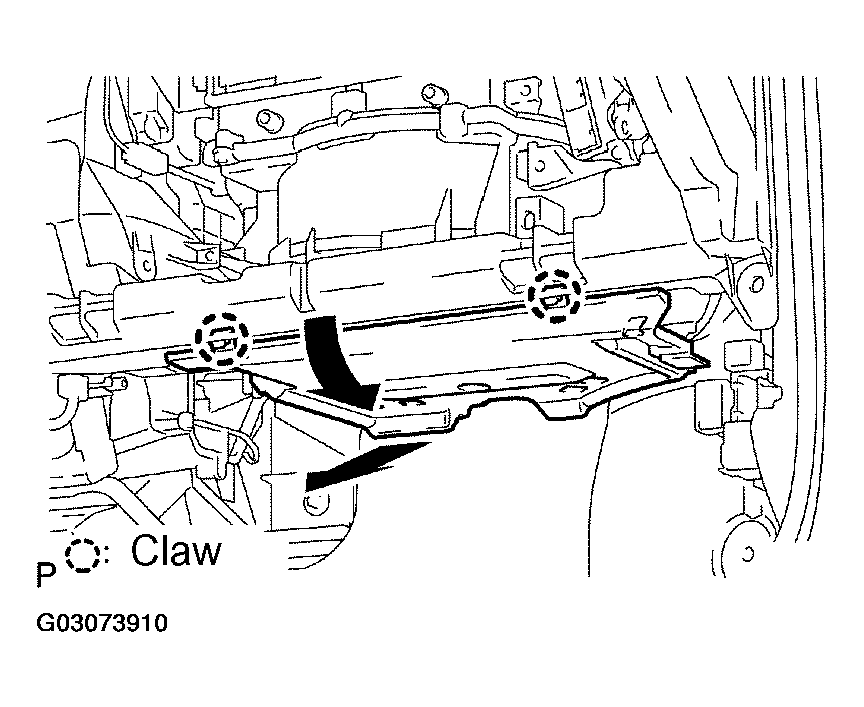

13. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSY NO.1
    1. Disengage the 2 claws.
    2. Remove the instrument panel under cover sub-assy No.1, as shown in Fig 5 .
    Fig 5: Removing Instrument Panel Claws

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
14. REMOVE FRONT DOOR SCUFF PLATE LH
    1. Disengage the 12 claws, then remove the front door scuff plate LH.

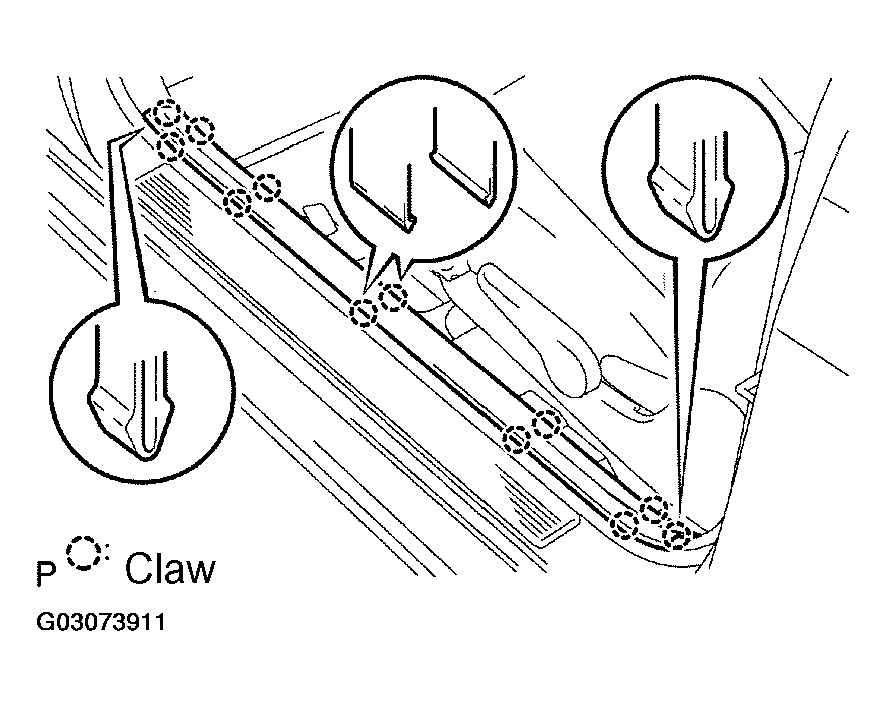

    Fig 6: Removing Front Door Scuff Plate LH

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
15. REMOVE FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedures for the RH side and LH side.

16. REMOVE COWL SIDE TRIM SUB-ASSY LH
    1. Remove the clip.
    2. Remove the 2 clips, and the cowl side trim sub-assy LH.

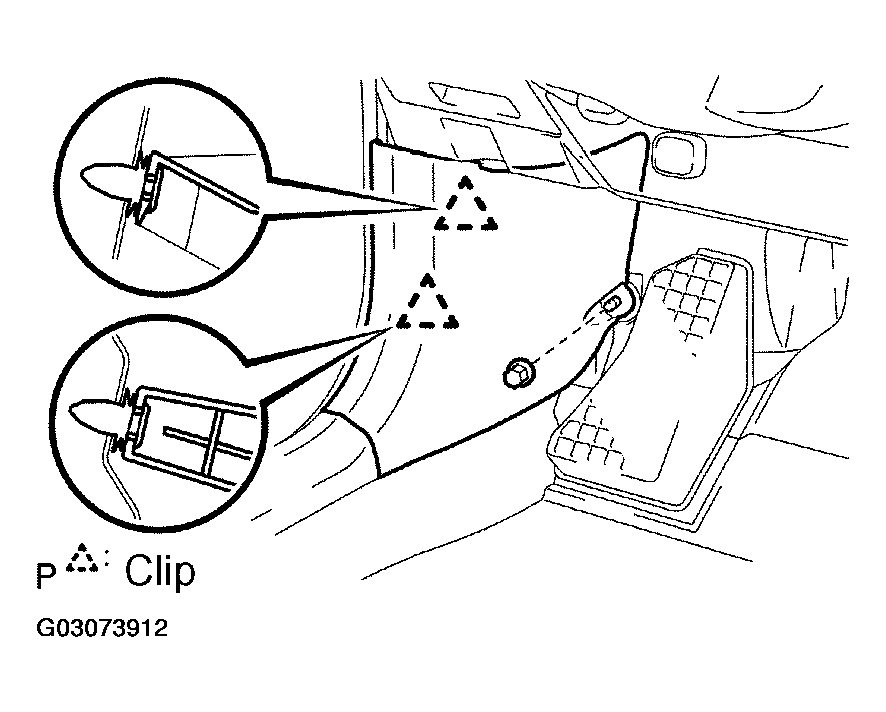

    Fig 7: Removing Clip

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
17. REMOVE COWL SIDE TRIM SUB-ASSY RH

    HINT:

    Use the same procedures for the RH side and LH side.

18. REMOVE HEATER TO REGISTER DUCT NO.2
    1. Remove the 3 clips, and heater to register duct No.2.

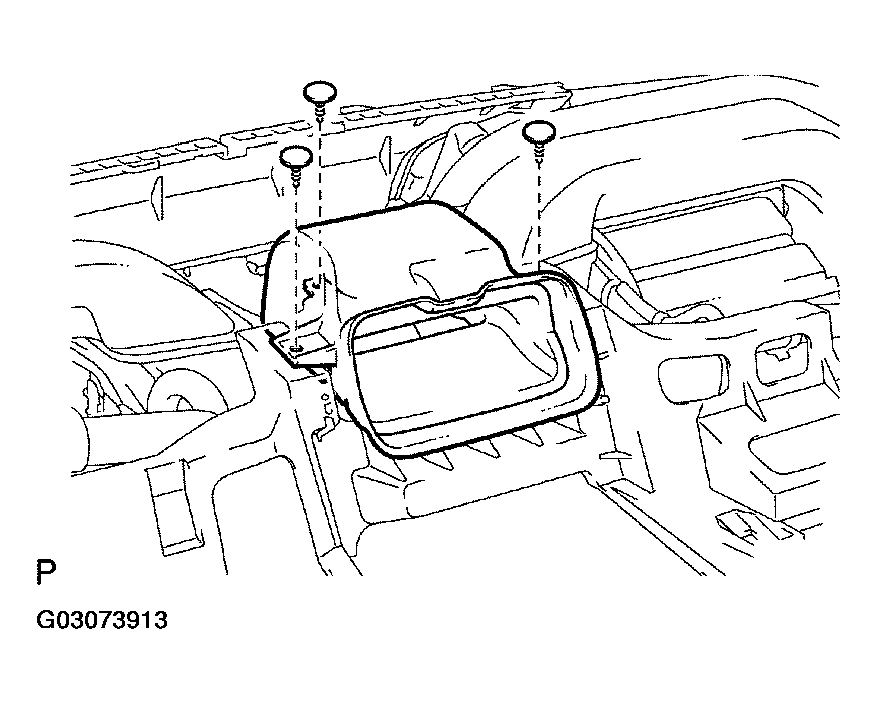

    Fig 8: Removing Heater To Register Duct No. 2

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
19. REMOVE INSTRUMENT PANEL LOWER ASSY
    1. Disconnect the hood lock control cable.
    2. Remove the 3 screws < B > or < C >, 2 bolts < F > or < G >, and 2 nuts < J >.
    3. Remove the 2 clips.
    4. Disengage the 7 wire harness clamps.
    5. Disconnect the 3 connectors.
    6. Pull the instrument panel lower assy toward the rear of the vehicle, and check that the wire harnesses are not caught, and then remove the instrument panel lower assy.

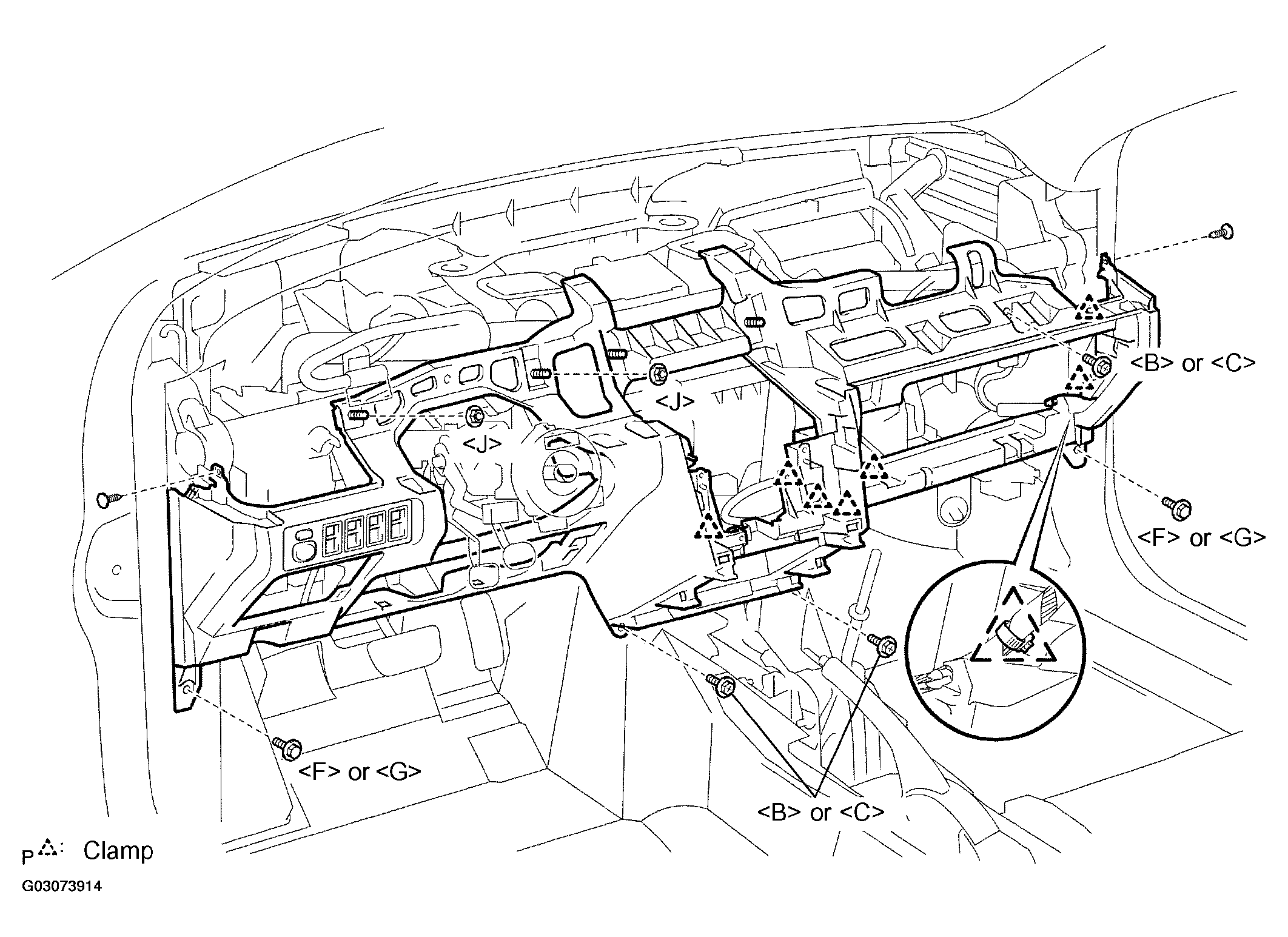

    Fig 9: Removing Instrument Panel

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
20. REMOVE FUSE BOX OPENING COVER
21. REMOVE OUTER MIRROR SWITCH ASSY W/BEZEL
22. REMOVE TIRE PRESSURE WARNING RESET SWITCH
23. REMOVE INDICATOR LAMP ASSY
24. REMOVE INSTRUMENT PANEL SUB-ASSY LOWER
25. INSTALL INSTRUMENT PANEL AIR BAG ASSY LOWER NO.1 (See  REPLACEMENT  )
26. INSTALL INSTRUMENT PANEL SUB-ASSY UPPER W/FRONT PASSENGER AIRBAG ASSY (See  INSTRUMENT PANEL SUB-ASSY UPPER   )
27. INSTALL STEERING WHEEL ASSY (See  OVERHAUL  )
28. INSTALL HORN BUTTON ASSY (See  REPLACEMENT  )
29. INSPECT HORN BUTTON ASSY (See  ON-VEHICLE INSPECTION  )
30. CONNECT BATTERY NEGATIVE TERMINAL
31. INSPECT SRS WARNING LIGHT (See  DIAGNOSIS SYSTEM  )
