Terminals Of ECM: Notes

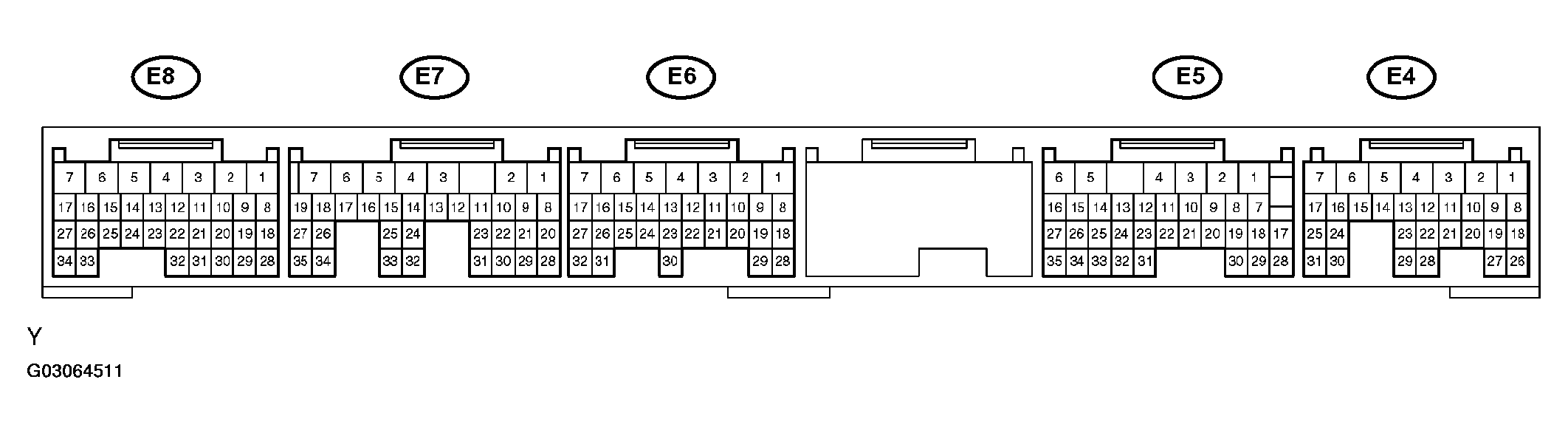

Fig 1: Identifying Terminals Of ECM

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

The standard normal voltage between each pair of ECM terminals is shown in the table below. The appropriate conditions for checking each pair of terminals is also indicated.

The result of checks should be compared with the standard normal voltage for that pair of terminals, displayed in the STD Voltage column.

The illustration above can be used as a reference to identify the ECM terminal locations.

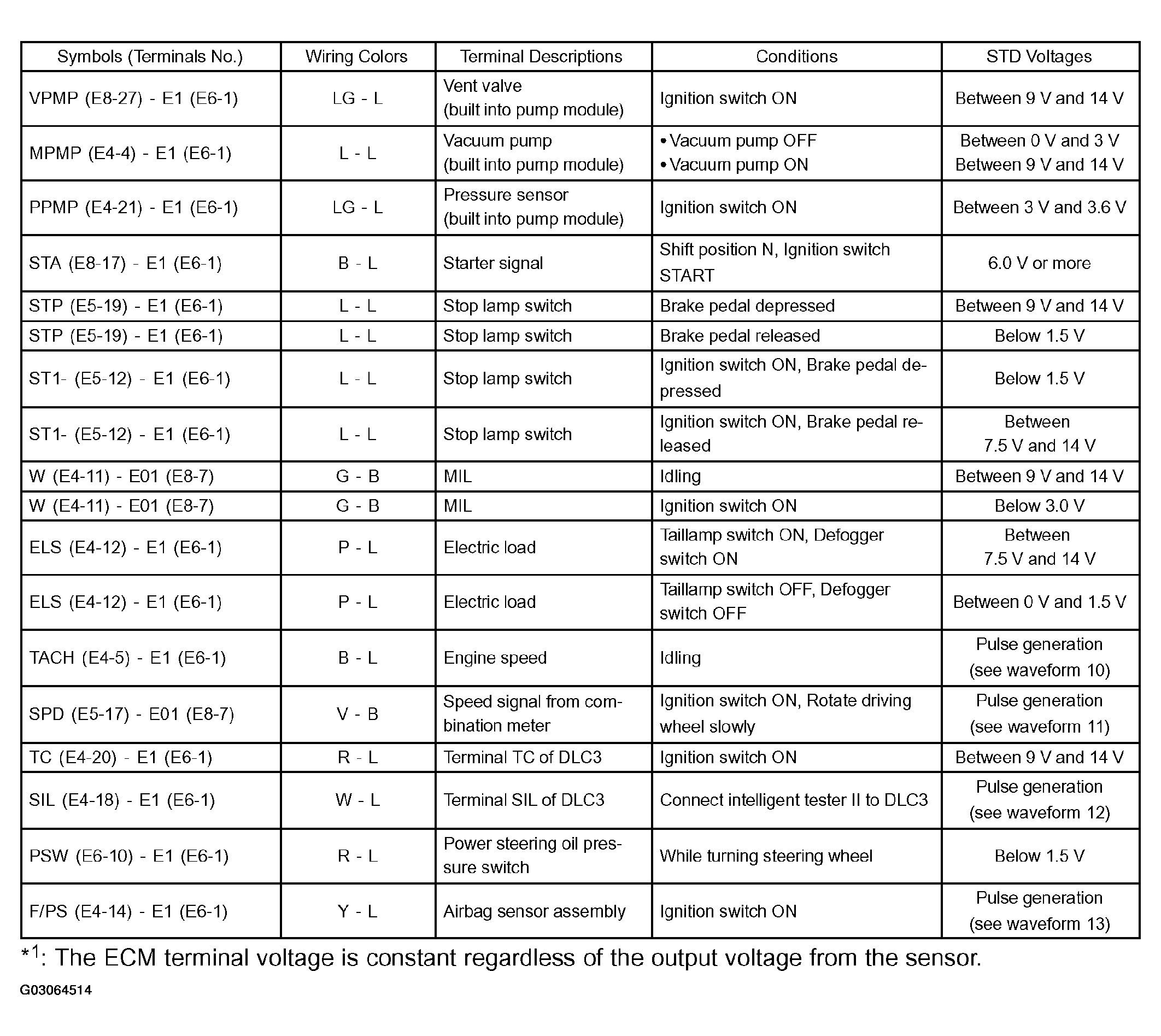

Fig 2: Terminals Of ECM STD Voltage Chart (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

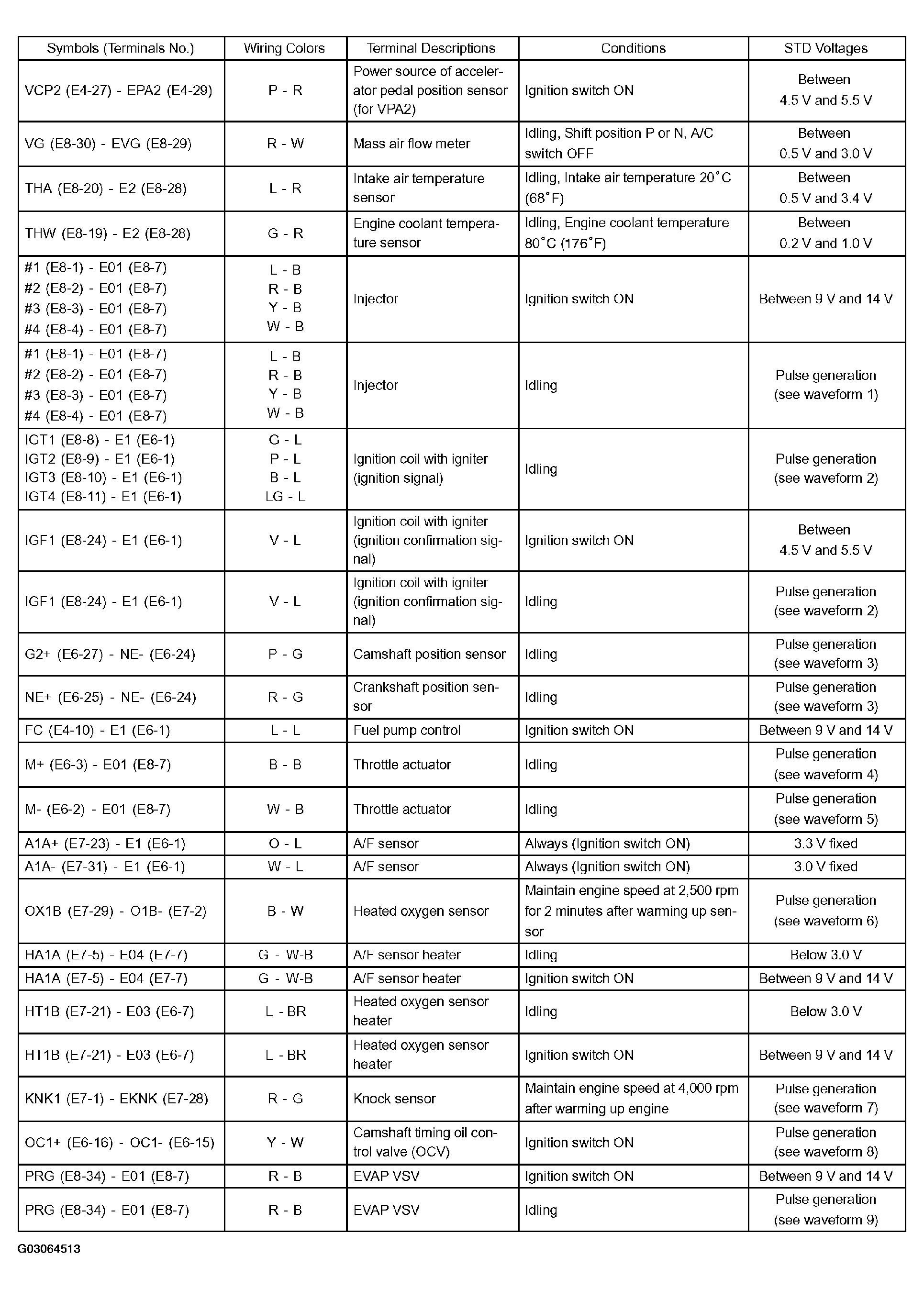

Fig 3: Terminals Of ECM STD Voltage Chart (2 Of 3)

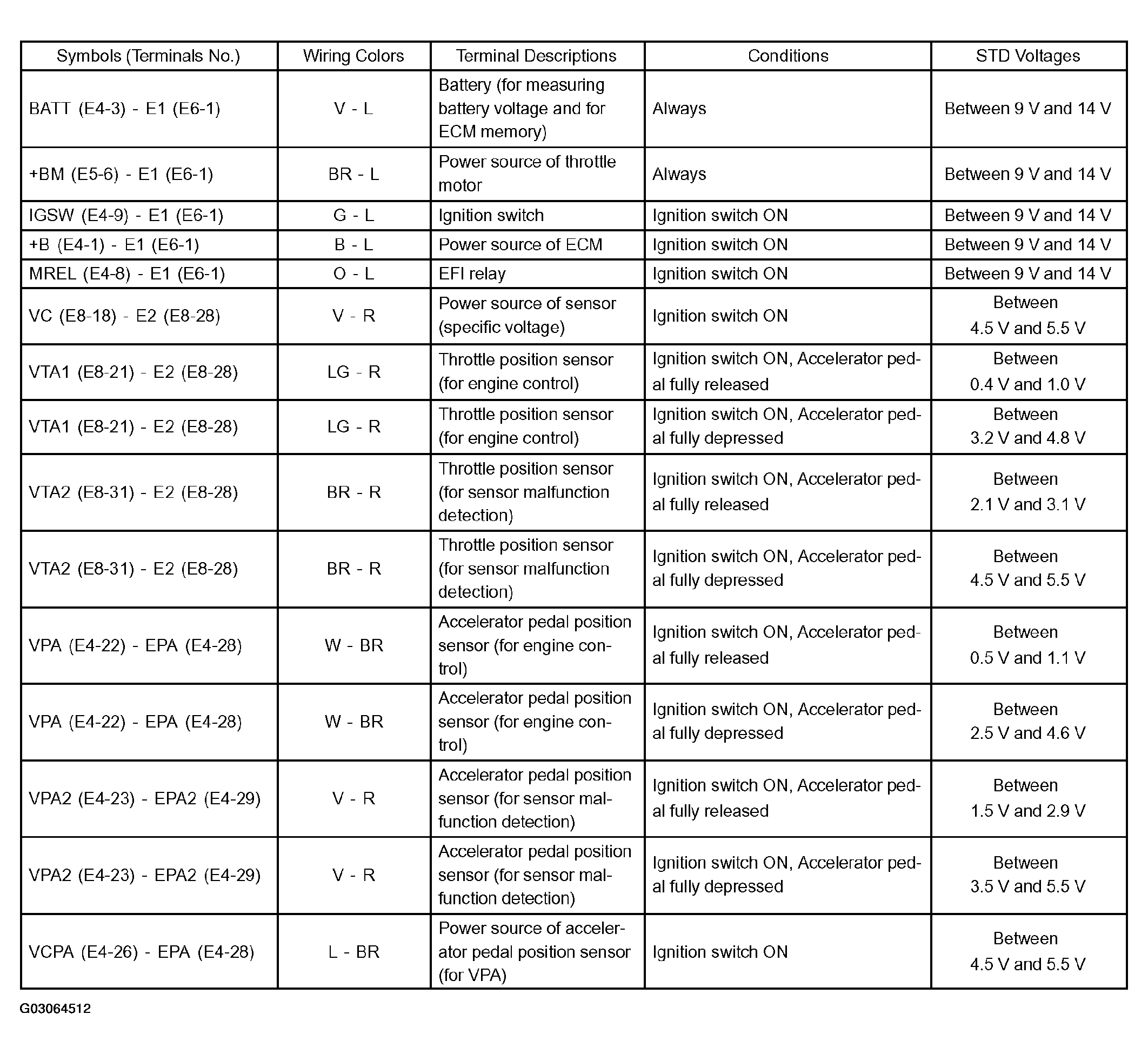

Fig 4: Terminals Of ECM STD Voltage Chart (3 Of 3)
