Home >> Scion >> 2005 >> xA Automatic >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel >> Fuel Injector ASSY >> Components

Fuel Injector ASSY: Components

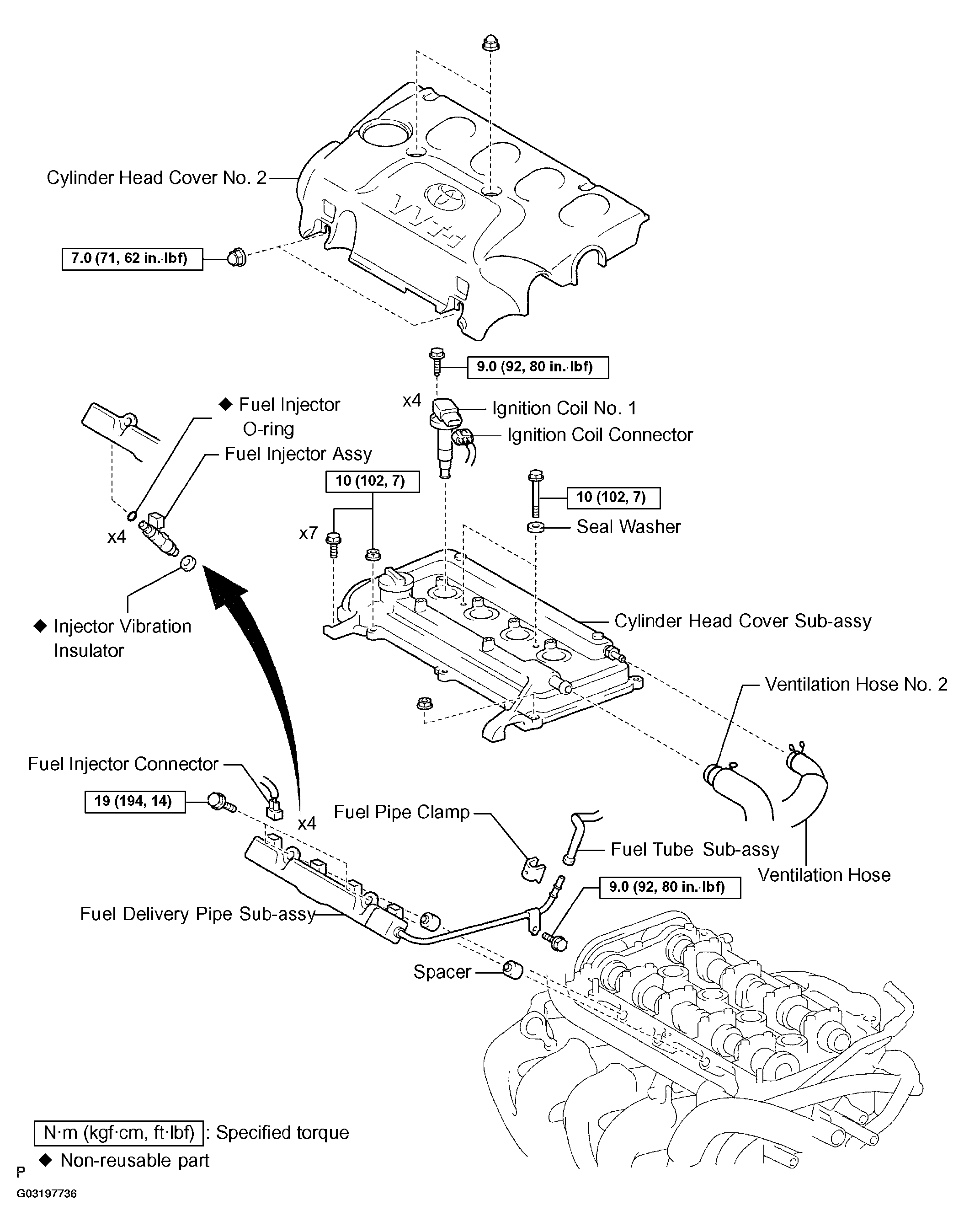

Fig 1: Exploded View Of Fuel Injector Assy

G03197736

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
