Fuel Pump ASSY: Components

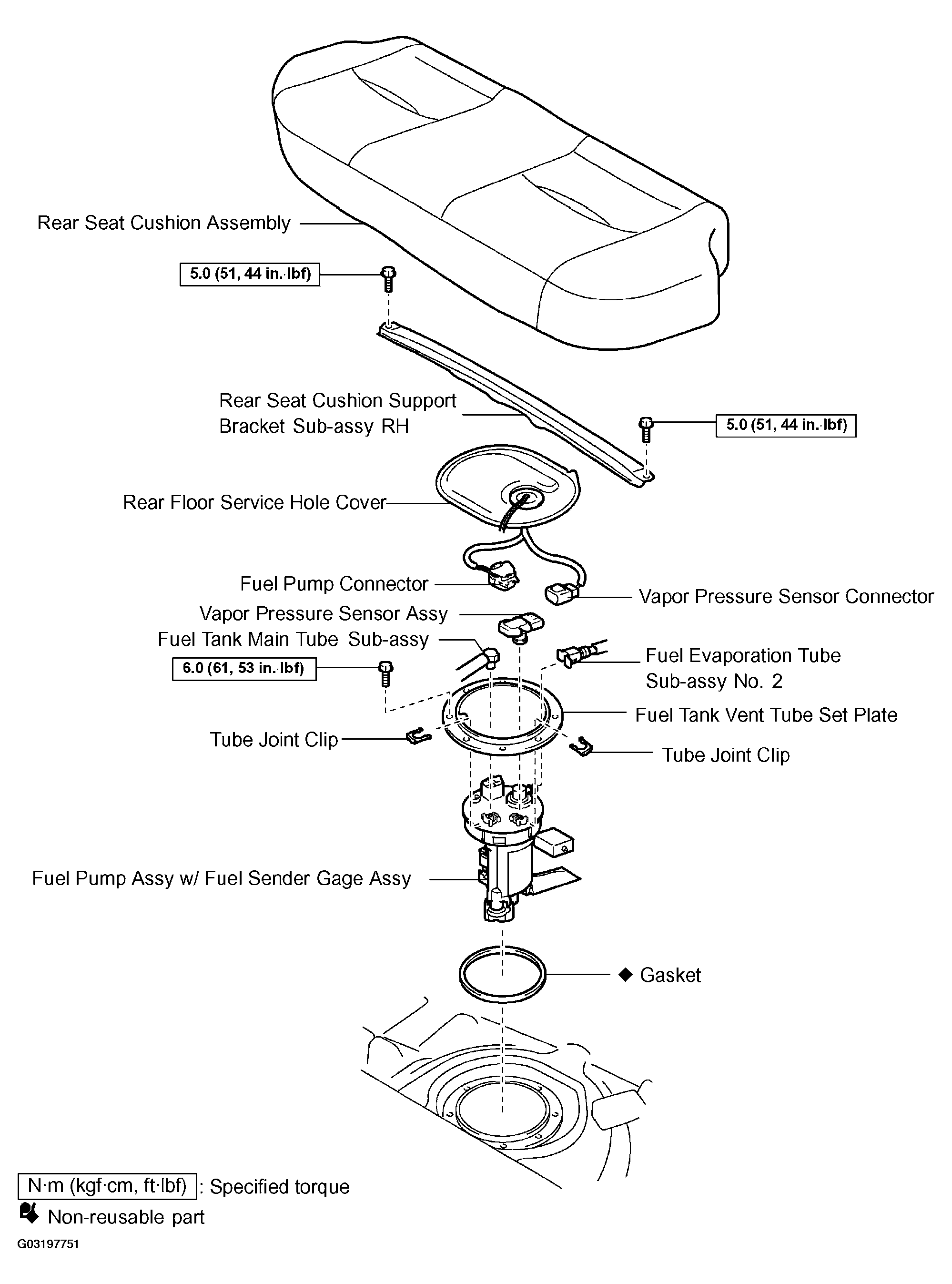

Fig 1: Exploded View Of Fuel Pump Assy Components (1 Of 2)
G03197751Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

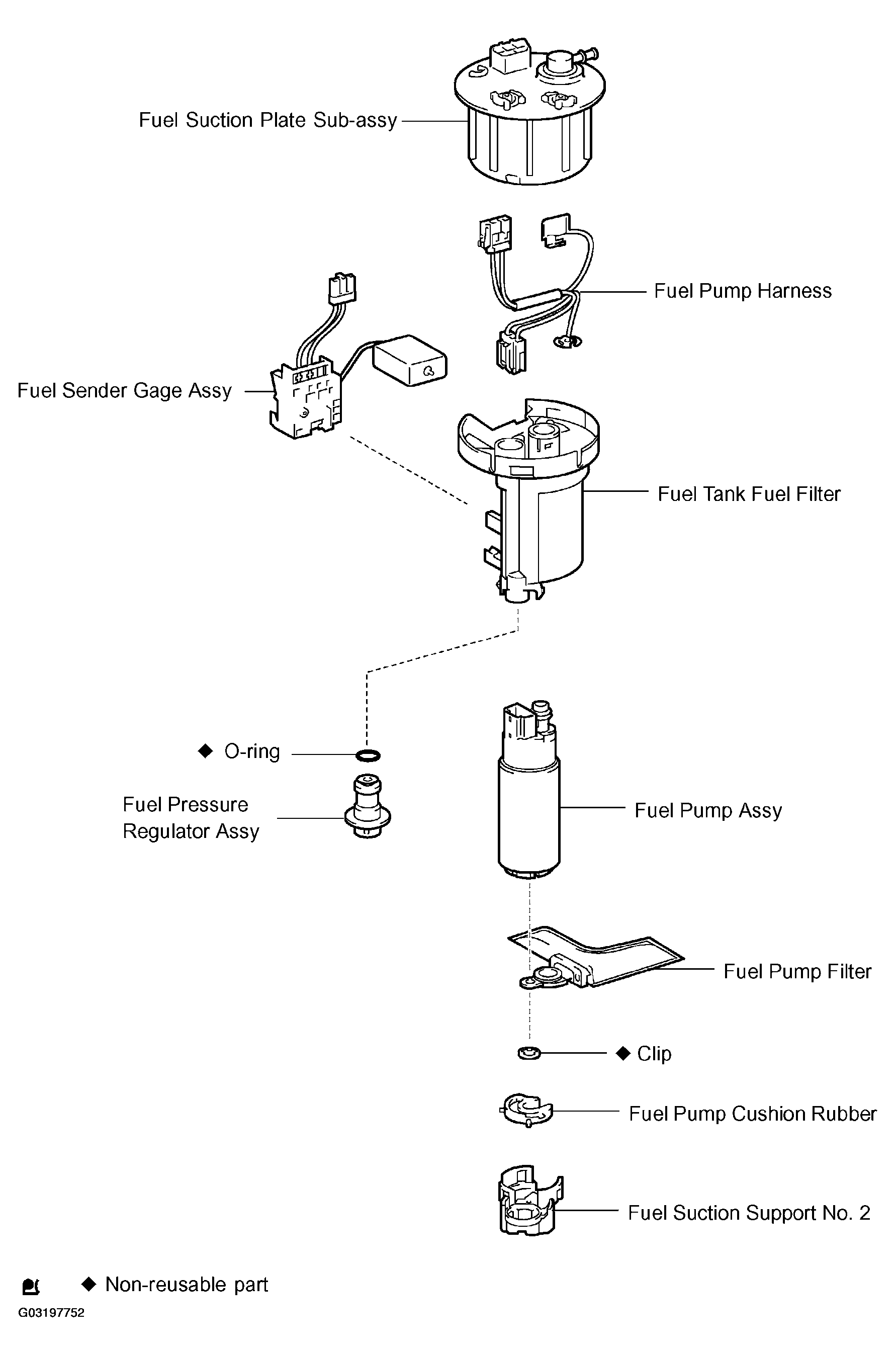

Fig 2: Exploded View Of Fuel Pump Assy Components (2 Of 2)
G03197752Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
