Fuel Tank ASSY: Components

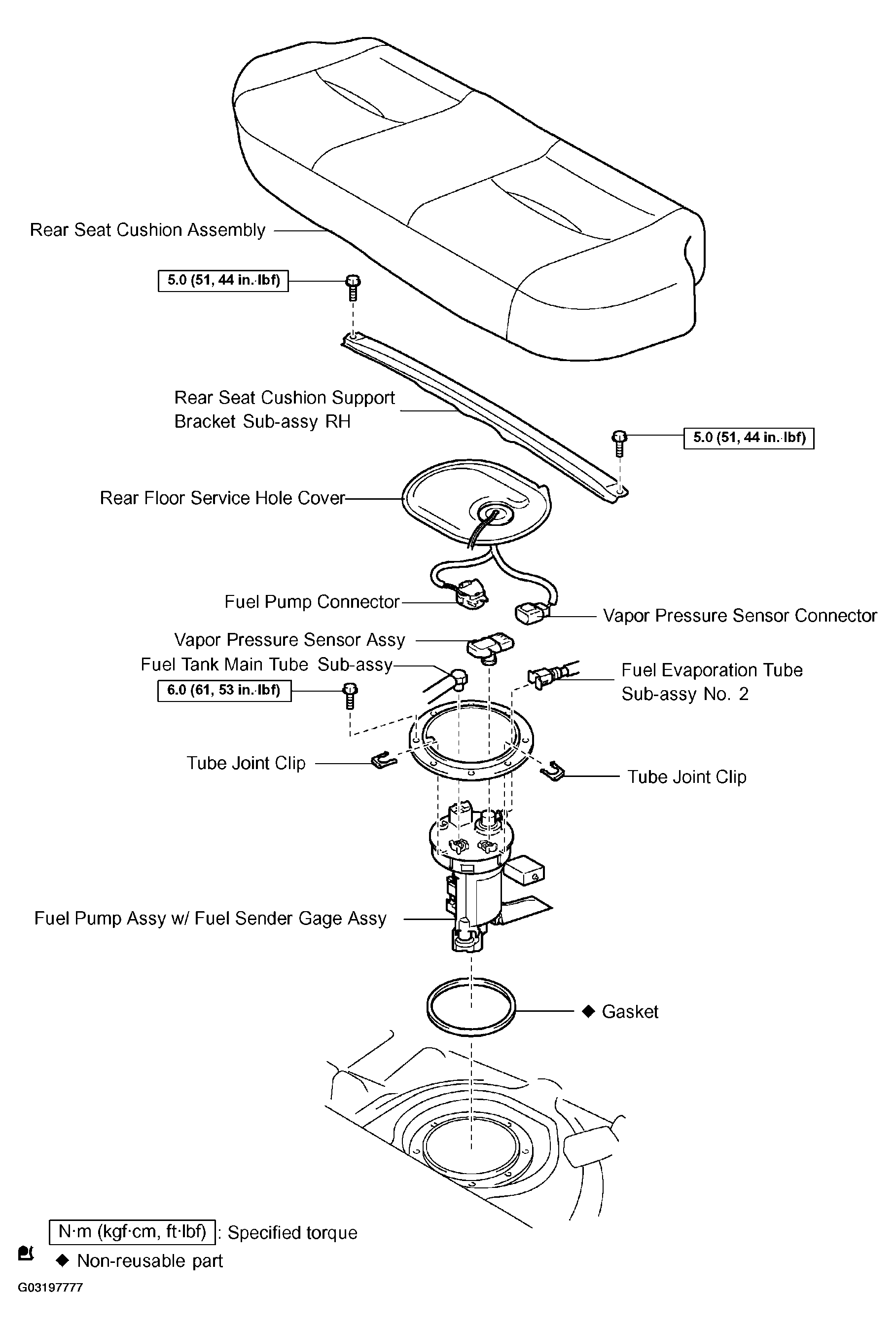

Fig 1: Exploded View Of Fuel Tank Assy (1 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

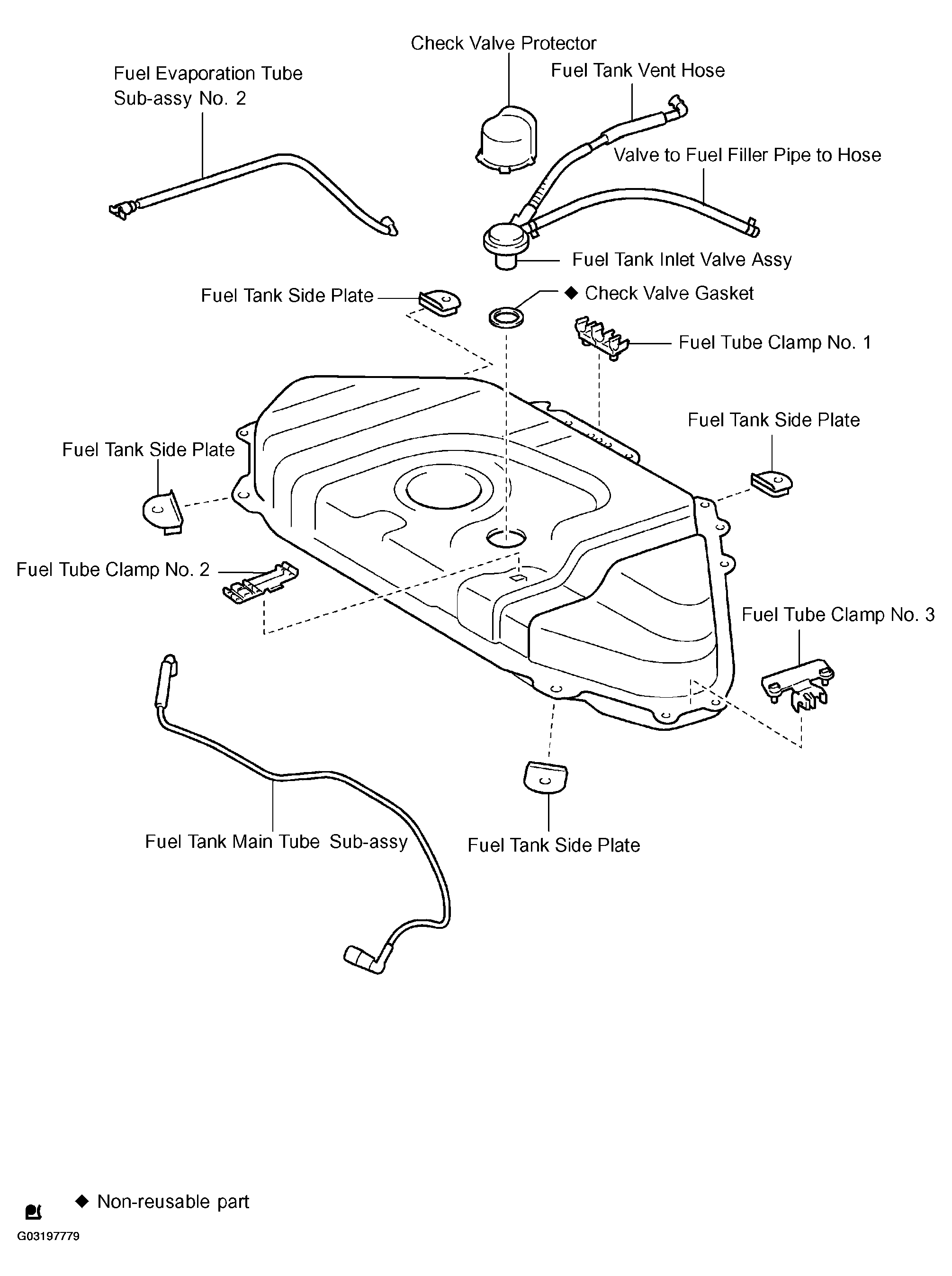

Fig 2: Exploded View Of Fuel Tank Assy (2 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Exploded View Of Fuel Tank Assy (3 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Exploded View Of Fuel Tank Assy (4 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

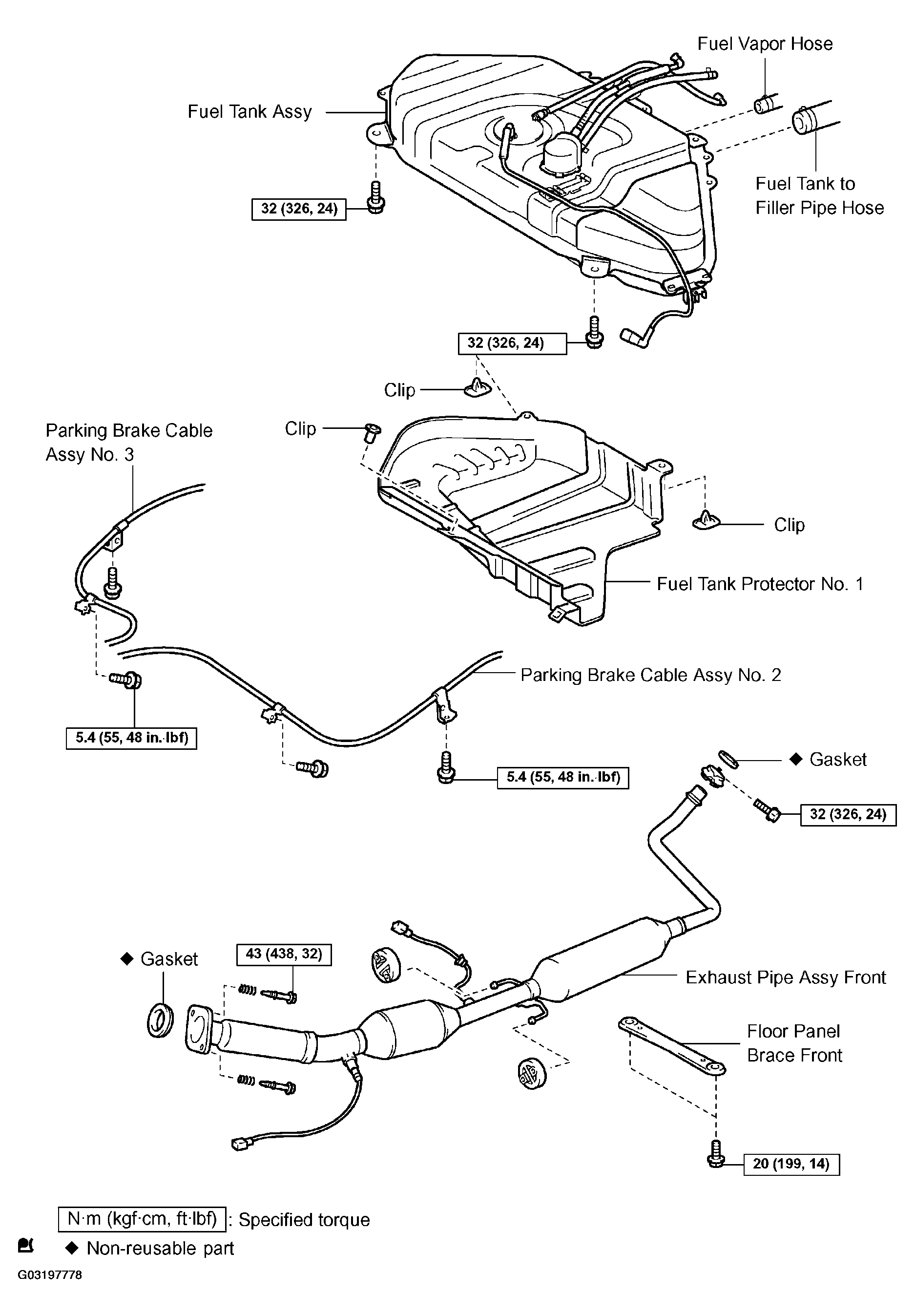

Fig 5: Exploded View Of Fuel Tank Assy (5 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
