Steering Column ASSY: Components

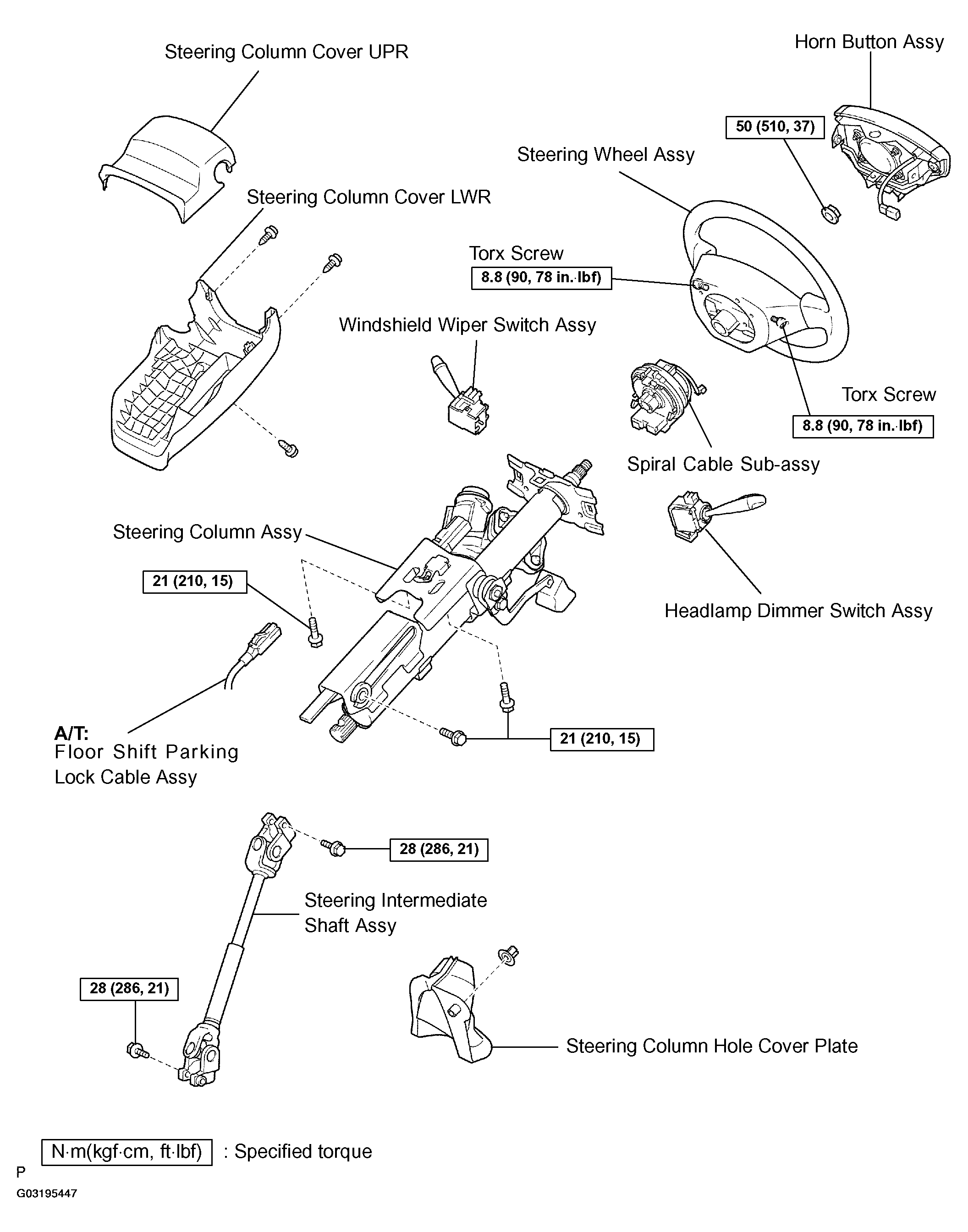

Fig 1: Identifying Steering Column Assy Component (1 Of 2)
G03195447Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

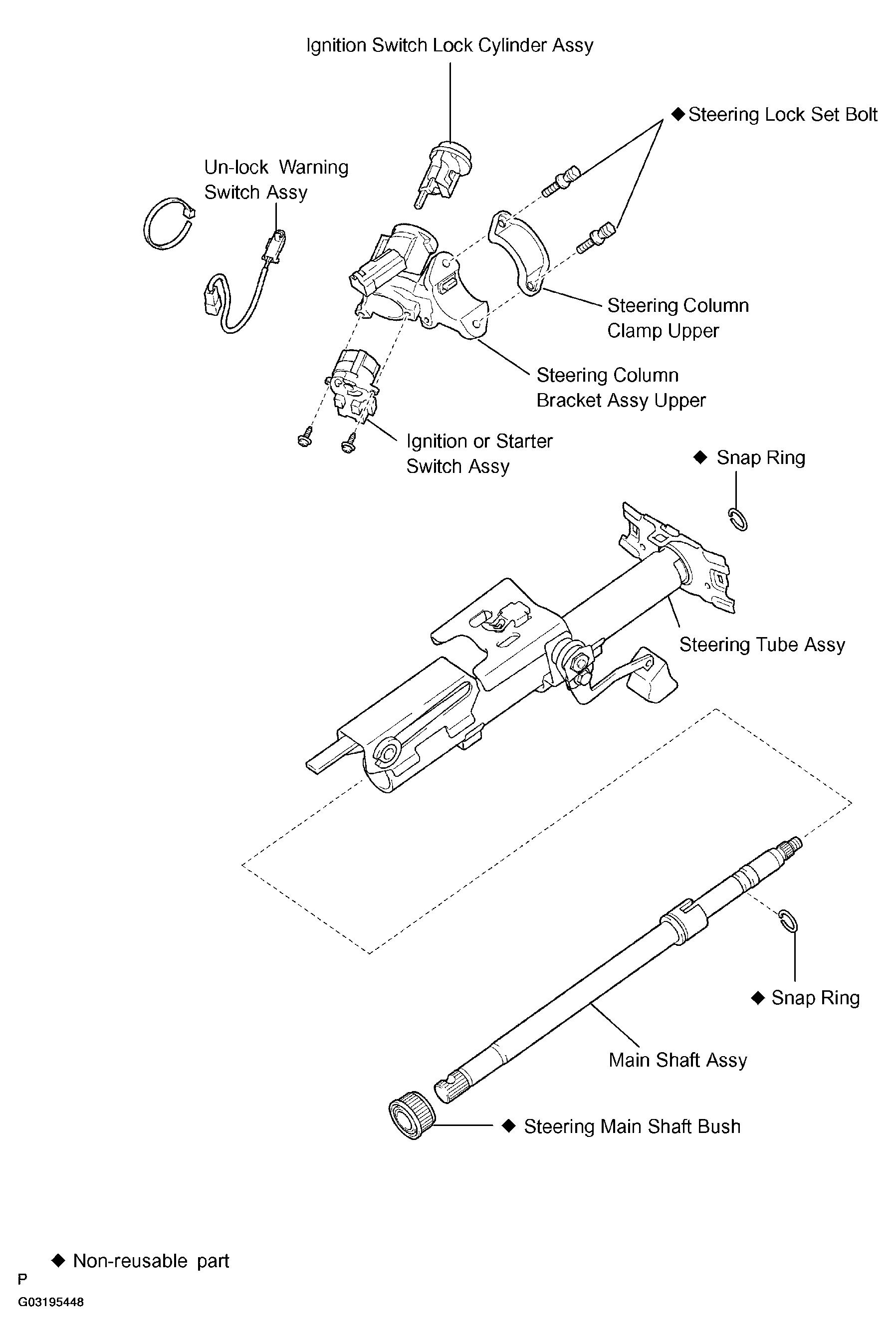

Fig 2: Identifying Steering Column Assy Component (2 Of 2)
G03195448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
