On-Vehicle Inspection

  1. CHECK STEERING WHEEL FOREPLAY
    1. Stop the vehicle and set the tires straight ahead.
    2. Turn the steering wheel gently right and left by hand, and check the steering wheel foreplay.

      Maximum foreplay: 30 mm (1.18 in.)

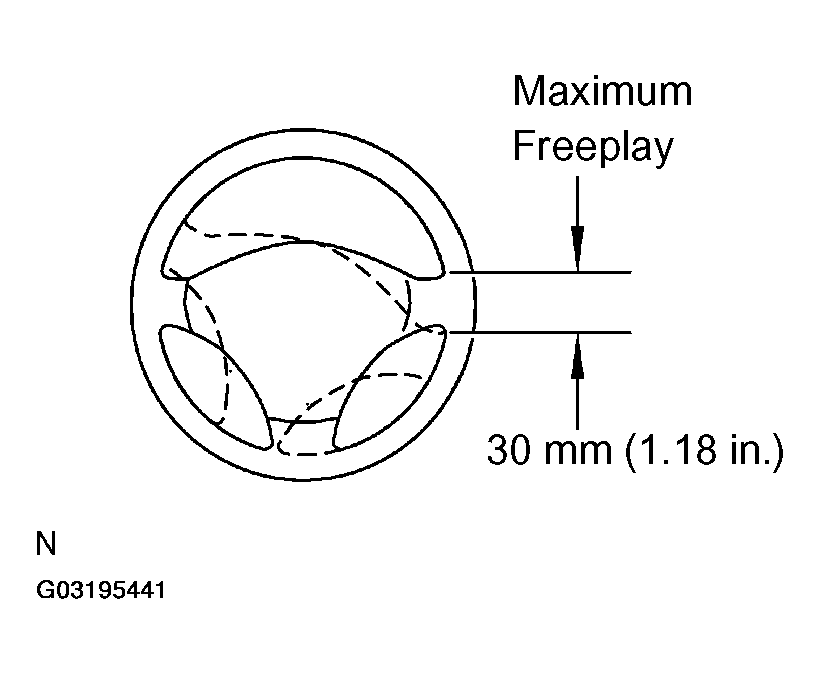

      Fig 1: Checking Steering Wheel Foreplay
      G03195441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
