Home >> Scion >> 2005 >> xA Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Electronic Controlled Automatic Transaxle (ECT) >> Initialization

Electronic Controlled Automatic Transaxle (ECT): Initialization

  1. RESET MEMORY
    CAUTION: Perform the RESET MEMORY (AT initialization) when replacing the automatic transaxle assy, engine assy or ECM.
    NOTE: Hand-held tester only
    1. Turn the ignition switch off.
    2. Connect the hand-held tester to the DLC3.
    3. Turn the ignition switch to the ON position.
    4. Perform the reset memory procedure from the ENGINE menu.
      CAUTION: After performing the RESET MEMORY, be sure to perform the ROAD TEST described earlier.

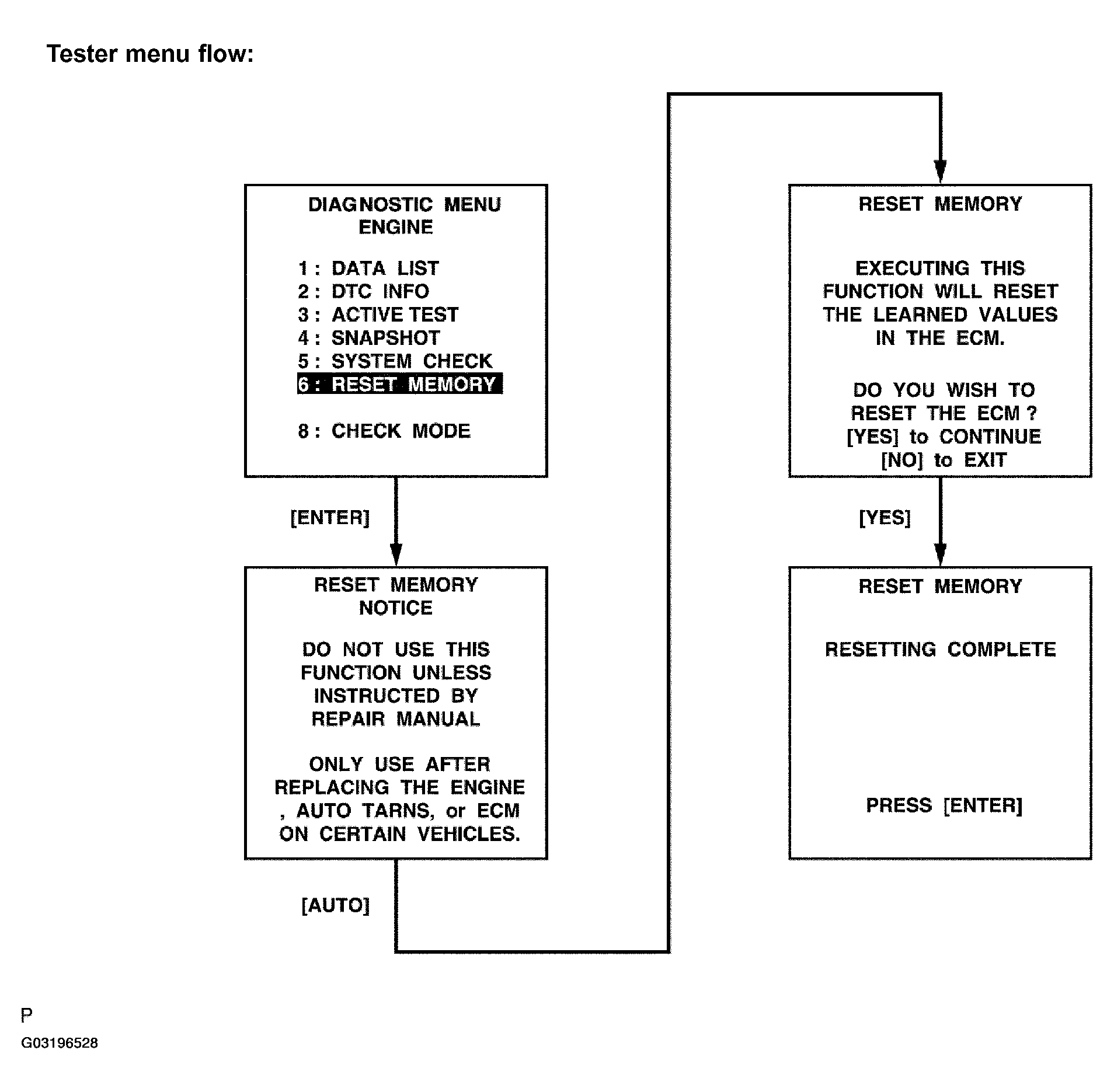

      Fig 1: Diagnostic Menu Flow Chart
      G03196528Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
