Generator ASSY: Components

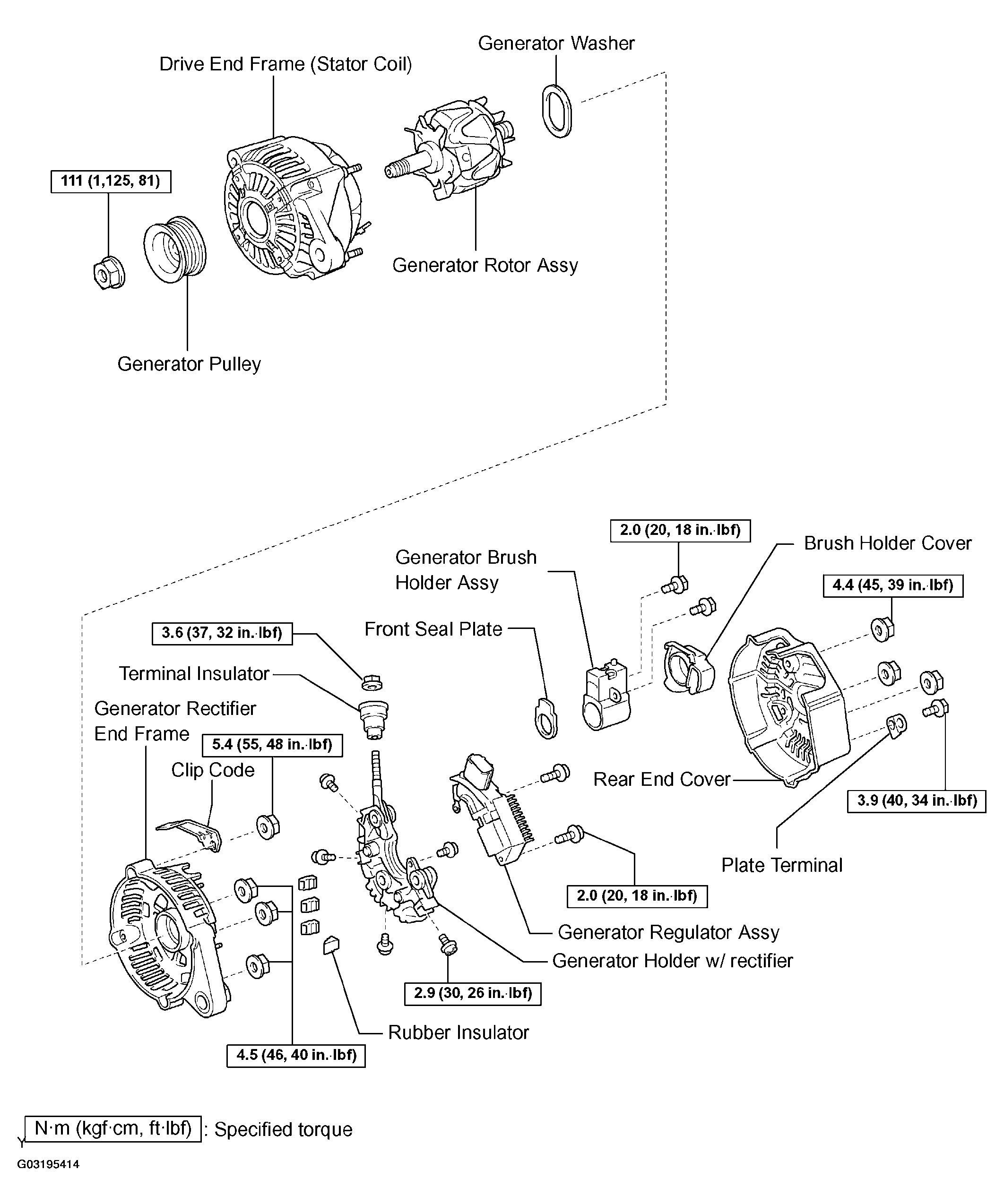

Fig 1: Exploded View Of Generator Assy
G03195414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
