Starting System: Inspection

INSPECT STARTER ASSY
NOTE: These tests must be performed within 3 to 5 seconds to prevent coil burnout.
1. Perform the pull-in test.
  1. Disconnect the field coil lead from terminal C.
  2. Connect the battery to the magnetic switch as shown in Fig 1. Check that the clutch pinion gear is extended.
  If the clutch pinion gear is not extended, replace the magnetic switch body.

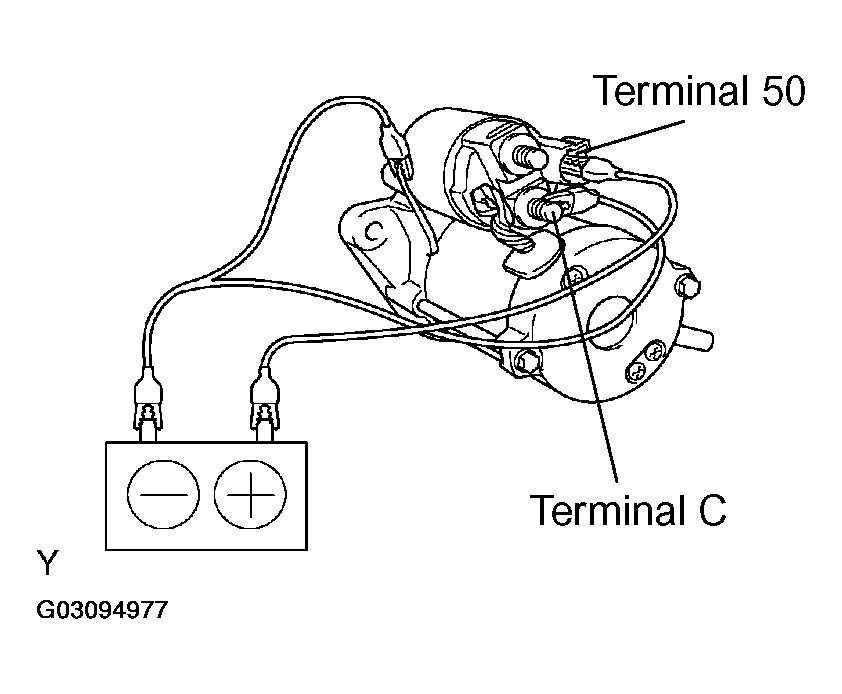

  Fig 1: Connecting Battery To Magnetic Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Perform the hold-in test.
  1. Disconnect the negative (-) lead from the terminal C with the above condition a maintained. Check that the pinion gear remains extended.
  If the clutch pinion gear returns, replace the magnetic switch body.

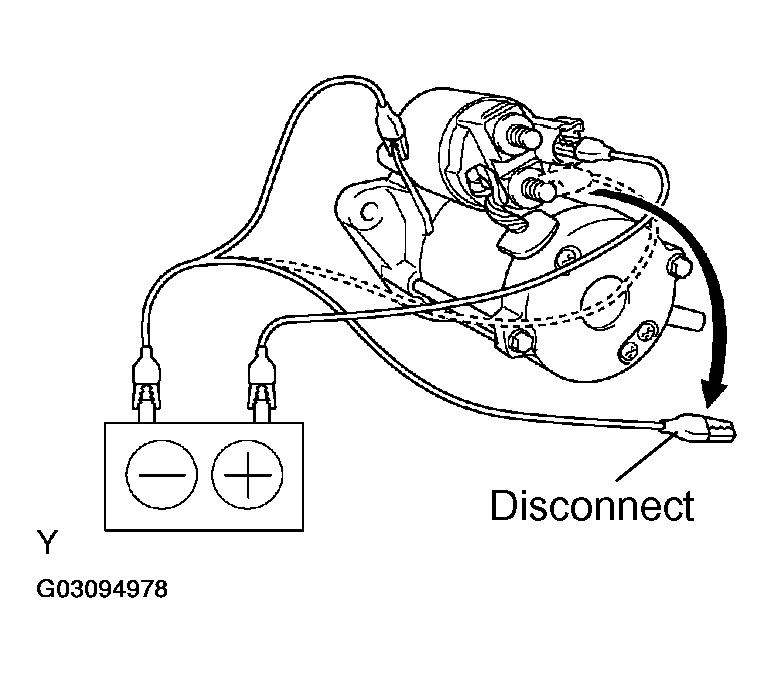

  Fig 2: Disconnecting Negative Lead From Terminal C
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Inspect the operation.
  1. Disconnect the negative (-) lead from the switch body. Check that the clutch pinion gear returns.
    If the clutch pinion gear does not return, replace the magnetic switch body.

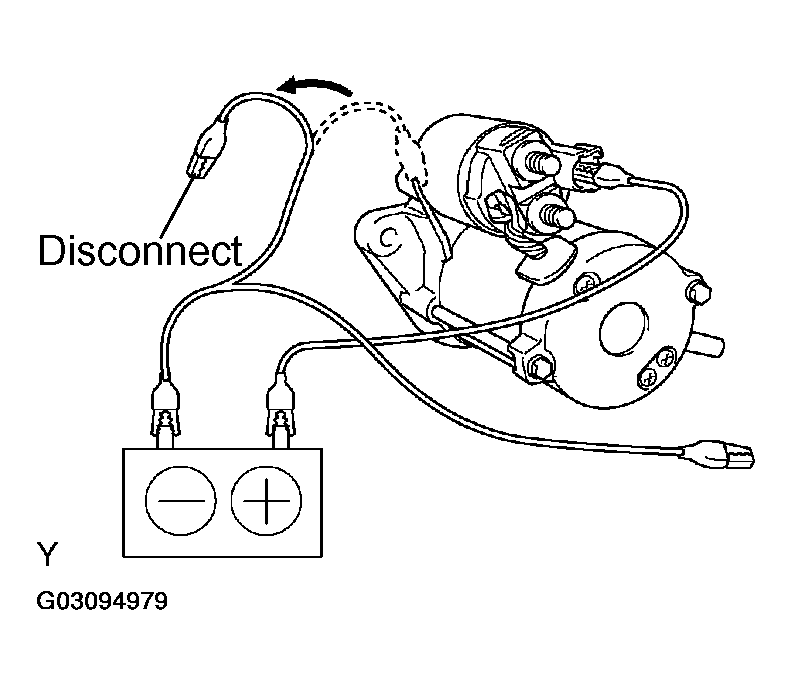

    Fig 3: Disconnecting Negative Lead From Switch Body
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Perform the no-load performance test.
  1. Connect the field coil lead wire to terminal C. Make sure the lead is not grounded.
  2. Clamp the starter in a vise.
  3. Connect the battery and an ammeter to the starter as shown in Fig 4.
  4. Check that the starter rotates smoothly and steadily with the clutch pinion gear extended. Check that the ammeter reads the specified current.
    Specified current: 90 A or less at 11.5 V

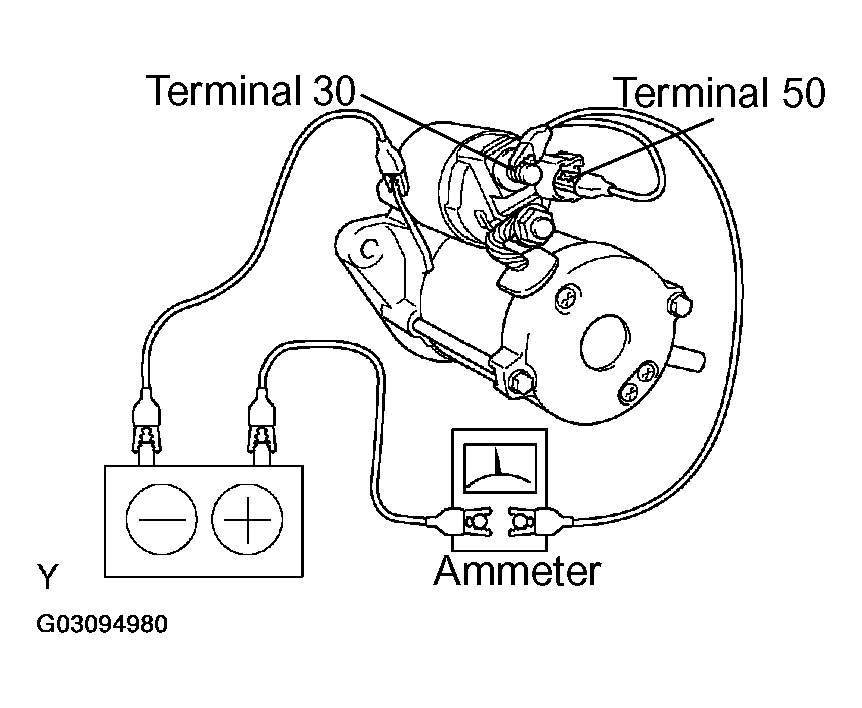

    Fig 4: Connecting Battery And Ammeter To Starter
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT STARTER RELAY ASSY

Check the resistance.

Using an ohmmeter, measure the resistance between each terminal.

Specified condition:

STARTER RELAY RESISTANCE SPECIFICATIONS

Tester Connection	Specified Condition
3 - 5	10 kΩ or higher
3 - 5	Below 1Ω (Apply battery voltage to terminals 1 and 2)

If the result is not as specified, replace the starter relay.

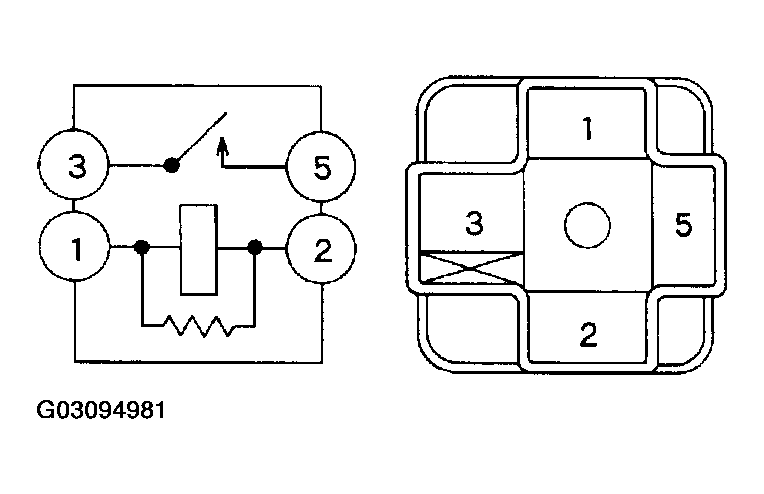

Fig 5: Inspecting Starter Relay Assy
