Combination Meter: Location

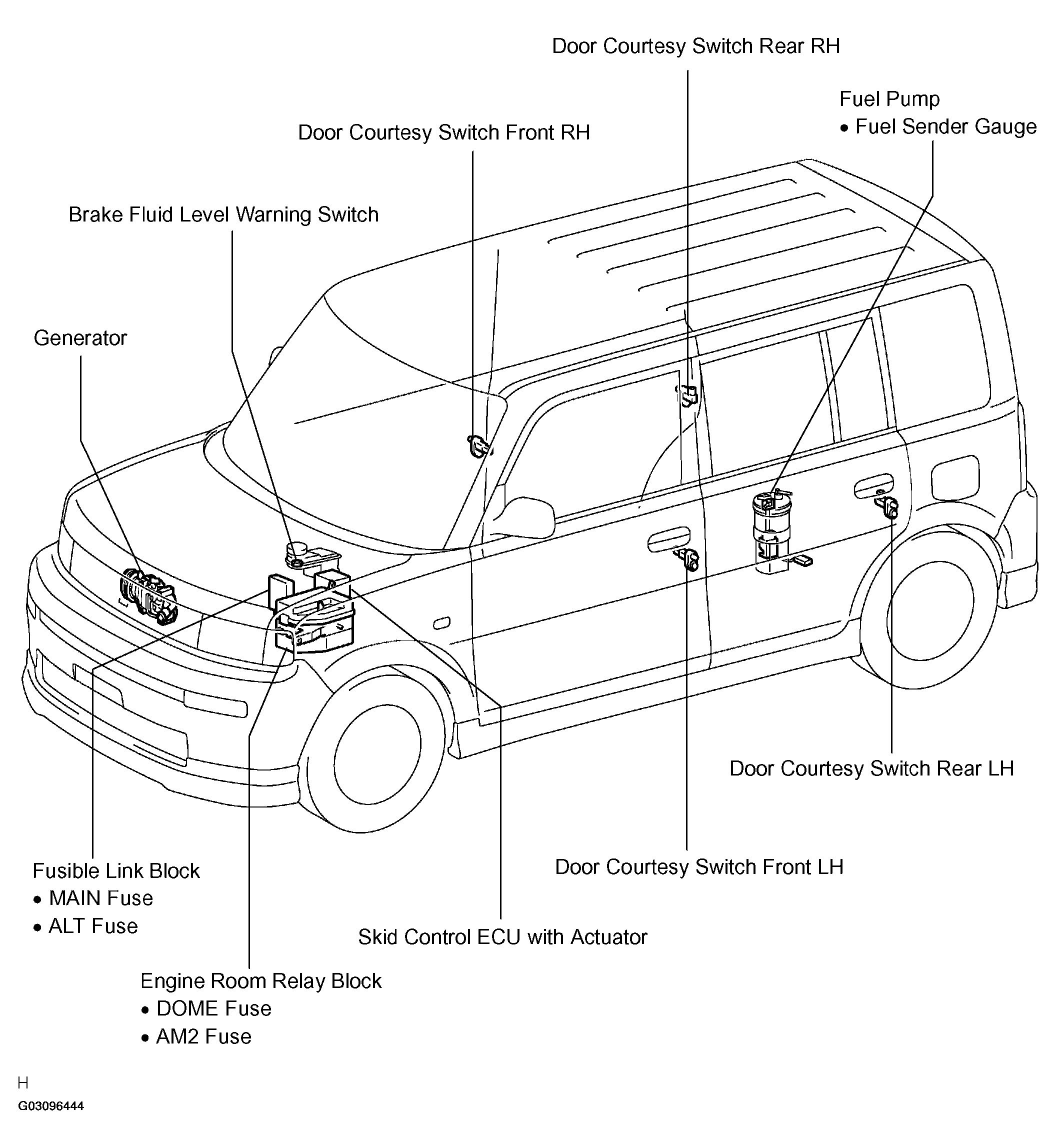

Fig 1: Identifying Combination Meter Components Location (1 Of 3)
G03096444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

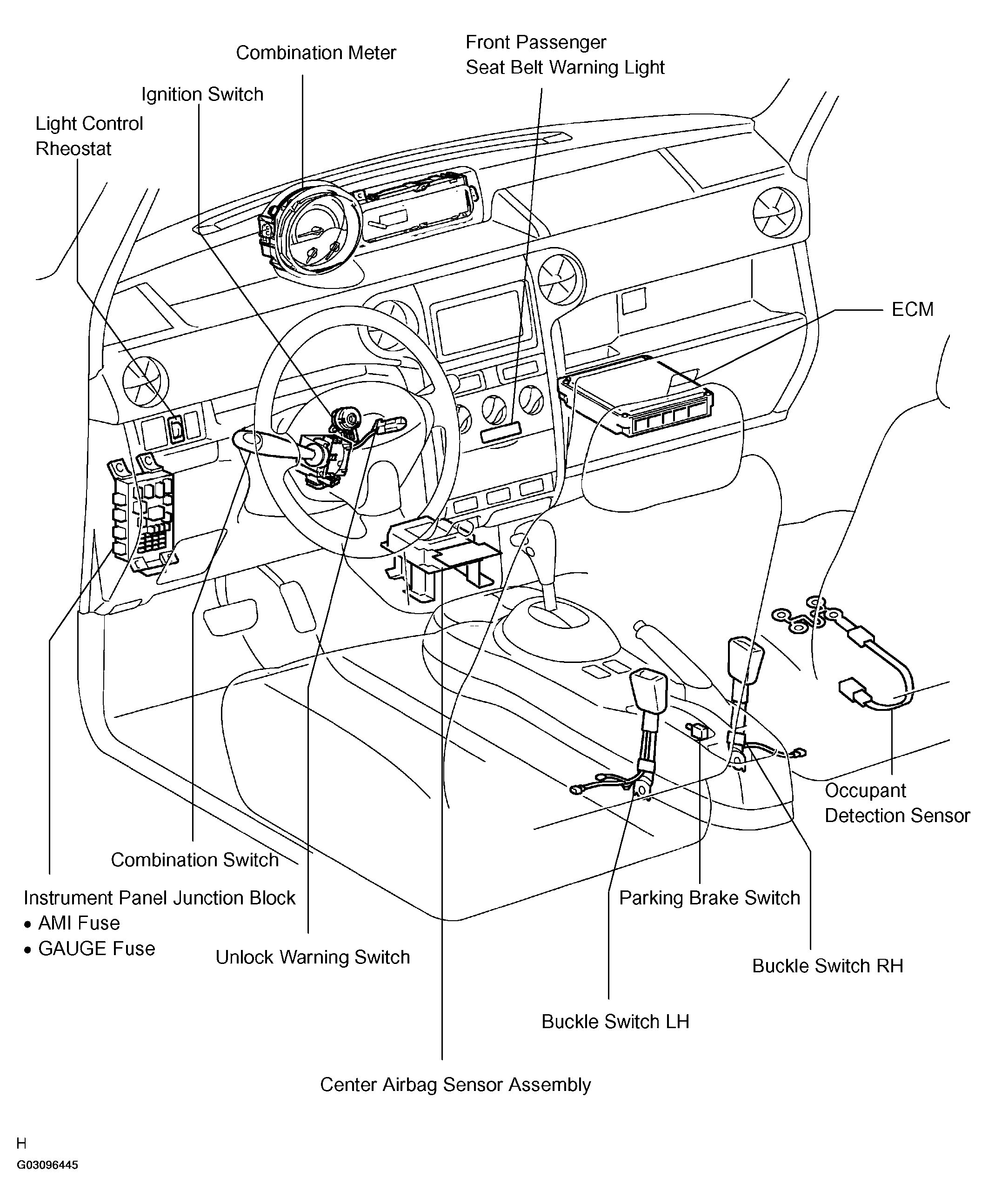

Fig 2: Identifying Combination Meter Components Location (2 Of 3)
G03096445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Combination Meter Components Location (3 Of 3)
G03096446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
