System Diagram

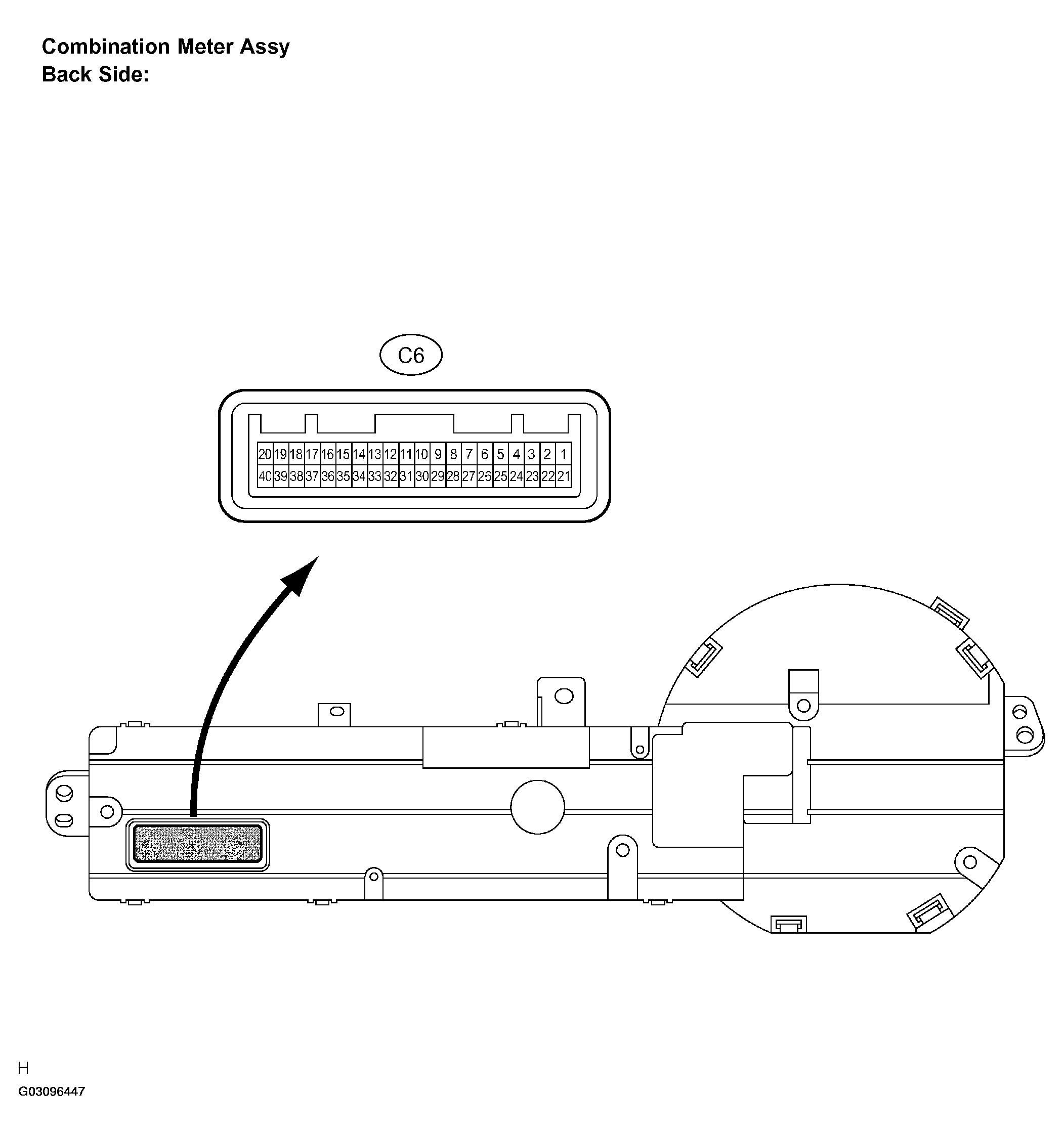

Fig 1: Identifying Combination Meter Connector (Back Side)
G03096447Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

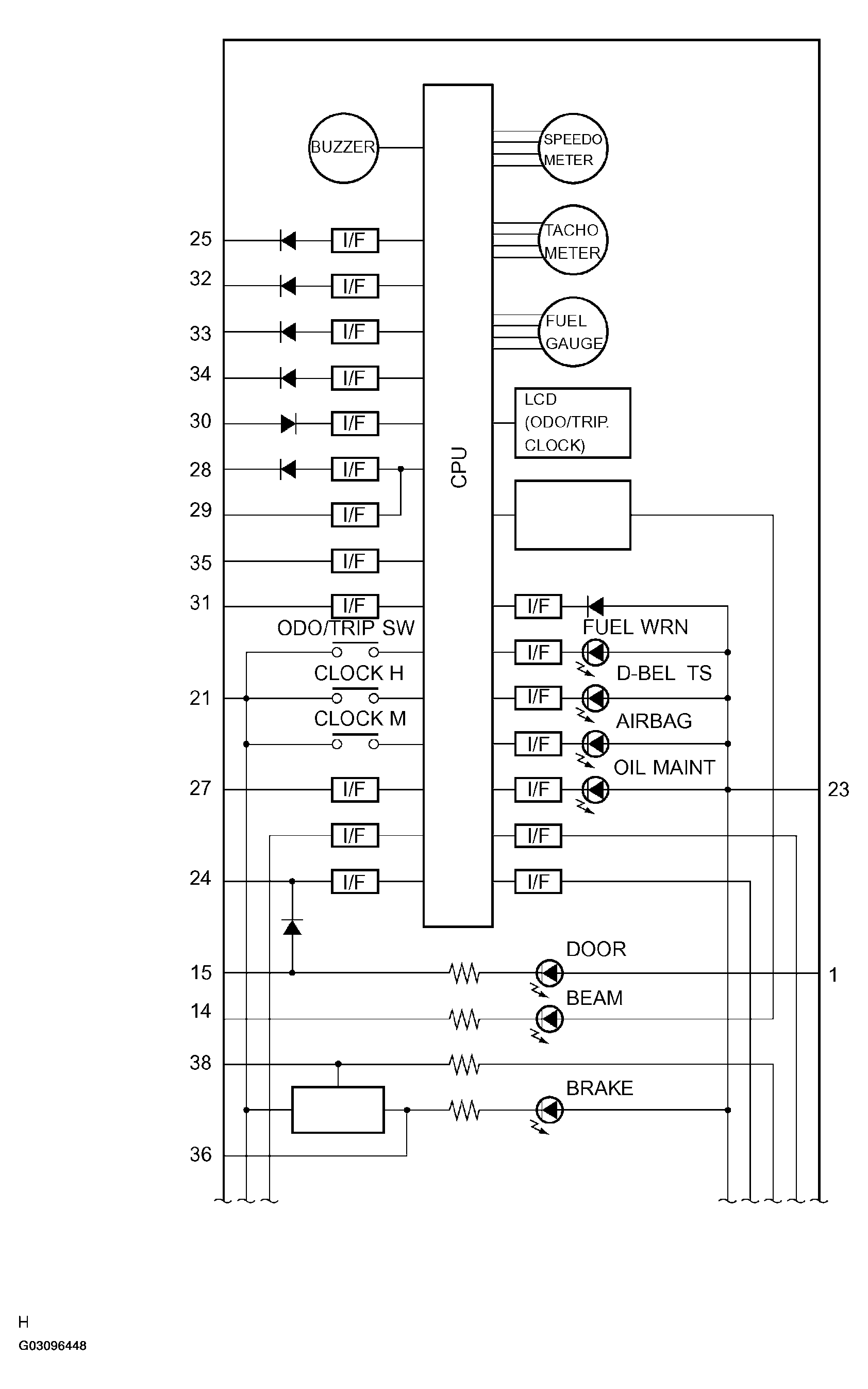

Fig 2: System Diagram - Combination Meter (1 Of 2)
G03096448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

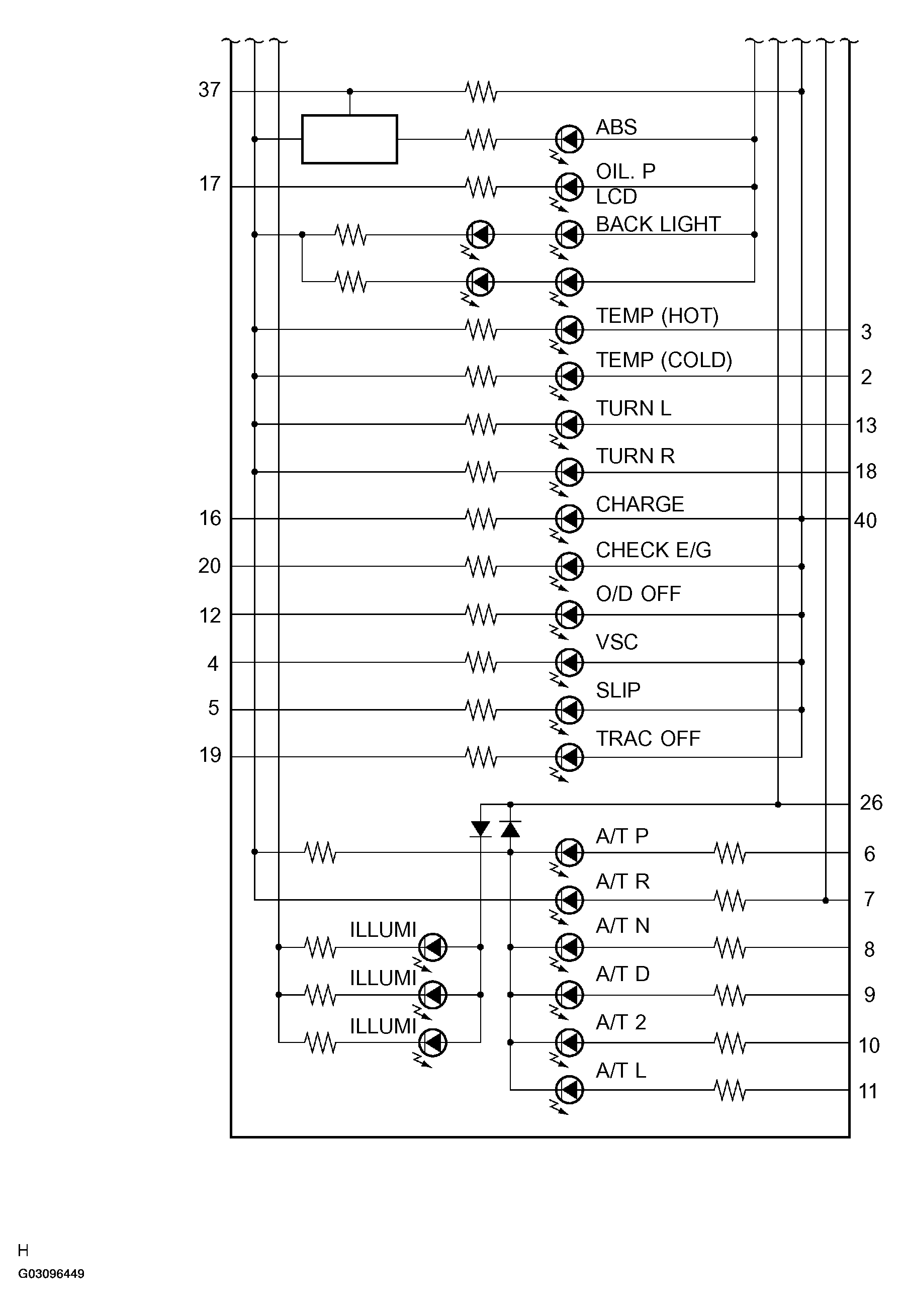

Fig 3: System Diagram - Combination Meter (2 Of 2)
G03096449Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

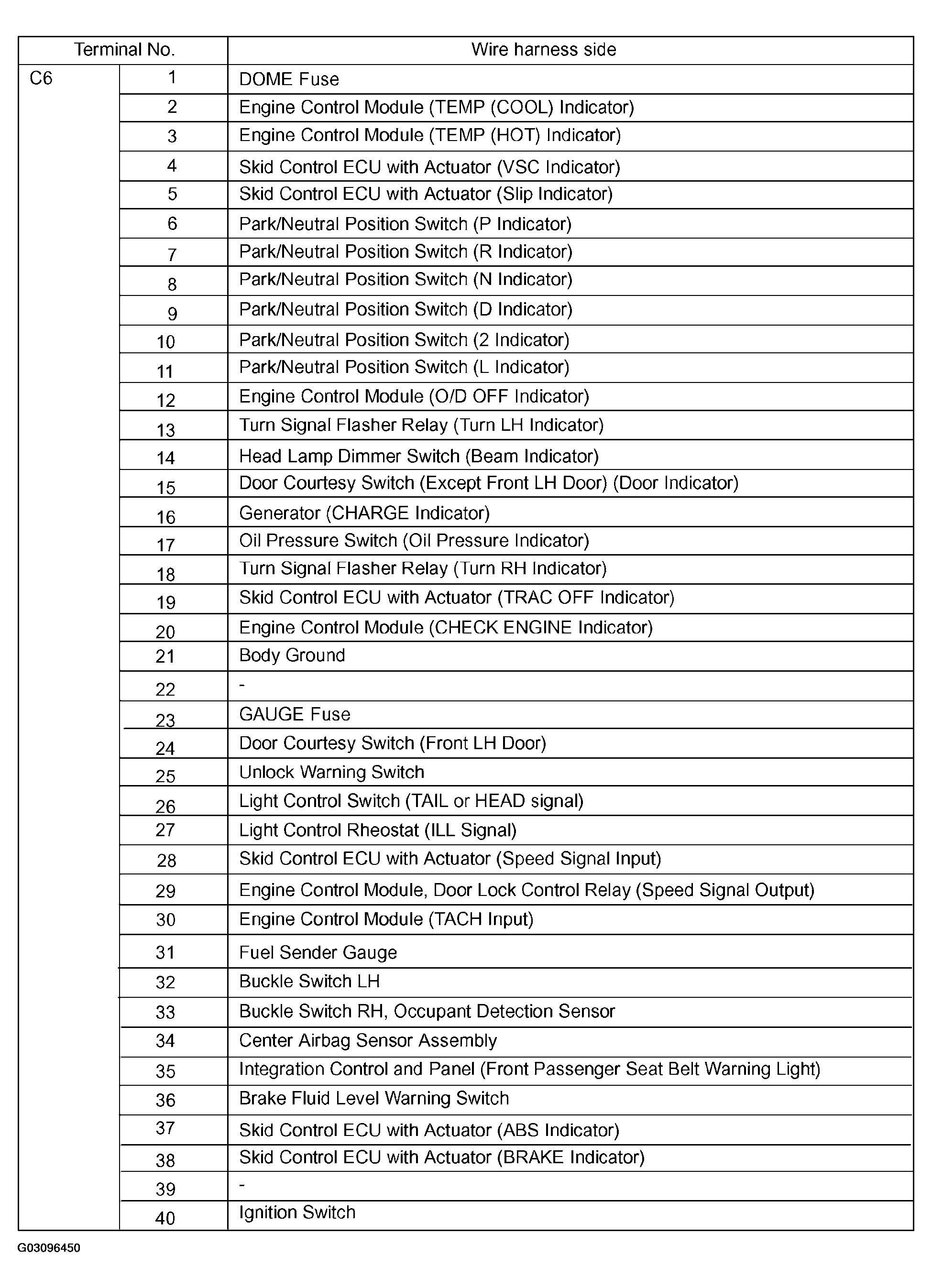

Fig 4: Combination Meter Terminals Number And Wire Harness Side Chart
G03096450Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
