Combination Meter: Inspection

  1. LIGHT CONTROL RHEOSTAT
    1. Measure the resistance according to the value(s) in Fig 1.

      Standard:

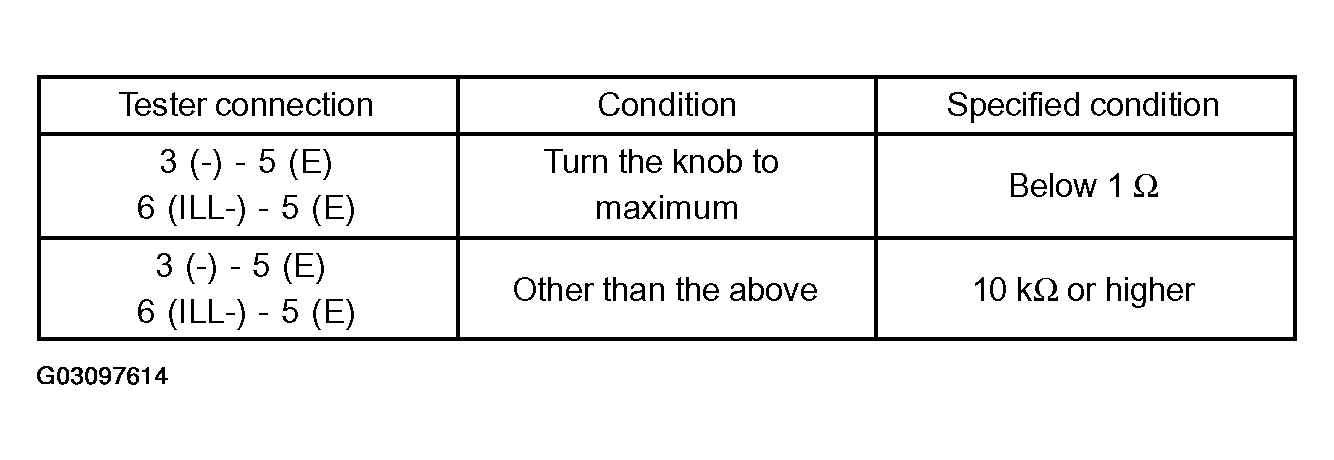

      Fig 1: Light Control Rheostat Resistance Table
      G03097614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

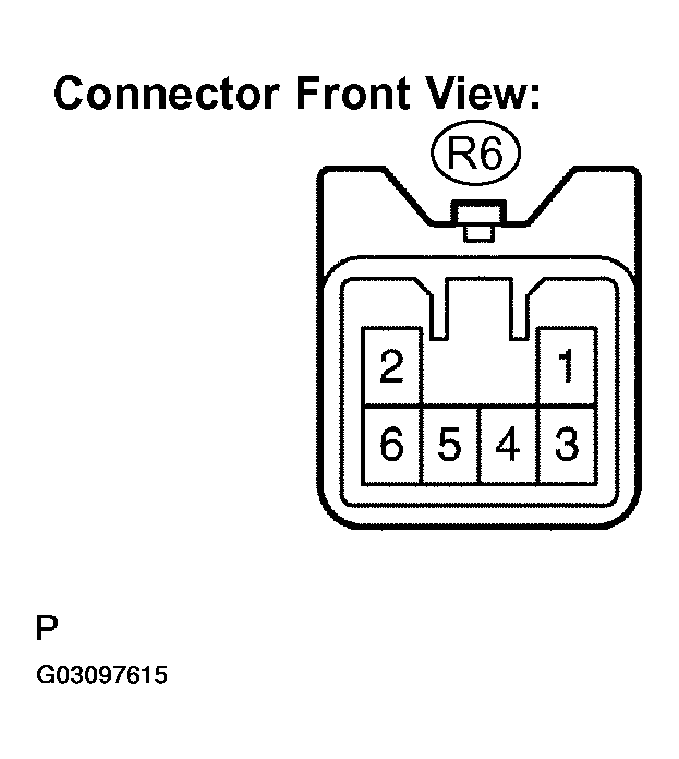

      Fig 2: Identifying Light Control Rheostat Connector Terminals
      G03097615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
