Throttle Body ASSY: Components

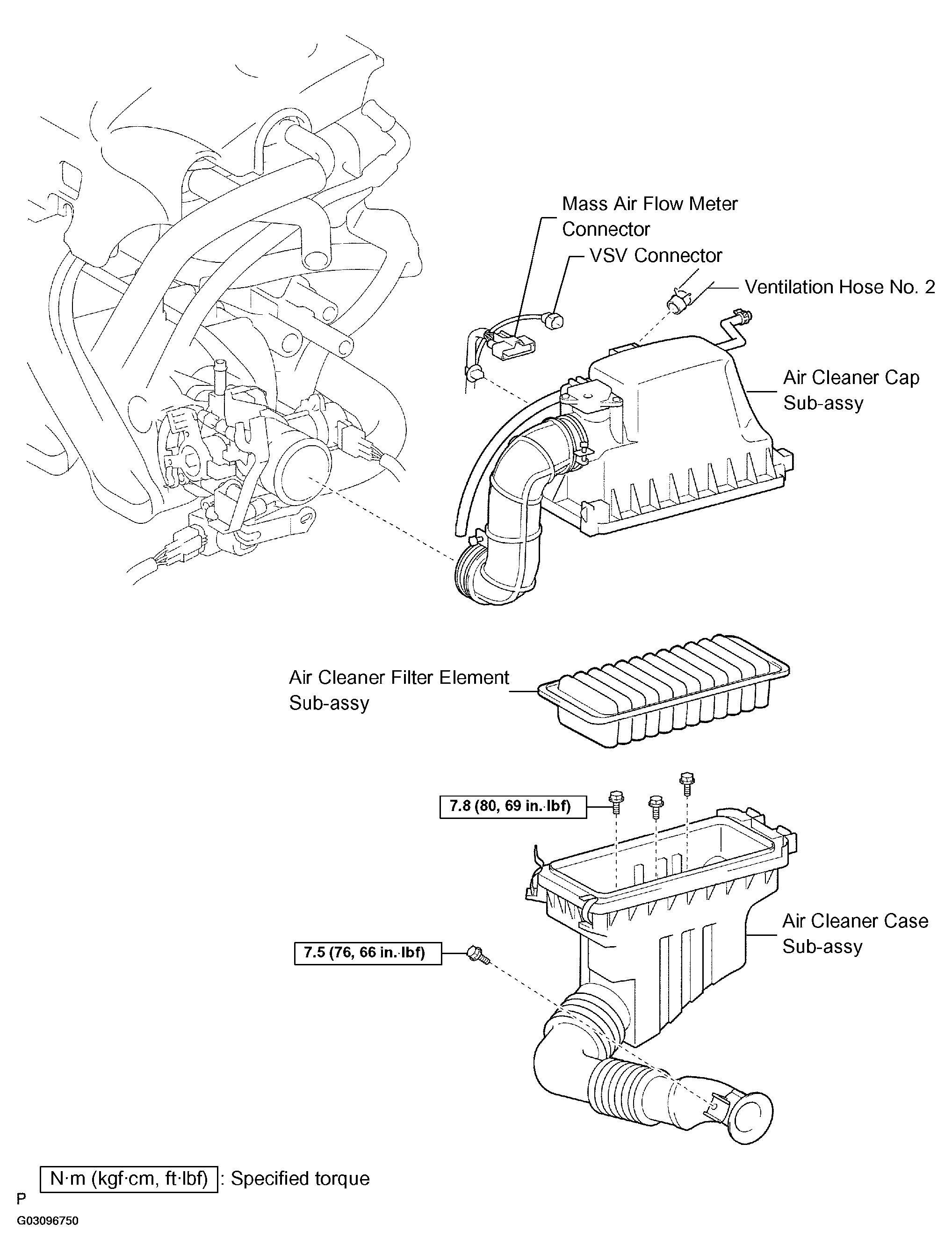

Fig 1: Identifying Throttle Body Assembly Components (1 Of 2)
G03096750Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

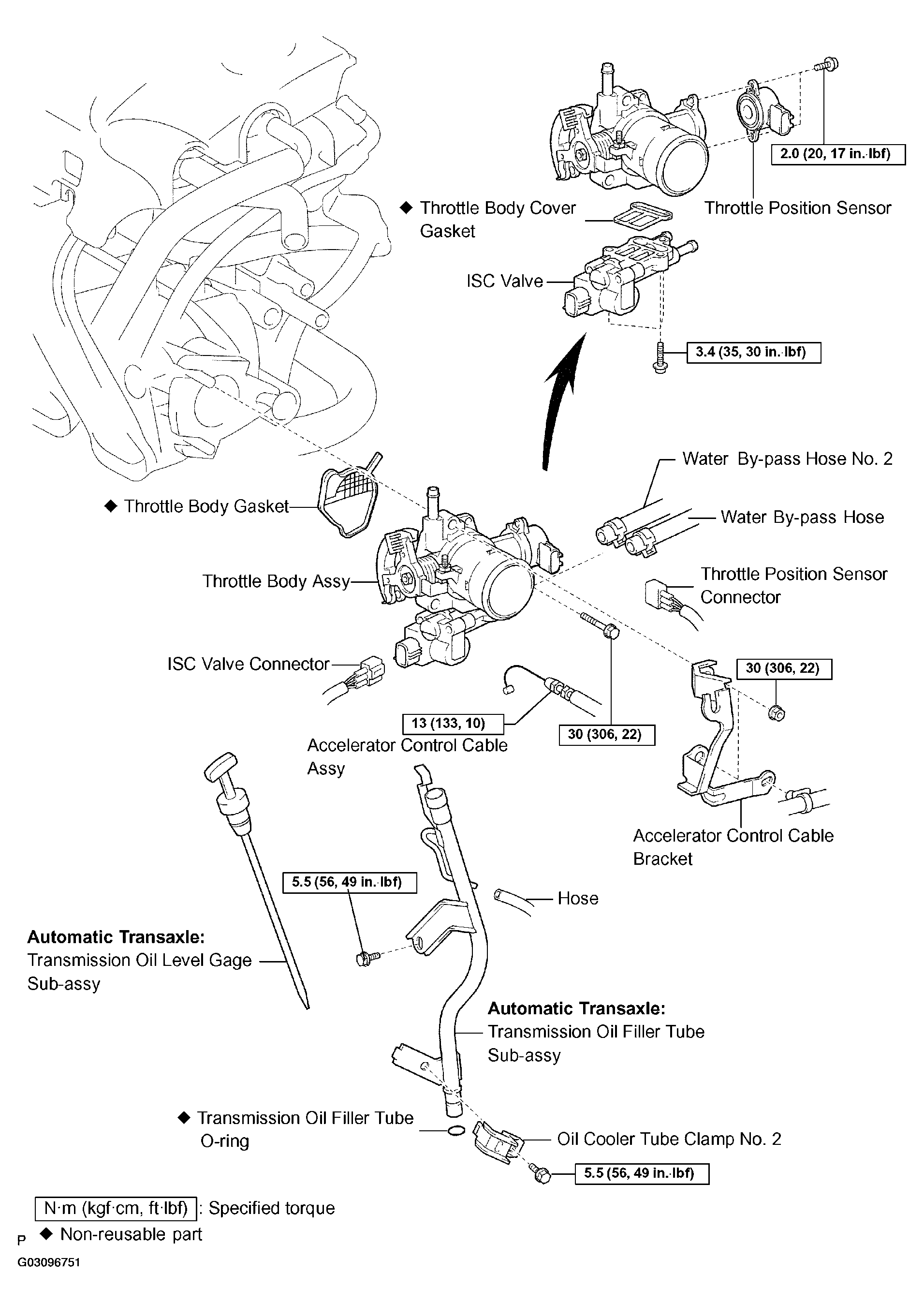

Fig 2: Identifying Throttle Body Assembly Components (2 Of 2)
G03096751Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
