Home >> Scion >> 2005 >> xB Automatic >> Repair and Diagnosis >> General Information >> OEM General Information >> Service Specifications >> Engine Mechanical >> Torque Specifications

Torque Specifications

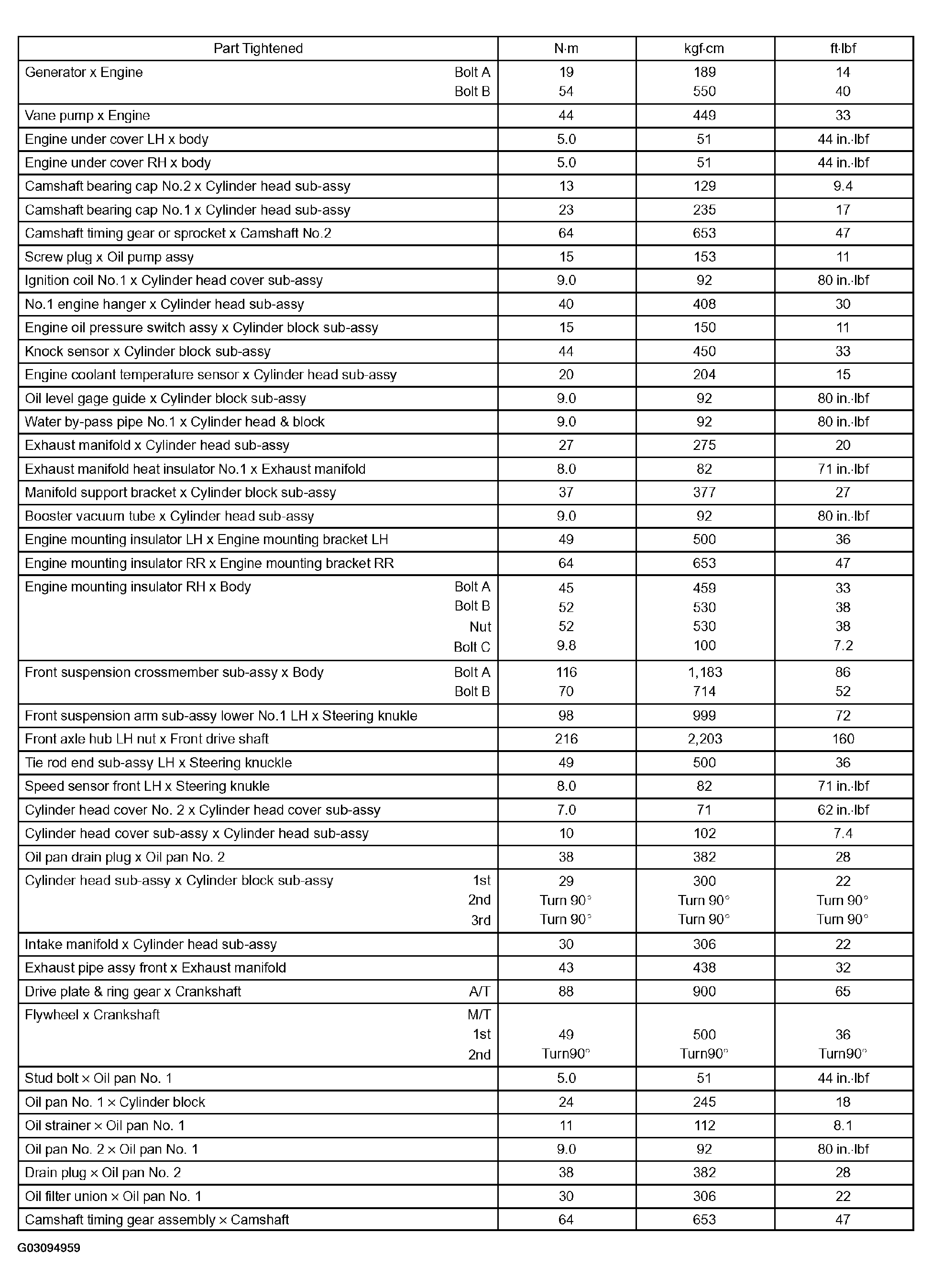

Fig 1: Engine Mechanical Torque Specifications (1 of 2)
G03094959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

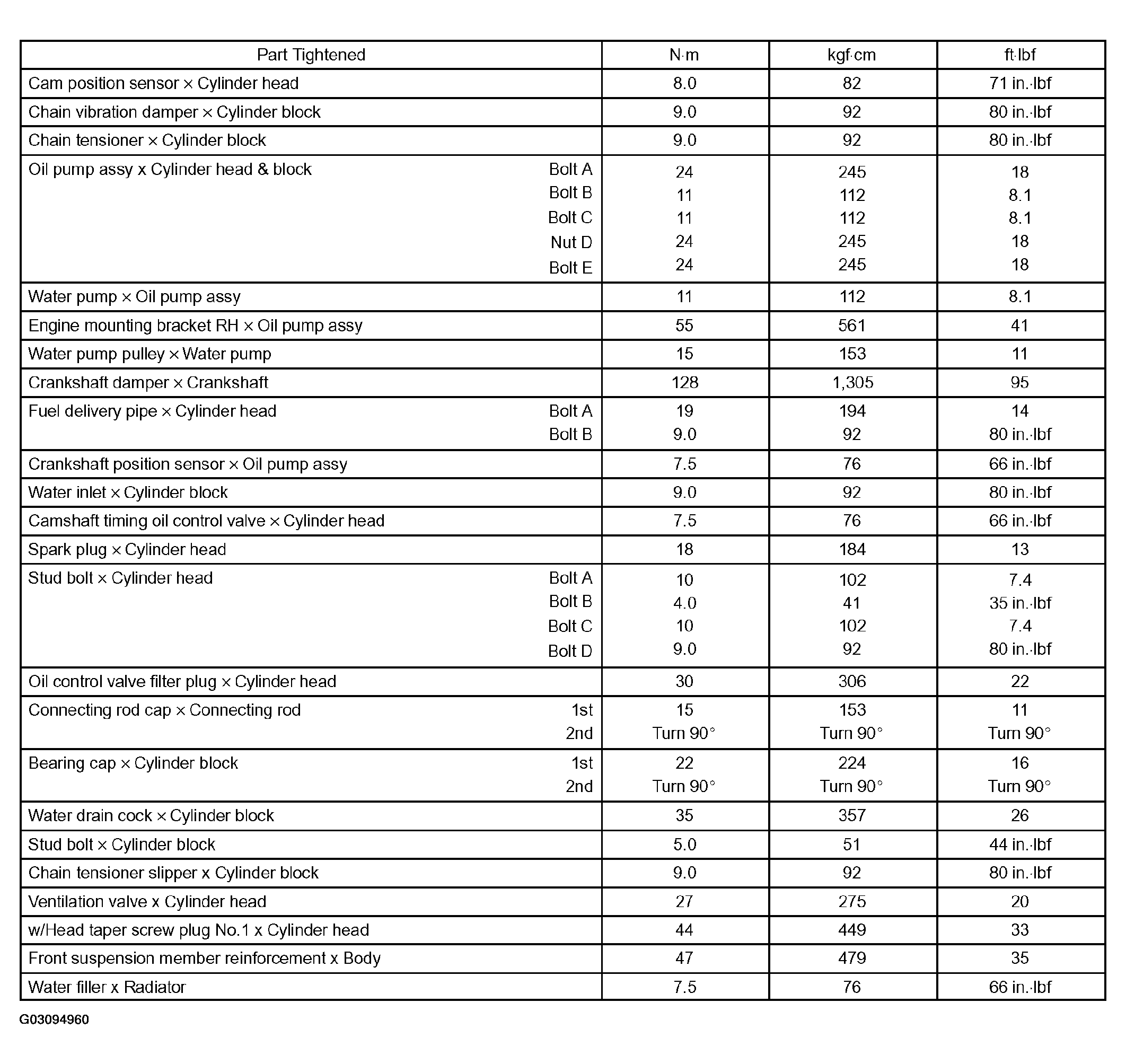

Fig 2: Engine Mechanical Torque Specifications (2 of 2)
G03094960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
