Stabilizer Bar Front: Replacement

HINT:

See COMPONENTS

  1. REMOVE FRONT WHEELS
  2. REMOVE HOOD SUB-ASSY (See  ADJUSTMENT  )
  3. SUSPEND ENGINE ASSY (See  REPLACEMENT  )
  4. SEPARATE FRONT SUSPENSION ARM SUB-ASSY LOWER NO. 1 LH (See  FRONT SUSPENSION ARM SUB-ASSY LOWER NO. 1 LH (ATM)  )

    SST 09628-00011

  5. SEPARATE FRONT SUSPENSION ARM SUB-ASSY LOWER NO. 1 RH

    SST 09628-00011

    HINT:

    Separation of the RH is the same as that of the LH.

  6. SEPARATE STABILIZER BAR FRONT (See  FRONT SUSPENSION ARM SUB-ASSY LOWER NO. 1 LH (ATM)  )
  7. SEPARATE POWER STEERING LINK ASSY (See  FRONT SUSPENSION ARM SUB-ASSY LOWER NO. 1 LH (ATM)  )
  8. SEPARATE PRESSURE FEED TUBE ASSY (See  FRONT SUSPENSION ARM SUB-ASSY LOWER NO. 1 LH (ATM)  )
  9. SEPARATE FRONT SUSPENSION CROSSMEMBER SUB-ASSY (See  FRONT SUSPENSION ARM SUB-ASSY LOWER NO. 1 LH (ATM)  )
  10. REMOVE STABILIZER BAR FRONT
    1. Remove the 4 bolts and the 2 bushings front stabilizer bracket No. 1 LH and RH.
    2. Remove the stabilizer bar front.

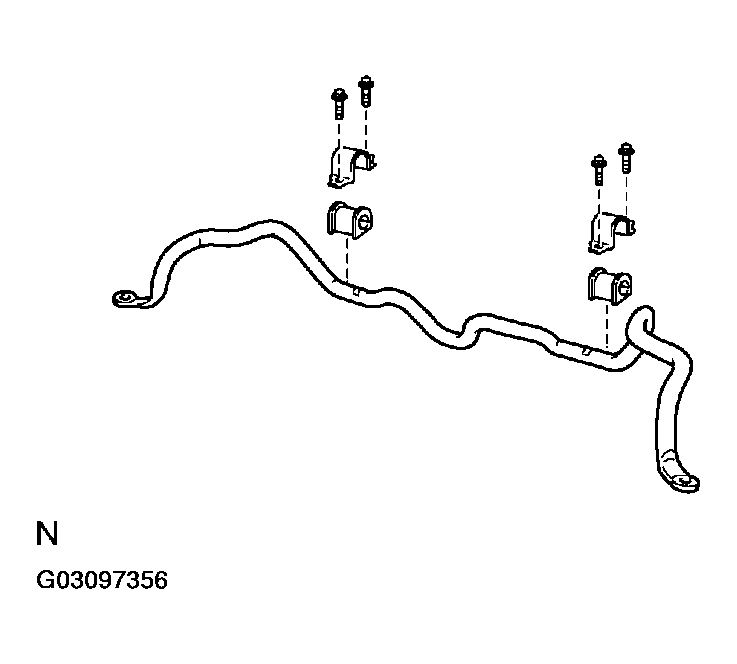

      Fig 1: Removing Stabilizer Bar Front
      G03097356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL STABILIZER BAR FRONT
    1. Install the stabilizer bar, the 2 bushings, and the brackets with the 4 bolts.

      Torque: 37 N.m (377 kgf.cm, 27 ft.lbf)

      NOTE: Install the bushings with the slit facing to the rear side of the vehicle.

      HINT:

      Install the bushings on the outside of each paint line.

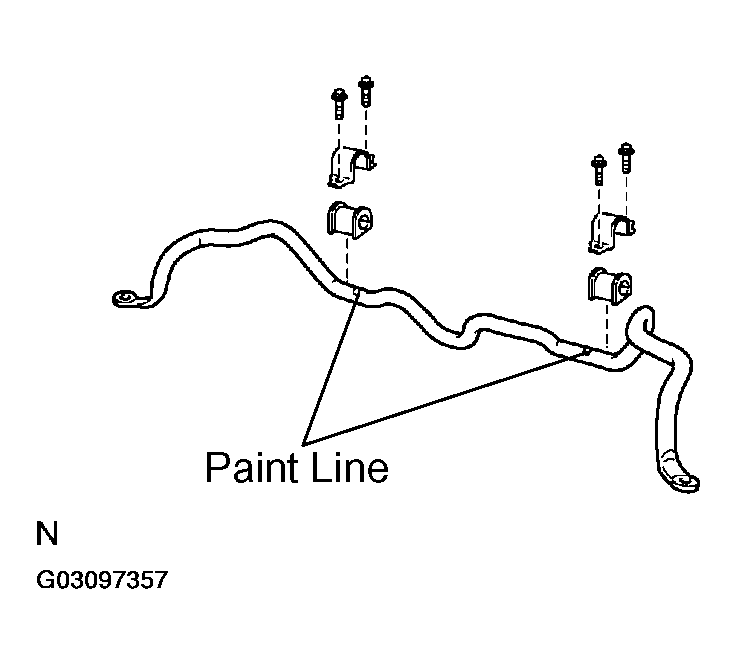

      Fig 2: Installing Stabilizer Bar Front
      G03097357Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. CONNECT FRONT SUSPENSION CROSSMEMBER SUB-ASSY (See  FRONT SUSPENSION ARM SUB-ASSY LOWER NO. 1 LH (ATM)  )
  13. CONNECT PRESSURE FEED TUBE ASSY (See  FRONT SUSPENSION ARM SUB-ASSY LOWER NO. 1 LH (ATM)  )
  14. CONNECT POWER STEERING LINK ASSY (See  FRONT SUSPENSION ARM SUB-ASSY LOWER NO. 1 LH (ATM)  )
  15. CONNECT STABILIZER BAR FRONT (See  FRONT SUSPENSION ARM SUB-ASSY LOWER NO. 1 LH (ATM)  )
  16. CONNECT FRONT SUSPENSION ARM SUB-ASSY LOWER NO. 1 LH (See  FRONT SUSPENSION ARM SUB-ASSY LOWER NO. 1 LH (ATM)  )
  17. CONNECT FRONT SUSPENSION ARM SUB-ASSY LOWER NO. 1 RH

    HINT:

    Connection of the RH is the same as that of the LH.

  18. INSTALL FRONT WHEELS

    Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)

  19. INSTALL HOOD SUB-ASSY (See  ADJUSTMENT  )
  20. INSPECT HOOD SUB-ASSY (See  ADJUSTMENT  )
  21. ADJUST HOOD SUB-ASSY (See  ADJUSTMENT  )
  22. INSPECT AND ADJUST FRONT WHEEL ALIGNMENT (See  ADJUSTMENT  )
