Problem Symptoms Table

HINT:

If a normal code is displayed during the DTC check but the trouble still occurs, check the circuits for each symptom in the order given in Fig 1, Fig 2 and Fig 3.

The Matrix Chart is divided into 3 chapters.

• If the instruction "Proceed to next circuit inspection shown on matrix chart" is given in the flow chart for each circuit, proceed to the circuit with the next highest number in the table to continue the check.
• If the trouble still occurs even though there are no abnormalities in any of the other circuits, then check and replace the ECM.

CHAPTER 1: ELECTRONIC CIRCUIT MATRIX CHART

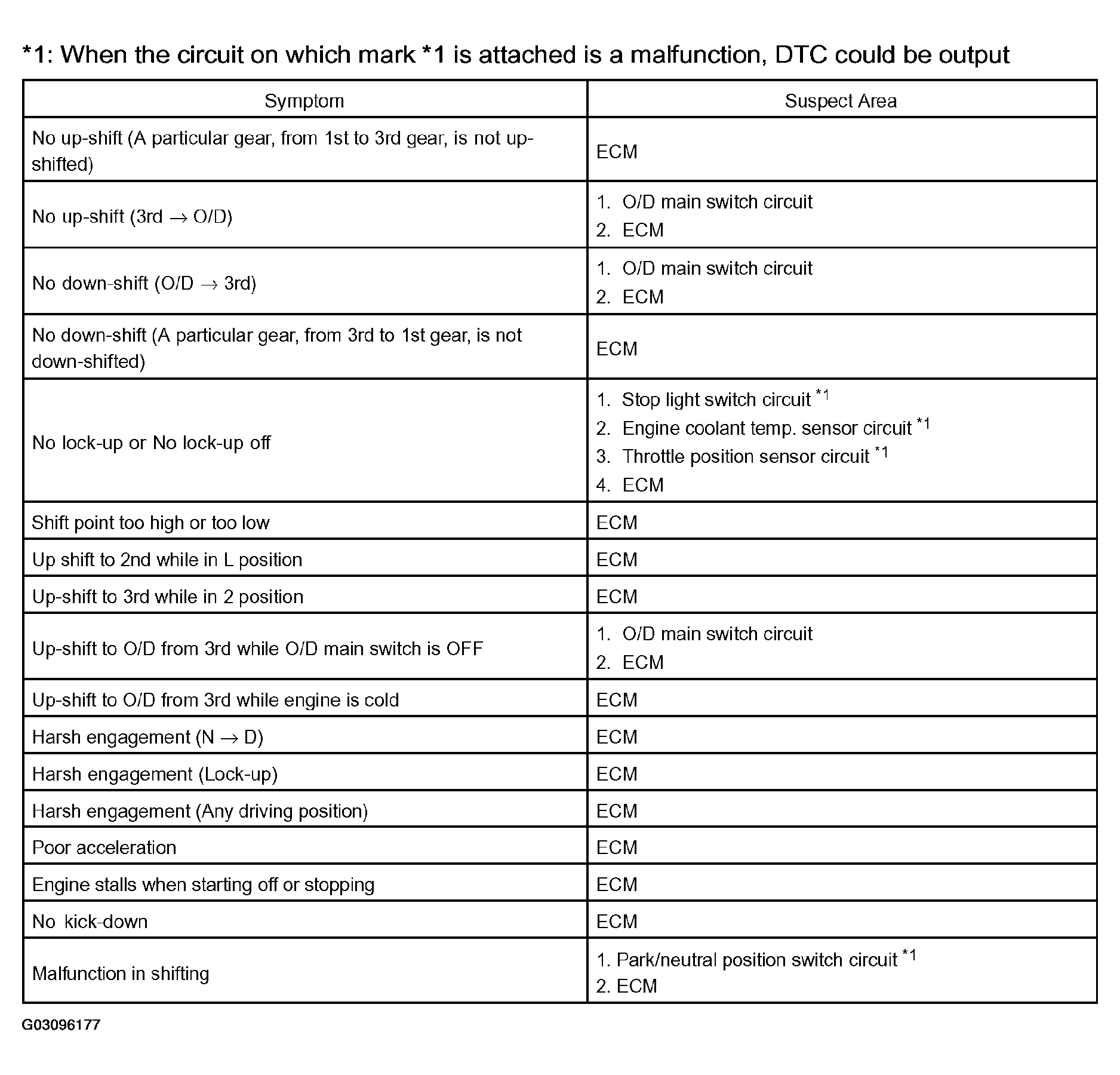

Fig 1: Electronic Circuit Matrix Symptoms Chart (Chapter 1)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Chapter 2: On-vehicle Repair

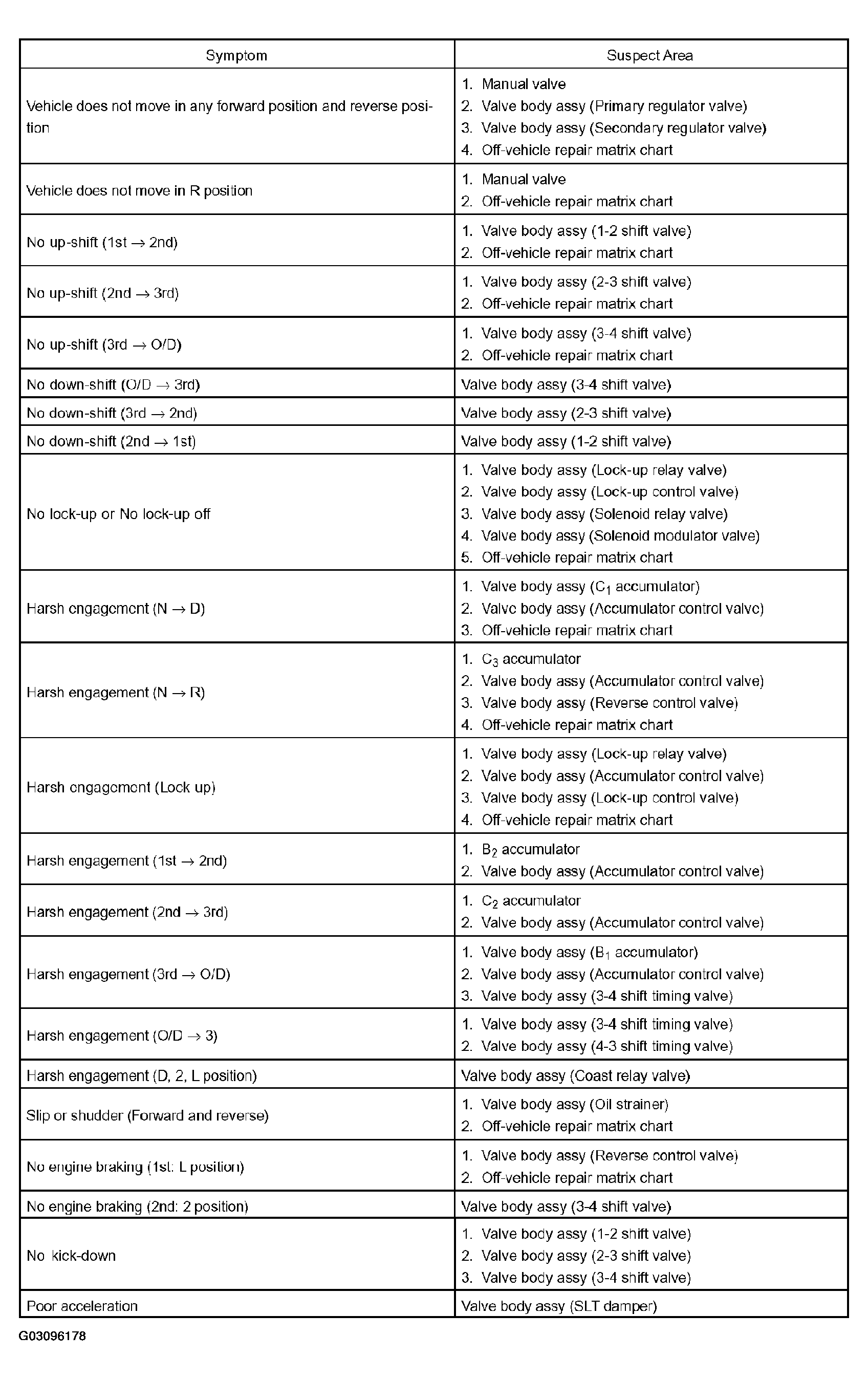

Fig 2: On-Vehicle Repair Chart (Chapter 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Chapter 3: Off-vehicle Repair

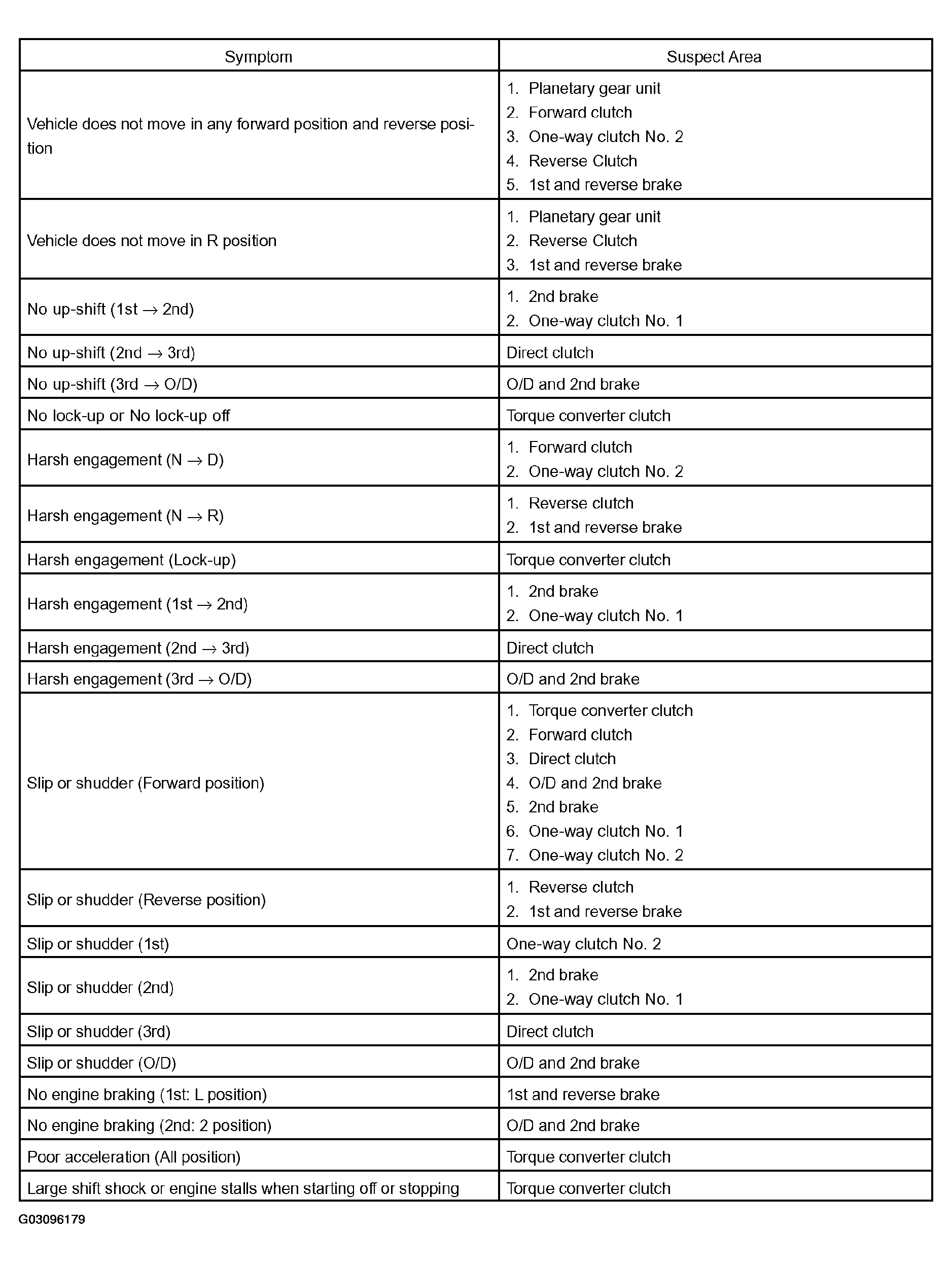

Fig 3: Off-Vehicle Repair Chart (Chapter 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
